Small wire drawing machine for making copper wire Products from Zhejiang Cooldo Electromechanical Equipment Co., Ltd.

Product Details

Mold capacity:	6 each time	Outlet Diameter:	0.2mm
Marketing Type:	Hot Products of 2022	Dimensions (LWH):	18007001230mm
Video shipment inspection:	if	Supply capacity:	1000 sets per month
place of origin; place of origin:	2 years	Voltage:	380V,380V
Packaging Details:	Standard export packaging	Drawing speed:	0-50m/min
brand:	Dorcaster	Package preview:
port:	Shenzhen	Mechanical test report:	if
weight:	370	cooling method:	Automatic liquid cooling
Drawing materials:	gold silver copper alloy	After-sales service provided:	online service
Wire diameter range:	2.2 to 0.2 mm	Core component warranty:	2 years
year:	2022	State of health:	new
Certification:	ISO9001	Core components:	gearbox
strength:	2.2 kW, 2.2 kW	Showroom location:	not any
Main selling points:	competitive price	Warranty:	2 years
Applicable industries:	Energy and Mining, Other	payment terms:	L/C, Western Union, T/T
application:	Drawing process	Inlet diameter:	2.2mm

Product Description

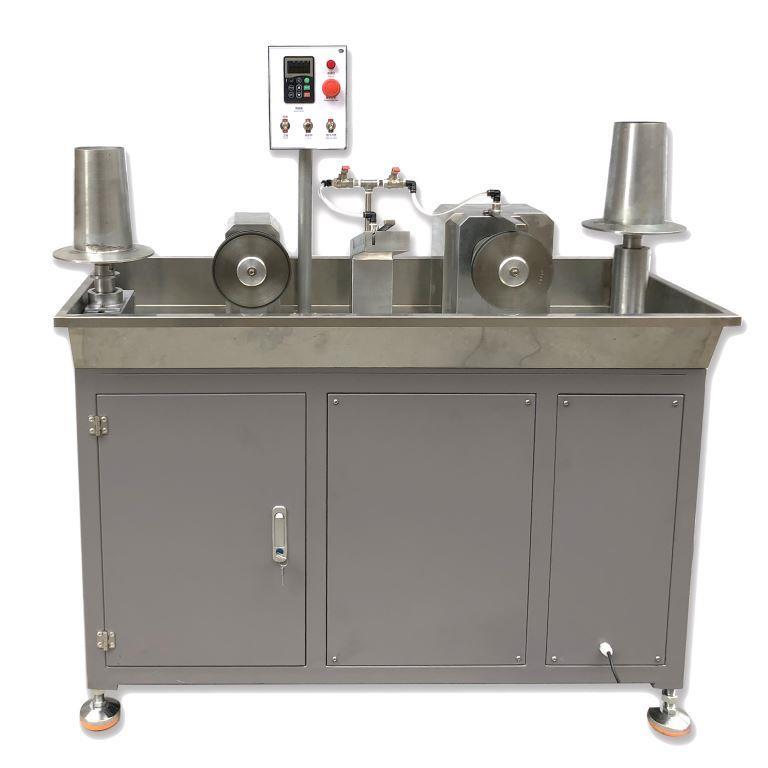

CDOCASTDrawing Machine

A wire drawing machine usually changes the diameter or shape of the wire from disk to disk through a wire drawing die to move the desired diameter or shape. Lubricating oil must be added when the wire enters the wire drawing die, and the wire drawing die has special cooling (usually water-cooled jacket cooling). The closing machine provides power.

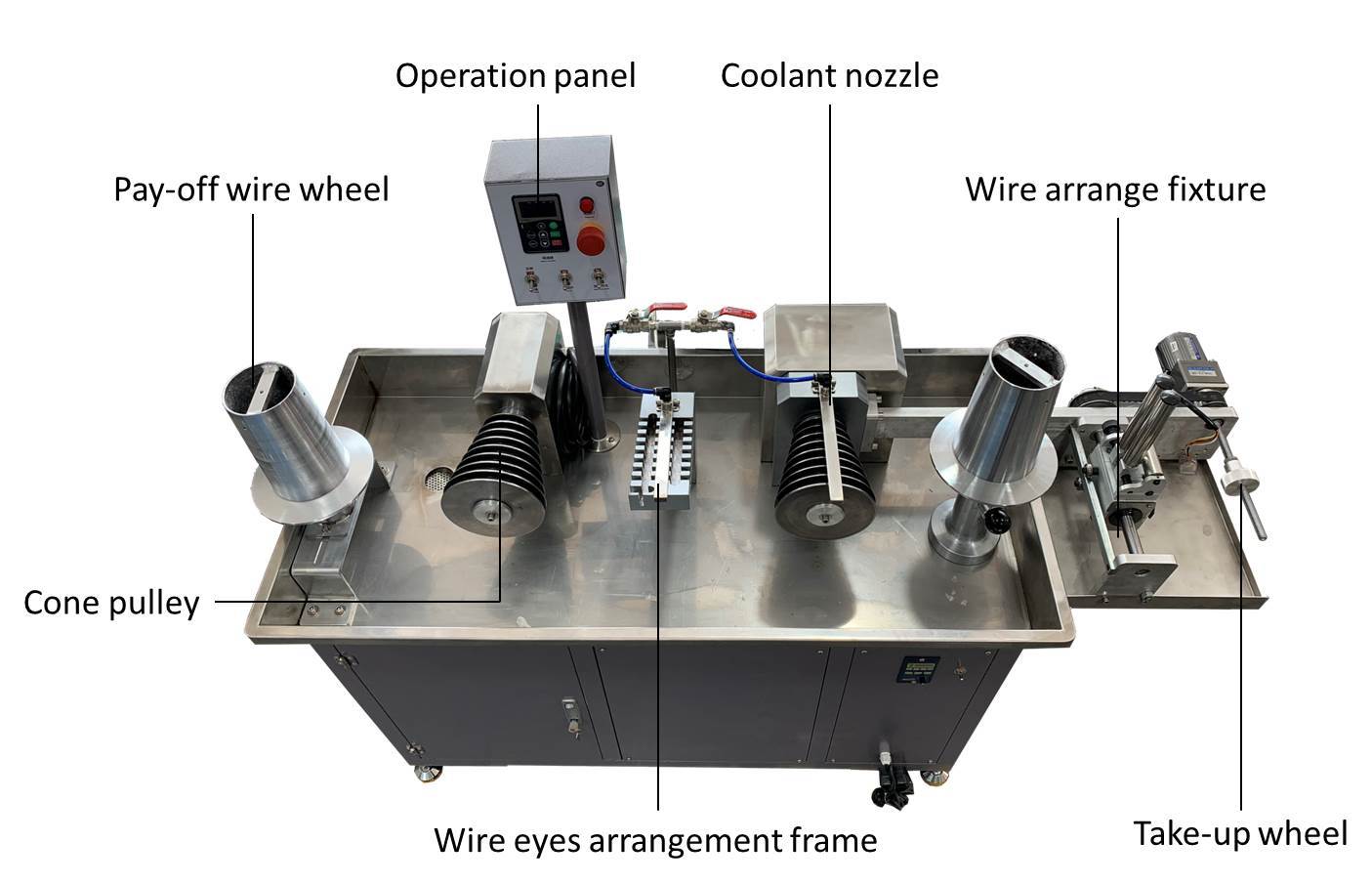

The wire enters the drawing room through the pay-off frame, and is stretched through the tower pulley and the drawing die. The cooling methods of wire drawing include spraying and semi-immersion. Then pass through the constant speed wheel, and then enter the take-up reel through the traction wheel. The stretching tower wheels are arranged horizontally in a single row.
The body of the wire drawing machine is welded by steel plate and section steel. The tower wheel shaft transmission adopts double chain transmission. The surface of the cone pulley is specially treated to improve the surface hardness and roughness. The mold base adopts mosaic design to ensure the center distance of wire drawing and reduce the probability of wire breakage. The upper part of the drawing box is equipped with a hinged start-up closed protection box cover to prevent the coolant from splashing out.
The cooling circulating water tank has an electric heating function, which meets the requirements of the wire drawing process, and the water inlet is equipped with a broken wire and parking device

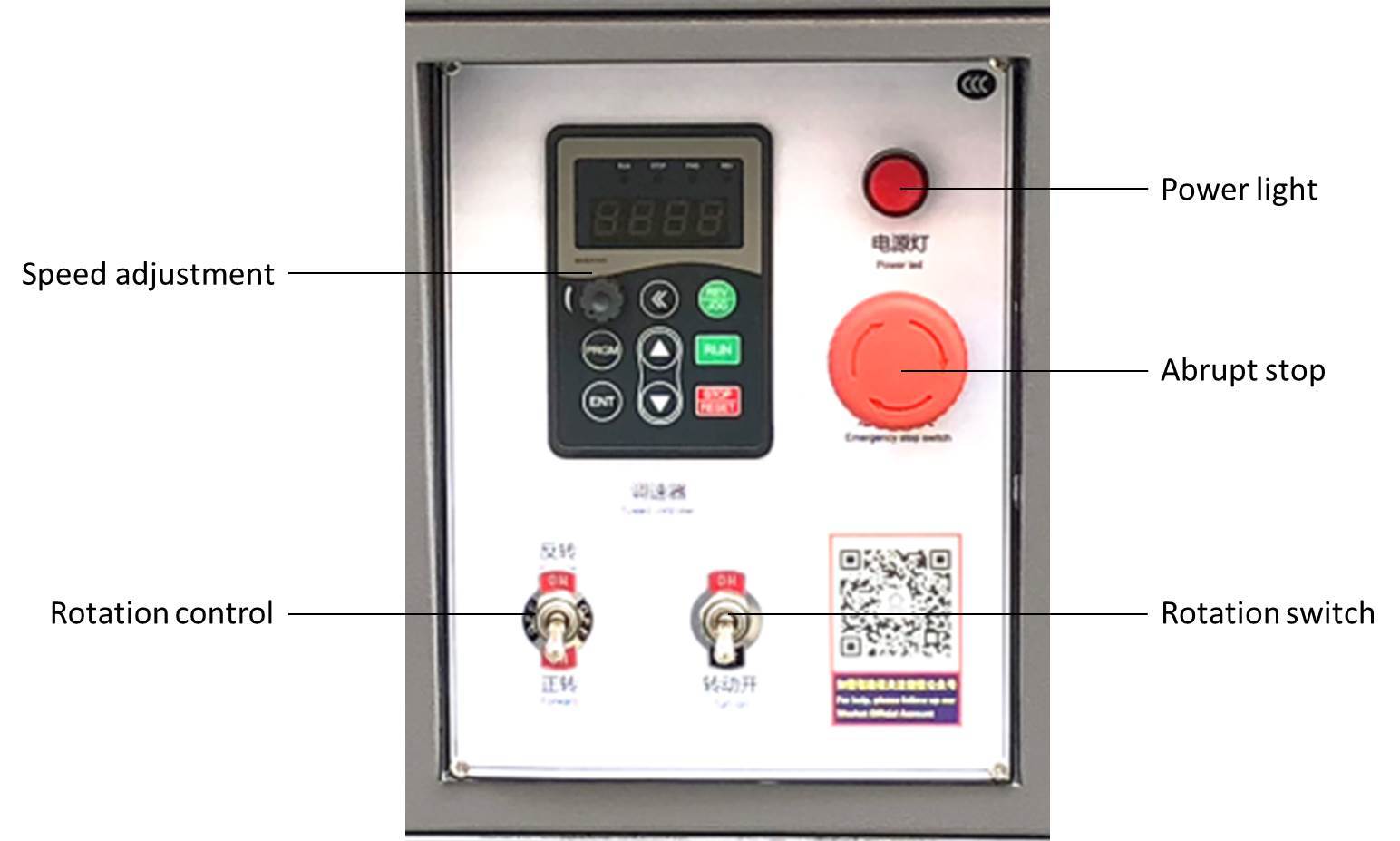

detailed drawing

Specification

model	CDO-WD6	CDO-F2
Voltage	Three-phase 380V, 50/60Hz
strength	2.2kw	4 kW
Applicable	Au, Ag, Cu wire shrinkage
Mold Capacity	6 each time	12/time
Wire diameter range	2.2mm→0.2mm	2.2mm→0.2mm
drawing speed	0-50m/min	0-50m/min
size	18007001230mm	18007001230mm
weight	370 kg	390 kg
cooling method	Automatic liquid cooling	Automatic liquid cooling

feature

1: CDOCAST wire drawing machine has high efficiency. The wire wheel is precision manufactured with imported materials, and the wheel surface is carburized to improve wear resistance.
2: The motor adopts stepless speed regulation design, equipped with automatic roll changing and winding machine.
3: The whole machine is equipped with an automatic cooling system, and it will automatically stop after work.

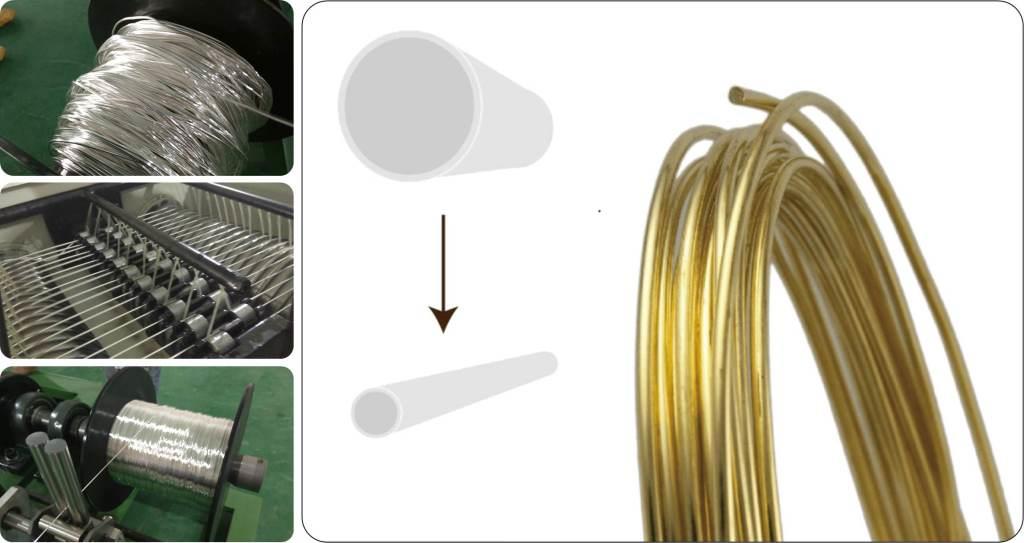

application
