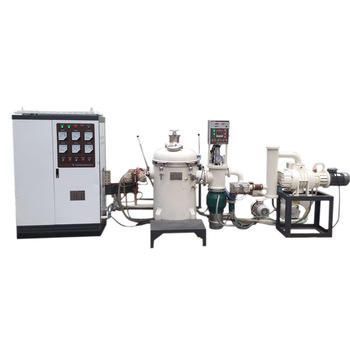

In 2022, the new machine laboratory will use a 15kw vacuum precious metal melting furnace to smelt rhodium and boron

1. The small vacuum melting furnace has a stylish appearance, compact structure and covers an area of ​​less than 2 square meters
2. The vacuum furnace can be designed as a side door structure, which is convenient for taking and unloading materials.
4. The furnace shell adopts a double-layer water-cooling structure, and the surface temperature does not exceed 40 °C, which is safer and more reliable.
5. There is an observation window on the furnace cover, which is convenient for observing the melting of materials. The furnace body is equipped with air inlet and outlet, and several KF interfaces are reserved to facilitate connection with other equipment.
6. The electrode can be rotated.
7. Equipped with a secondary feeding device, which can add other elements during the smelting process to make various alloy materials.
8. Adopt IGBT special power supply, all-digital circuit. The electrical system is provided with overcurrent, overvoltage feedback and protection circuits. The electric control box is manufactured according to Siemens standard, with high temperature control precision and convenient operation.
9. The small vacuum melting furnace can use two-stage pumps, namely mechanical pump and molecular pump, and the vacuum degree can reach 8×10-4P.
