XRF Gold Metal Analyzer SAP9500 with Si Needle Detector
- 5200.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Sales unit: | single product | weight: | 48kg |
| Packaging Details: | Standard export packaging | Melting material: | Gold, silver, copper, etc. |
| Gross weight per piece: | 50.000 kg | Single package size: | 65X45X35 cm |
| place of origin; place of origin: | China | Operating environment: | -5~40 degrees |
| Packaging Preview: | model: | SAP9500 | |
| brand: | podcast | application: | Metal Analysis |
| net weight: | 40kg | Analysis scope: | 1%-99.99% |
| After-sales service provided: | online service | Custom Support: | OEM |
| Warranty: | 2 years | Certification: | ISO9001 |
| accurate: | 0.0001 | testing time: | 1~60 seconds |
| size: | 650*450*350mm,460*390*350mm |
Product Description
CDOCASTXRF Gold Analyzer
Background of the XRF Gold AnalyzerHow the XRF Gold Analyzer Works
The atoms of the element emit spectral lines under the action of the excitation light source, and the spectral lines are separated by the grating to form a spectrum. Each element has its own characteristic spectral line. The intensity of the spectral line can represent the content of the element in the sample. Liton spectrometers use photodetectors to convert the radiant energy of the spectrum into electricity. The detected output signal is processed and displayed on the readout device. Then, according to the analysis curve made by the corresponding reference material, the content of the element to be measured in the analysis sample is obtained.
The XRF Gold analyzer is a scientific instrument that breaks complex light into spectral lines. It consists of prisms or diffraction gratings. Spectrometers measure the light reflected from the surface of an object.
1: In view of the scarcity and preciousness of precious metals, traditional destructive detection methods such as strike methods have long been unable to adapt to the market. A fast, accurate and non-destructive detection method is urgently needed.
2: The adulteration of gold and silver jewelry on the market has been repeatedly banned. Fake products such as gold-clad copper have brought huge losses to merchants and customers. The high efficiency and accuracy of CDOCAST spectrometers help merchants avoid this transaction risk
CDOCAST Precious Metal Detection X-ray Spectrometer is a high precision XRF analyzer designed for precious metal and jewelry detection. The measurement process takes only a few seconds; the measurement results are displayed in % and carat.
The XRF Gold analyzer can also be used to detect coatings and non-standard alloys. The instrument can be operated using the embedded display or CDOCAST software installed on a PC. A CCD camera is used for precise sample positioning. Automatic variable collimator, free choice of required measuring point size
CDOCAST XRF Gold analyzer is equipped with high-precision weighing and printing function, can print analysis results at any time, including chemical composition, weight, price, and is equipped with rechargeable lithium battery for on-site analysis.
XRF Gold Analyzers for Precious Metal Detection
Jewelry Analysis
Precious metal smelting industry
precious metal
detailed picture
Specification

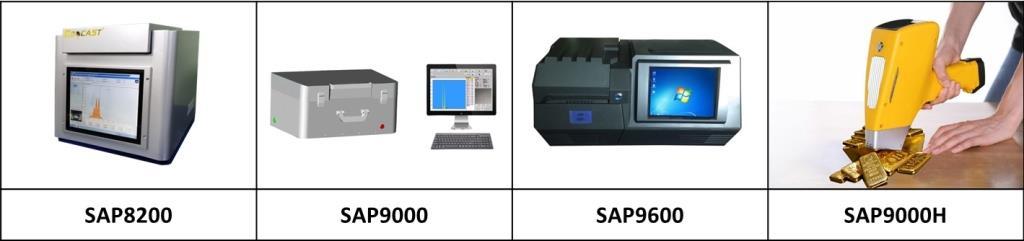

model | SAP8200 | SAP9000 | SAP9600 | ||
Analysis scope | 1%-99.99% | ||||
accurate | 0.001 | 0.01% to 0.1% | 0.0001 | ||
Operating environment | -5°C~40°C | ||||
net weight | 40kg | 40kg | 40kg | ||
size | 400*430*350mm | 400*300*650mm | 650*450*350mm | ||
testing time | 30~60 seconds | 30~60 seconds | 1~60 seconds | ||
model | Measuring element |
SAP8200 | Gold/Silver/Copper/Platinum/Palladium, Iridium, Cadmium |
SAP9000 | Au Ag Pt Pd Cu Ni Zn Rh Cd Ru Fe Co Ir W Os Pb (16 elements) |
SAP9600 | Au/Ag/Cu/Pt/Pd/Ni/Zn/Cd/Ir/Mn/Fe/Co/W/Os/Pb/Ru/Cr/Rh etc. (from "S" to "U" metal elements) |
feature
XRF Analyzer Features
1: High precision, fast test speed
2: Intuitive interface, the analyzer can work independently or connect to a PC
3: Our XRF analyzer can also perform coating inspection
4: Compact design, small footprint
5: Ergonomic design, equipped with LED, beautiful appearance
6: Transparent Cover Design - Sample Visible
7: Customer display - customers can observe the weight and chemical composition of the sample during the measurement process
8: Can be connected to other monitors for display
9: Provide USB interface for data export
1: High precision, fast test speed
2: Intuitive interface, the analyzer can work independently or connect to a PC
3: Our XRF analyzer can also perform coating inspection
4: Compact design, small footprint
5: Ergonomic design, equipped with LED, beautiful appearance
6: Transparent Cover Design - Sample Visible
7: Customer display - customers can observe the weight and chemical composition of the sample during the measurement process
8: Can be connected to other monitors for display
9: Provide USB interface for data export
application
