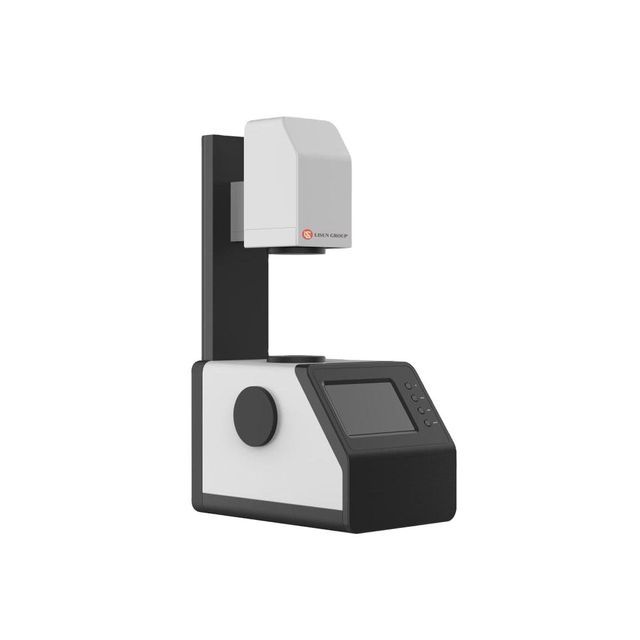

HM-100 haze meter, suitable for plastic sheets, films, glass, LCD panels, touch screens, etc.

Supplier: Lisun Electronics (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Cherry Shen
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Gross weight of single piece:	48.000kg	Single piece packaging size:	50X50X40cm
weight:	8kg	Instrument screen:	5-inch color LCD screen
Customization support:	special requirements	Package preview:
Packaging details:	wooden box	Warranty:	2 years
product name:	Haze and transmittance measurements	light source:	CIE-A, CIE-C, CIE-D65
scope:	400~700nm full spectrum LED light source	Sales unit:	Single product
model:	HM-100	Test aperture:	21mm
Test parameters:	ASTM and ISO (haze), transmittance (T)	standard:	ASTM D1003/D1044, ISO13468/ISO14782
size:	505080	Minimum order quantity:	1 set
Wavelength range:	400~700nm	Place of origin:	China Shanghai
brand:	Lishan	Transmittance repeatability:	≤0.1 unit
parameter:	Haze, transmittance (T)

Product Description

Haze Meter – Turbidimeter HM-100 complies with ASTM and ISO international standards ASTM D 1003, ISO 13468, ISO 14782, JIS K 7361 and JIS K 7136. It already contains the CNAS calibration certificate. The instrument does not require preheating and can be used after calibration. And the measurement time is only 1.5 seconds.

Specification:
• Three light sources A, C, and D65 for haze and total transmittance measurements.
• 21mm test aperture.
• Open measurement area, unlimited sample size.
• Can achieve horizontal and vertical measurement, measuring different types of materials such as sheets, films, liquids, etc.
• Using LED light source, the life span can reach 10 years.

Model	HM-100
Features	ASTM D1003/D1044 and ISO13468/ISO14782 standards for haze measurement and light transmittance measurement. Open measurement area allows vertical and horizontal testing of samples. Application: glass, plastic, film, display screen, packaging and other industries.
illuminator	D65,A,C
standard	ASTM D1003/D1044, ISO13468/ISO14782, GB/T 2410, JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136
Test parameters	ASTM and ISO (haze), transmittance (T)
Test aperture	21mm
Instrument screen	5-inch color LCD screen
Haze repeatability	Φ21mm aperture, standard deviation: within 0.1 (when measuring No. 40 haze standard 30 times at 5 second intervals after calibration)
Repeatability of transmittance	≤0.1 unit
geometry	Transmittance 0/D (0 degree illumination, diffuse reception)
Integrating sphere size	Φ154mm
light source	400~700nm full spectrum LED light source
Test Range	0-100%
Haze resolution	0.01 unit
Transmittance resolution	0.01 unit
sample size	Open space, no size restrictions
data storage	20,000 samples
interface	USB
power supply	DC 12V (110-240V)
Operating temperature	+10 – 40°C (+50 – 104°F)
Storage temperature	0 – 50 °C (+32 – 122 °F)
size	Lengthwidthheight: 310mm215mm540mm

application:
Plastic sheets, films, glass, screens, etc.
