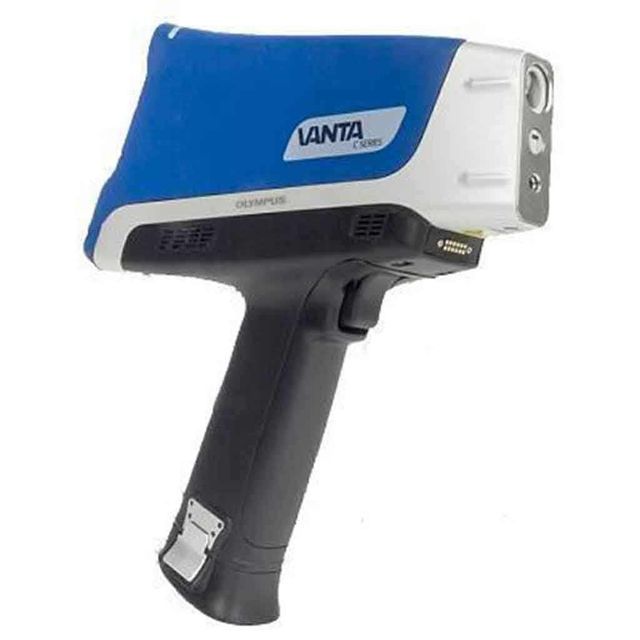

Vant C Series C Handheld XRF Element Analyzer Handheld XRF Analyzer

Executes in all environments

Fully functional over a temperature range of -14 °F to 122 °F* (-25.5 °C to 50 °C).

IP55 (C and L series) and IP54 (M series and Vanta Element) ratings protect against dust and water ingress.

Analyze hot samples up to 950 °F (510 °C) with the optional heated heel panel.

The main applications of the analyzer are as follows:

• Mining and Geochemistry
• waste recycling
• Purchasing Managers Index
• Environmental Assessment
• Manufacturing Quality Control/Assurance

• Series Specifications

  Dimensions (WxHxD)	8.3 cm x 28.9 cm x 24.2 cm (3.25 in x 11.4 in x 9.5 in)
  weight	1.70 kg (3.75 lb) with battery, 1.48 kg (3.24 lb) without battery Elements: 1.54 kg (3.39 lbs) with batteries, 1.32 kg (2.91 lbs) without batteries
  excitation source	4 Watt X-ray tube with application-optimized anode material (Rhodium (Rh), Silver (Ag), or Tungsten (W)) (RhW): 8–40kV
  primary beam filtering	8-bit automatic filter selection per mode per beam; selectable collimation down to 3 mm diameter beam spot
  detector	Silicon Drift Detector
  strength	Removable 14.4 V Li-Ion battery with hot-swap capability or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max
  exhibit	800 × 480 (WVGA) LCD with capacitive touchscreen with gesture control
  operating environment	−10 °C to 50 °C (14 °F to 122 °F), (continuous duty cycle with optional fan); Component temperature range: −10 °C to 45 °C (14 °F to 113 °F) Humidity: 10% to 90% relative humidity, noncondensing
