SK F TKSA 51 laser axis alignment system Products from MATIN EXPORT

Product Details

Supply capacity:	59 units per week	Package preview:
payment terms:	wire transfer	brand:	TKSA 51 Laser Shaft Alignment System
product name:	Analyzer	usage:	automatic testing machine
port:	marseille port	Function:	multifunctional
Origin:	Sweden	Packaging Details:	Total weight (including case): 6.4 lbs

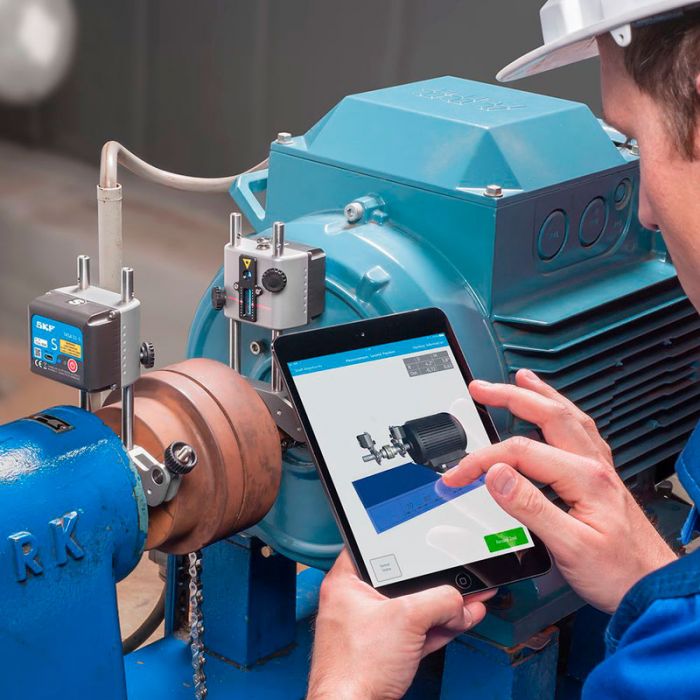

The TKSA 51 shaft alignment tool offers high measurement flexibility and performance for entry-level to expert alignment jobs. Intuitive tools designed for use with the TKSA 51 Shaft Alignment are easy to use and require no special training. Included accessories enable the TKSA 51 to be used in a variety of alignment applications such as motors, drives, fans, pumps, gearboxes and more. The tool's mobile app includes tutorial videos that show operators how to perform accurate measurements.

Measurement Flexibility - The well-known three-position measurement gains additional flexibility as the measurement can be started from any angle and only requires a total minimum rotation of 40 degrees. This enables operators to perform alignments on space-constrained applications.

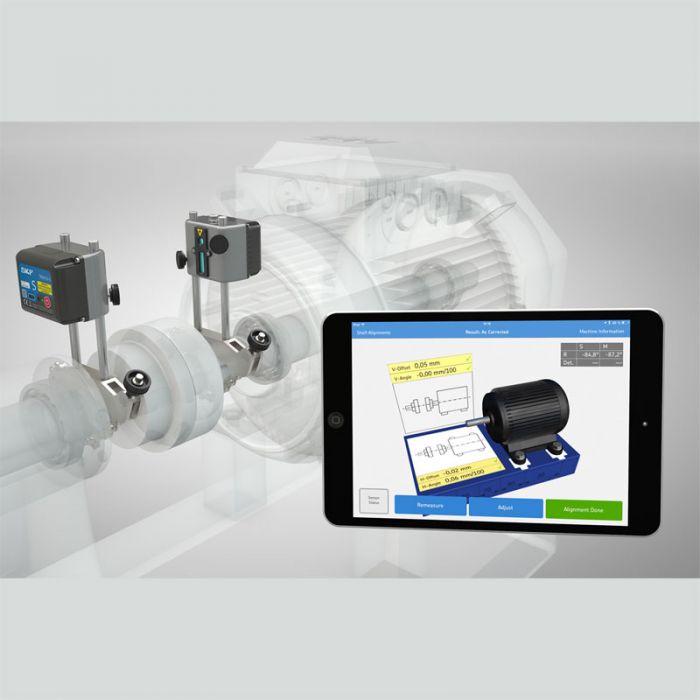

Automatic Reports - Alignment reports are automatically generated and can be customized with notes, machine pictures and signatures via the touchscreen. These reports can be exported as PDF files and shared with other mobile applications.
COMPLETE AND COMPACT - A range of included components such as magnetic mounting brackets, extension poles and chains enhance the TKSA 51's versatility while remaining compact, lightweight and easy to carry.

More information

weight	7.000000

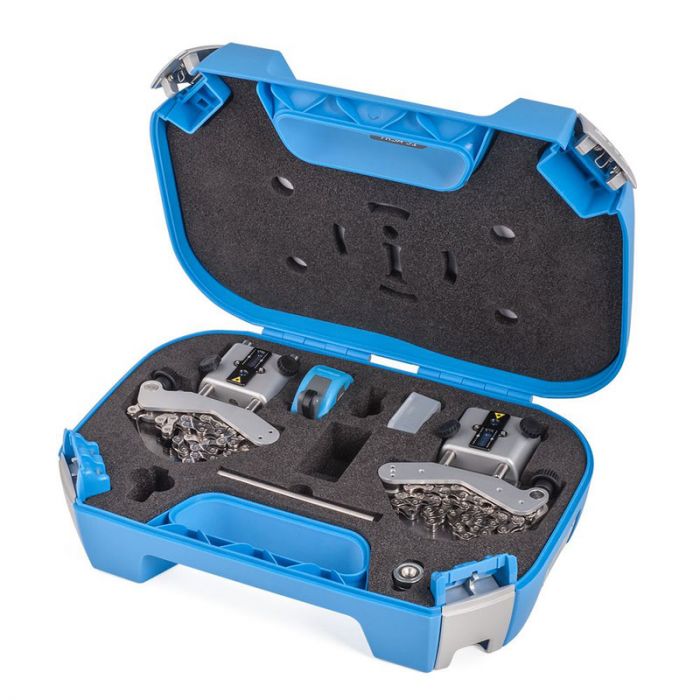

Products include	Two measuring units, stand and hardware, power supply, USB cable, tape measure, calibration certificate, manual and box
Specification	Sensors and Communications: 20 mm (0.8 in) PSD with Class 2 redline laser; electronic inclinometer ±0.1°; Bluetooth 4.0 LE System measurement distance: 0.07 to 5 m (0.23 to 16.4 ft) Measurement error/display resolution: <1%+1 digit Compatible devices: iPad Mini, iPad 3rd generation or above, iPod Touch 5th generation or above, iPhone 4S or above are recommended Operating System Requirements: Apple iOS 8 or higher Software/App Updates: Via the Apple App Store Shaft diameter: 20 to 150 mm (0.8 to 5.9 in), up to 450 mm (17.7 in), with extension chain maximum. Recommended coupling height: 170 mm (6.7 in) with extension rod Alignment measurement: 3× position free measurement (minimum 40° total angle), automatic measurement
