Factory supply high quality MoSi2 heating chamber modules for kilns

Supplier: Sta Refractory (zhengzhou) Co., Ltd.
Region: Henan, China
Contact: Ms Alice Wang
Price: $15.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Local service location:	not any	Showroom location:	not any
Supply capacity:	500 pieces per month	After Warranty Service:	Online support
port:	any port in China	Weight (tons):	0.3 tons
Core components:	programmable logic controller	place of origin; place of origin:	Henan, China
Mechanical test report:	if	Power (kW):	5
Core Components Warranty:	1 year	Applicable industries:	manufacturing plant
Certification:	CE ISO9001:2001	Voltage:	220v / 380v
After-sales service provided:	Engineers can repair machinery overseas	Health status:	new
Main selling point:	long lasting	usage:	Heat treatment furnace
type:	resistance furnace	brand:	STA
Packaging Details:	Wooden case or as per request.	Warranty:	one year
Marketing Type:	New Products 2020	payment terms:	L/C,T/T,Western Union
Video external inspection:	if	Dimensions (LWH):	custom made

Factory supply high quality MoSi2 heating chamber modules for kilns

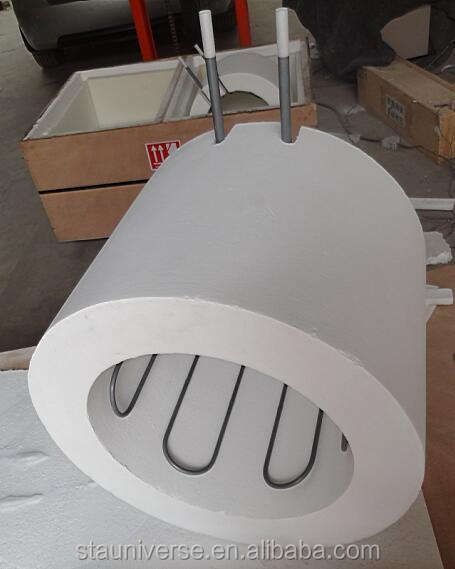

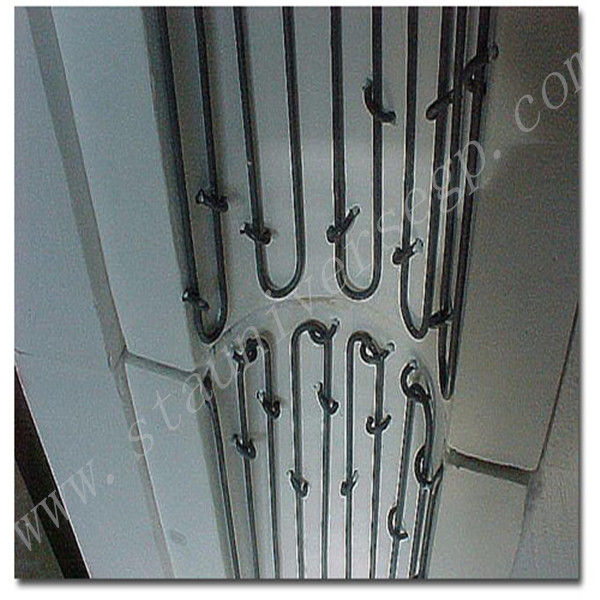

STA Super Molybdenum Disilicide Heating Element Ceramic Fiber Moduleis a resistance heating element based on molybdenum disilicide. In an oxidizing atmosphere, molybdenum disilicide heating elements prevent core oxidation by forming a dense quartz glass coating on the surface at high temperatures up to 1800°C.

MoSi2 heating elementA furnace temperature of 1300-1800 is usually available. It is widely used in metallurgy, glass, ceramic refractories, crystal electronic devices, industrial furnace manufacturing and other industries. It is an indispensable ideal component in the sintering process of products. high temperature.

Products include 1700-level, 1800-level series. Packages are U-shaped, W-shaped, straight (X-shaped) and curved (L-shaped). Sizes range from 3/6, 4/9, 5/10, 6/10, 6/12, 6/14, 7/14, 8/16, 9/18 to 12/24mm.

Ceramic Fiber Heating Module Specifications

♥ Low thermal conductivity and good insulation
♥ Good fiber elasticity and low thermal shrinkage

♥ Combined heating element and fiber insulation
♥ Flexible and easy to use
♥ Fast heating and cost saving

♥ Block H is an electrical insulating block, not only electrical but also thermally insulating,

Metal alloy wire combined electric heating power
It is combined with thermal insulation fiber through special processing technology.
♥ It avoids the traditional cumbersome wire hanging structure

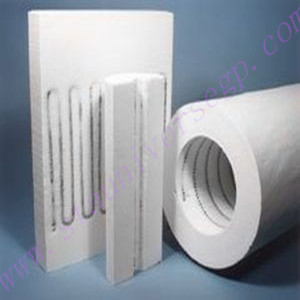

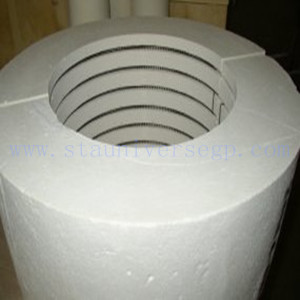

Ceramic fiber heating modulesize:

size DWH	Voltage/V	Power/W	Operating temperature/°C	BD (kg/m3)
20012080	220	1500	0~1200	280~330
190200130	220	3000	0~1200
190200170	220	3000	0~1200
300200120	220	3500	0~1200
300200150	220	3000	0~1200
300200200	220	4000	0~1200
300250250	220	5000	0~1200
350250160	220	4200	0~1200
400300300	380	8000	0~1200
510300200	220	8600	0~1200
510350260	220	9900	0~1200
