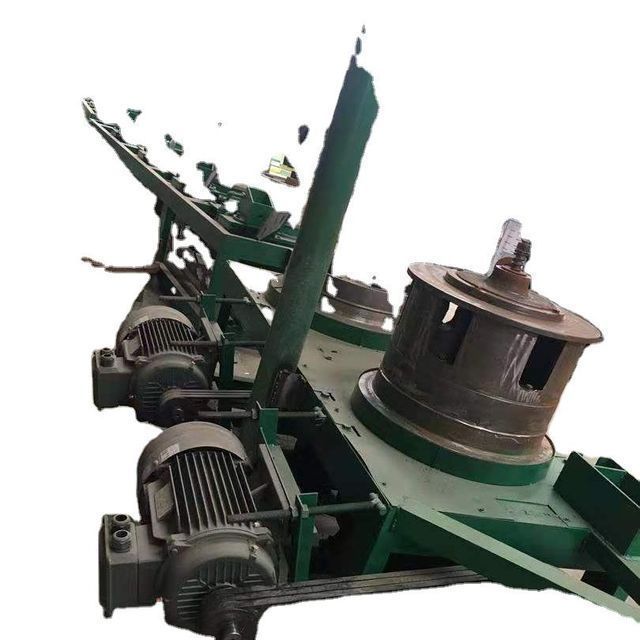

3 drum wire drawing machine / wire drawing machine

Supplier: Hebei Xingxiang Machinery Manufacture Co., Ltd.
Region: Hebei, China
Contact: Ms Lily Wang
Price: $1000.00 / 1 - 9 sets
$900.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Core components:	Bearings, Engines, Motors	Outlet diameter:	0.8-5.5mm
main market:	Asia Africa Middle East	color:	customer request
port:	According to customer requirements	Dimensions (LWH):	8420mm1730mm1920mm
payment terms:	L/C,Western Union,D/A,T/T,MoneyGram	Warranty:	1 year
Showroom location:	not any	Core Components Warranty:	1 year
place of origin; place of origin:	Hebei china	brand:	Xingxiang
After-sales service provided:	Free spare parts	Marketing Type:	Hot Products of 2019
Applicable materials:	metallic line	Health status:	new
Applicable industries:	Mechanical repair shops, manufacturing plants, construction works	Function:	brushed
Drawing Materials:	high school low carbon	Packaging Preview:
Mechanical test report:	if	capacity:	300-400 kg/h
Inlet diameter:	4-6.5mm	strength:	7.5~160KW
Supply capacity:	20 sets per month	Video external inspection:	if
Packaging Details:	Wooden boxes, wooden pallets, or direct packing according to customer requirements	Main selling point:	competitive price
weight:	1000	application:	nail making
Voltage:	380/415/440/220, three-phase 380V/220V	Other names:	Wet wire drawing and winding machines

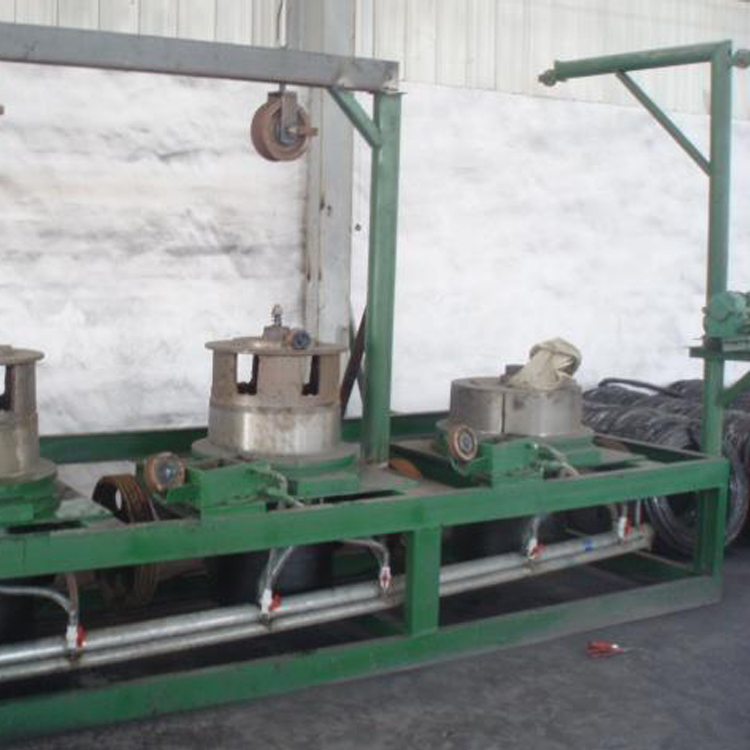

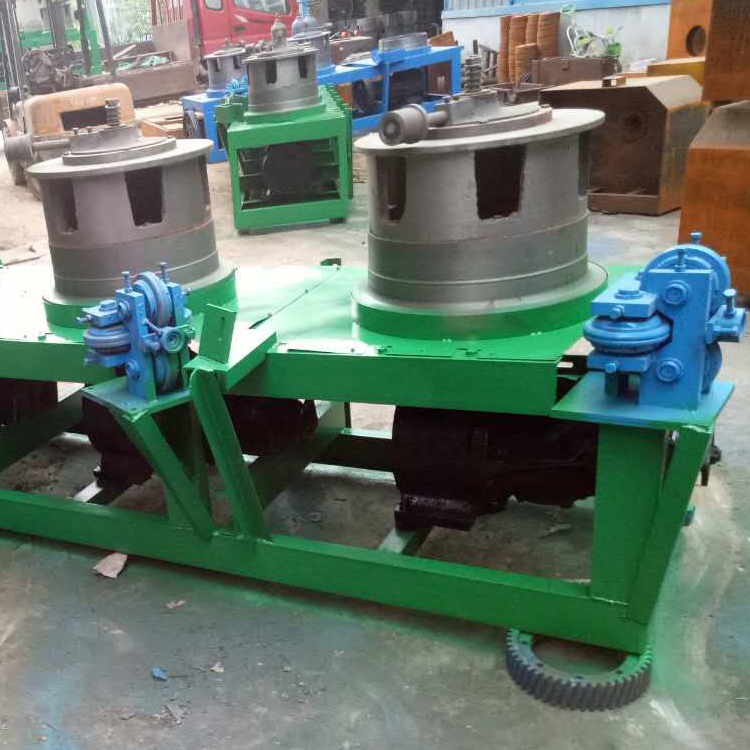

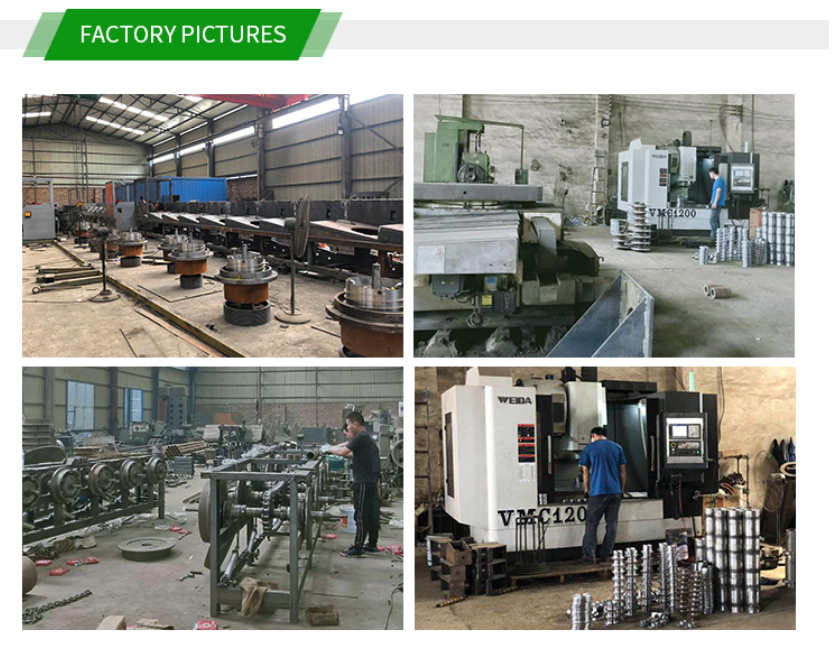

Hebei high-speed pulley wire drawing machine (cheap) factory direct sales

Technical parameters of dry wire drawing machine

Structural features: simple and practical structure, more competitive price, suitable for low carbon

thing		Continuous multi-block type
Model	unit	LW-n/560	LW-n/450	LW-n/350
maximum. Drawing Pass (n)		n: 1 - 10	n: 1 – 8	n: 1-8
Wire tensile strength	kg/mm²	>110	128	>140
maximum. diameter of wire	mm	6.5	3.4	2.5
minute. Diameter finished wire	mm	2.5	1	0.75
Typical configuration	--	LW1- 6/560	LW1-7/450	LW1-6/350
maximum. Average percentage reduction	%	30	20	twenty one
Design Total Reduction Percentage	%	78-88.5	77.9	78
maximum. block speed	m/min.	245 (block 6)	346.9 (block 7)	200 (block 6)
total power	kilowatt	18.5-30	7.5-11	7.5-11
weight	Kilogram	2000	1500	1000
Dimensions (L×W×H)	mm	1700x1150x1750	1520x810x1700	1400x800x1500

1. Composition of production line

Pay-off → Pulley wire drawing machine → Horizontal take-up

two. Drawing Machine Instructions

1. Drive system

The transmission mode of the wire drawing machine is: frequency conversion motor + narrow V belt + hard tooth surface reducer + narrow V belt driving slider.

2. Blocking

The block body is precision cast with cast steel, and tempered again after rough machining. The working face of the block body is welded with wear-resistant piano wire, sprayed with cemented carbide, and finished by a grinder. The rigidity of the block working face is greater than HRC60. The inner surface of the block is sprayed with aluminium.

Narrow-gap water cooling is adopted inside the block, and centralized air cooling is adopted outside the block. All blocks are secured with tilted rollers.

3. Mold box

All are ordinary mold boxes (the mold size should be provided by the customer). The mould box is directly cooled with water.

The tuning roller is driven by an air cylinder. The mold box can be flexibly adjusted up and down, front and rear, left and right, and can be fixed. Top screws and mold box nuts are made of tin bronze. The guide die made of cemented carbide is fixed at the entrance of the die box.

4. Gearbox

The main bearing of the hard-tooth surface gearbox adopts Japanese NSK products. All gearboxes are filled with VG220 compound gear oil before leaving the factory.

5. Safety cover

There is a safety cover on the top of each block that needs to be closed before the device can be activated. If the cover is open, the device can only operate at low speed. The safety cover covers the entire front of the operating side, with fluorescent lamps inside for lighting. The safety cover is spring controlled.

6. Lubrication

The electric grease pump is a stationary type and can automatically fill the slider spindle bearing with oil.

7. Receipt

The coiler is driven by a variable frequency motor to realize non-stop coiling. There are two rows of slide rails at the bottom of the carrier frame for easy rack replacement. (The size of the bearing frame is provided by the user).

notes: We can produce according to customer's request.
