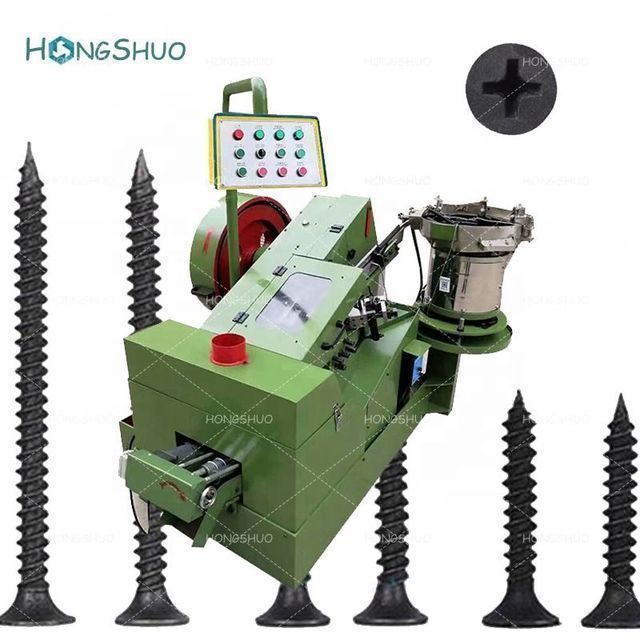

Factory price screw production line hobbing machine

Click here to contact
Product details
brand:Hong Shuoapplication:steel
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramShowroom location:not any
feature:easy to useCore components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Marketing Type:New Products 2020Video shipment inspection:if
State of health:newport:Qingdao Port Tianjin Port
thing:High speed screw machinePackage preview:
Applicable industries:Building material stores, machinery repair shops, manufacturing plants, construction projectsFeatures:stable
raw material:Annealed Phosphated Silkcolor:custom made
place of origin; place of origin:Henan, ChinaAfter-sales service provided:Free spare parts, online support, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support
Core component warranty:2 yearspack:wooden box
Local service location:not anyPackaging Details:Wooden box or factory price screw production line thread rolling machine according to customer requirements
Supply capacity:200 sets of factory price screw production line thread rolling machines per monthMechanical test report:if
product name:Factory price screw production line hobbing machineCertification:International Organization for Standardization
Warranty:2 yearsType of machine:Automatic, nail making machine
Main selling points:SustainableAfter warranty service:Video technical support, online support, spare parts, on-site maintenance and repair services

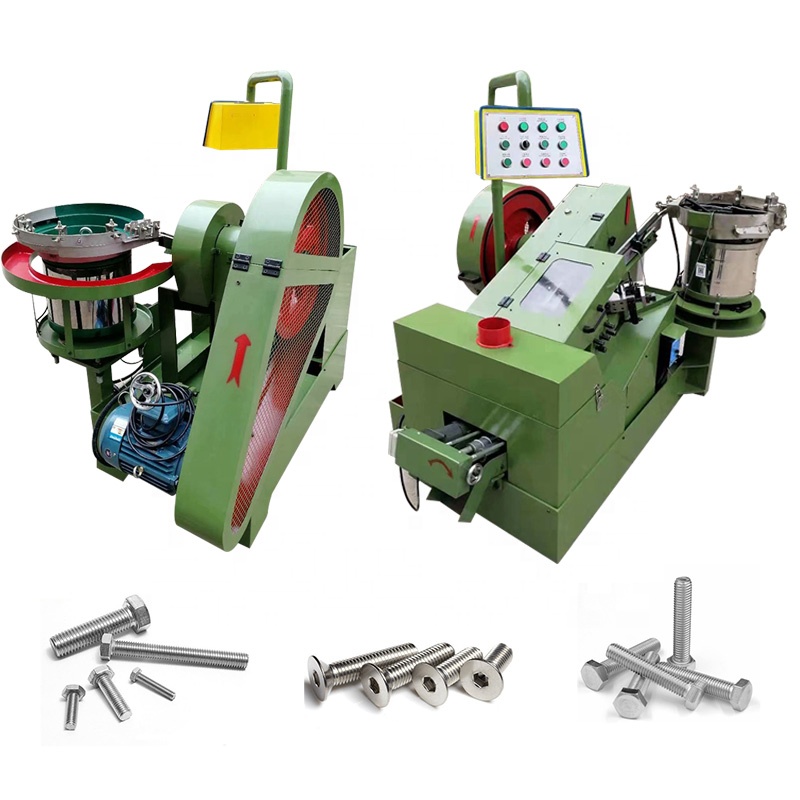

process flow
Product Description

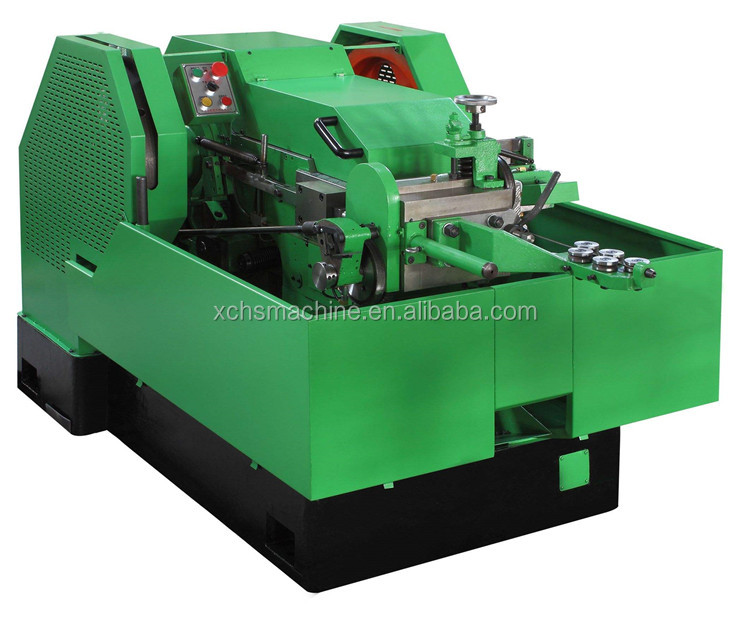

Cold heading machine


This equipment adopts the cold heading method, and the wire rod is upset by double-clicking the entire mold. One machine completes feeding, straightening, cutting, forming and discharging.

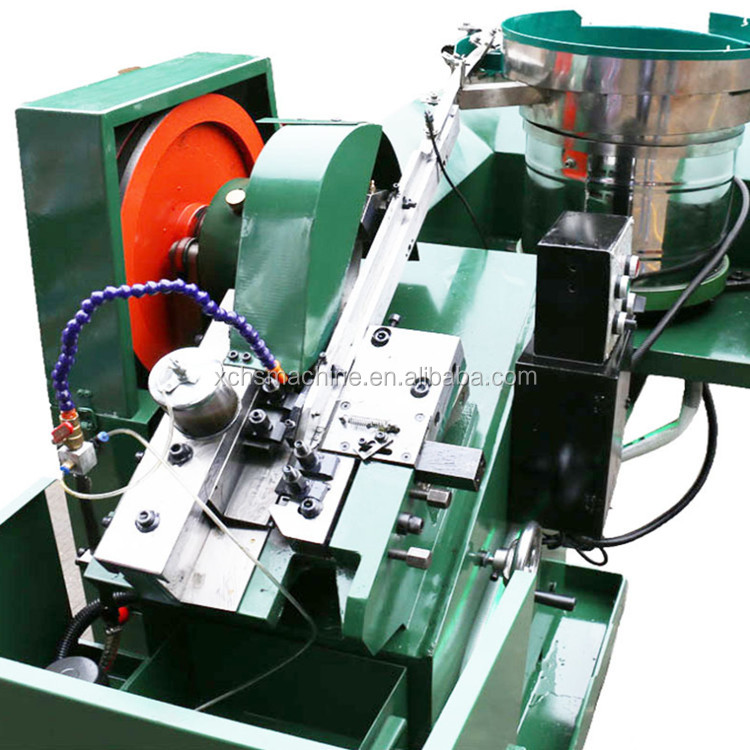

Automatic thread rolling machine
This equipment adopts the staggered 1/2 pitch design of two thread tooth rolling plates, the fixed plate is fixed, and the moving plate and the fixed plate make a linear motion back and forth. When the workpiece is fed between the two plates, the moving plate twists the workpiece forward to make it The surface is plastically deformed into threads.

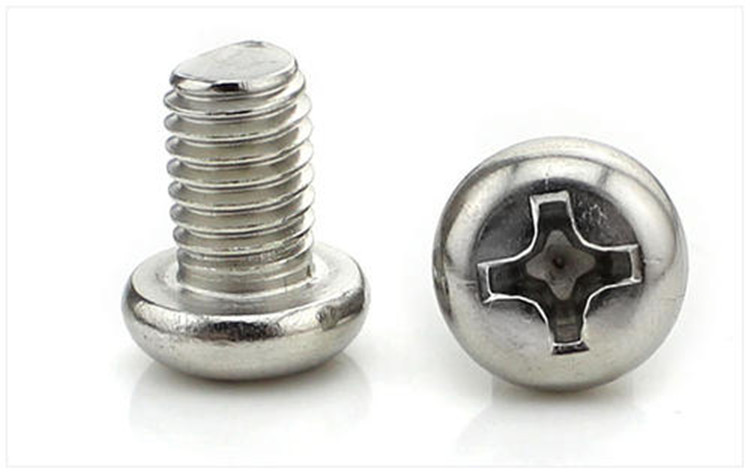

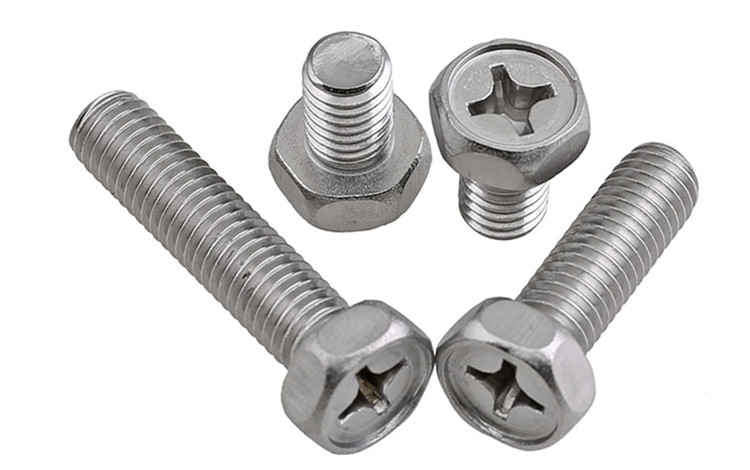

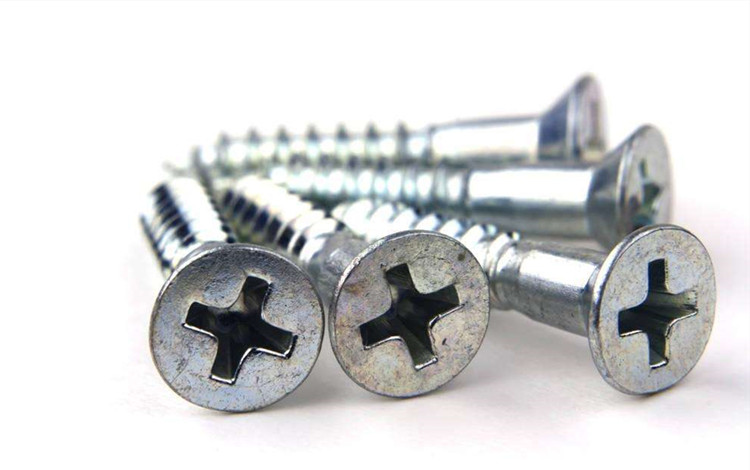

End products
Specification
Model
maximum. Screw diameter(mm)
maximum. Screw length(mm)
motor
(kilowatt)
capacity
(pcs/min)
weight
(Ton)
Overall size (m)
R3-20A
M2.6
20
1.1
350
0.3
1.1*0.53*1.2
R3-20B
M2.6
20
1.1
350
0.3
1.1*0.53*1.2
R4-25A
M4
25
1.5
320
0.45
1.3*0.63*1.32
R4-25B
M4
25
1.5
320
0.45
1.3*0.63*1.32
R4-40A
M4
40
2.2/0.37
280
0.97
1.5*1.15*1.35
R4-40B
M4
40
2.2/0.37
280
0.97
1.5*1.15*1.35
R5-55B
M5
55
3+0.37
160
1.2
1.6*1.35*1.7
R5-65A
M5
65
3+0.37
130
1.3
1.75*1.4*1.65
R5-65B
M5
65
3+0.37
130
1.3
1.75*1.4*1.65
R6-60A
M6
60
4/0.37
180
1.5
1.7*1.65*1.3
R6-60B
M6
60
4/0.37
180
1.5
1.7*1.65*1.3
R6-100B
M6
100
5.5+0.37
110
1.9
2.7*1.3*1.3
R8-80B
M8
80
5.5/0.37
110
1.8
2.1*1.55*1.3
R8-100B
M8
100
7.5+0.37
100
2.1
2.7*1.7*1.3
R8-120B
M8
120
5.5
100
2.1
2.4*1.8*1.4
R10-120B
M10
120
7.5
80
1.8
2.35*1.95*1.4
R12-120B
M12
120
11
60
3
2.45*2*1.45
R12-160B
M12
160
13
60
3
2.45*2*1.45
R12-220B
M12
220
15
50
3.5
2.5*2*1.45
R16-120B
M16
120
15
50
3.8
2.5*2.1*1.45
R16-160B
M16
160
15
50
4
2.5*2.1*1.45
R16-220B
M16
220
15
45
4.8
3.7*1.9*1.7

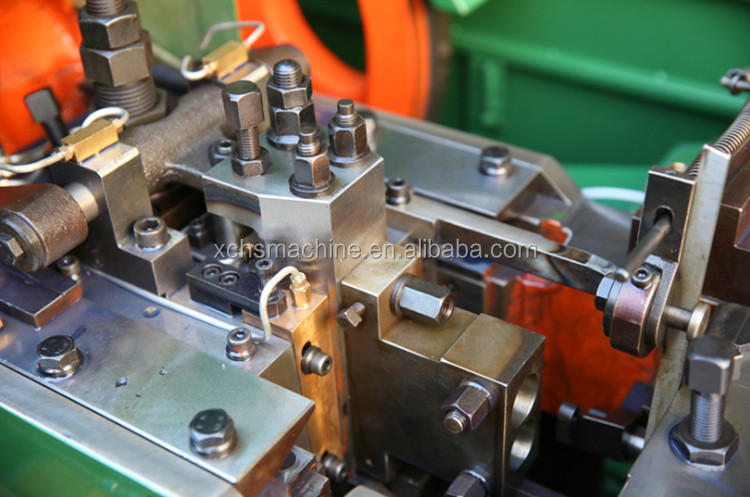

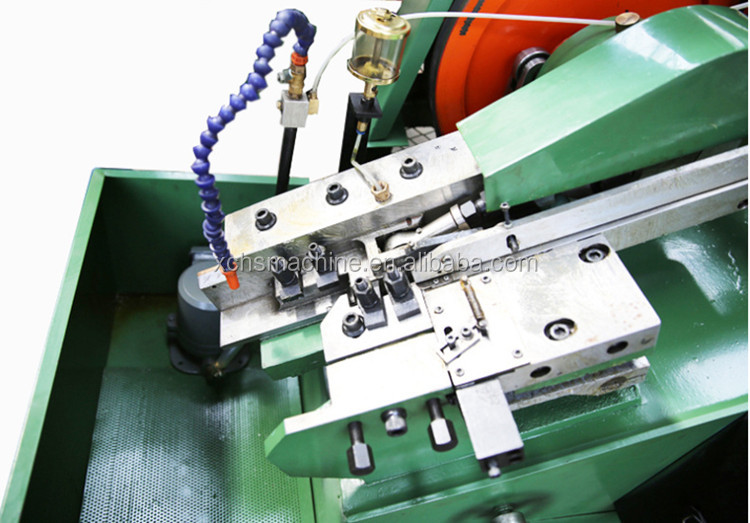

detailed image
