Screw Machine Price Automatic/Machine Production Screws
- 5000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | By wooden case or by sea. Machined Screws | Applicable industries: | Building material stores, manufacturing plants, construction projects |
| Voltage: | 380V/220V/customizable | usage: | Make different sizes and types of screws |
| Screw length: | 18-200mm | Video shipment inspection: | if |
| Origin: | China | Health status: | new |
| application: | put up | lubricating: | Machinery oil |
| weight: | 2000 | Raw material 2: | stainless steel coil |
| Marketing Type: | normal product | Mechanical test report: | if |
| Showroom location: | not any | Type of machine: | Machined Screws |
| Screw diameter: | 3-8mm | port: | Qingdao Port |
| brand: | Hong Shuo | Model: | M3-18A/B |
| Warranty: | 2 years | Production capacity: | 100% |
| Raw material one: | Annealing coil | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| control method: | CNC automatic type | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Package preview: | Supply capacity: | 200 sets per month | |
| color: | customer request | Core component warranty: | 2 years |
| Main selling points: | multifunctional |
Screw Machine Price Automatic/Machine Production Screws
Product Description

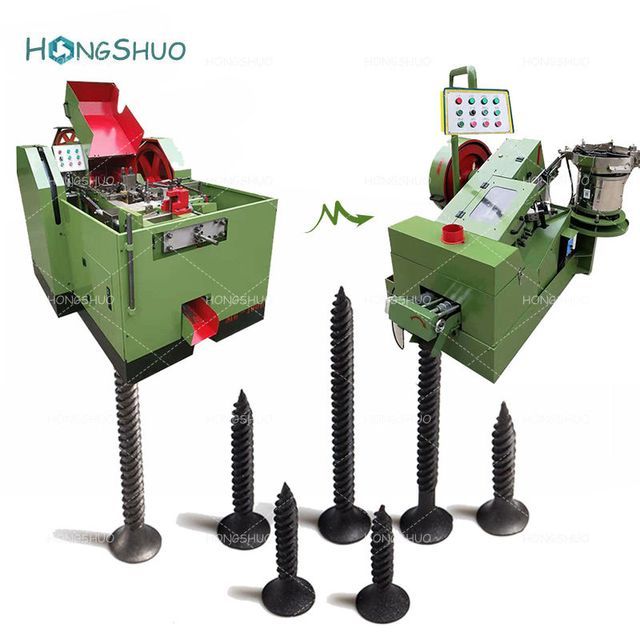

Wire rod--screw making machine--thread rolling machine--finished screw.
machine photo
Step 1: Screw Making Machine
1. Wire feeding system: high-speed traction, more precise and faster
2. Feeding system: precise feeding with connecting rod feeding head
3. Straightening system: High-precision straightening wheels make the product more accurate
4. Heading system: High-precision mechanical oil pump provides more durable power
2. Feeding system: precise feeding with connecting rod feeding head
3. Straightening system: High-precision straightening wheels make the product more accurate
4. Heading system: High-precision mechanical oil pump provides more durable power
Model | maximum. Screw diameter(mm) | maximum. Screw length(mm) | capacity (pcs/min) | engine (kilowatt) | weight (Ton) | Overall size (m) |
M3-18A/B | 3 | 18 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
M3-28A/B | 3 | 28 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
M4-28B | 4 | 28 | 120-160 | 1.5/0.37 | 0.97 | 1.5*0.9*0.9 |
M4-28D | 4.5 | 28 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1*1.2 |
M4-40B | 4 | 40 | 120-150 | 1.5/0.37 | 0.97 | 1.5*0.9*1 |
M4-40D | 4.5 | 40 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1.1*1.1 |
M5-40B | 6 | 40 | 120-150 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
M5-60B | 6 | 60 | 110-140 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
M5-80B | 6 | 80 | 80-100 | 2.2/0.37 | 1.9 | 2*1.1*1.2 |
M5-120B | 6 | 120 | 50-70 | 3.6/0.37 | 2.3 | 2.8*1.3*1.3 |
M6-60B | 8 | 60 | 80-110 | 4/0.37 | 2.8 | 2.3*1.3*1.3 |
M6-100B | 8 | 100 | 60-90 | 4/0.37 | 2.7 | 2.3*1.3*1.3 |
M6-120B | 8 | 120 | 60-70 | 4/0.37 | 3 | 2.4*1.3*1.4 |
M6-170B | 8 | 170 | 40-70 | 4/0.37 | 3.7 | 3*1.3*1.5 |
M6-200B | 8 | 200 | 40-55 years old | 4/0.37 | 3.7 | 3*1.3*1.5 |
Step 2: Thread Roller
1. Feeding device: gear feeding, more accurate
2. Raw material processing: screw blank processing high-precision mold
3. Feeding guide rail: transport the wire billet to the design position through the guide rail
4. Vibrating plate: it can arrange and transfer the screw blanks in an orderly manner.
2. Raw material processing: screw blank processing high-precision mold
3. Feeding guide rail: transport the wire billet to the design position through the guide rail
4. Vibrating plate: it can arrange and transfer the screw blanks in an orderly manner.
Model | maximum. Screw diameter(mm) | maximum. Screw length(mm) | engine (kilowatt) | capacity (pcs/min) | weight (Ton) | Overall size (m) |
R3-20A | M2.6 | 20 | 1.1 | 350 | 0.3 | 1.1*0.53*1.2 |
R3-20B | M2.6 | 20 | 1.1 | 350 | 0.3 | 1.1*0.53*1.2 |
R4-25A | M4 | 25 | 1.5 | 320 | 0.45 | 1.3*0.63*1.32 |
R4-25B | M4 | 25 | 1.5 | 320 | 0.45 | 1.3*0.63*1.32 |
R4-40A | M4 | 40 | 2.2/0.37 | 280 | 0.97 | 1.5*1.15*1.35 |
R4-40B | M4 | 40 | 2.2/0.37 | 280 | 0.97 | 1.5*1.15*1.35 |
R5-55B | M5 | 55 | 3+0.37 | 160 | 1.2 | 1.6*1.35*1.7 |
R5-65A | M5 | 65 | 3+0.37 | 130 | 1.3 | 1.75*1.4*1.65 |
R5-65B | M5 | 65 | 3+0.37 | 130 | 1.3 | 1.75*1.4*1.65 |
R6-60A | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
R6-60B | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
R6-100B | M6 | 100 | 5.5+0.37 | 110 | 1.9 | 2.7*1.3*1.3 |
R8-80B | M8 | 80 | 5.5/0.37 | 110 | 1.8 | 2.1*1.55*1.3 |
R8-100B | M8 | 100 | 7.5+0.37 | 100 | 2.1 | 2.7*1.7*1.3 |
R8-120B | M8 | 120 | 5.5 | 100 | 2.1 | 2.4*1.8*1.4 |
R10-120B | M10 | 120 | 7.5 | 80 | 1.8 | 2.35*1.95*1.4 |
R12-120B | M12 | 120 | 11 | 60 | 3 | 2.45*2*1.45 |
R12-160B | M12 | 160 | 13 | 60 | 3 | 2.45*2*1.45 |
R12-220B | M12 | 220 | 15 | 50 | 3.5 | 2.5*2*1.45 |
R16-120B | M16 | 120 | 15 | 50 | 3.8 | 2.5*2.1*1.45 |
R16-160B | M16 | 160 | 15 | 50 | 4 | 2.5*2.1*1.45 |
R16-220B | M16 | 220 | 15 | 45 | 4.8 | 3.7*1.9*1.7 |
