High Quality Thread Rolling Machine Self Drilling Self Tapping Screw Machine

Click here to contact
Product details
Package preview:Dimensions (L*W*H):According to the machine
Screw length:10-360mmCertification:CE certification
feature:stable performanceProduction capacity:100%
Packaging Details:High Quality Thread Rolling Machine Self Drilling Self Tapping Screw Making Machine Wooden Box or ShippingCore component warranty:2 years
port:Tianjin or Qingdao or ShanghaiScrew diameter:3-14mm
pack:wooden boxAfter warranty service:Video technical support, online support, spare parts, on-site maintenance and repair services
Supply capacity:300 sets per month of high quality thread rolling machine self-drilling self-tapping Spayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
application:put upVoltage:380V/Customized
Origin:Henan, ChinaShowroom location:not any
Applicable industries:Building material stores, manufacturing plants, construction projectsWarranty:2 years
brand:100%Main selling points:easy to operate
weight:0.6T-11Tproduct name:Thread rolling machine self-drilling self-tapping screw machine
Core components:Main engine, main slider and crankshaft, PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpstrength:0.75-15KW
Video shipment inspection:ifthing:High speed screw machine
After-sales service provided:Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online supportHealth status:new
Marketing Type:normal productcolor:custom made
usage:automatic control operationMechanical test report:if
Function:making screwsLocal service location:not any

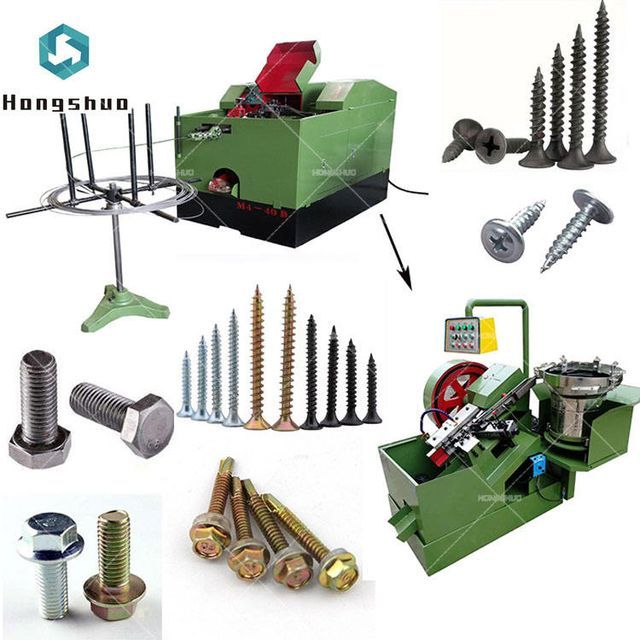

Automatic cold heading machine thread rolling machine screw machine
1. Automatic cold heading machine To upset the wire by cold heading, just double-click the entire template. One machine completes feeding, straightening, cutting, forming and discharging.
Model
screw
Diameter (mm)
Maximum screw length (mm)
capacity
(pcs/min)
engine
(kilowatt)
weight
(Ton)
Overall size (m)
M3-18A/B
3
18
160-180
0.75/0.37
0.6
1.3*0.75*0.9
M3-28A/B
3
28
160-180
0.75/0.37
0.6
1.3*0.75*0.9
M4-28B
4
28
120-160
1.5/0.37
0.97
1.5*0.9*0.9
M4-28D
4.5
28
180-200
1.5/0.37
1.2
1.6*1*1.2
M4-40B
4
40
120-150
1.5/0.37
0.97
1.5*0.9*1
M4-40D
4.5
40
180-200
1.5/0.37
1.2
1.6*1.1*1.1
M5-40B
6
40
120-150
2.2/0.37
1.8
1.8*1.1*1.1
M5-60B
6
60
110-140
2.2/0.37
1.8
1.8*1.1*1.1
M5-80B
6
80
80-100
2.2/0.37
1.9
2*1.1*1.2
M5-120B
6
120
50-70
3.6/0.37
2.3
2.8*1.3*1.3
M6-60B
8
60
80-110
4/0.37
2.8
2.3*1.3*1.3
M6-100B
8
100
60-90
4/0.37
2.7
2.3*1.3*1.3
M6-120B
8
120
60-70
4/0.37
3
2.4*1.3*1.4
M6-170B
8
170
40-70
4/0.37
3.7
3*1.3*1.5
M6-200B
8
200
40-55 years old
4/0.37
3.7
3*1.3*1.5
2.Automatic thread rolling machine Two thread rolling plates are designed with staggered 1/2 pitch, the fixed plate is fixed, and the moving plate and the fixed plate make a linear motion back and forth. When the workpiece is fed between the two plates, the moving plate moves forward and twists the workpiece to make its surface Plastic deformation forms threads. thread rolling machine isPortable, flexible and efficientCompared with similar equipment, it has some irreplaceable advantages, avoiding the limitations of lathes, drilling machines or manual tapping, saving time and effort, not easy to rot teeth, and taps are not easy to break. machine isSimple operation and convenient maintenance, greatly reducing the technical requirements for workers.
Model
screw
Diameter (mm)
maximum. tighten
Length (mm)
engine
(kilowatt)
capacity
(pcs/min)
weight
(Ton)
Overall size (m)
R3-20A
M2.6
20
1.1
350
0.3
1.1*0.53*1.2
R3-20B
M2.6
20
1.1
350
0.3
1.1*0.53*1.2
R4-25A
M4
25
1.5
320
0.45
1.3*0.63*1.32
R4-25B
M4
25
1.5
320
0.45
1.3*0.63*1.32
R4-40A
M4
40
2.2/0.37
280
0.97
1.5*1.15*1.35
R4-40B
M4
40
2.2/0.37
280
0.97
1.5*1.15*1.35
R5-55B
M5
55
3+0.37
160
1.2
1.6*1.35*1.7
R5-65A
M5
65
3+0.37
130
1.3
1.75*1.4*1.65
R5-65B
M5
65
3+0.37
130
1.3
1.75*1.4*1.65
R6-60A
M6
60
4/0.37
180
1.5
1.7*1.65*1.3
R6-60B
M6
60
4/0.37
180
1.5
1.7*1.65*1.3
R6-100B
M6
100
5.5+0.37
110
1.9
2.7*1.3*1.3
R8-80B
M8
80
5.5/0.37
110
1.8
2.1*1.55*1.3
R8-100B
M8
100
7.5+0.37
100
2.1
2.7*1.7*1.3
pre-sale service

*Inquiry and consultation support.

* Sample testing support.

* Check out our factory.
After-sales service

* Training how to install the machine, training how to use the machine.

* Engineers are available to service machinery overseas.
