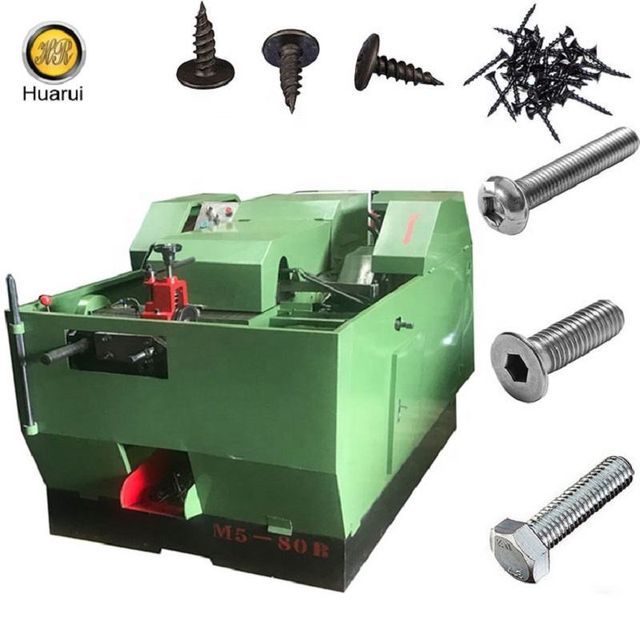

Screw Bolt Making Machine Screw Production Line Factory Price
- 4100.00 1 - 4 sets
- 4000.00 >=5 sets
| Related machines: | Thread rolling machine | product name: | Cold heading machine |
| Dimensions (L*W*H): | 1.6*1*1.2 | brand: | Huarui |
| Function: | Make different types and sizes of screws, bolts, rivets | payment terms: | L/C, Western Union, D/P, T/T, MoneyGram |
| weight: | 1800 kg | maximum. Screw diameter: | M3-M18 |
| port: | Qingdao | Maximum screw length: | 18mm-500mm |
| strength: | 3 kW | spare parts: | Dies and Rolling Dies |
| Year: | 2022 | Voltage: | 380V 50HZ three phase |
| Marketing Type: | Made in China Wholesale Price | Packaging Details: | wooden box. |
| Product Category: | industrial machinery | brand: | Huarui |
| color: | green or blue | Origin: | Henan, China |
| Automatic level: | automatic | Mechanical Capabilities: | 200pcs/min |
| application: | Hardware industry, fastener factory | Key machines: | Metal casting machinery, metal forging machinery |
| Supply capacity: | 300 sets per month |
Screw Bolt Making Machine Screw Production Line Factory Price

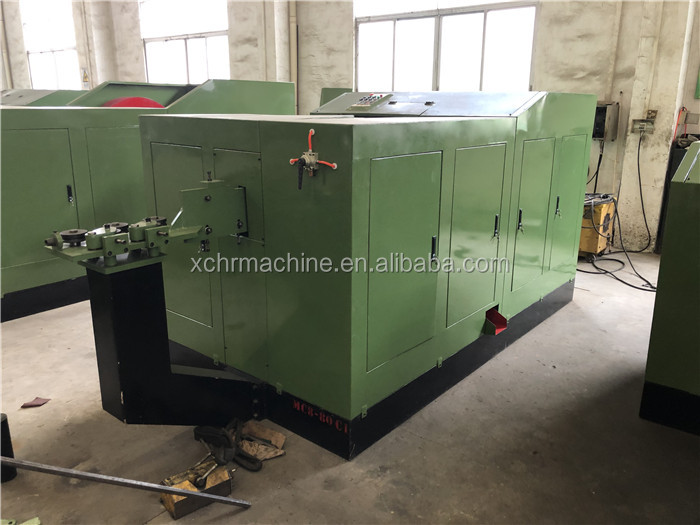

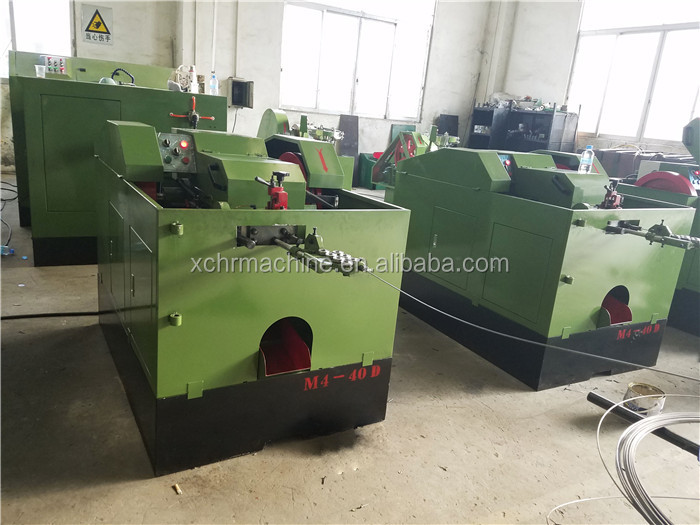

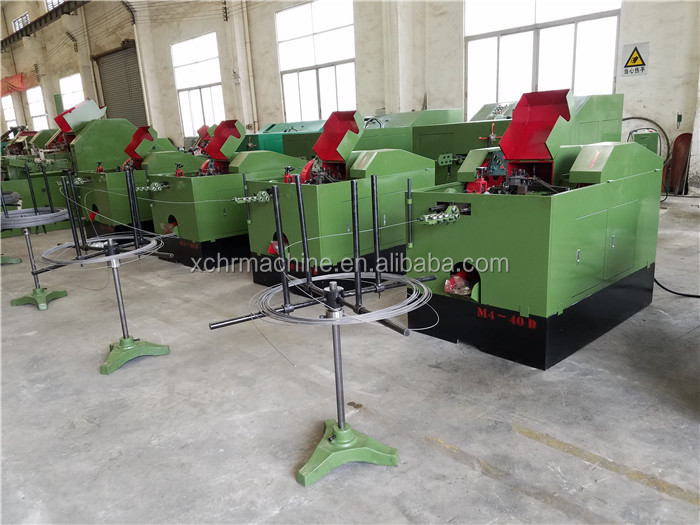

1. Automatic cold heading machine
The equipment adopts the cold heading method, and the wire is upset by double-clicking the entire mold. Finished product feeding, straightening, blanking, forming, and discharging are completed in one machine.
|
Model |
maximum. Screw diameter (mm) |
maximum. Screw length (mm) |
capacity (pcs/min) |
engine (kilowatt) |
weight (Ton) |
Dimensions (m) |
|
M3-18A/B |
3 |
18 |
160-180 |
0.75/0.18 |
0.6 |
1.3*0.75*0.9 |
|
M3-28A/B |
3 |
28 |
160-180 |
0.75/0.18 |
0.6 |
1.3*0.75*0.9 |
|
M4-28B/C |
4 |
28 |
120-170 |
1.5/0.18 |
0.97 |
1.5*0.9*0.9 |
|
M4-40D |
4 |
40 |
200 |
1.5/0.18 |
1.3 |
1.6*1.1*1.2 |
|
M5-40B/C |
6 |
40 |
110-140 |
2.2/0.18 |
1.8 |
1.8*1.1*1.1 |
|
M5-80B/C |
6 |
80 |
80-100 |
2.2/0.18 |
1.9 |
2*1.1*1.2 |
|
M6-60B/C |
8 |
60 |
80-110 |
4/0.37 |
2.8 |
2.3*1.3*1.3 |
|
M6-100B/C |
8 |
100 |
60-90 |
4/0.37 |
2.7 |
2.3*1.3*1.3 |
|
M8-120B/C |
10 |
120 |
50-90 |
5.5/0.37 |
4.6 |
3.4*1.5*1.5 |

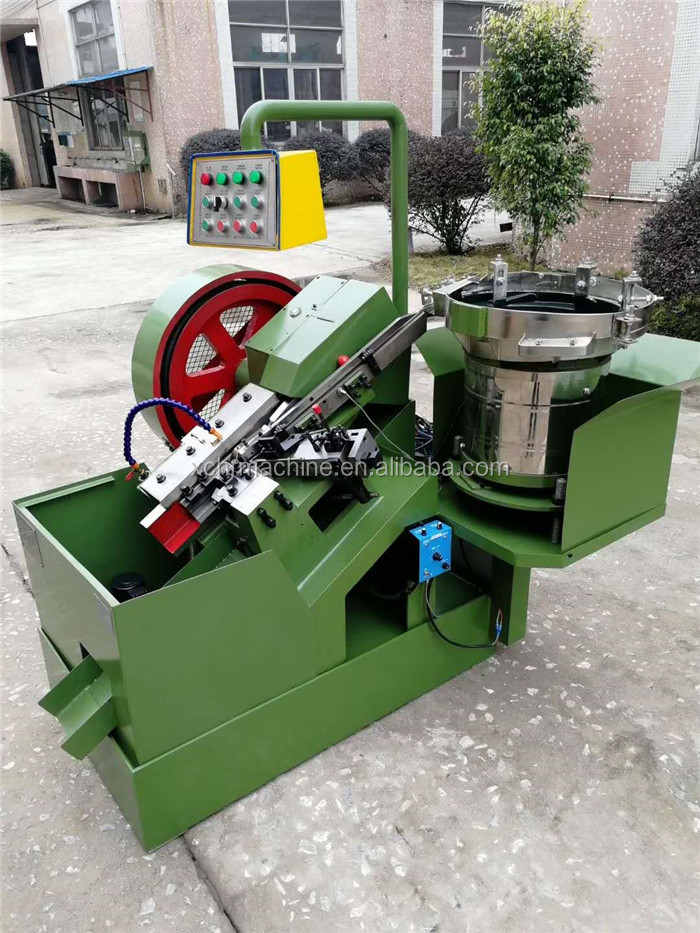

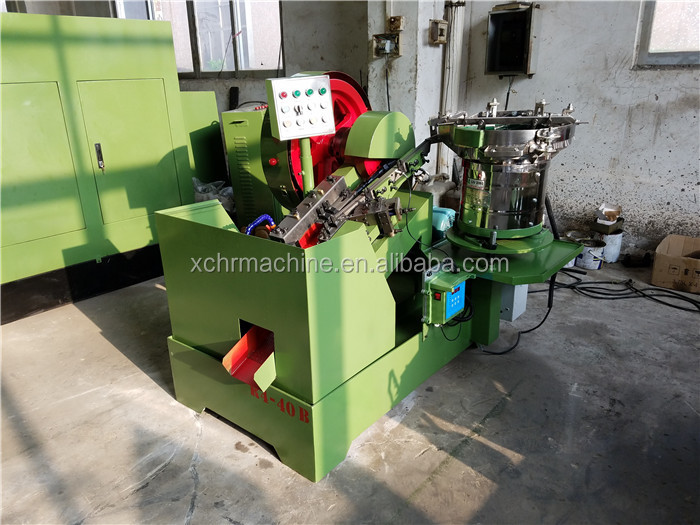

2. Fully automatic thread rolling machine
The equipment adopts the design of two screw thread rolling plates staggered by 1/2 pitch, the fixed plate is fixed, and the moving plate performs reciprocating linear motion like the fixed plate. When the workpiece is fed between the two plates, the moving plate twists and moves forward. Workpiece to plastically deform its surface into threads.
The thread rolling machine is light, flexible, and efficient. Compared with similar equipment, it has some irreplaceable advantages. It avoids the limitations of lathes, drills or manual tapping, saves time and effort, and is not easy to rot teeth and taps are not easy to break.
The machine is easy to operate and easy to maintain, which greatly reduces the technical requirements for workers.

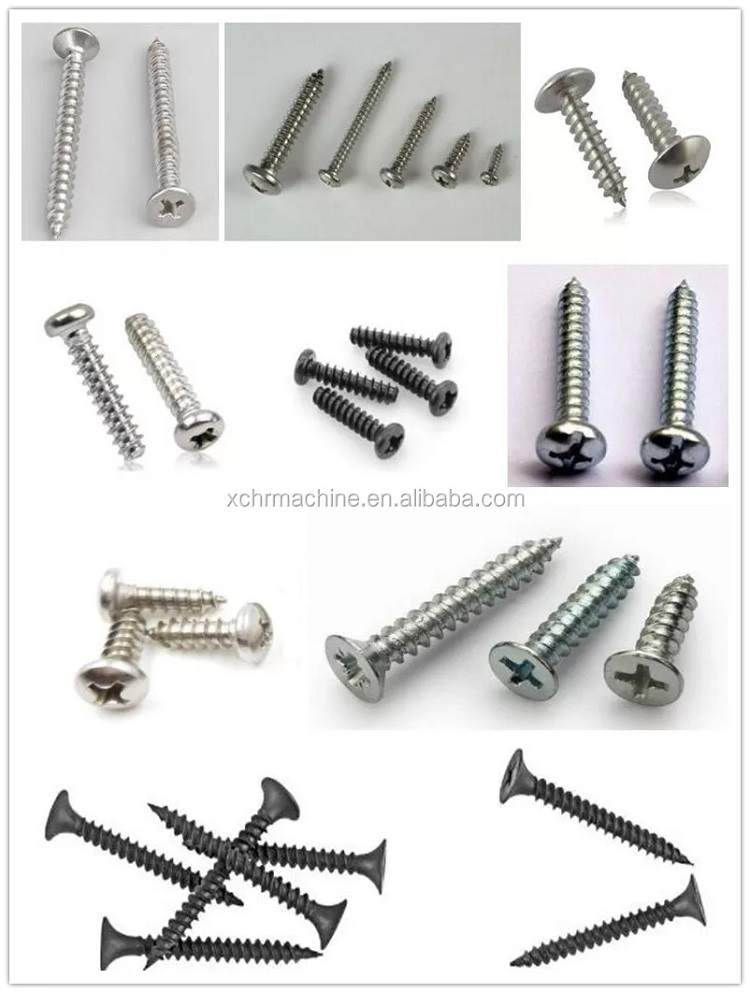

3. Finished screw

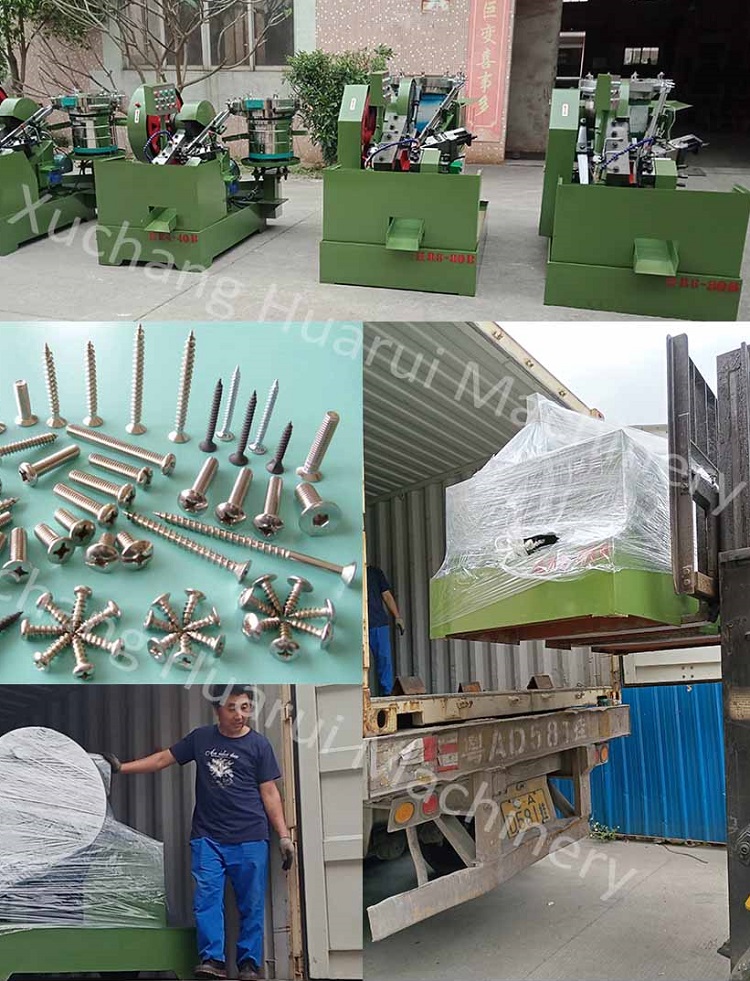

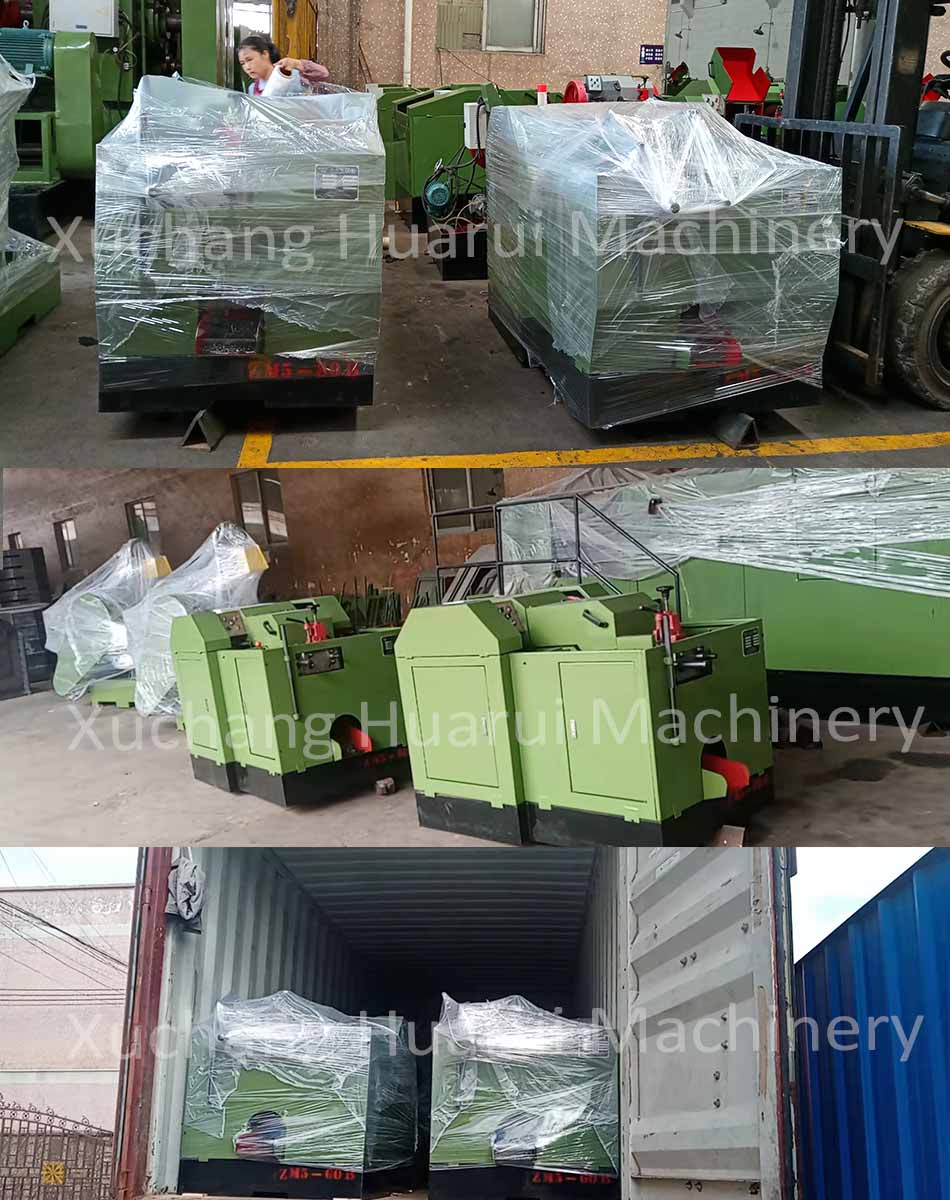

4. Packaging and transportation
5. Company Profile
If you are interested in our machines, please contact us:
Mobile/Whatsapp/WeChat/Viber:+86 13937476212
