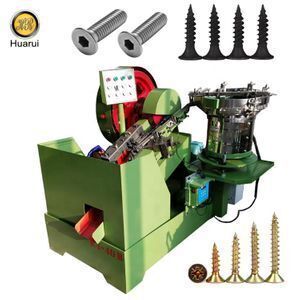

High speed cold heading machine self drilling screw making machine

Supplier: Xuchang Huarui Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Tina Xi
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Production Capacity:	100%;
Supply Ability:	300 Set/Sets per Month;	Power(W):	0.75-15KW;
Brand Name:	Huarui;	Packaging Detail:	sea worthy wooden case or as required;
Application:	Make screws, bolts;	Package:	Wooden Case;
Port:	Qingdao;	Weight:	0.6T-11T;
Applicable Industries:	Building Material Shops,Construction works ;	Color:	green(or customized);
Product name:	screw making machine;	Place of Origin:	China;
Screw diameter:	3-14mm;	Condition:	New;
Screw length:	10-360mm;	Warranty:	2 Years;
Voltage:	380V/ Customized;	Application:	Construction;
Warranty:	2 years;	After-sales Service Provided:	Video technical support,Online support;
Payment Terms:	L/C,T/T,Western Union;	Certification:	CE Certification;

High speed cold heading machine self drilling screw making machine

Product Description

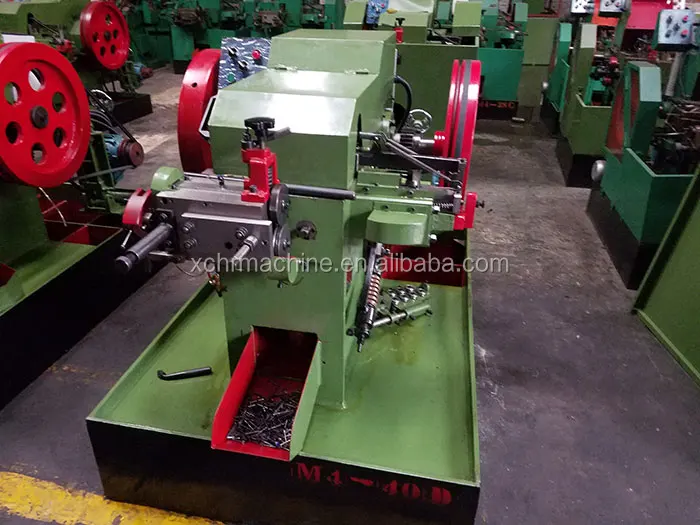

1. Automatic Cold heading machine

This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.

Model	Max. Screw Dia (mm)	Max. Screw length (mm)	Capacity (pcs/min)	Motor (kw)	Weight (Ton)	Overall size (m)
M3-18A/B	3	18	160-180	0.75/0.18	0.6	1.30.750.9
M3-28A/B	3	28	160-180	0.75/0.18	0.6	1.30.750.9
M4-28B/C	4	28	120-170	1.5/0.18	0.97	1.50.90.9
M4-40D	4	40	200	1.5/0.18	1.3	1.61.11.2
M5-40B/C	6	40	110-140	2.2/0.18	1.8	1.81.11.1
M5-80B/C	6	80	80-100	2.2/0.18	1.9	21.11.2
M6-60B/C	8	60	80-110	4/0.37	2.8	2.31.31.3
M6-100B/C	8	100	60-90	4/0.37	2.7	2.31.31.3
M8-120B/C	10	120	50-90	5.5/0.37	4.6	3.41.51.5

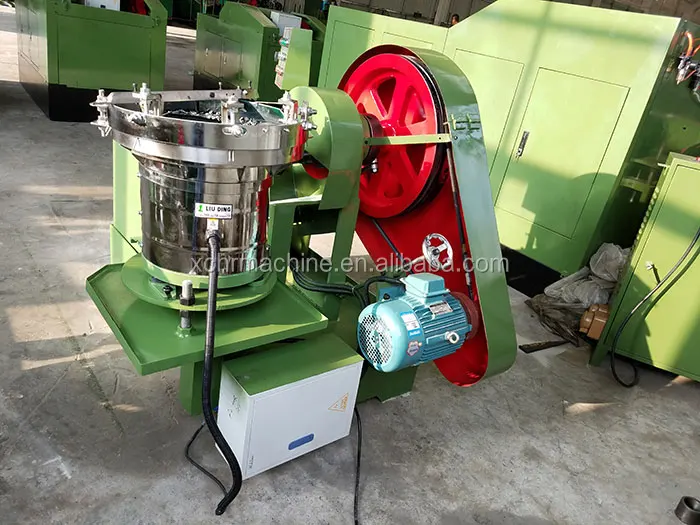

2. Full automatic thread rolling machine

This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.

Thread rolling machine is portable, flexible, high efficiency and has some irreplaceable advantages compared with similar equipment, avoid the limit of lathe, drill or hand tapping, save time, labor, not easy to rotten teeth, screw tap not easy to break off.

The machine is easy to operate, convenient to maintenance, which greatly decrease the technical requirements for workers.

Model	Diameter (mm)	Max. Screw length (mm)	Motor (kw)	Capacity (pcs/min)	Specification of thread rolling plate (mm)	Weight (ton)	Overall size LWH (mm)
R4-40B/A	M4	40	2.2+0.37	280	89/762540	0.97	1.51.151.35
R5-55B	M5	55	3.6+0.37	160	1059025	1.2	1.741.321.55
R6-60B/A	M6	60	4+0.37	180	125/1102560	1.5	1.71.651.3
R6-100B	M6	100	5.5+0.37	110	125/1102560	1.9	2.71.31.3
R8-80B	M8	80	5.5+0.37	110	140/1272580	1.8	2.51.61.2
R8-100B	M8	100	7.5+0.37	100	140/12725120	2.1	2.71.71.3
R8-120B	M8	120	7.5+0.37	100	140/12725120	2.1	2.71.71.3

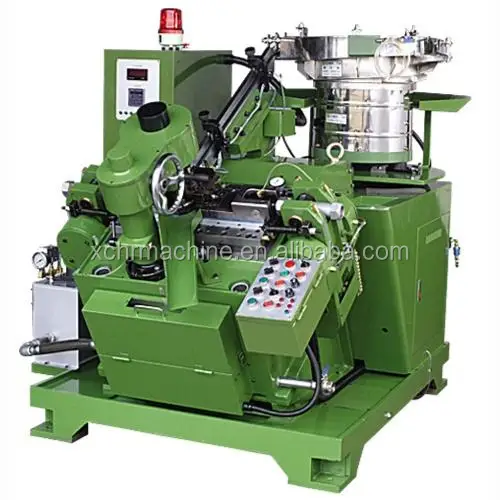

3.Self drilling screw forming machine

This equipment adopts cam surface design, does not affect the processing of forming the molding cycle time, can extend the time of stamping, and reduce the air travel time, to achieve good characteristics of the movement to ensure that mold life.

HRC60 ° grinding precision, rolling friction wear less, perfect zero backlash curve.

High-speed no noise, no energy waste.

High precision, OPR, absolute synchronization.

Simple structure Screw drive, very few failures.

Model

Diameter

Range mm)

Length

range(mm)

Control mode

Capacity

(pcs/min)

Horsepower

(HP)

Motor applied

(HP)

Weight

(kg)

L*W*H

(m)

HT-1405

2.8-4.9

9.5~125mm

PLC control

100-500

7.5

2200

1.9*1.4*1.6

HT-1607

2.8-7.0

10-200mm

PLC control

100-500

2600

1.9*1.5*1.8

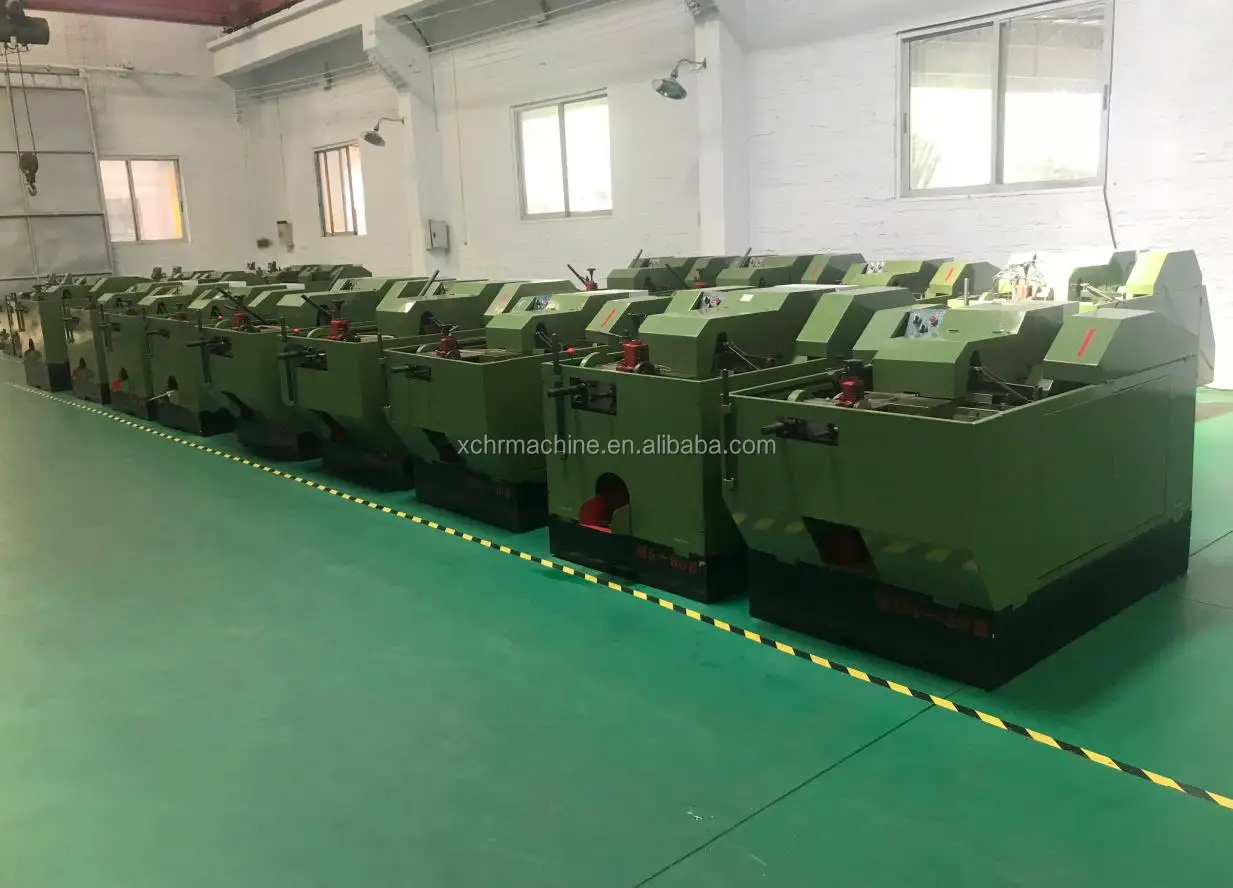

Detailed Images

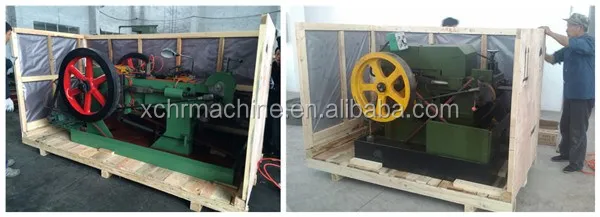

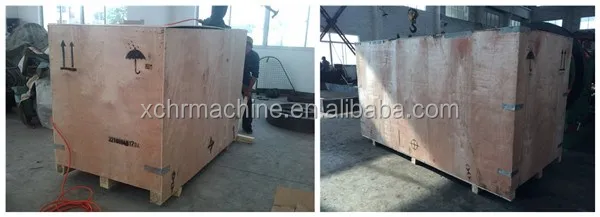

Packaging & Shipping

After-Sales Service

1.All products purchased in our company are guaranteed to keep in good repair for two years. If quality problems happen in guarantee period, our company will maintain for free.

2.Before sending the machine, we will test and adjust, so you can use directly when you get it. Operation video & instruction will be sent to clients, to help them use the machines better.

3. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.

4. Any problems occur while using, professional advice will be offered.

5. All kinds of frequently used parts are supplied all the year round.

6. 24 hours on line service.
