Y3180 china manufacture hydraulic gear hobbing machine

Supplier: Henan Wadjay Machinery Co., Ltd.
Region: China
Contact: Mr dong peng
Price: $21900.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product Description

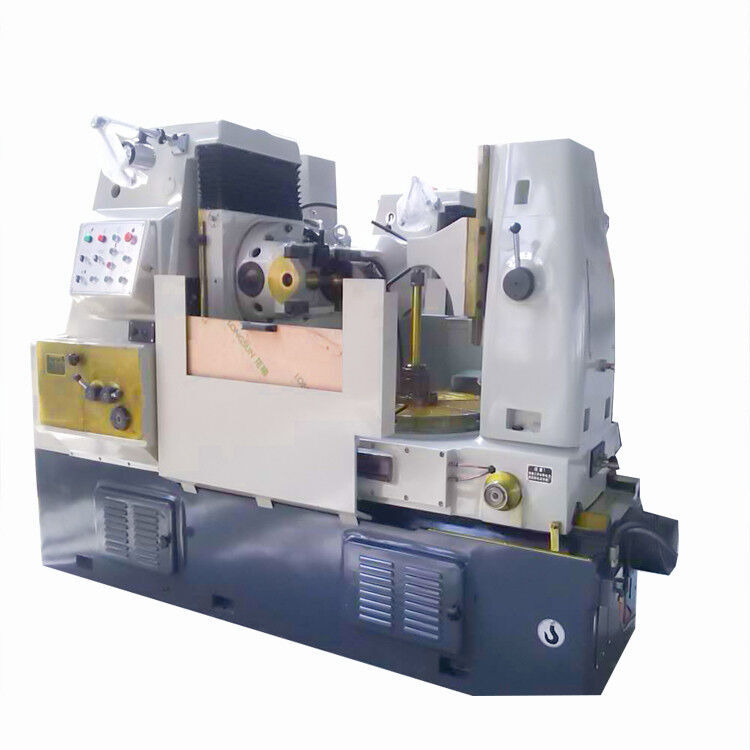

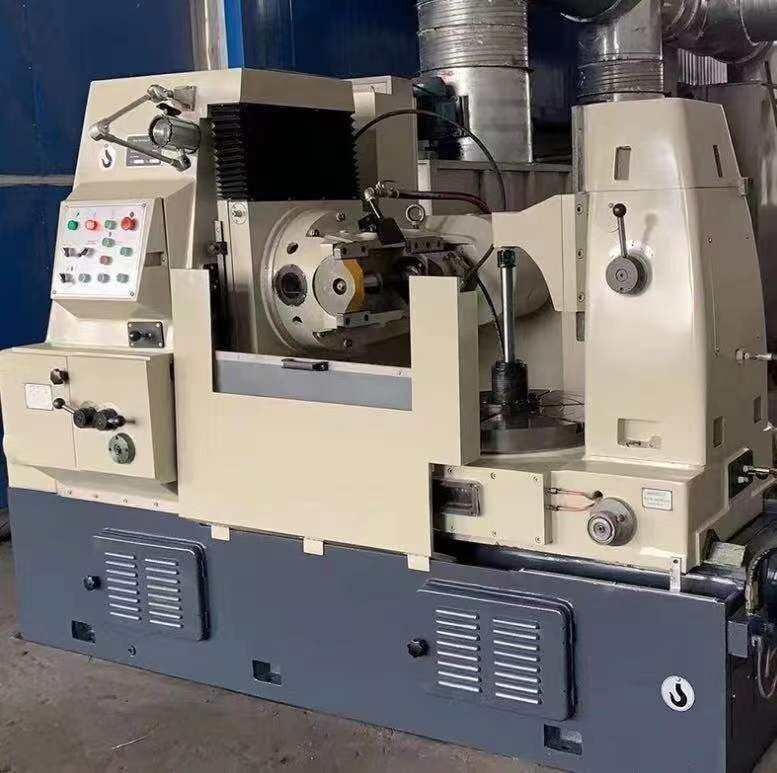

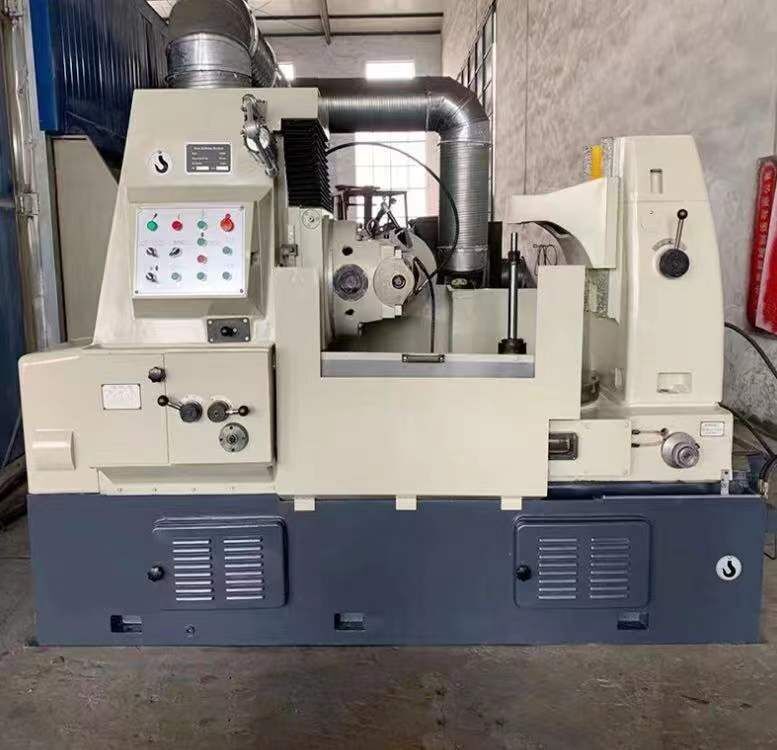

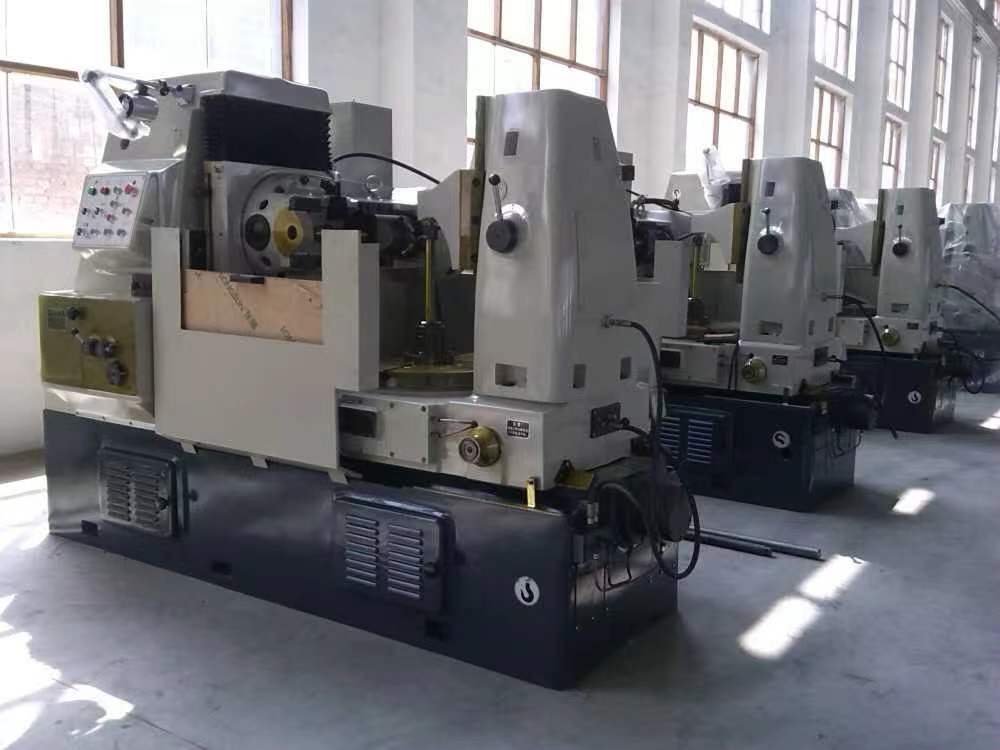

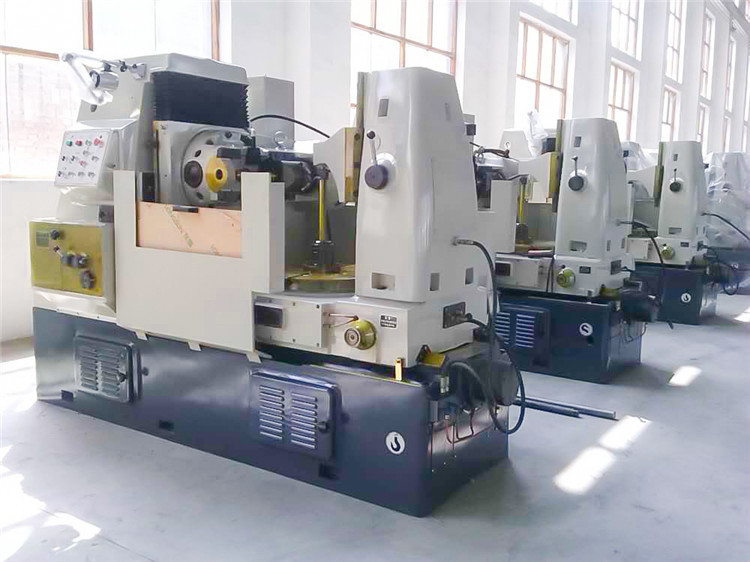

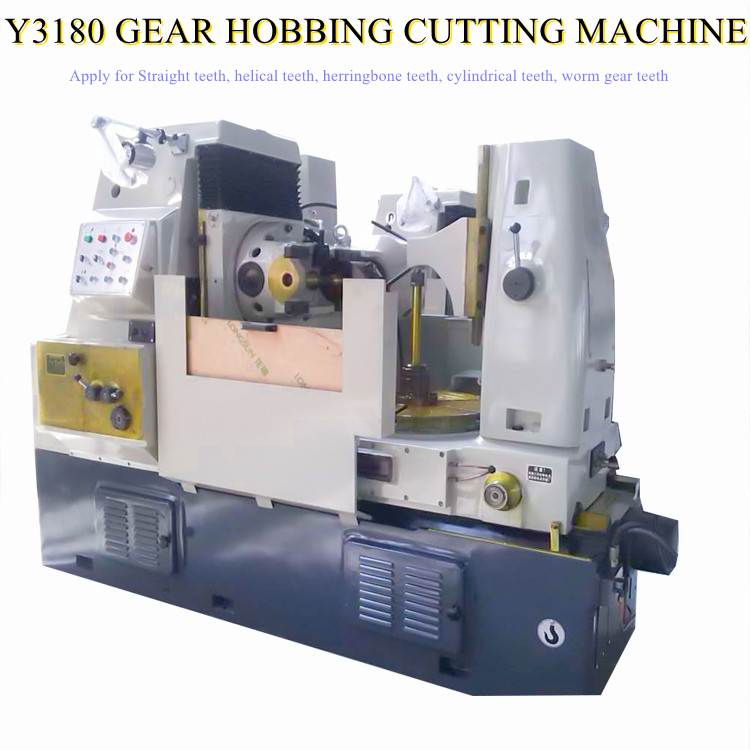

Product Introduction for gear hobbing machine

Y3180 series gear hobbing machine is fixed by vertical column and adopts the traditional layout of horizontally moving
working table, suitable for processing cylindrical gears, worm wheel and short spline shaft in bulk, in package, or in single
workpiece. The machine has the following characteristics:
1.Raised height for vertical column and increased stroke: The vertical column is made higher to enable processing of larger tooth width.

2.Service life of cutting tools is increased by electric tool leap. The longest stroke, such electric tool leap takes
longer hob and greatly increases life the hob.
3.High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.
4.Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater
rotating speed of the tools.
5.Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.
6.Convenient hydraulic powered structure reduces the non-cutting time as well as the times to use the cutting tools.

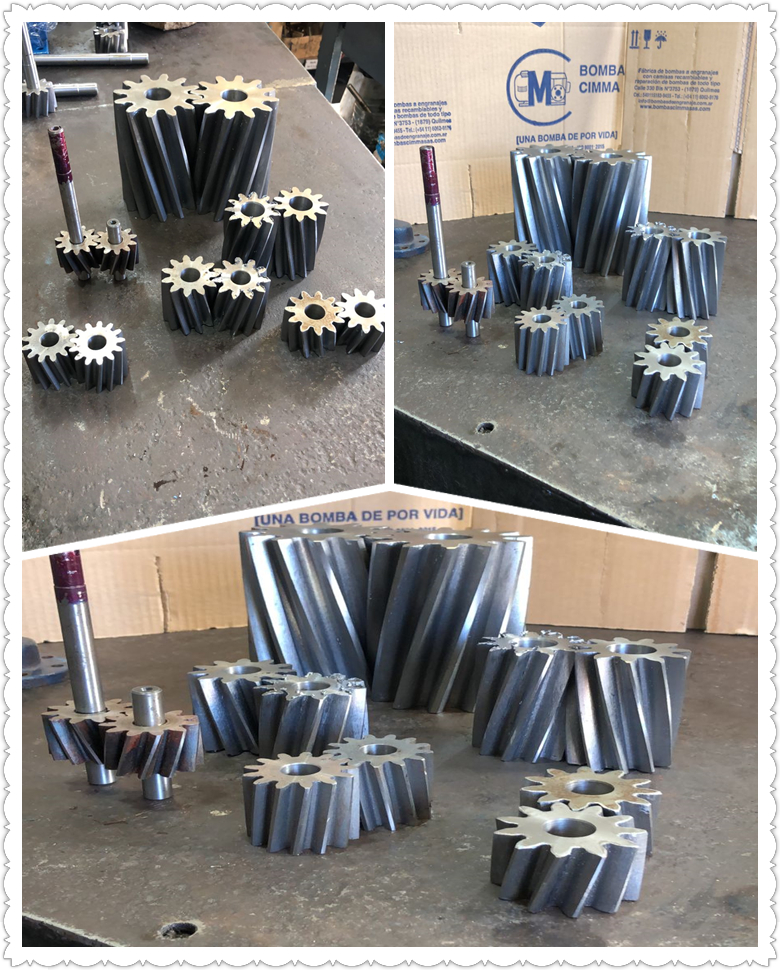

Product Features for gear hobbing machine

1, The machine is suitable for large and single production of cylindrical spur and helical gears, worm gears and sprocket.
2, The machine is characterized by good rigidity, high working accuracy, easy in operation and maintain.
3, The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.
4, According to the special needs of users, can be raised or extended tool to expand the scope of the processing machine accuracy.
5, Easy in operation and maintain.

6.The worktable moves radially and horizontally,and is equipped with a hydraulic drive to quickly move 50mm (approach or
exit)mechanism to shorten the auxiliary time in processing.
7.The manual control hydraulic three-position valve for lifting and lowering the outer support of the rear column can
stay at any height position.
8.The change of the spindle speed change and the axial feed rate adopts the combination of manual shifting and exchange change
gear, and the split gear transmission chain and the differential transmission chain adopt exchange
change gear change.
9.The high-precision indexing worm gear pair is made of bronze alloy material with superior wear resistance.
10.High-precision grinding transmission gear, accurate transmission and low noise.
11.The key parts in the main shaft andtransmission chain adopt high-precision rolling bearings.
12.The machine tool protection is semi-sealed, the coolant does not leak out, and the iron filings are collected in the filing
box and removed regularly.

Specification

Model	Unit	Y3180
Max. workpiece diameter	mm	800
Max. workpiece module	mm	10
Max. tooth width	mm	300
Max. installation diameter of hob	mm	180
Max. installation length of hob	mm	175
Worktable diameter	mm	625
Hob speed (number of steps)	r/min	40～250/9 steps
Max. hob shifting of tool spindle (Y-axis)	mm	55
Main motor power	KW	5.5
Taper of spindle bore		MT5
Distance between hob center and worktable surface	mm	240～590
Distance between hob center and worktable center	mm	50～500
Distance from the center of rear column tailstock to the worktable surface	mm	400～720
Diameter of worktable center hole	mm	80
Max. rotation angle of tool post (A-axis)	°	±60°
Gross weight/Net weight	Kg	6300/5700
Machine dimensions (LxWxH)	mm	2600x1400x1940

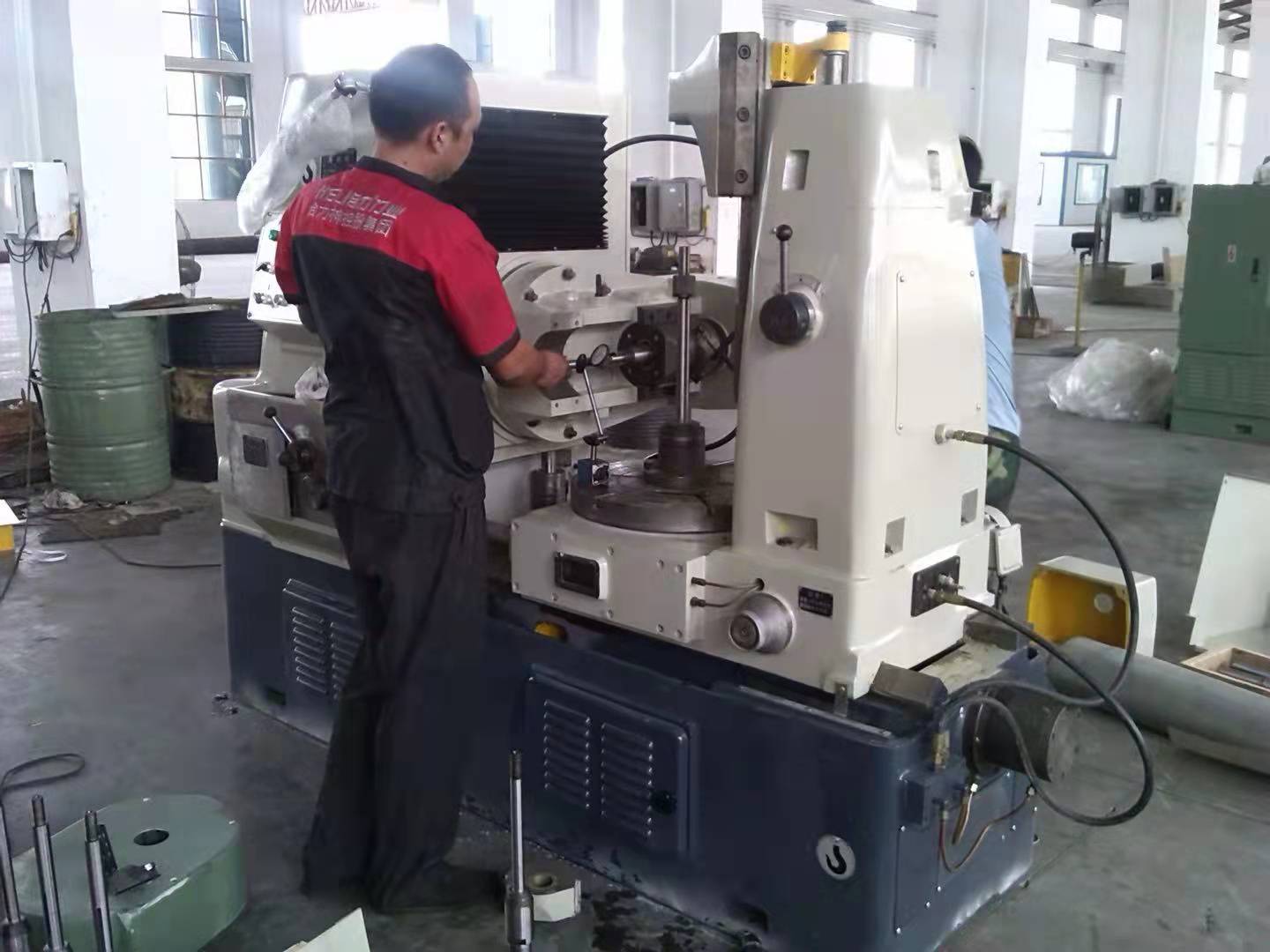

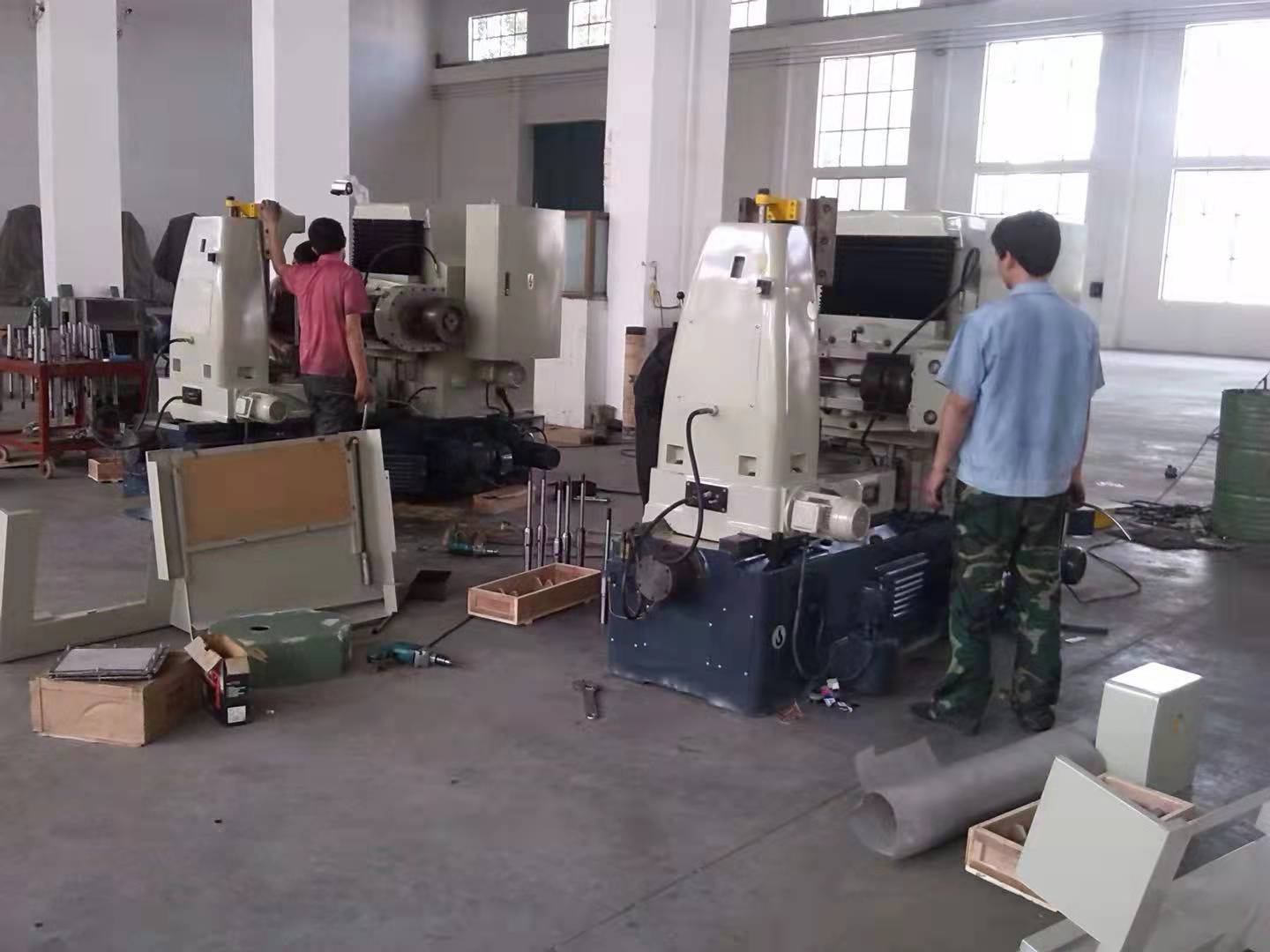

Workshop overview

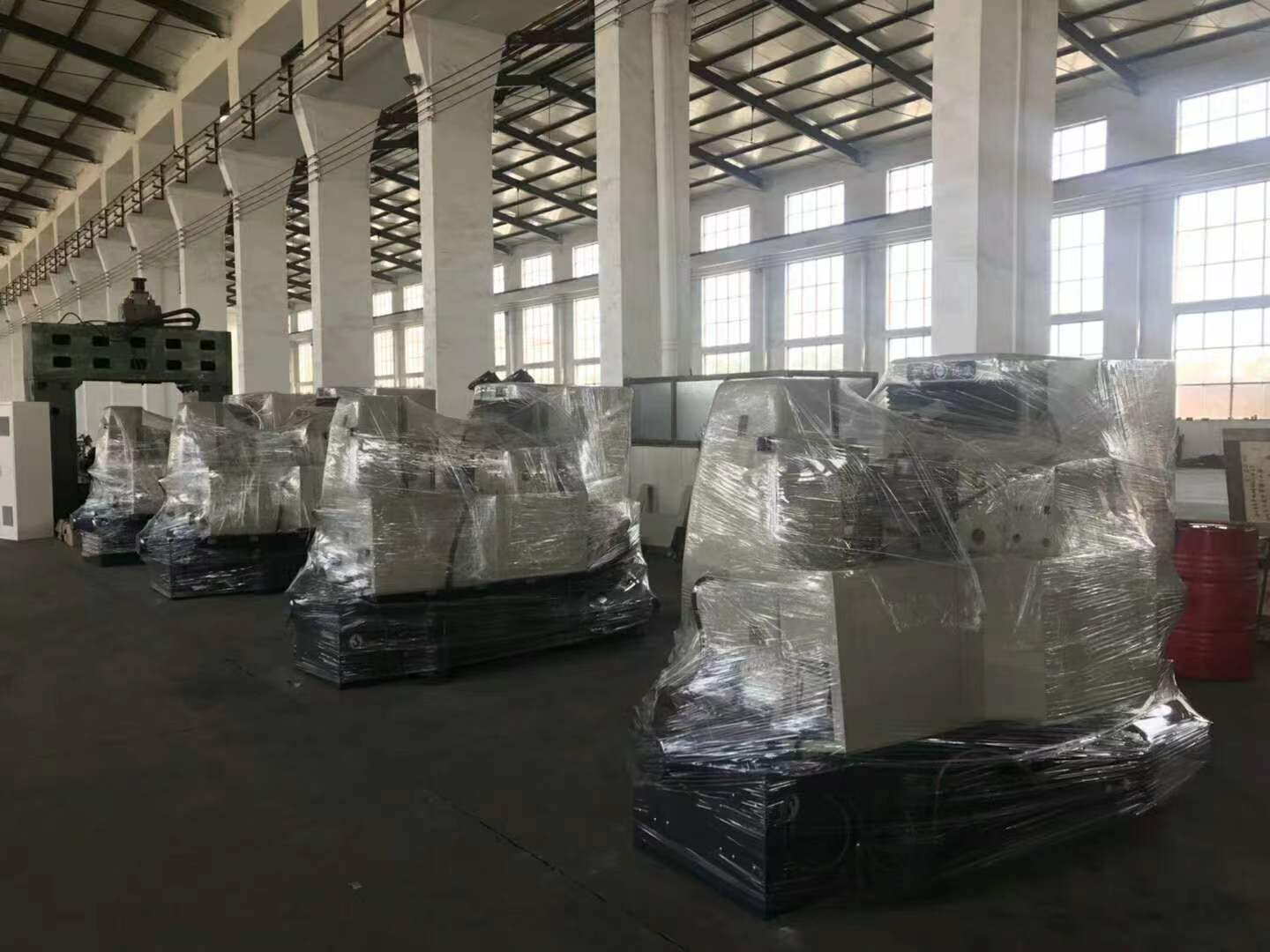

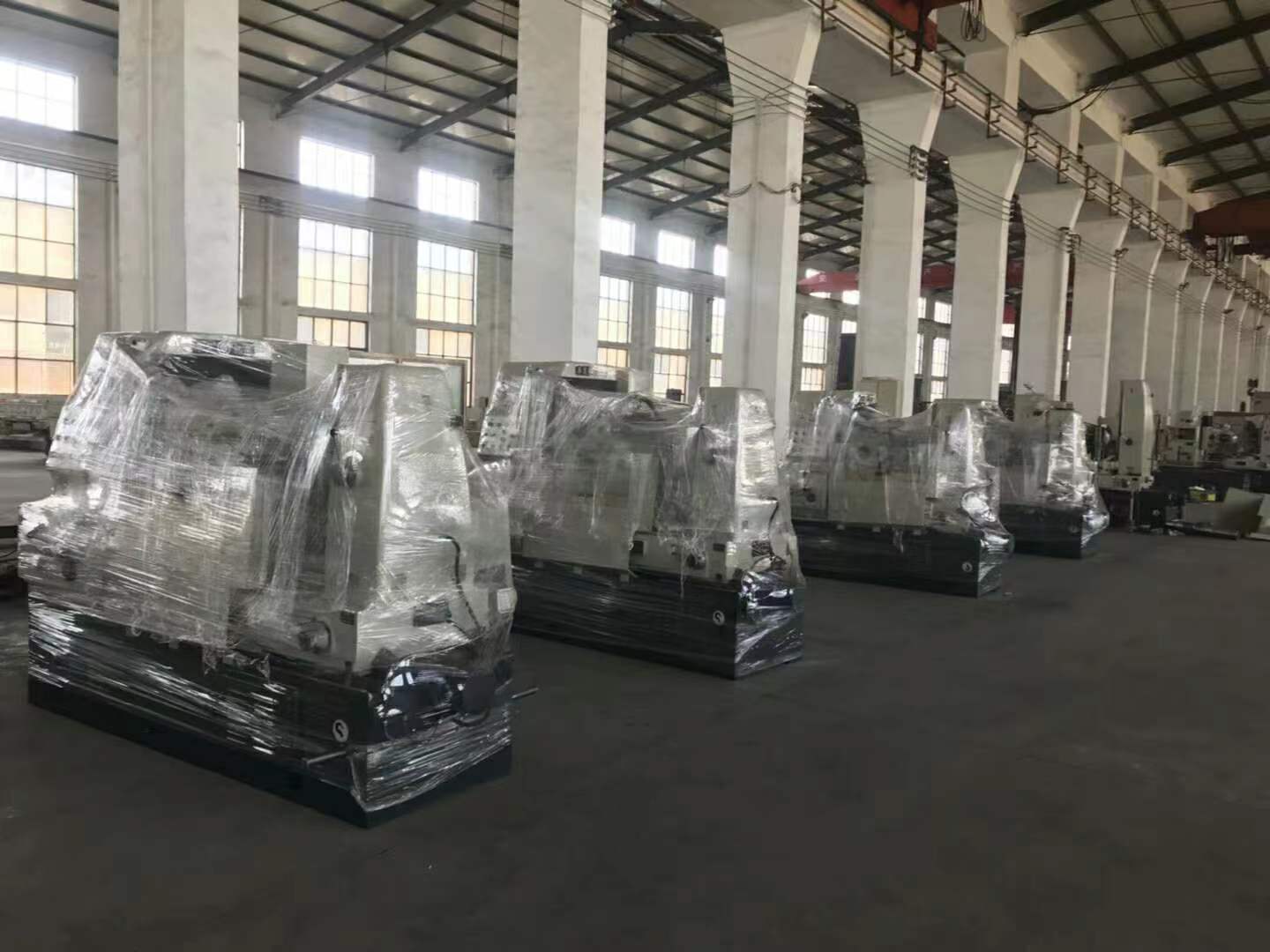

Packing & Delivery
