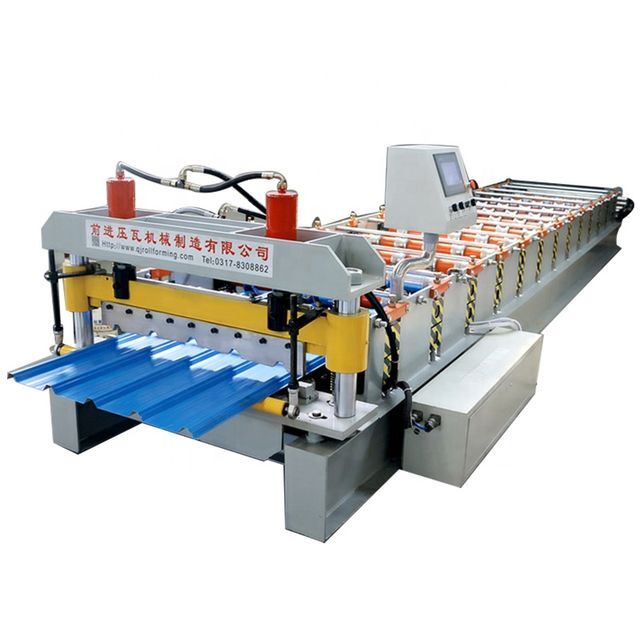

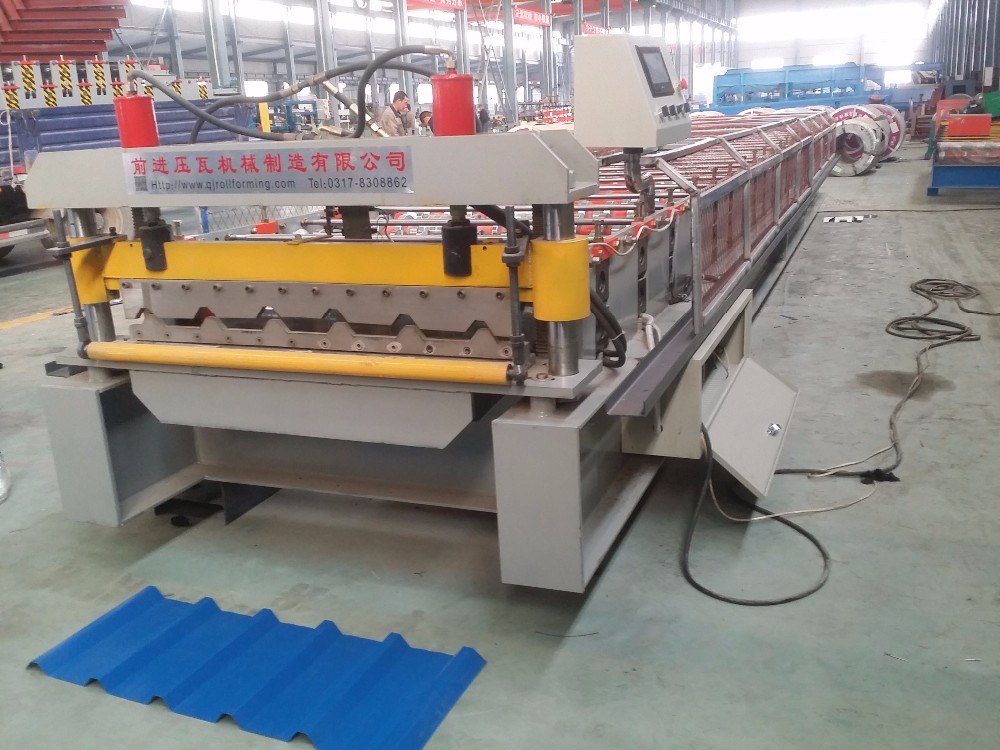

Metal Roofing Sheet Forming Machine Iron Roofing Sheet Making Machine

Supplier: Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd.
Region: Hebei, China
Contact: Mr Yang Yao
Price: $12500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	not any	Warranty:	1.5 years
Core Components Warranty:	1.5 years	Shaft Material:	High-quality 45# steel, heat-quenched cylindrical grinding
Raw materials:	GI,PPGI,PPGL	Applicable industries:	Building materials stores, manufacturing plants, construction projects
Tile Type:	Glazed steel	type:	Tile forming machine
brand:	Qin Jie	Shaft diameter:	70 mm
Roller Material:	High quality 45# steel quenched, heat treated, hard chrome plated	Mechanical test report:	if
Tool material:	Cr12MoV	port:	Tianjin Xingang
weight:	3.5T, 3.5kg	usage:	Roof and siding, construction or building materials
Raw material thickness:	0.3-0.8mm	Dimensions (LWH):	650013001500
Marketing Type:	Hot Products of 2019	Health status:	new
Feed width:	OEM	Production capacity:	12-16m/min
Control System:	PLC (imported brand)	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Cash
Main selling point:	easy to operate	Voltage:	380V 50Hz three-phase
Packaging Details:	Packed intact and bare in a 20' container or as per your request. Some photos and videos will be taken for your reference before shipment.	Rolling thickness:	0.3-0.8mm
Local service location:	not any	Core components:	Motor, gear, gearbox, PLC
Video external inspection:	if	place of origin; place of origin:	China
Supply capacity:	20 Roof Roll Forming Machines per month	use:	roof

Qianjin Forming----Your best solution supplier for cold forming machine! ! !

As the original manufacturer of tile presses, we can produce most products according to your requirements, not only

Dimensions of the products on this page.

You can send an inquiry for more product information.

Product Description

Applications

This roof panel has a beautiful, classic look and elegant taste.

Can be widely used in country, hotel, exhibition, vocational village, home construction and outdoor decoration.

Specifications of Roof Sheet Roll Forming Machines
raw materials	Feed width	mm	1220
		effective width	mm	1000
		thickness	mm	0.3-0.8
Host Roll Forming Machine	Roller material		45# steel chrome plating
		Shaft diameter	mm	70
		Roller Station	pace	16
Main configuration	main motor power	kilowatt	5.5
		Hydraulic station power	kilowatt	4
		Control System	Programmable controller brand	mitsubishi

main feature

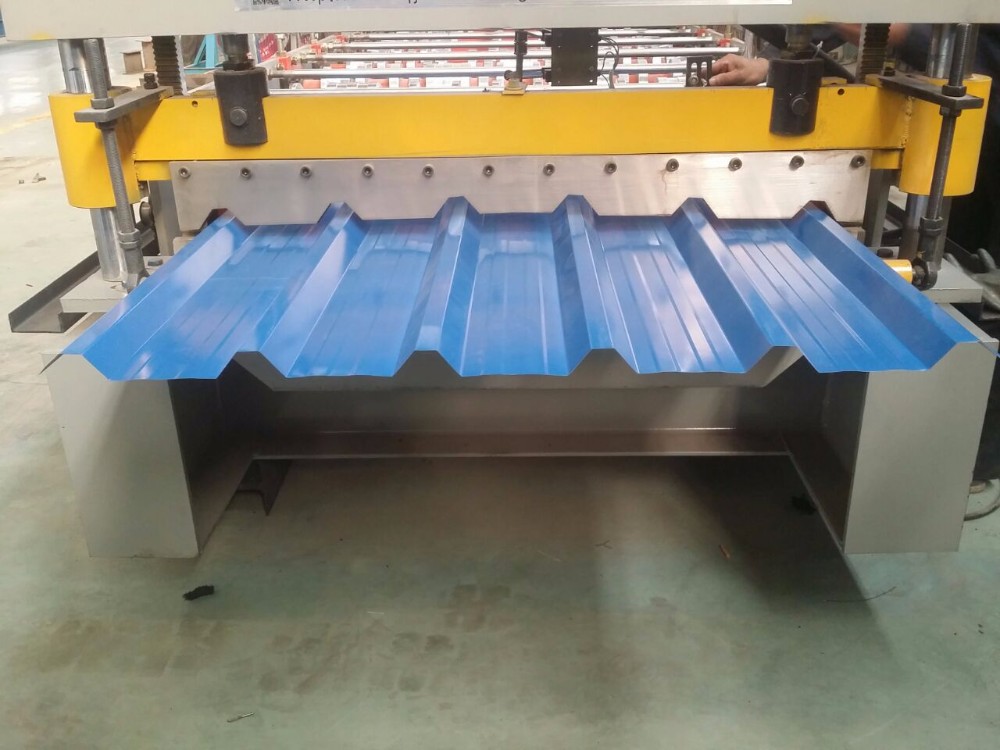

1. This roll forming machine can roll form metal roof panels. After being rolled by this roll forming machine, the surface is very smooth and beautiful, without any scratches on the surface.

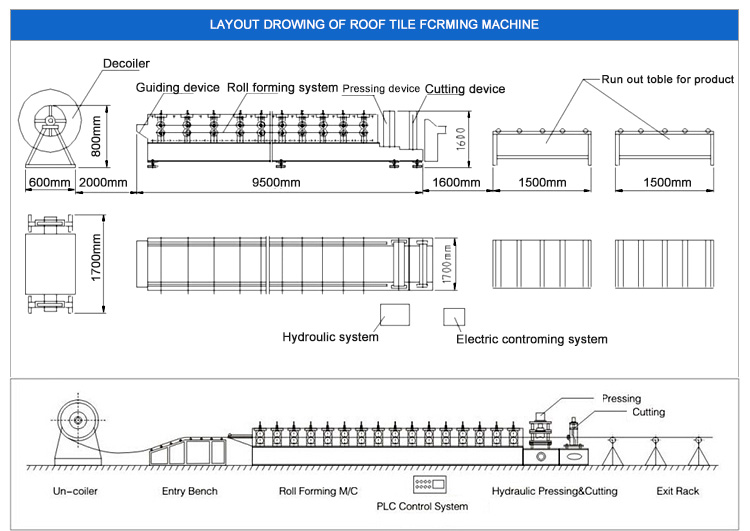

2. Roll forming process: uncoiler, roll forming, forming step effect, cut to length.

3.PLC automatic control system.

4. Simple operation: input the length and quantity on the control panel.

5. One year warranty.

6. We can also customize the roll forming machine, we can design the machine according to your specification and outline drawing.

7. One molding machine can only produce one profile.

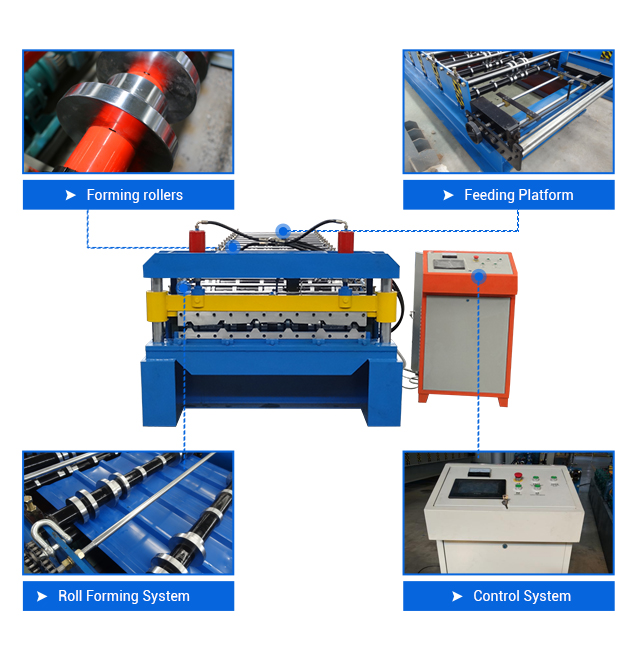

detailed image

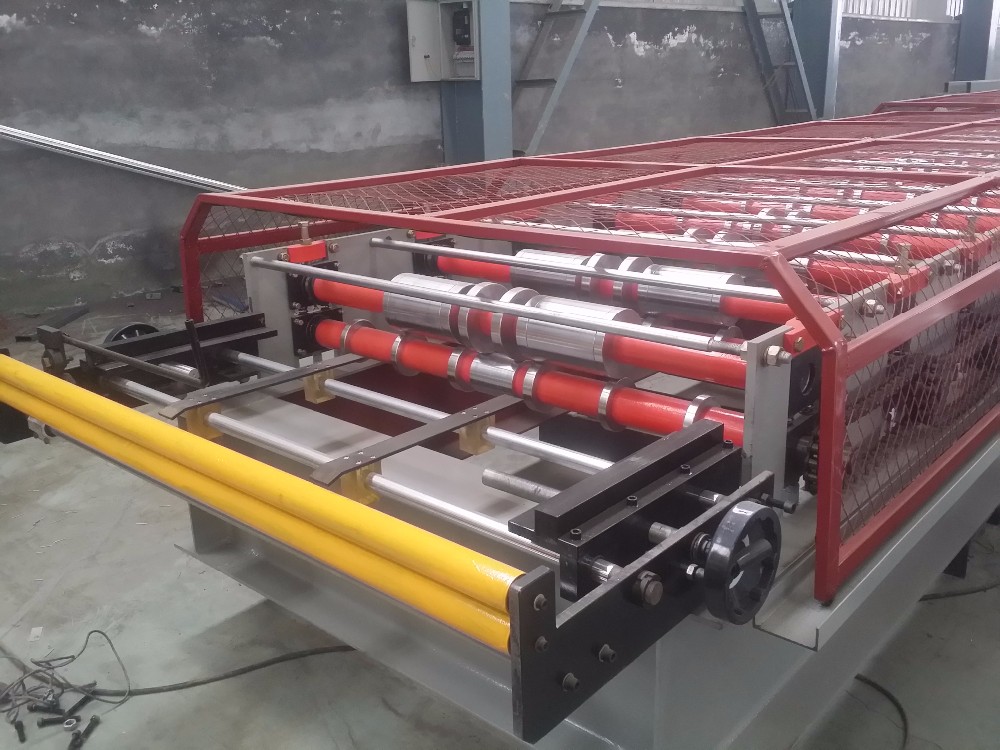

Mechanical Parts

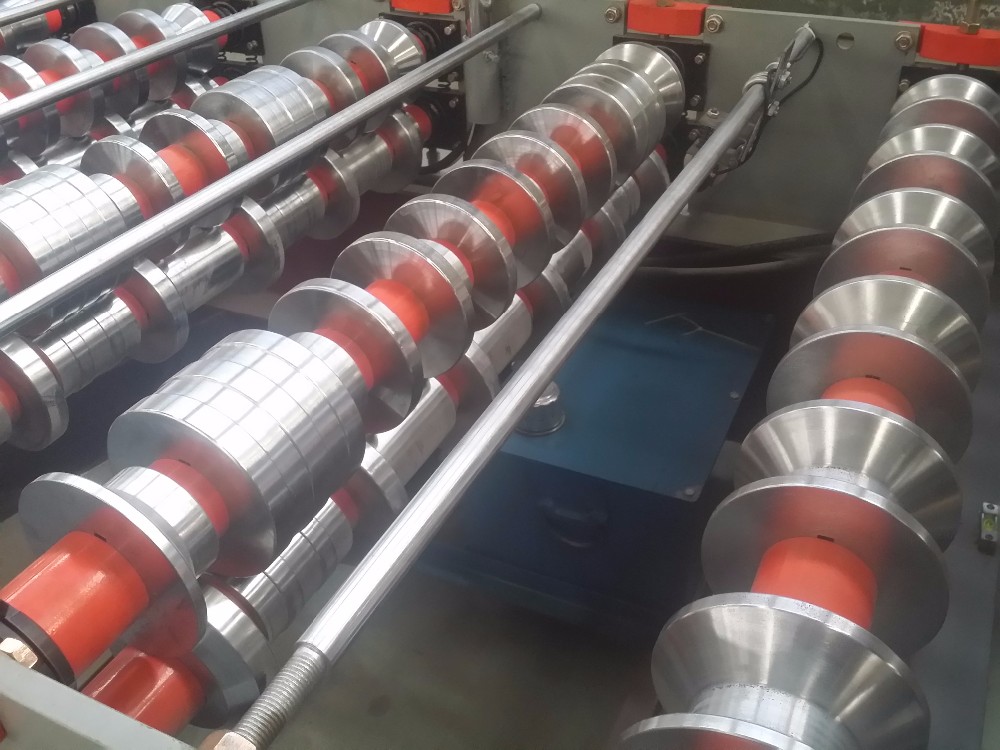

Name: Roller
In order to obtain high quality products, our machine adopts welded steel frame structure, AC variable frequency motor deceleration drive, chain drive, roller surface polishing, hard plating, heat treatment and chrome plating.
Roller chrome thickness: 0.05 mm
Roller material: forged steel 45# heat treatment, coating

main feature

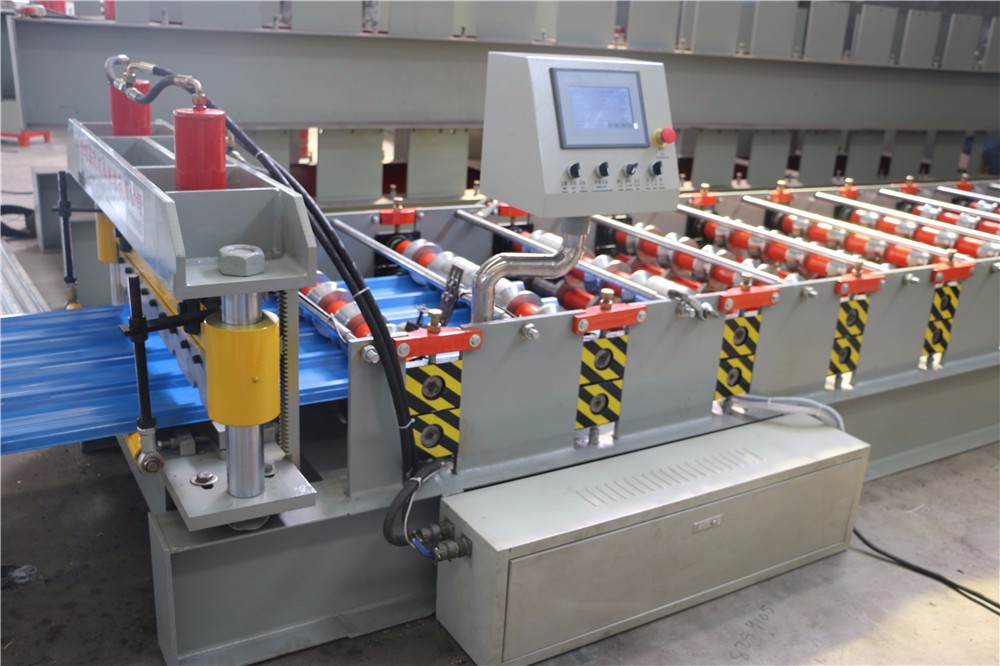

Name: PLC
Brand: Mitsubishi
Adopt Panasonic PLC to organize all the movements of the machine. The workpiece length can be adjusted according to the settings on the PLC. Two selectable control modes: automatic and manual. With automatic mode, the machine can work fully automatically. In order to make the machine have a long service life and easy maintenance; we only use world-renowned electrical components. And through our specially designed programs, the human-machine interface is very easy to be adopted by any level of operator.

Mechanical Parts

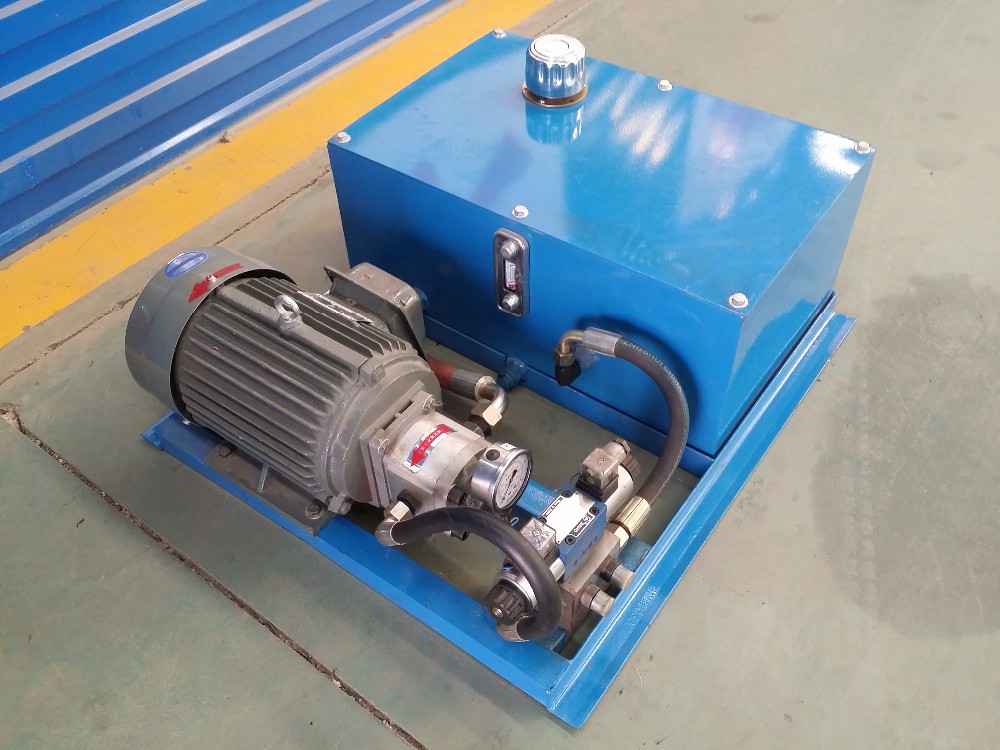

Name: Pump
Brand: China
It is derived from a gear pump. After the hydraulic oil is injected into the hydraulic oil tank, the pump drives the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic oil tank, a set of gear pump, two hydraulic pipes and two sets of solenoid valves.
Pump power: 4kw
Hydraulic oil: 40#

main feature

Name:blower
Card:Festo
The original:Germany
Domestic famous brand engine, strong power, low fuel consumption, high economic efficiency 12F+4R sliding sleeve shift.

Similar product recommendation

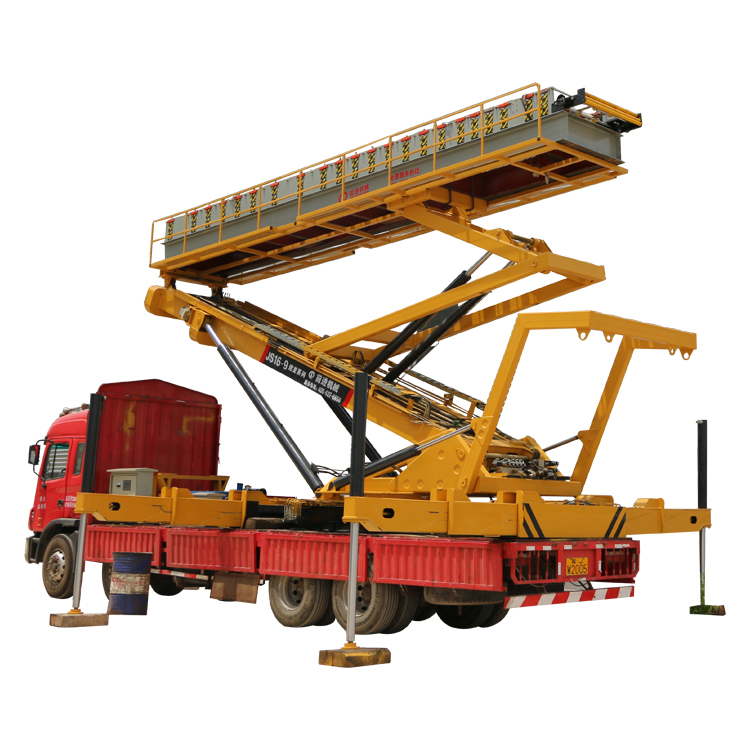

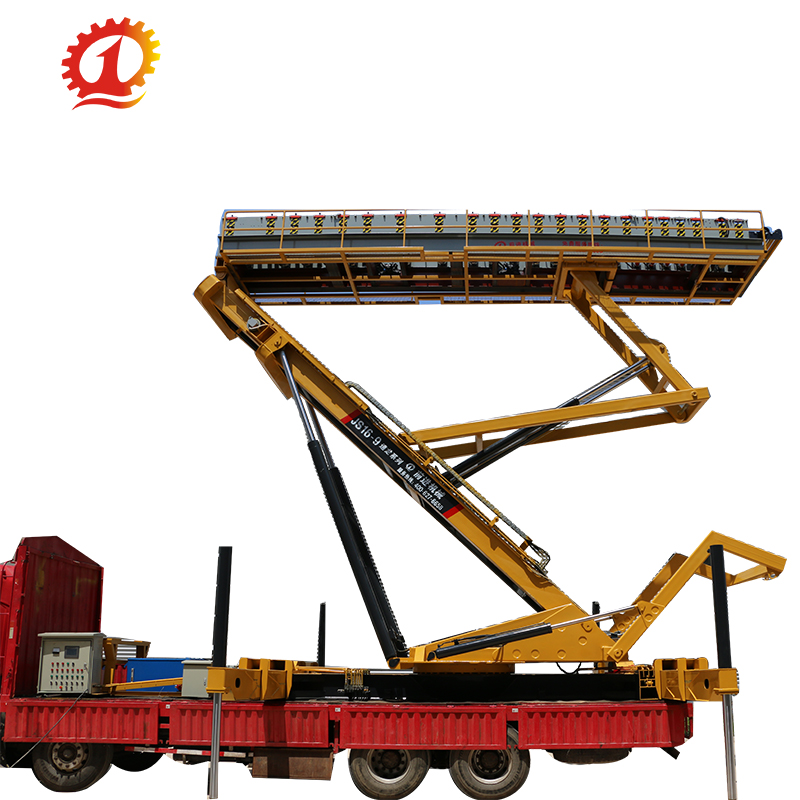

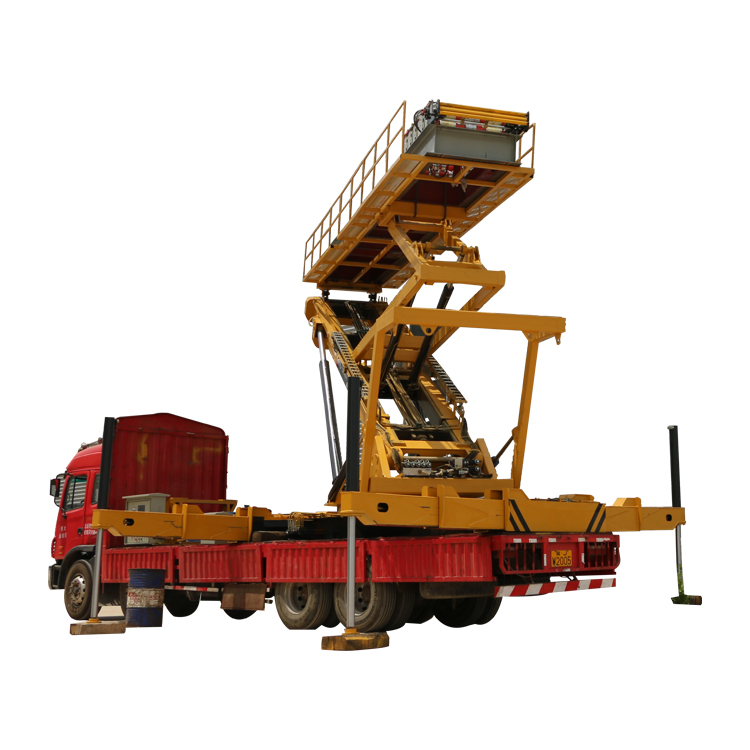

Mobile roof forming platform
