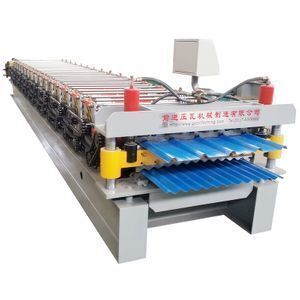

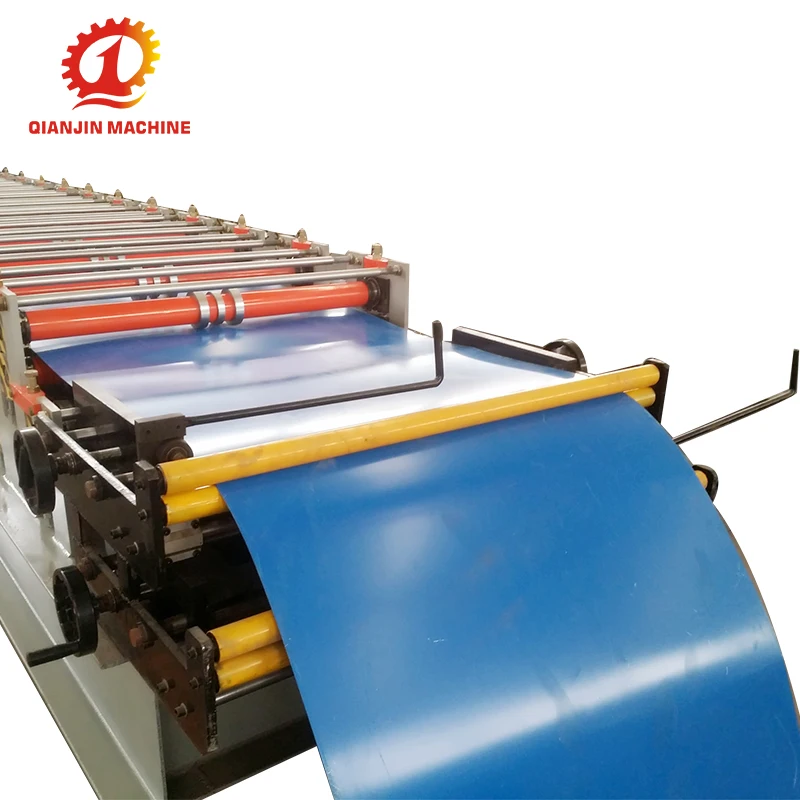

Roof Use Double Layer Corrugated Profile Steel Roofing Sheet Roll Forming Machine Roof Tile Making Machine Price
-
Supplier: Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd. -
Region: Hebei, China -
Contact: Mr Yang Yao -
Price: $21500.00 /set -
Min. Order: 1 set
| Applicable Industries: | Manufacturing Plant; | Packaging Detail: | Nude in 20 feet container and packaged well with waterproof.; |
| Production Capacity: | 15-20m/min; | Use: | Roof; |
| Weight: | 6.5T; | Condition: | New; |
| Port: | Tianjin New Port; | Brand Name: | QJ; |
| After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support; | Roller material: | High Grade 45# Steel,quenched,heat-treatment and hard chrome 0.05mm; |
| Voltage: | 380V 50Hz 3phases; | Shaft material: | High Grade 45# Forging Steel,quenched and heat-treatment; |
| Place of Origin: | China; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Dimension(L*W*H): | 9500mm*1500mm*1550mm; | Control system: | PLC(imported Brand); |
| Key Selling Points: | Long Service Life; | Main motor power: | 5.5Kw; |
| Roller stations: | 18/18 Stations,different profile with different stations; | Tile Type: | Colored Glaze Steel; |
| Material Thickness: | 0.3mm-0.8mm; | Warranty: | 18 Months; |
| Usage: | Roof or Wall panel; | Sidewall thickness: | 18mm; |
| Supply Ability: | 20 Set/Sets per Month double deck layer roo forming machine; | Raw material: | Color Steel Sheet,galvanized coil,aluminum; |
| Cutting blade material: | Cr 12 Mov,Quenched; | Type: | Tile Forming Machine; |
| Certification: | CE/ISO9001; |

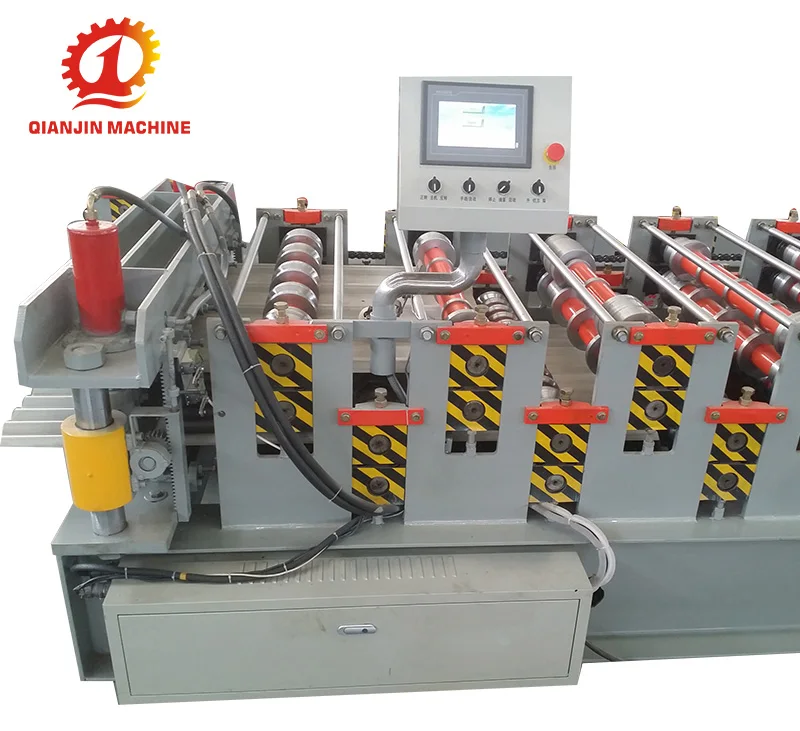

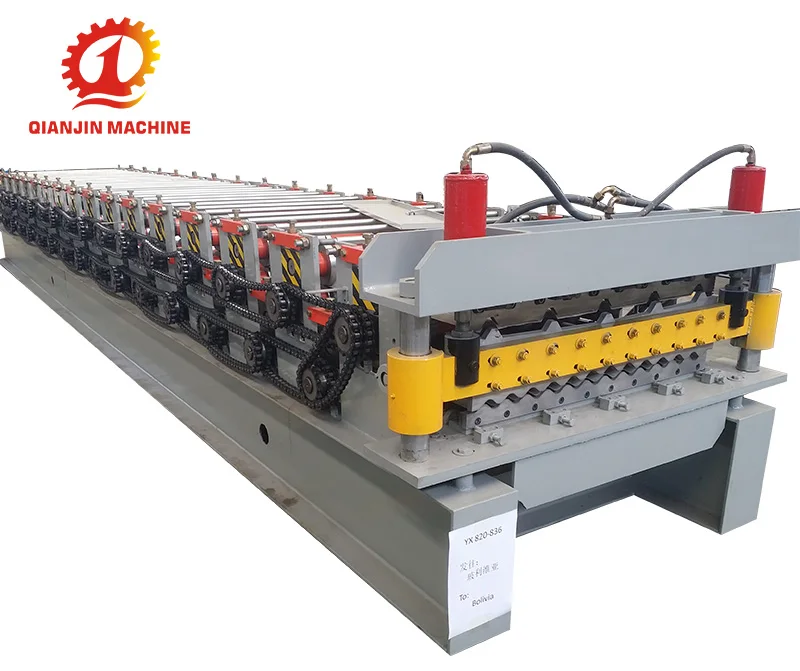

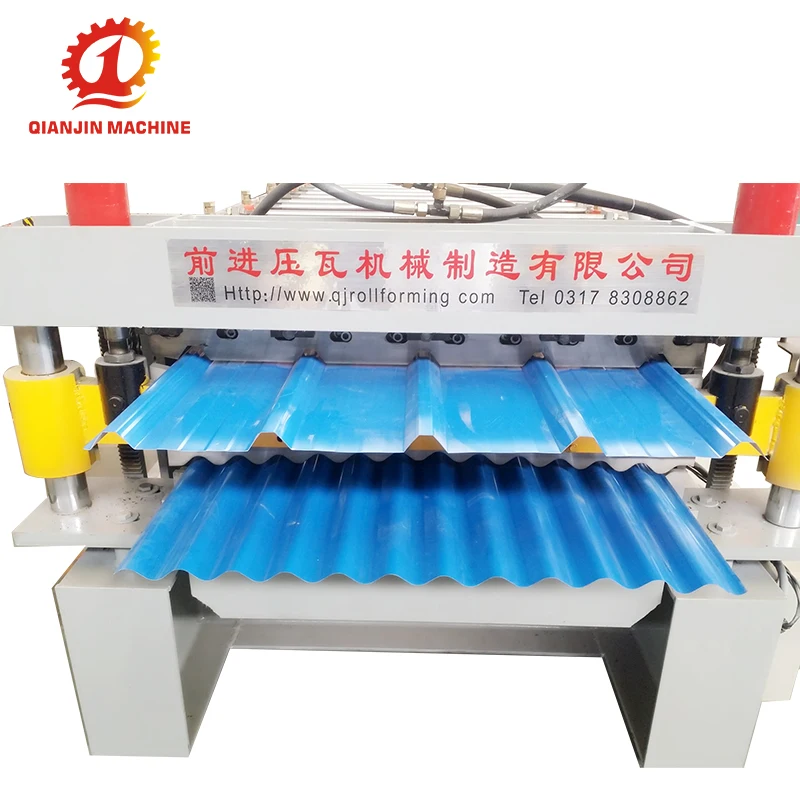

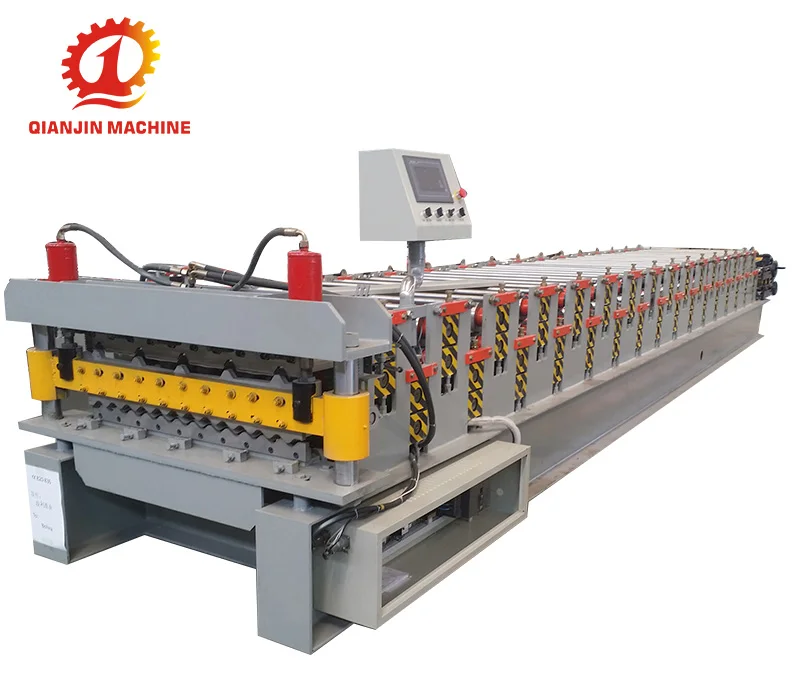

Roof Use Double Layer Corrugated Profile Steel Roofing Sheet Roll Forming Machine Roof Tile Making Machine Price
PRODUCT DESCRIPTION
| SPECIFICATIONS FOR ROOF SHEET ROLL FORMING MACHINE | |||
| Raw Material | feeding width | mm | up layer 1000 |
| down layer 1000 | |||
| effective width | mm | up layer 820 | |
| down layer 836 | |||
| thickness | mm | 0.3-0.8 | |
| Main Roll Forming Machine | roller material | 45# steel plated with chrome | |
| diameter of shaft | mm | 70 | |
| roller station | steps | up layer 16 | |
| down layer 16 | |||
| Main Configuration | main motor power | kw | 5.5 |
| hydraulic station power | Kw | 4 | |
| control system | PLC brand | Mitsubishi | |

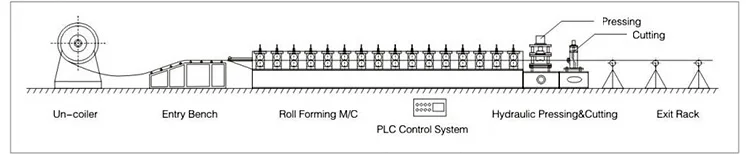

PROCESS FLOW DIAGRAM
 |
 |
 |
 |  |
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspectthe machine well and before delivery. Of course your payment terms are acceptable.After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after -sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across theworld.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand com-ponents.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of anymachine.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beiing airport, By high speed train From Beiing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
-
