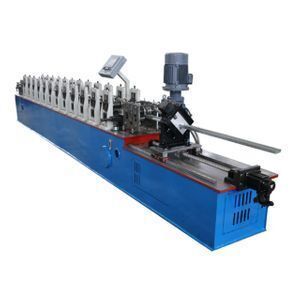

CNC channel color steel c purlin wall panels roll forming machine
- 12000.00 set
| Place of Origin: | China; | Weight: | 5 Tons; |
| Applicable Industries: | Manufacturing Plant; | Roller material: | Cr12 Steel Quenched; |
| Warranty: | 18 months; | Tile Type: | Colored Steel; |
| Key Selling Points: | Easy to Operate; | Use: | Roof; |
| Port: | Tianjin new port; | Payment Terms: | L/C,T/T,Western Union; |
| Cutting Device: | Servo Tracking Cutting; | Shaft Material: | 45# Steel Forging Treatment; |
| Voltage: | 380V 50Hz 3phases; | Roller Station: | 10 Steps; |
| Dimension(L*W*H): | 6500mm*1500mm*1500mm; | Transmission: | Gear and Sprocket; |
| After-sales Service Provided: | Online support, Free spare parts, Field maintenance and repair service, Video technical support; | Certification: | CE/ISO9001/SGS; |
| Production Capacity: | 30-40m/min; | Forming Speed: | 30-40m/min; |
| Reducer Type: | 250#; | Brand Name: | QJ; |

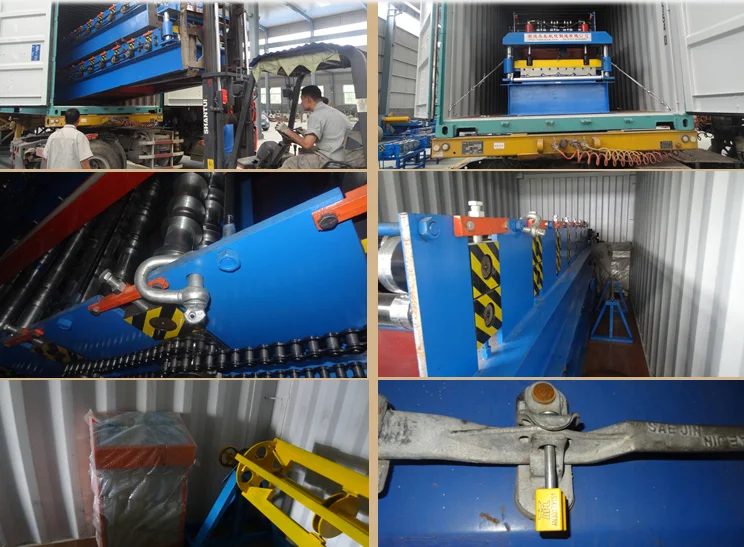

| Packaging Detail: | Simple waterproof package, fit for ocean shipping and fixed well in a 20GP container. We will invite our customer to check the machine before shipping, after confirmed there was no problem, then we will ship the machine.; | Raw material: | Color Steel Galvanized Steel Sheet; |
| Supply Ability: | 20 Set/Sets per Month; | Type: | Tile Forming Machine; |
| Shaft material: | High Grade 45 # Steel; | Main motor power: | Hydraulic 5.5kw; |
| Condition: | New; |

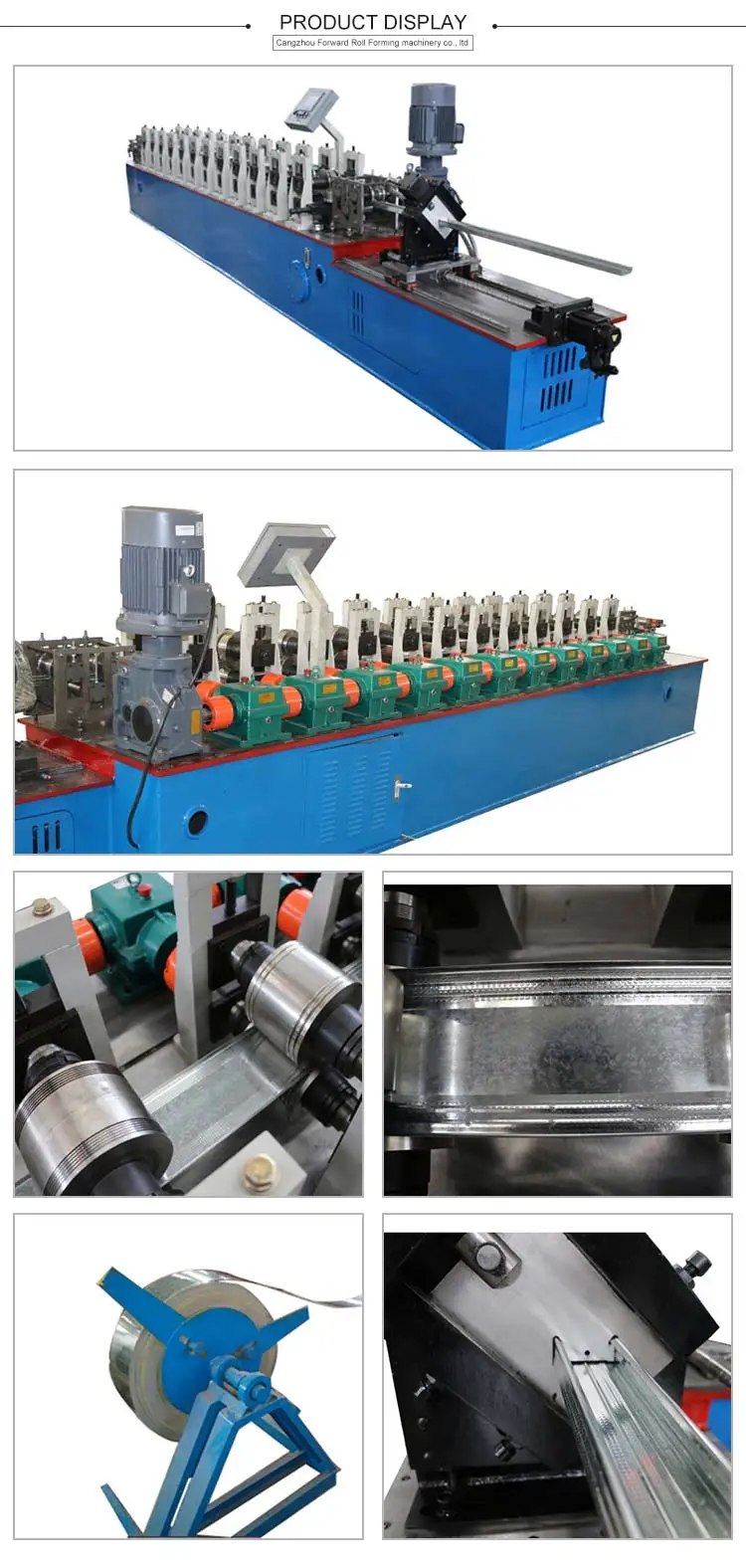

CNC channel color steel c purlin wall panels
roll forming machine
1.High Precision And Speed
2.CE,ISO certification
3.Customization Accept
| Sidewall structure | Memorial Archway Type |
| Roller Station | 8 Steps |
| Roller Material | Cr12 Steel,after rough turning then NC Lathe |
| Shaft diameter | 50mm |
| Shaft material | 45# steel with forging treatment |
| Motor Power | Hydraulic 5 5KW |
| Reducer Type | 250# |
| Production Speed | 30-40m/min(include forming/utting) |
| Transmission | Gear and Sprocket |
| Cutting Device | Servo tracking cutting |
| Cutting Motor | 5.5KW |
| Cutting Mold | Cr12MoV |

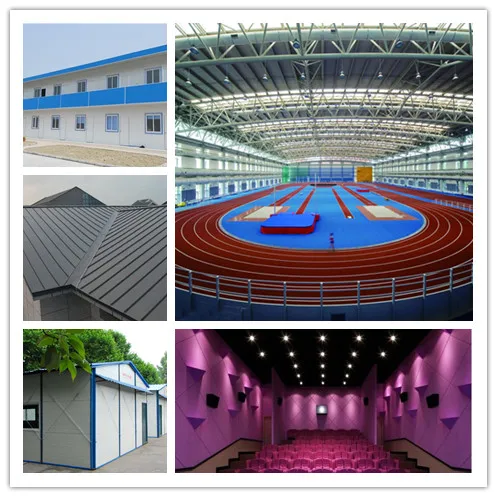

Application
1.Accept any cutomized requirement
2.If you order our machine,we can provide you installing and debugging.
Q1. What's your delivery time?
A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.
Q2. Do you have after-sales support?
A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3:No, most of our machines are built according to customers specifications,using top brand components.
Q4. What will you do if the machine is broken?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5:Yes,please tell me the destination port or address.we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
