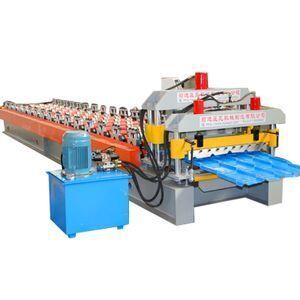

Light Weight Wall Panel Roll Forming Making Machine
-
Supplier: Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd. -
Region: Hebei, China -
Contact: Mr Yang Yao -
Price: $3000.00 /set -
Min. Order: 1 set
| Certification: | CE BV ISO TUV; | Cutting blade material: | Cr12 Quenching; |
| Local Service Location: | none; | Applicable Industries: | Manufacturing Plant; |
| Payment Terms: | L/C,T/T,Western Union; | After-sales Service Provided: | Online support; |

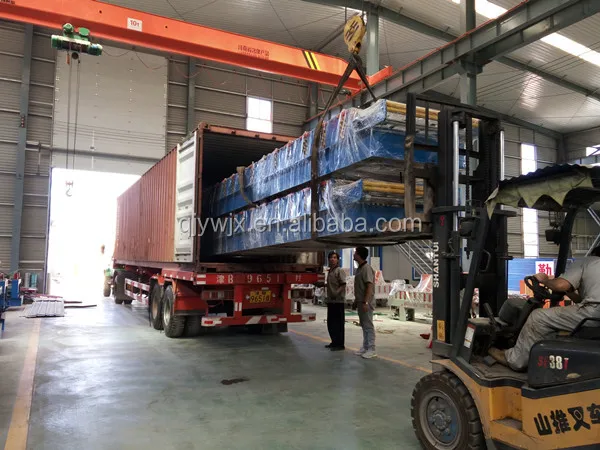

| Packaging Detail: | nude packing in the 40 feet container but with steel rope fixed well and other compents such as the computer control cabint will be packed with waterproof cloth and cardboard ifthe roll forming is too long we can divide into two parts but in one package with welding; | Place of Origin: | Hebei China; |
| power: | 5.5kw; | Voltage: | 380V 50Hz 3phases; |
| Thickness: | 0.3-0.7mm; | Brand Name: | QJ; |
| Key Selling Points: | long service life; | Dimension(L*W*H): | 6m*1.4m*1.4m; |
| Control system: | PLC(imported Brand); | Automatic Grade: | Automatic; |
| Main Frame: | H-Beam; | After Warranty Service: | Online support; |
| Port: | tianjin port; | Showroom Location: | none; |
| Warranty: | 18months,1.5 years; | Condition: | New; |

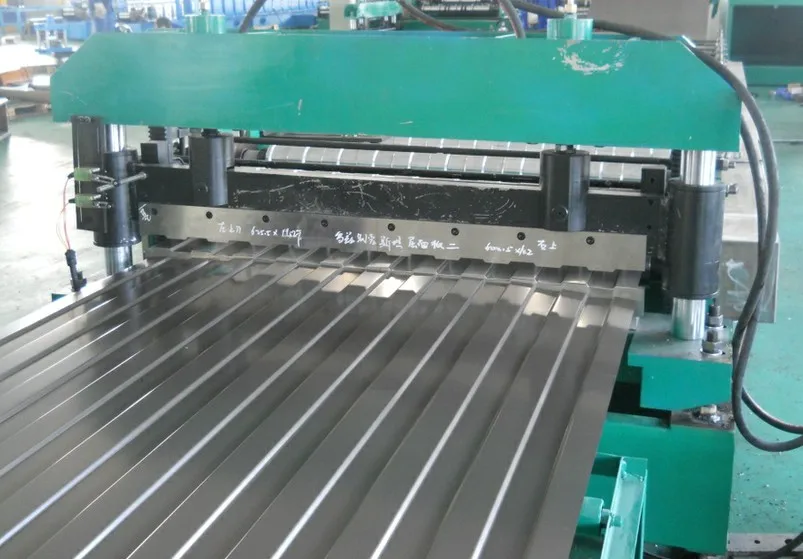

| Cutting type: | Hydraulic Guide Pillar Cutting; | Production Capacity: | OEM; |
| Weight: | 5T; | Power(W): | OEM; |
| Supply Ability: | 30.0 Set/Sets per Month; | Roller material: | 45# Forged Steel; |
Qianjin Forming----Your Best Cold Roll Forming Machine solution Supplier!!!
|
NO. |
Item |
Specification |
|
1 |
Processing material |
Color steel sheet , galvanized steel sheet |
|
2 |
Processing thickness |
0.3-0.8 mm |
|
3. |
Diameter of principal axis |
Φ70mm |
|
4. |
Material expand width |
1195 mm |
|
5. |
Electric tension |
380V 3phase 50HZ or as the customer's requirements |
| 6. | Diameter of Soild shaft | 70mm, high grade 45# steel |
| 7. | Roller |
High grade 45# forged steel (plated chrome plating on surface) |
| 8. | Rolling galvanization thickness | 0.05mm |
| 9. | Processing precision within | 1mm |
|
10. |
Transmission |
By chain(0.6 inch) link bearing model 6210 |
| 11 | Hydraulic cutting | Controlled by PLC |
| 12 | PLC | DELTA(TAIWAN)/Mitsubishi |
| 13 | Material of razor blades | Cr 12, quenching 58-62℃ |
| 14 | Switch | CHNT |
| 15 | roller station | 13-18 roller |

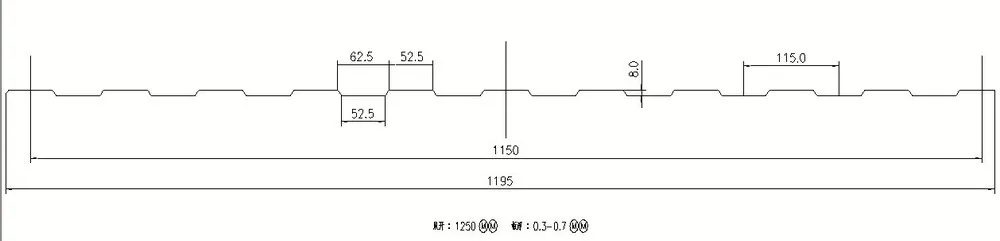

Profile Drawing:

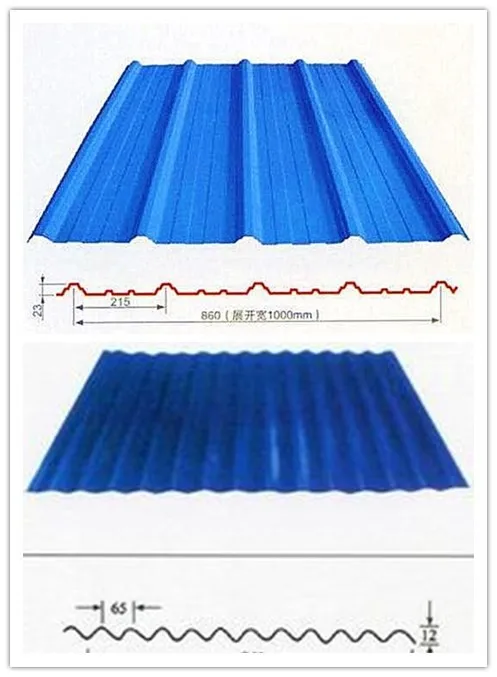

Orther type of wall panel :(We can design and produce the machine as your request,welcome to send us your sepecification or drawing ,we will give you a satisfied solution. )
1.manufactory or trade company
we are prefessional manufactory of roll forming machine with nealy ten years and specialize in PPGI Roll Forming Machines, C and Z Purline Rolling Machines, all kinds of Steel Roof Tile Making Machines, Floor Deck Roll Forming Machines,stud and track making machine ,Highway Guardrail and shutter door,door frame making machine ,Car Panel Forming Equipment, Shearing Machines, Bending Machines, Slitting Machines, and other construction equipments.
2.MOQ:1 set

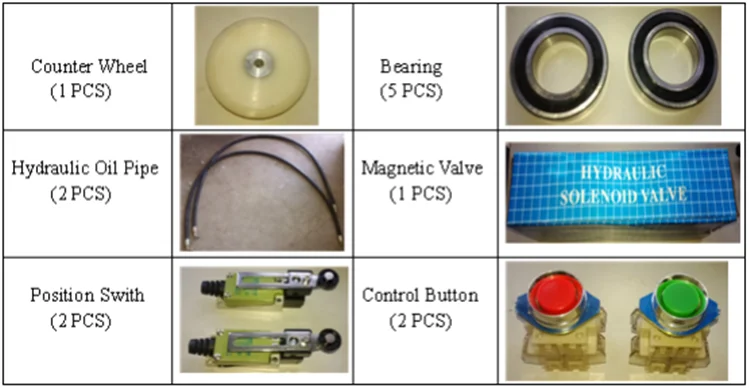

3.spare parts:
chain 2pcs, hydraulic oil pipes 2 pcs,electro magnetism valves 1 pc,limit switch 2pieces ,counter 1 pc,relay 2 pcs ,switch 1 group.
4.After sale service
- 24 hourse after sale tel and email .
- The operation book will sent to you with shipping documents.
- Technique guiding,installation,debugging and production to ensuring you can solve the problem in time .
- Overseal after sale service.
-
