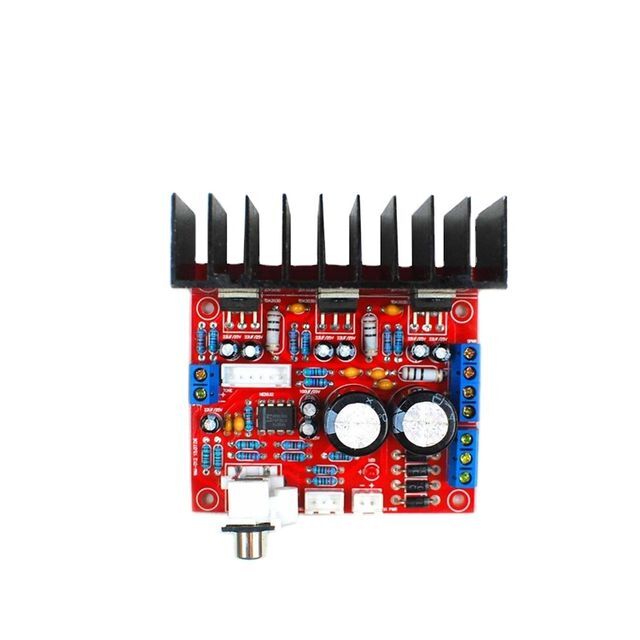

Low cost amplifier 1000 watt PCB board for other PCB and PCBA manufacturers

Supplier: Guangzhou Topfast Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Alice Li
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

minute. Line width:	3000000	Packaging Details:	Audio amplifier PCB board, carton packaging,
brand:	Tuofa Electronics Co., Ltd.	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay
Solder mask:	green, black, blue, red, matt green	Serve:	24 hours technical service
Copper Thickness:	0.5-6 oz	Maximum layers:	36L

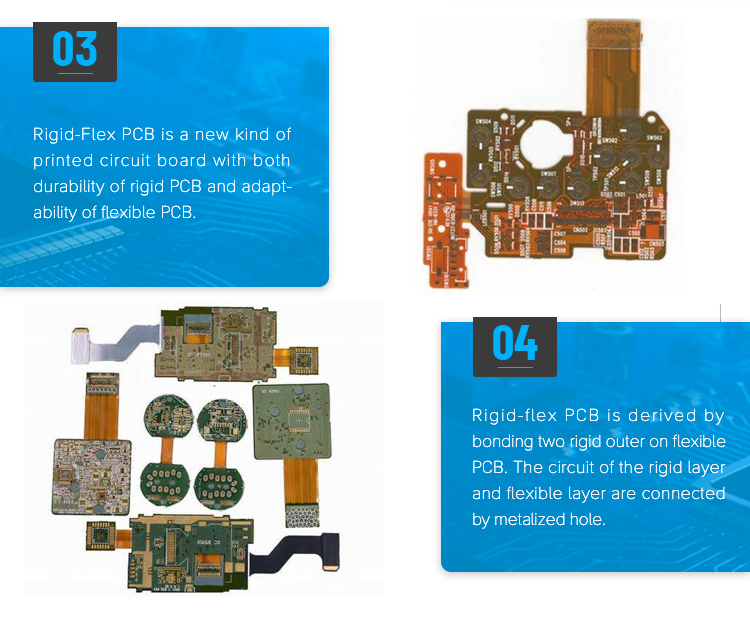

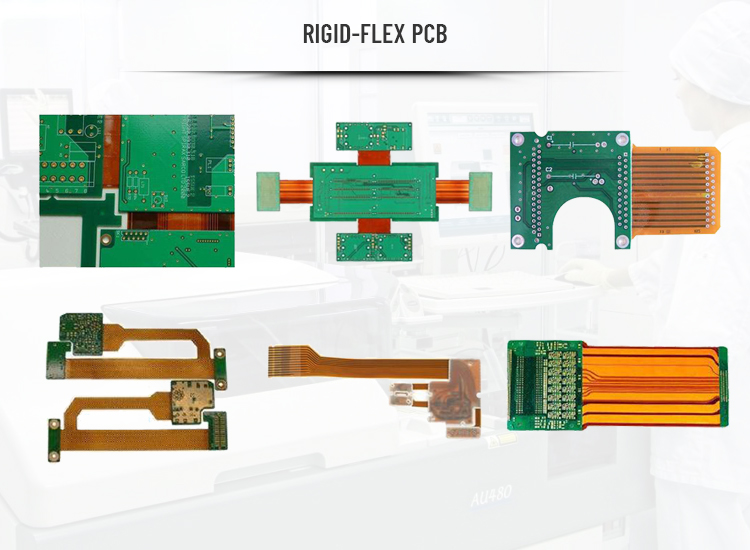

minute. Hole size:	0.1-6.5mm	model:	Rigid-Flex PCB Audio Amplifier PCB Board
legend:	white, black, red, yellow	port:	Shenzhen/Guangzhou
Surface treatment:	ENIG,HASL,OSP,ENEPIG	Printed circuit board standard:	IPC-A-600
minute. Line spacing:	3000000	Product quotation:	within 2 hours
Key words:	pcb fr4 pcb and pcb assembly	Substrate:	FR4/High TG FR-4/M4/M6/Rogers/Nelco/Isola,FR4
Plate thickness:	0.4-3mm	Minimum order quantity:	1
Packaging Preview:		Supply capacity:	150,000 square meters / year
Sample delivery:	within 24 hours	place of origin; place of origin:	Guangdong, China

Product Description

Factory price pcb board audio amplifier pcb board

Related Products

PCB Capability

PCB Capability
thing	PCB Capability	PCB Capability	PCB Capability
maximum layer	60L	8L	36L
Inner Layer Minimum Trace/Space	3/3mil	3/3mil	3/3mil
Outer Layer Minimum Trace/Space	3/3 ml	3.5/4 ml	3.5/4 ml
Maximum copper in inner layer	6 oz	2 oz	6 oz
Maximum copper output	6 oz	2 oz	3 oz
Minimum mechanical drilling	0.15mm	0.1mm	0.15mm
Minimum laser drilling	0.1mm	0.1mm	0.1mm
Maximum aspect ratio (mechanically drilled)	20:01	10:01	12:01
Maximum aspect ratio (laser drilled)	1:01	/	1:01
Compression hole tolerance	±0.05mm	±0.05mm	±0.05mm
PTH tolerance	±0.075mm	±0.075mm	±0.075mm
NPTH tolerance	±0.05mm	±0.05mm	±0.05mm
Countersink Tolerance	±0.15mm	±0.15mm	±0.15mm
plate thickness	0.4-8mm	0.1-0.5mm	0.4-3mm
Plate Thickness Tolerance (<1.0mm)	±0.1mm	±0.05mm	±0.1mm
Thickness tolerance (≥1.0mm)	±10%	/	±10%
Minimum board size	10*10mm	5*10mm	10*10mm
Maximum board size	22.5*30 inches	9*14 inches	22.5*30 inches
Contour tolerance	±0.1mm	±0.05mm	±0.1mm
Minimum BGA	7 million	7 million	7 million
Minimum SMT	7*10mil	7*10ml	7*10ml
Minimum Solder Mask Gap	1.5 million	3000000	1.5 million
Minimum Solder Mask	3000000	800w	3000000
Minimum legend width/height	4/23 million	4/23 million	4/23 million
Strain fillet width	/	1.5±0.5mm	1.5±0.5mm
bow and twist	0.003	/	0.0005

PCB lead time
Floor	Fast turn/usual time	mass production
2L	24 hours/4 days	8-10 days
4L	48 hours/5 days	10-12 days
6L	72 hours/6 days	12-14 days
8L	72 hours/7 days	16-18 days
10L	96 hours/8 days	18-20 days
≥12L	96 hours/10 days	18-20 days

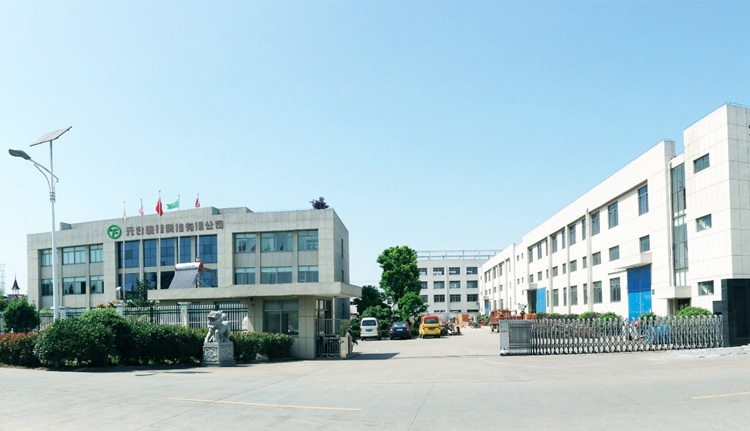

our company

Tuofa Electronics Co., Ltd.is a PCB manufacturer that provides PCB industry solutions to customers in the prototyping and low-volume fields.
With high-quality and on-time delivery products, it has won wide acclaim in the market. We will continue to focus on customer satisfaction, with "high quality" and "fast delivery", to become a trustworthy electronic circuit service provider.

Why choose TopFast

Shipping and Payment

FAQ

Q1: What kind of PCB file format is acceptable for production?
Gerber, PROTEL 99SE, PROTEL DXP, CAM350, ODB+(.TGZ)

Q2: Are my PCB files safe when I submit them to you for fabrication?

We respect our customers' copyrights and will never use your files to make PCBs for others nor share them with any other third party unless we have your written permission.

Q3: What payment do you accept?
- Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)
- Paypal, Alipay, Credit Card Shopping Cart

Q4: How to get PCB?
A: For small packages, we will ship the board to you via DHL, UPS, FedEx, EMS. On-site service! You will get the PCB at home.
B: For heavy goods over 300kg, we can ship your board by sea or air to save shipping cost. Of course, if you have your own freight forwarder, we may contact them to handle your shipment.

Q5: What is your minimum order quantity?
Our MOQ is 1 piece.

Q6: Can we visit your company?

no problem. Welcome to visit Shenzhen. Or another factory in Guangdong province.

Q7: How to ensure the quality of PCB?
Our PCBs are 100% tested, including flying probe testing, electronic testing and AOI.
