Product details
title:continuous screw small mini lab decanter centrifuge;Function:Liquid Soild continuous Centrifge;
Port:Shanghai port;Packaging Detail:Standard with wooden case and poly film wrapping for LW china decanter centrifuge machine industrial for protein isolate;
Voltage:380V/220V;Product Type:decanter centrifuge;
Warranty:1 Year;Key Selling Points:High Productivity;
Core Components:PLC,Engine,Bearing,Gearbox,Motor;Video outgoing-inspection:Provided;
Condition:New;drum diameter:180mm;
Speed:0-6000(stepless adjustable );automatic degree:automatic continuous;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Supply Ability:30 Units per Month for starch centrifugal separator;
Warranty of core components:1 Year;Power:4.5 kw;
Applicable Industries:Food & Beverage Factory,Food & Beverage Shops,lab;Place of Origin:Jiangsu, China;
keywords:small mini lab decanter centrifuge;phase:2 phase;
Dimension(L*W*H):865*405*600mm;Machinery Test Report:Provided;
Package Preview:;Type:Centrifuge;
Sanitary degree:GMP;Brand Name:Fivemen;
Showroom Location:None;Marketing Type:Hot Product 2019;
Application:protein , starch, juice, herbal and chemical ect;Material:304 Stainless Steel;
Weight:400;

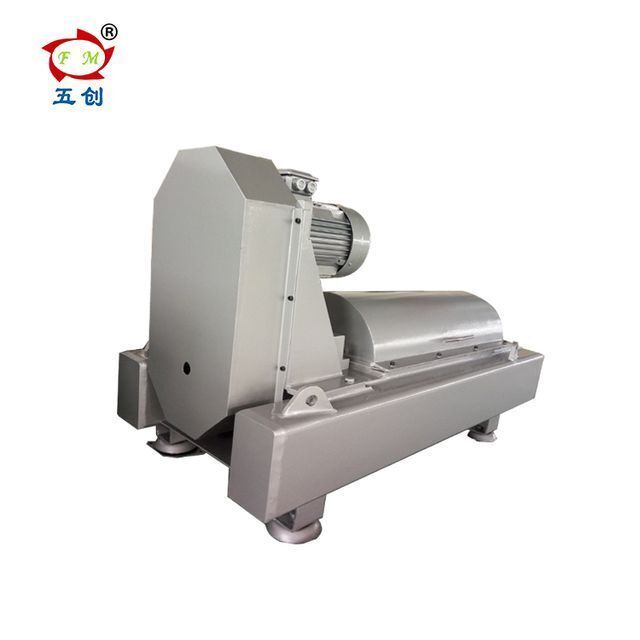

LW continuous screw small  mini lab decanter centrifuge

Product Description

 Instruction

Horizontal screw centrifuge is for 0.002-3mm material for clarification, separation, dehydration, or



classify 1um-5um solid phased particles.



 It is wide application range, work continuously, large processing capacity, low cost, convenient

maintenance and so on. It is the best equipment for separating solid-liquid.



Reference standard

1. Main standard of the national machinery industry.



JB/T502-2004 "spiral discharge sedimentation centrifuge"



JB/T9095-1995 "centrifuge, separator forgings, welding conventional NDT technology standard"



2. The national main standard



GB10894-89 "separation machinery noise sound power level measurement engineering method"



 Application

It is widely used in chemical industry, light industry, medicine, food, paper making, mining and other industries.



For LW decanter centrifuge, we have two different types, one is LW decanter centrifuge , which is two phase centrifuge(solid liquid centrifuge), another is three phase centrifuge (solid liquid liquid centrifuge.)



1) City tap water, domestic sludge dewatering;



2) Oil drilling mud dewatering;



3) Sludge Oil Recovery;



4) Fruit juice separation



4) Refinery sludge concentrated dehydration;



5) Distiller ‘s grains dehydration;



6) Paper, printing and dyeing wastewater separation;



7) Medical sludge dewatering;



8) Soy protein dehydration;



9) Plant oil clarification and separation;



10) Cosmetic clarification and separation;



11) Bleaching powder separation.



t is widely used in chemical, light industry, pharmacy, food, environment protection and other trades. For instance: Oxalic acid, alum, aluminum hydroxide, ammonium hydrogen carbonate, ammonium chloride, ammonium nitrate, ammonium sulfate, anthracene, antibiotics, barium chloride, barium carbonate, barium sulfate, benzene, blood products, blue vitriol, borax, boric acid, calcium carbonate, calcium citrate, calcium hydroxide, calcium nitrate, calcium oxalate, casein, cellulose, chrome yellow, clay, methyl cellulose, corundum, corn embryo, cooking oil, processed fish, mirabilite, glutamate, hops, pesticide, diatomaceous earth, herbicide, diatomaceous earth, herbicide, tartaric acid, sodium sulfate, sodium phosphate, sodium nitrate, carbon black and others.





Technical parameters

 LW two phase



Type No.

Length to diameter ratio

Drum speed (r/min)

Motor power(KW)

lw180

2.5-4

6000

1.5-4

LW260

3.5-4

5000

7.5-11

LW355

2-4.5

4200

11-37

LW420

2-4.5

3800

15-45

LW450

2-4.5

3300

18.5-45

LW480

2-4.5

3000

18.5-55

LW530

2-4

3450

22-75

LW650

2-4

2800

37-110

LW750

2-4

2500

55-132

Three phase:

Type No.

Length to diameter ratio

Drum speed (r/min)

Motor power(KW)

LW355

2-4

4000

11-30

LW420

2-4

3600

15-37

LW530

2-4

3000

18.5-45

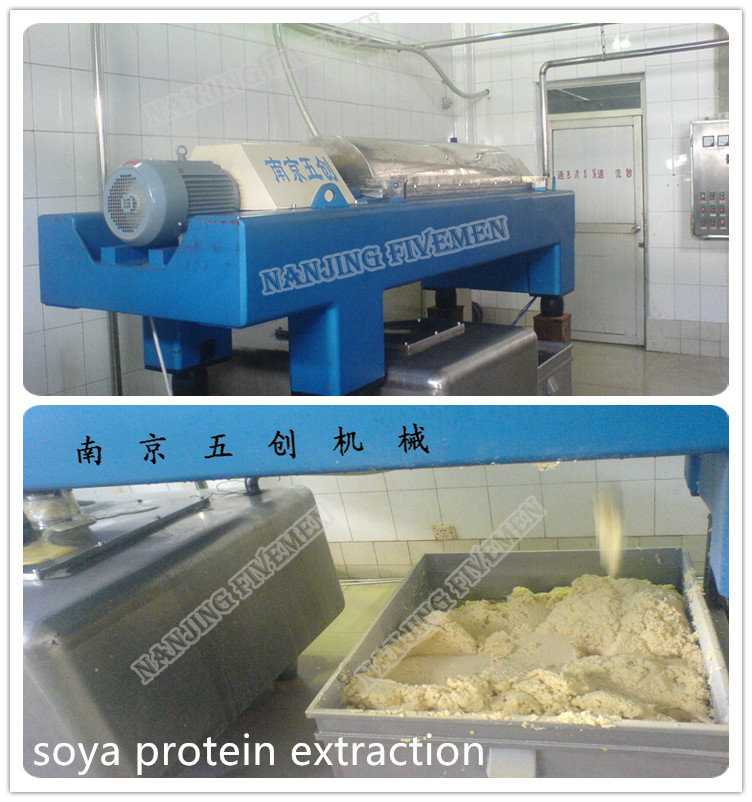

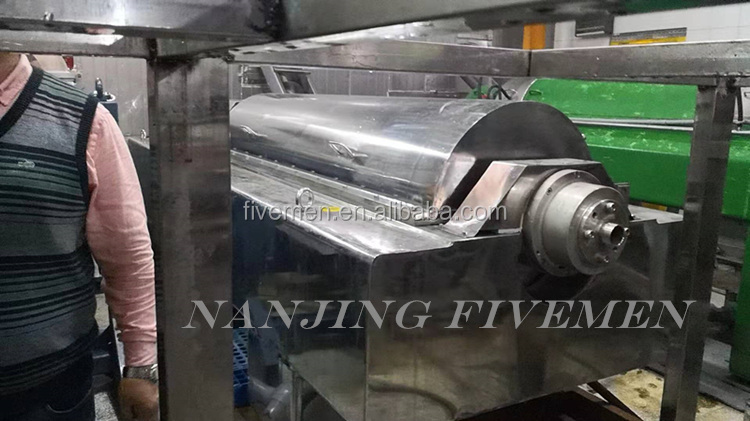

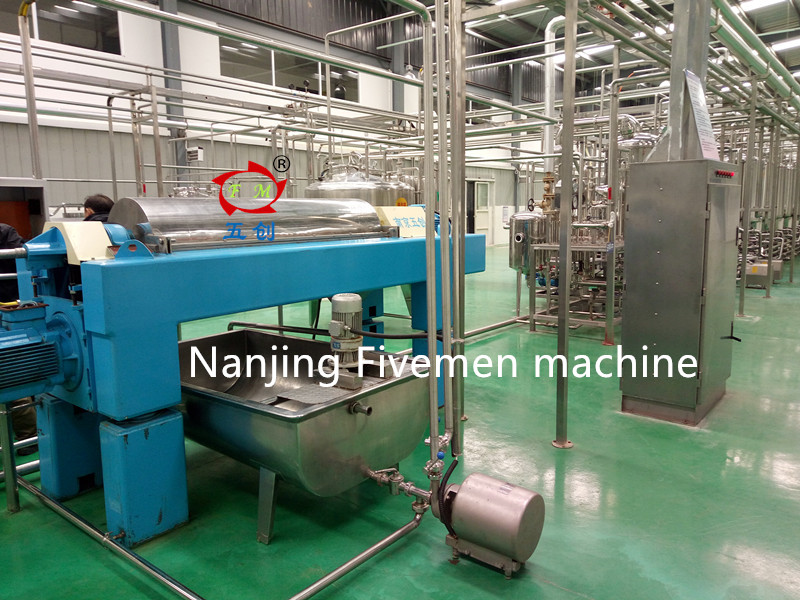

Application site

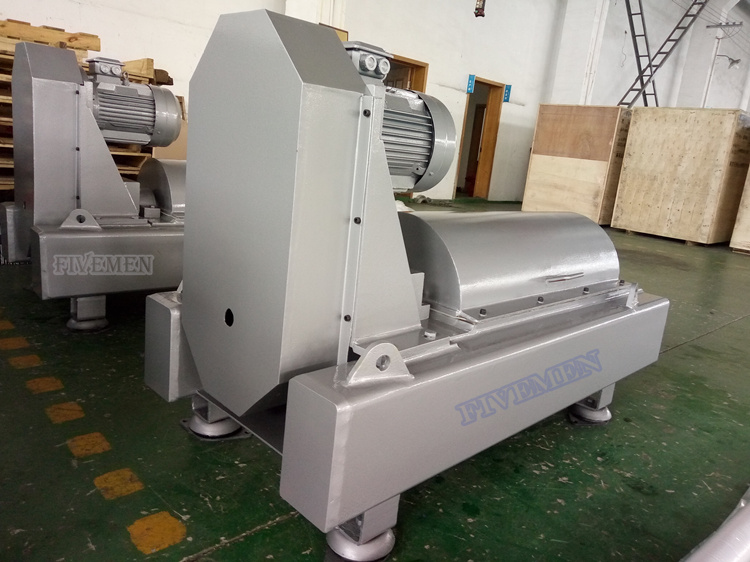

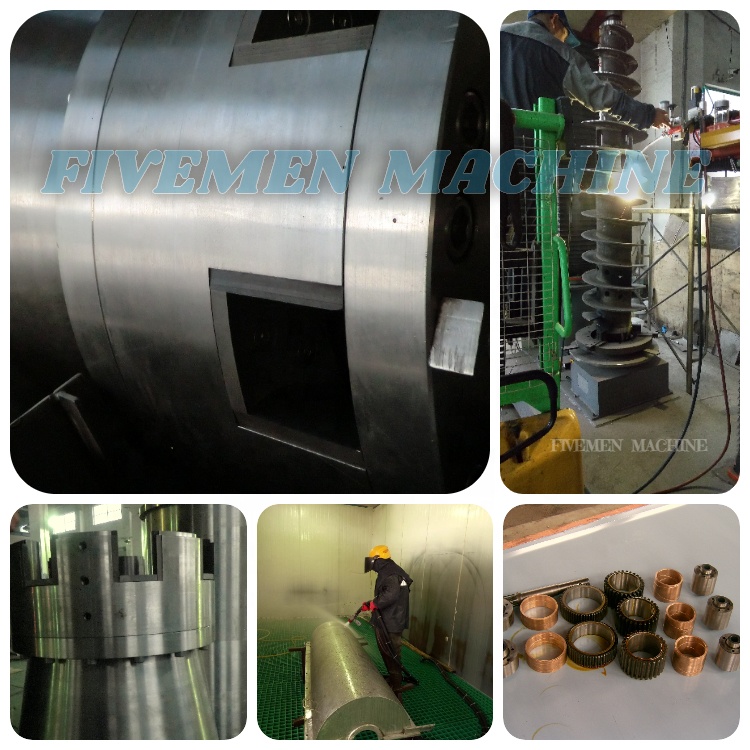

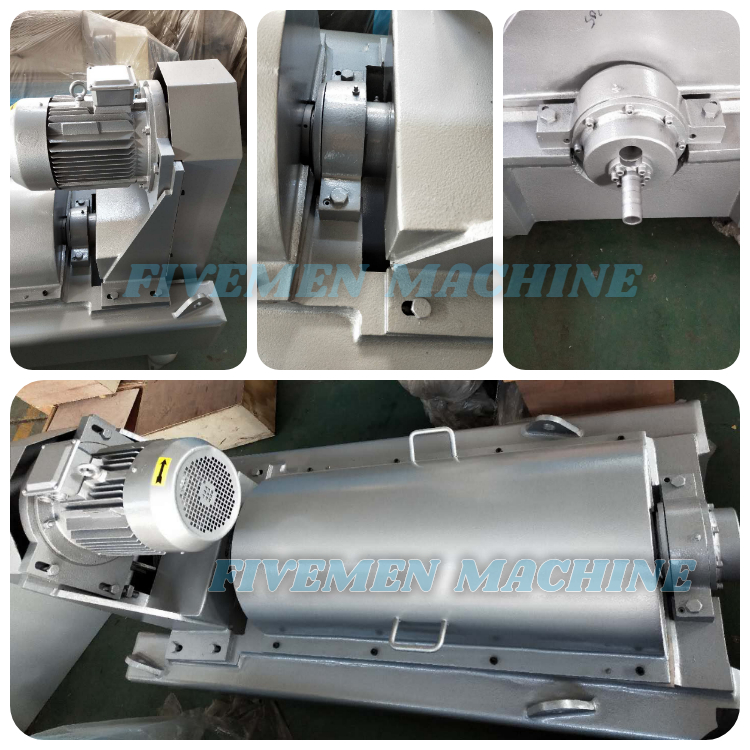

Main parts

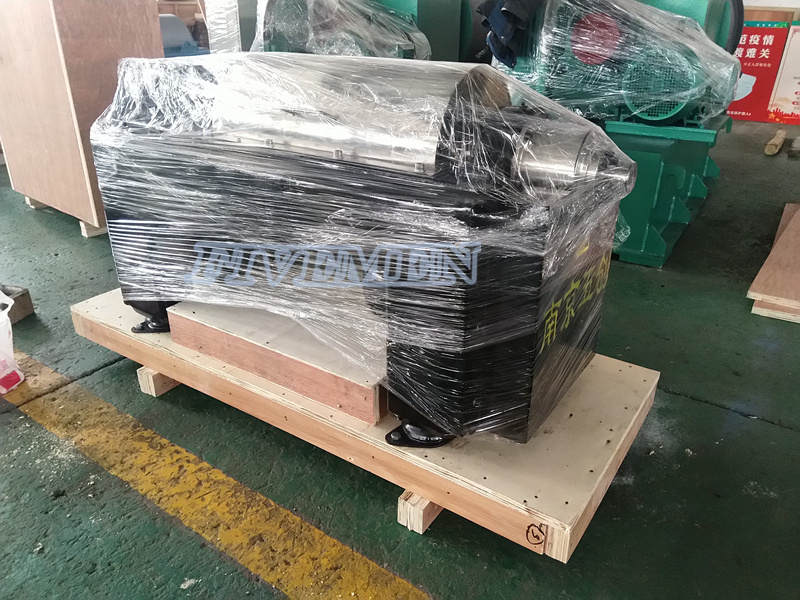

Packaging & Shipping



Our Services



1. 12 months guarantee period from machine arrive date.



2. Abundant spare parts in stock are available to provide.



3. Our technicians could be dispatched for overseas service.



4.7* 24 hours technical consultation.



5.Your workers could get trained both in our factory and yours.



6.Routine tracing till the machine work properly will be done timely.



7.We will remind you to do the normal maintenance.



8.Your suggestions or any comments & reflection would be treated in priority.



9.Marketing team will visit you during our visit to your country if your require.



About FAQ



In order to quota you best price, please let us know the following information:

1. What’s your raw material?

2. Material related characteristic? Does it viscous or corrosive, strong basicity or highly acid?

3. What’s the capacity per hour?

4. Water content? solid content percentage?

5. What kind of heat source? steam? electric? or fuel gas or thermal oil?

6.What kind of voltage of your country?

Company Information



Nanjing Fivemen machine CO., LTD is a professionally engaged in design, manufacturer, testing,and installation of centrifuges and separators.

Over the years, our products have beensuccessfully applied in the mineral oils, dairies, fruit and vegetable juices,pigments, animal and plant oils, starches, bio-pharmacy, fermentation broth,additives, foods, oil extraction, fish oil feeds, grading of non-metallicminerals, petroleum chemistry, sewage treatment and other industries. Ourcustomers spread through the whole nation except Tibet, and our products aresuccessfully exported to Japan, North Korea, South Korea, Taiwan, Thailand,Malaysia, Vietnam, Burma, India, U.S.A., Africa and some Latin Americancountries.

We have passed ISO9000 quality system certificationawarded by China Classification Society; our mineral oil separators used ininland rivers, offshore and ocean shipping have achieved CCS approvalcertificate, and the products used in fishing boats also passed the fisheryinspection. In the past years, we have been awarded a number of honors such as "High-qualityProducts in Jiangsu Province", "Grade AAA Demonstration Unitin Quality, Service and Credit of Jiangsu Province", "StarEnterprise in Jiangsu Province", "Grade AAA Brand Enterprisein Quality and Integrity of Jiangsu Province" and so on.

Our quality policies are: “ExcellentQuality, Leading Technology, Sincere Operation and Customer Satisfaction”.We shoulder the responsibility of providing highly reliable centrifuge productswith advanced structure, low vibration and low noise, strive to producehigh-quality centrifuge products, and achieve mutual development withcustomers.

FAQ

 Q1: Where can I get product & price information?


A1: Send us inquiry or email directly, then we will contact you ASAP.


Q2: How can I make sure your machinery is suitable for me?


A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.


Q3: What should I do if I want to see the separation effect?


A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
