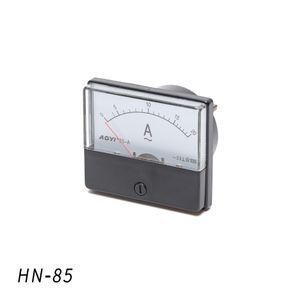

HN-85 Panel Meter Analog 0-30A DC Amp Meter Electric Meter Analog
- 1.49 >=10 units
| size: | 60*70; | Measuring Range: | 0-15A; |
| Use: | current meter/voltage meter/factor meter/frequency; | Measuring Range: | 0-50A, 1-600V; |
| Attachment: | shunt/constant resistor; | Place of Origin: | Shanghai China (Mainland); |
| Display Type: | Analog Only; | Supply Ability: | 1000000 Unit/Units per Month; |
| Packaging Detail: | Standard export color box for analog volt meter; | Model Number: | HN-85; |
| Supply Voltage: | 0-600V; | Payment Terms: | L/C,T/T,Western Union,Paypal; |
| Dimensions: | 60*70; | Color: | Black and White; |
| Brand Name: | AOYI; | Accuracy Class: | 2.5; |
| Port: | Shanghai or Designated Port; | Operating Temperature: | -20-50degree; |

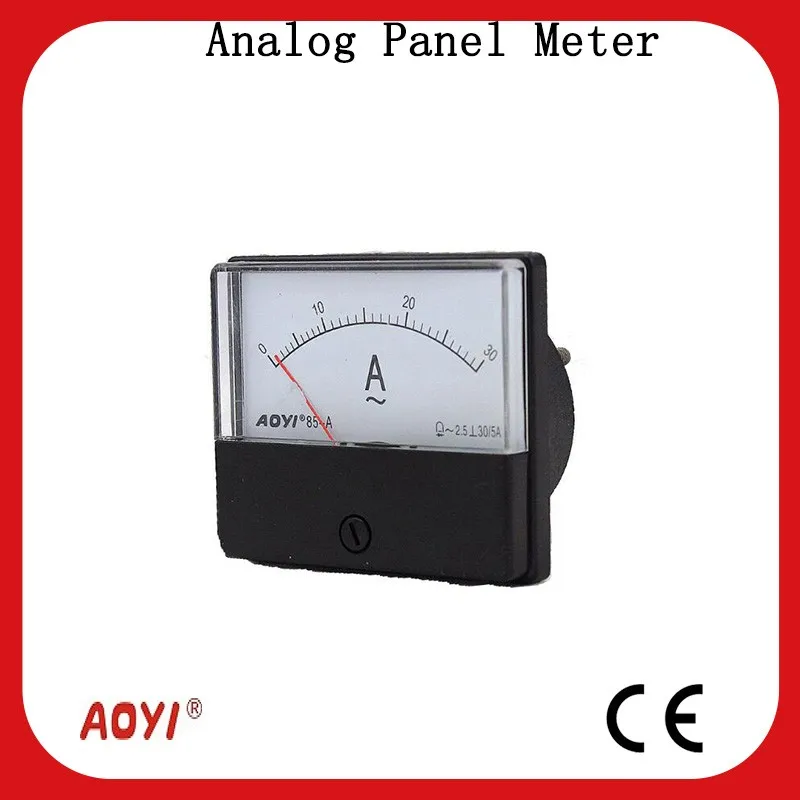

HN-85 Panel Meter Analog 0-30A DC Amp meter
Product Description
Composition:
PC Front and Bakelite case, Four stud mounting,
Scale Plate:
The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.
Scale plate with special requirements are available upon request.
Such as color
Color:
Black case, white scale plate.
Pointer:
Normally, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.
Anti-static:
All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters.
Damping and Overshoot:
The overshoot is less than 15% when the pointer is at the 2/3 of the scale.
Damping and overshoot can be customized according to user’s requirements.
Service condition:
-20~+40 degree;
Operating position:
Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.
Insulation Test:
The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.
Safety Precautions:
Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.
The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.
The advantages of Our products:
Interchangeable Dial.
Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.
HN-85 Panel Meter Analog 0-30A DC Amp meter
| Current | ||
Ranges |
| |
mA | 4-20mA 1mA 10mA 500mA | |
A | 0.5A -50A | |
For connecting to external shunt | 50mV 60mV 75mV | 10A -3000A |
Voltage | ||
Ranges | V | Range :10V 25V 40V 50V 60V 100V 150V 250V 300V 450V 500V 600V |
Dimensioned drawing:
