GPT230 barometric absolute ceramic air pressure sensor and transmitter 0-5V output

Supplier: Xi'an Gavin Electronic Technology Co., Ltd.
Region: Shaanxi, China
Contact: Ms Olina Li
Price: $15.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,paypal;	Customized support:	OEM,ODM;
Supply Ability:	10000 Pieces per Month Refrigerant Pressure Sensor;	Packaging Detail:	Refrigerant Pressure Sensor :standard export packing;
certification:	CE;	Port:	any port in china;
pressure type:	gauge (G);	accuracy:	0.5%FS(typ.) 1.0%FS(max.);
electrical interface:	packard,DIN43650,plug connection,cable connection,waterproof outlet;	products:	Refrigerant Pressure Sensor;
pressure interface:	M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT,7/16-20UNF (customer request);	output signal:	4~20mA, 1~5V,0~5V,1~10V,0~10V;
Warranty:	3 years;	overpressure:	150%FS;
Brand Name:	GAMICOS;	power supply:	10~30Vdc 5Vdc(ratio);
Model Number:	GPT230;	Pressure range:	0~200kPa...60MPa;
Place of Origin:	Shaanxi, China;

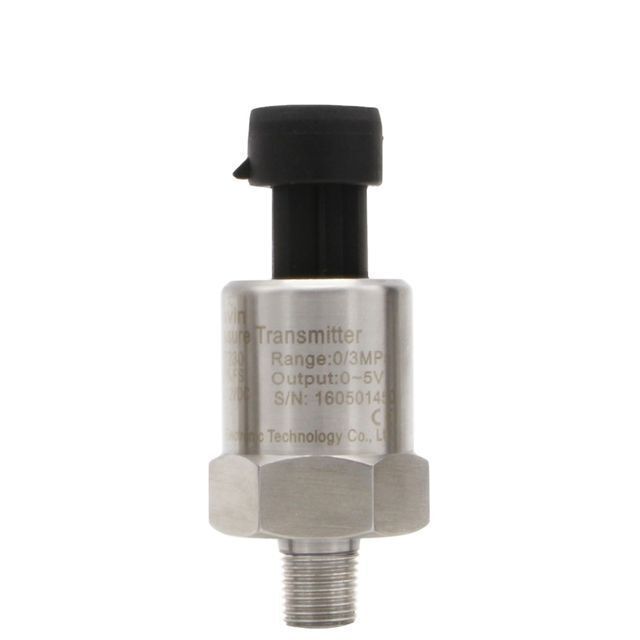

GPT230 barometric air pressure sensor and transmitter 0-5V output

Production Description

GPT230 Ceramic pressure sensor is made of high quality stainless steel structure, the core and the pressure sensor chips are imported from Germany, the use of digital calibration and compensation technology, and passed the safety certification and CE certification.Widely used in compressor, automobile, air conditioning and other field pressure measurement.

Pressure range	0~0.2bar...20Mpa(OEM)
Pressure type	Gauge (G)
Accuracy	±0.25%FSm, ±0.5%FS
Material	Membrane: ceramic Housing:Stainless steel
Output signal	4~20mA 1-5V 0-5V 0.5~4.5V 0~10V 100mv
Power supply	10~30Vdc 5V
Electrical connection	Packard , DINS43650 , plug connection, cable connection, water proof outlet
Pressure connector	G1/2, G1/4, NPT1/4, 7/16-20UNF, M20×1.5
Stability	Typical ±0.1%FS Max. ±0.2%FS
Overload pressure	1.5 times of rated pressure (1.5X)
Operating temperature range	-30~80℃
protection	IP65 (OEM)
certification	CE ,Ex ,ROHS

Product Display

In order to meet different connection requirements, GPT230 has designed four electrical connections.They are DIN43650,cable connection,plug connection,packard.

Features of GPT230

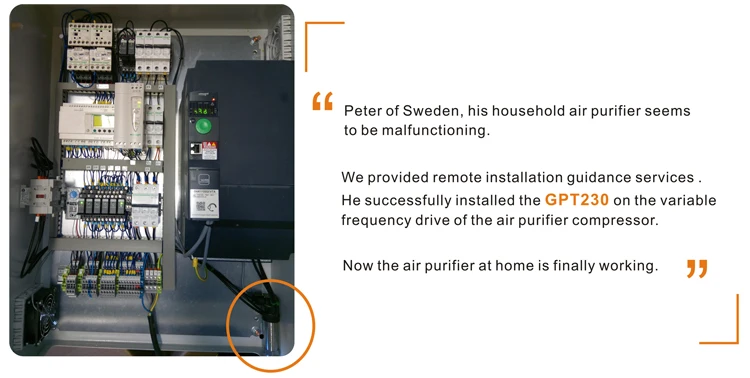

Successfuel Case

GPT230 is also widely used in:

Process control system Air compressor Refrigeration system

CNG\SNG gas station Natural gas HVAC

Oil pump\drilling Food industry Chemical industry

Hydraulic control system pump&water system Others

Buyer's Feedback

Ordering Guide

Our Service

Service standards: we are committed to providing a high quality,and responsive services to all clients
The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
Excellent package: each unit has individual box and all boxes are packed in standard packages.
OEM available for submersible water level sensor
