INSTOCK Fast delivery 30M 50M 100M 200M 300M deep well Submersible Water level indicator

Supplier: Xi'an Gavin Electronic Technology Co., Ltd.
Region: Shaanxi, China
Contact: Ms Olina Li
Price: $114.00 /set
Min. Order: 1 set

Click here to contact

Product details

power supply:	9v battery powered;	Housing material:	ABS;
pressure range:	30~400mH2O;	OEM:	Acceptable;
Model Number:	GLT500A;	Product:	100M Submersible deep well water level meter;
Port:	Xi'an or any other port in China;	Certification:	CE,RoHs;
Brand Name:	GAMICOS;	Supply Ability:	5000 Set/Sets per Month 100M Submersible deep well water level meter;
kw:	water level meter;	Color:	blue, yellow, black;
Warranty:	1 year;	Customized support:	OEM,ODM,OBM;
Packaging Detail:	Standard export package;	Place of Origin:	Shaanxi China;
Grade:	Industrial;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;

Fast delivery 30M 50M 100M 200M 300M deep well Submersible Water level indicator

Introduction of GLT500

Why do you choose GLT500A?

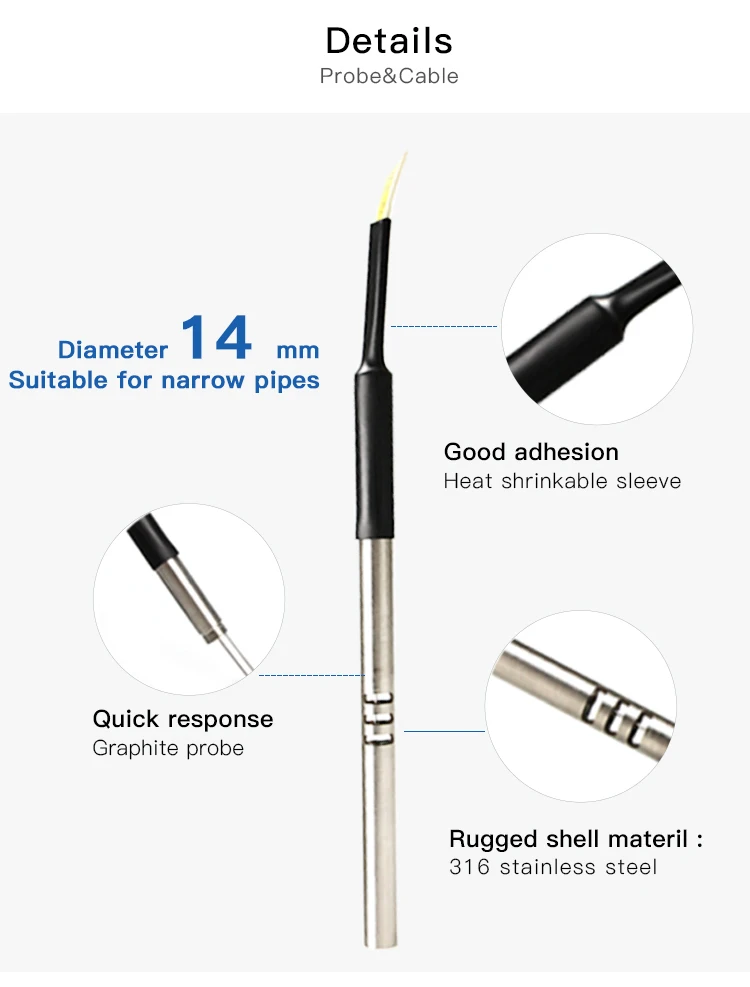

1.Sensor probe diameter only 14mm, It can be used for measurement of narrow pipe space.

2.The anti-corrosion electrode of GLT500A can effectively prevent the electrode from oxidizing and rusting, and maintain the long-term sensitivity.

3.30-500M measuring range is optional.

4.Easy to use.It with sound and light alram to remind you recording the correct level value.

The corrosion-resistant electrode of GLT500A can effectively prevent the electrode from oxidizing and rusting, and maintain the long-term sensitivity.

How to use ?

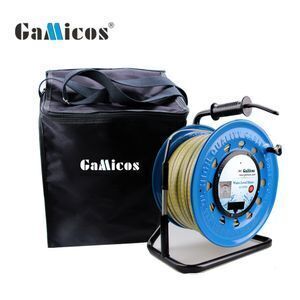

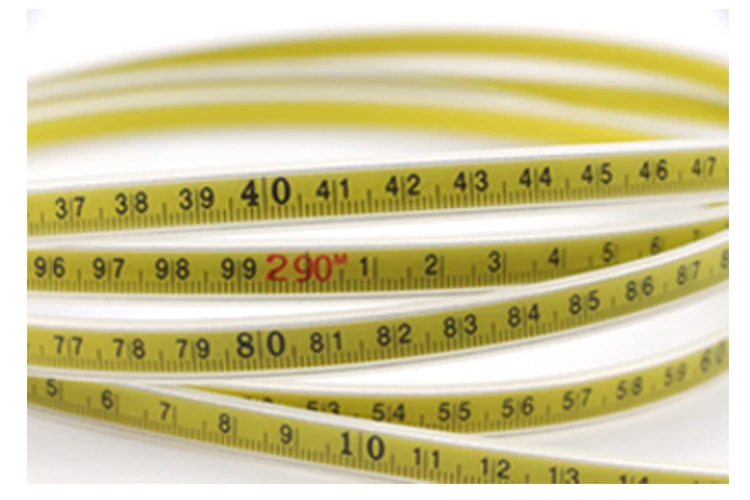

The water level meter is made of the probe, steel ruler and reel .

♦Put the probe to the water slowly, when the probe touch the surface of water,the electric potentialwill be happened.

♦After dealing by circuit board.The sound or light will be indicated,then you could check the height between thesurface of the water to the ground, easilyoperating

Specification

shell material	ABS,Metal

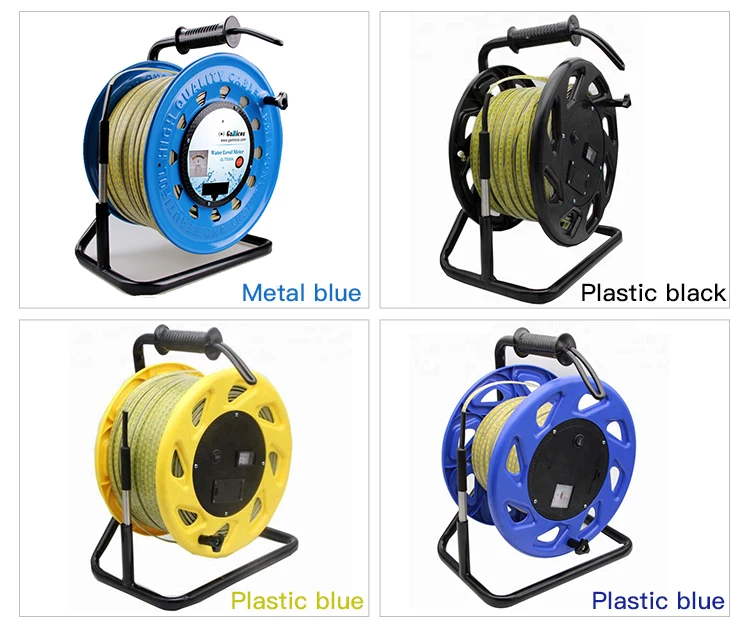

Shell color	blue, yellow, black
Measurement range	30m,50m,100m,200m,300m,400m,500m
battery power	9V lithium battery
Instrument for temperature	-20℃~+60℃
The response time for output	≤1ms
Measurement error	≤±0.5mm
Adaptation range of water quality	10μω~1000μω
Measurement signal	LED, buzzer

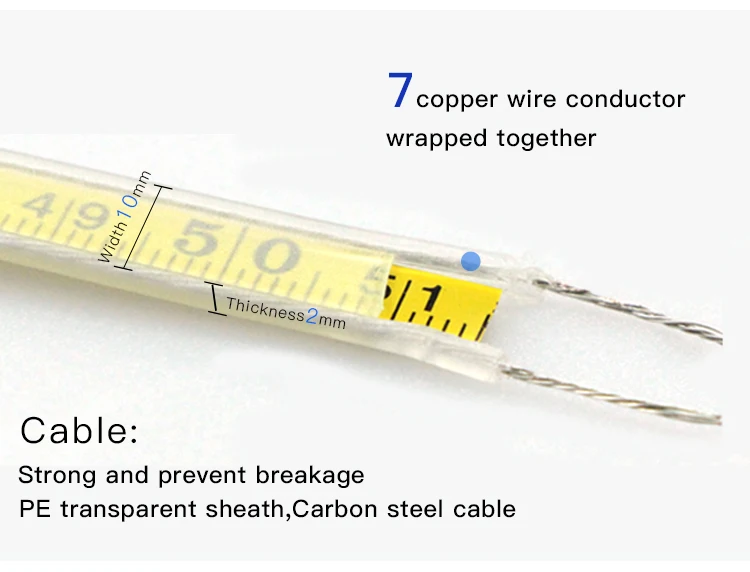

construction of cable	conductor: Multi-strand tinning copper wires twisted core wire:Special PP mixed insulation ecderon:Special PUR or PE mixed ecderon color :natural color
rated voltage	300V
Testing Voltage	2000V
insulation resistance	>200MΩ×km

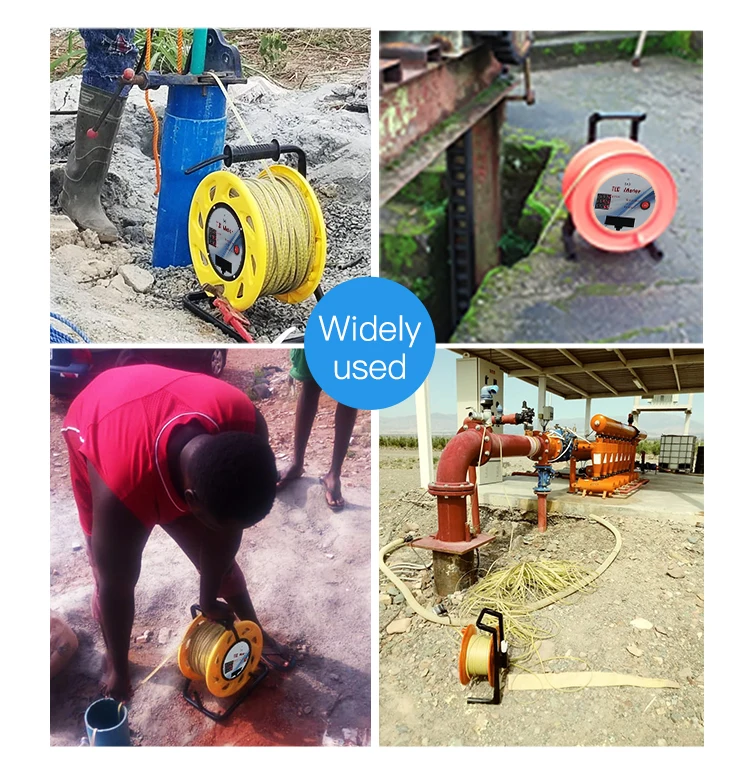

Application

application:

♦water conservancy project,

♦hydrology, geography, environmental protection

♦other areas of industry and agriculture fields

♦other liquid level measurement

Package&Shipping

As the clients requirement
Standard export package: each unit has individual box and all boxes are packed in standard packages

Service standards: we are committed to providing a high quality,and responsive services to all clients
The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
Excellent package: each unit has individual box and all boxes are packed in standard packages.
OEM available
