Veinasa-YW01 Dam Hydrology Engineering Water Level Radar Water Level Sensor
-
Supplier: Sichuan Weinasa Technology Co., Ltd. -
Region: Sichuan, China -
Contact: Ms Weinasa SC -
Price: $639.00 / 1 - 29 pieces
$576.00 / >=30 pieces -
Min. Order: 1 piece
Product details
| grade: | industrial | Customization support: | OEM production |
| Horn Antenna: | 304 stainless steel, 120MM caliber | Operating Voltage: | Four-wire DC 6-28V and two-wire DC 18-30V |
| Package preview: | port: | Shenzhen, Ningbo, Shanghai, etc. | |
| wiring: | Four-wire shielded wire, waterproof terminal M20X1.5 | accuracy: | ± 10MM, +/-10mm |
| width: | 1 year | output: | MODBUS RTU |
| Measuring range: | 30 meters (up to 70 meters, long-distance customization) | color: | Yellow/dark green/white optional, default bright yellow |
| Packaging Details: | cover the box | product name: | Water level sensor |
| model: | Vinasa-YW01 | shell: | Cast aluminum, IP67 |
| Supply capacity: | 1000pcs water level sensor per month | working environment: | -40--+80℃ |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance | place of origin; place of origin: | Sichuan, China |
| Warranty: | 1 year |
Veinasa-YW01 Dam River Hydrological Engineering Radar Water Level Measurement Sensor Water Level Sensor
Product Description
Veinasa-YW01 Dam River Hydrological Engineering Radar Water Level Measurement Sensor Water Level SensorElectromagnetic wave ranging technology based on precise time measurement. The sensor emitsElectromagnetic wavesIlluminate the water surface and receive its echo.
From this, information such as the distance from the water surface to the electromagnetic wave emission point, distance change rate (radial velocity), azimuth angle and height can be obtained. Smart radar water level gauge is an innovative application of industrial ranging radar in the field of water level measurement. Realized the water level gauge to high precision (millimeter level), large range (35
m), high reliability, easy installation and maintenance-free.
m), high reliability, easy installation and maintenance-free.
The intelligent radar water level gauge is connected to the computer and PLC through the standard signal interface. It can also be connected with corresponding display, recording and control equipment (such as RTU) to form a water level monitoring system.
Product parameters
product name | Water level sensor |
Name | parameter |
Measuring range | 30 meters (up to 70 meters, long-distance customization) |
accuracy | +/- 10mm |
working environment | -40--+80℃ |
Operating Voltage | Four-wire DC 6-28V and two-wire DC 18-30V |
wiring | Four-core shielded wire, waterproof terminal M20X1.5, applicable cable diameter 9-13MM |
energy consumption | Maximum power consumption 0.7W (use 4-20mA transmission maximum power consumption 0.5W) |
output | MODBUS RTU |
shell | Cast aluminum, IP67 |
color | Yellow/dark green/white optional, default bright yellow |
horn antenna | 304 stainless steel, 120MM caliber (high range model caliber 100MM) |
Mounting Accessories | Stainless steel hex nut G1-1/2 |

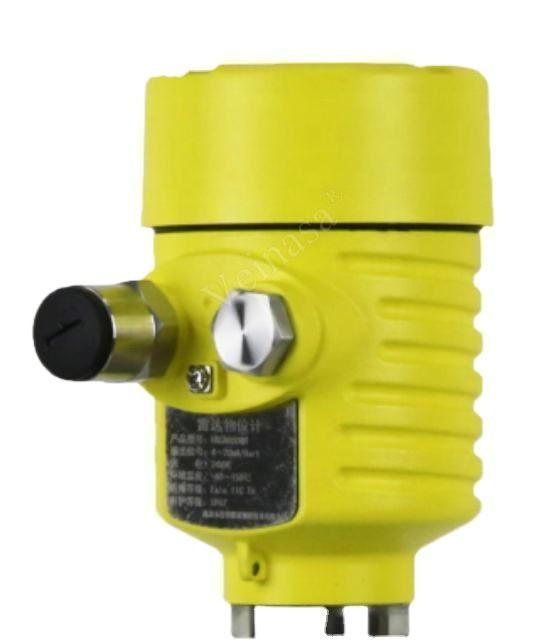

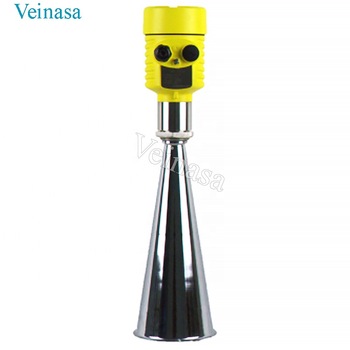

product display
Veinasa-YW01 Dam River Hydrological Engineering Radar Water Level Measurement Sensor Water Level Sensor Features:
Ø All-weather, high-frequency microwave ranging technology, strong anti-interference ability
Ø Sensor reliability accuracy reaches 1.5mm
Ø Unattended
Ø No mechanical wear, non-contact measurement
Ø The measurement has nothing to do with water quality and is not affected by floating objects such as ice floes.
Ø No anti-wave well is needed, and the flow rate has no influence on the measurement.
Ø Continuous online collection
Ø Optional solar power supply
Ø Low cost, simple installation and maintenance, long life
Ø All-weather, high-frequency microwave ranging technology, strong anti-interference ability
Ø Sensor reliability accuracy reaches 1.5mm
Ø Unattended
Ø No mechanical wear, non-contact measurement
Ø The measurement has nothing to do with water quality and is not affected by floating objects such as ice floes.
Ø No anti-wave well is needed, and the flow rate has no influence on the measurement.
Ø Continuous online collection
Ø Optional solar power supply
Ø Low cost, simple installation and maintenance, long life
Conductor type: National standard 0.5mm2 four-core shielded hydraulic cable is recommended

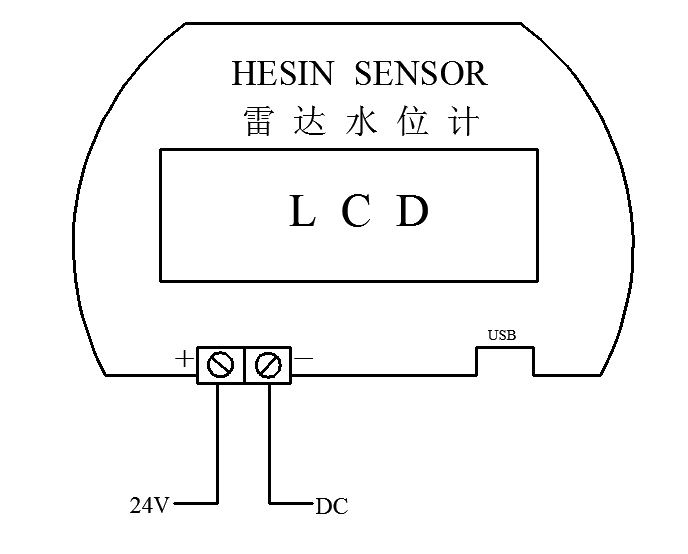

for two-wire
1. Power supply and signal output
2. ±24VDC power supply
2. ±24VDC power supply

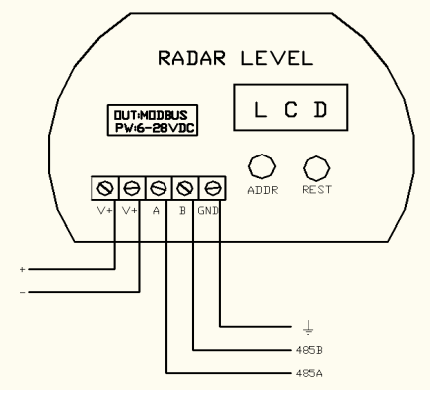

RS485 four-wire system
2. A, B RS485 output
3. ADDR addressing button
4. REST position reset button
Applications
Veinasa-YW01 dam river hydrological engineering radar water level measurement sensor water level sensor is suitable forMonitor river water level, open channel water level, tail water level under dam, mountain torrent, flood control, surge tower (well) water level, especially suitable for automatic tidal water level monitoring system, urban water supply and sewage water level monitoring system.
