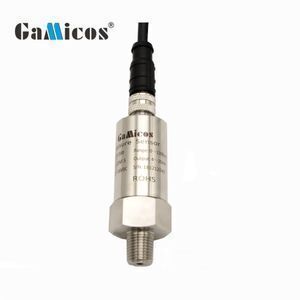

GAMICOS 4-20mA 0-5v hydraulic water level pressure transducer

Supplier: Xi'an Gavin Electronic Technology Co., Ltd.
Region: Shaanxi, China
Contact: Ms Olina Li
Price: $39.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Accuracy:	0.5%,0.25%;	protection:	IP65, others can OEM;
response time(10%~90%):	10ms;	Packaging Detail:	each unit has individual box and all boxes are packed in standard packages;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal, trade assurance;	Output:	4~20mA,0~5Vdc,1~5Vdc,0~10Vdc,0.5~4.5Vdc;
Supply Ability:	10000 Piece/Pieces per Month GPT200 OEM 0-5V Water Air pressure transducer;	Place of Origin:	Shaanxi China (Mainland);
Port:	Xi'an or any other port in China;	Range:	-100kPa~0...0~10kPa...100MPa;
overpressure:	150%;	Title:	GPT200 OEM 0-5V Water Air pressure transducer;
Model Number:	GPT200;	Pressure Type:	G, A, S;
OEM:	Acceptable;	Brand Name:	GAMICOS;

GAMICOS 4-20mA 0-5v hydraulic water level pressure transducer

Product Discription

What is Hydrostatic pressure?

Hydrostatic pressure is commonly described “The pressure equivalent to that exerted on a surface by a column of water of a given height due to the force of gravity”. A liquid column above the pressure sensor creates hydrostatic pressure, which is a direct indicator for the liquid level.

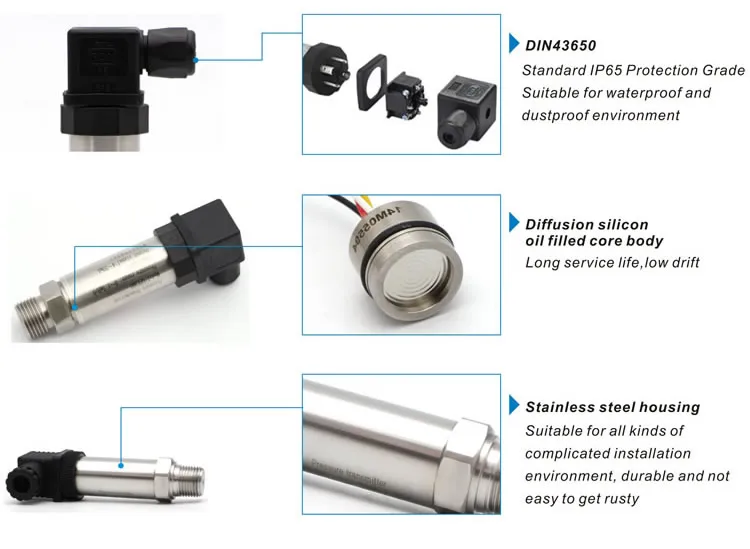

GPT200 diffusion silicon pressure sensor is standard and most popular hydrostatic pressure sensor applied in air and liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. The GPT200 pressure transmitter is designed for industry application with perfect long term stability.

Range	-0.1...0~0.01...100MPa
Type of pressure	Gauge (G), absolute (A), sealed gauge (S)
Accuracy	±0.5%FS, ±0.25%FS
Output Siginal	4-20mA 1-5V/0-5V 0.5~4.5V 0~10V 100mv
Power	10-30V 5V
Overload	150%FS
Long term stability	±0.2%FS/ year
Material	Housing: 304 stainless steel Sensor: 316L stainless steel
Pressure connector	M20×1.5, G1/2, G1/4, NPT1/2, etc. (customized)
Electrical connection	cable connection, DIN43650 , plug connection,parked
Ingress protection	IP65-IP68(OEM)
Explosion proof	Intrinsically safe explosion proof ExiaⅡCT6
Operating temp.	-30~80℃

Generally, the standard unit of measurement is calibrated in metres of water gauge (mWG). This may sometimes be referred to as metres of water column (mWC), or metres of H2O (mH2O). Other countries may use different units of measurement, such as inches of water column (“WC).

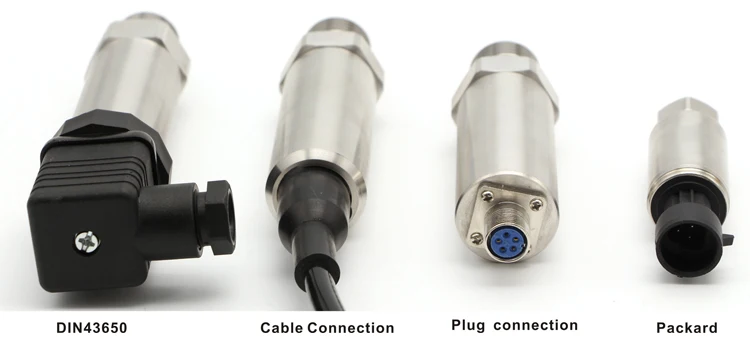

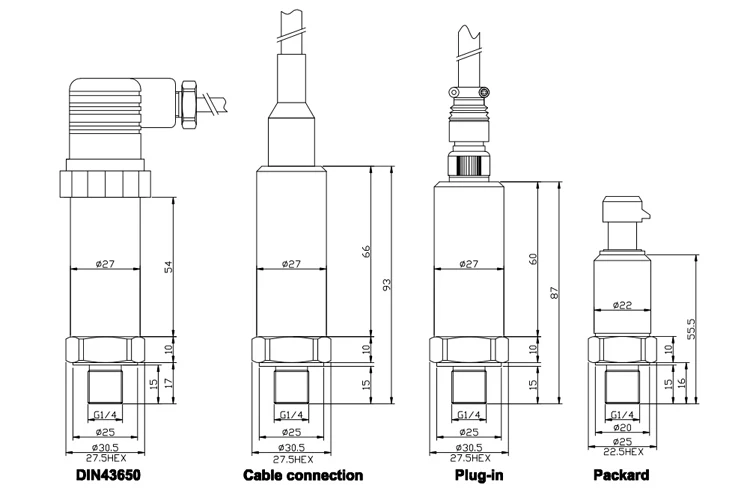

Electrical Connection

In order to meet different connection requirements, GPT200 has designed four electrical connections.They are DIN43650 , cable connection , plug connection , packard.

Product display

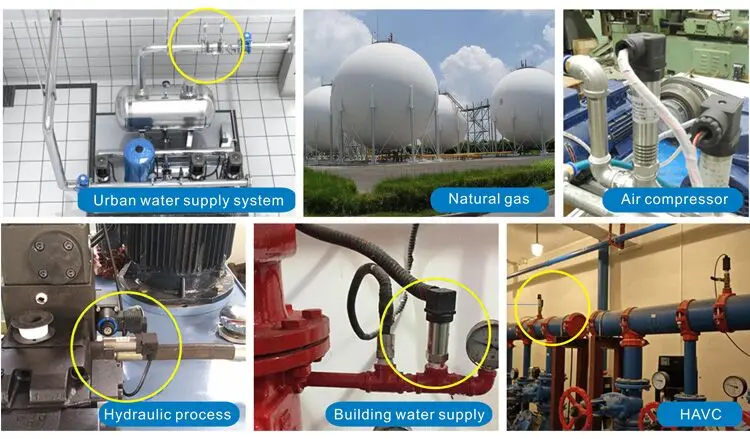

Application

Process control system Oil pump\drilling Chemical industry

HVAC Natural gas Hydraulic control system

Air compressor Oil pump\drilling Pump&water system

Refrigeration system Food industry Others

Energy and water treatment engineering machine

Ordering Guide

Manufacturing flow

In the design of product structure, material selection, manufacturing process, production assembly and the factory test etc., which has a very detailed calibration process.

Package&Shipping

Standard export package: each unit has individual box and all boxes are packed in standard packages

Service standards: we are committed to providing a high quality,and responsive services to all clients
The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
Excellent package: each unit has individual box and all boxes are packed in standard packages.
OEM available
