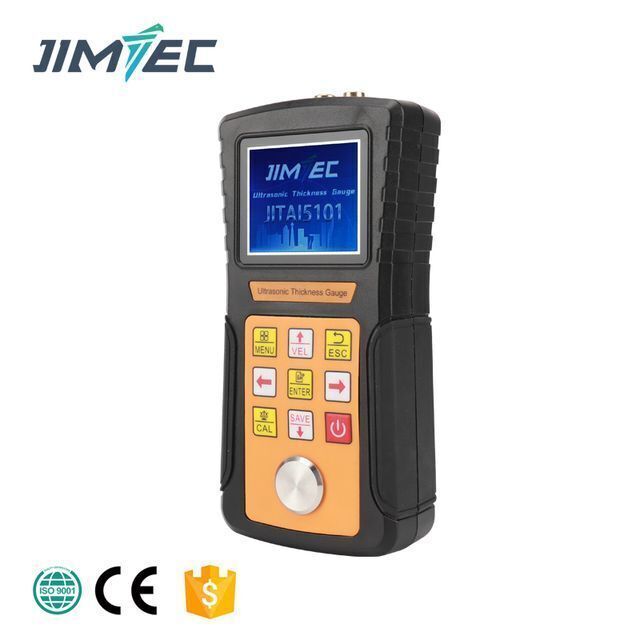

JIMTEC JITAI5101 Digital Oil Pipe Metal Ultrasonic thickness gauge meter

Supplier: Beijing Jitai Tech Detection Device Co., Ltd.
Region: Beijing, China
Contact: Ms Kathy Liu
Price: $135.00 /set
Min. Order: 1 set

Click here to contact

Product details

Resolution:	0.01mm;	Package Preview:	;
Packaging Detail:	standard export package;	Storage:	40 values of saved data;
Selling Units:	Single item;	Velocity Range:	(1000~9999) m/s;
Place of Origin:	Beijing China;	Measuring Range:	0.75~600mm;
Power Source:	4pcs 1.5V AA size;	Model Number:	JITAI5101;
Warranty:	2 years;	Measuring accuracy:	±(0.5%H+0.04mm);
USB Port:	Yes;	Certification:	CE,ISO;
Brand Name:	JIMTEC;	Product Name:	thickness gauge meter;
Weight:	245g;	Type:	Ultrasonic Thickness Gauge;
Single gross weight:	1.5 KG;	Display:	Color display;
Customized support:	OEM,ODM;	Single package size:	30.5X26.5X18 cm;

Product Overview

JIMTEC JITAI5101 Digital Oil Pipe Metal Ultrasonic thickness gauge meter

Ultrasonic Thickness Meter measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.
The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.

PRODUCT SPECIFICATIONS

Display	128*64 LCD with LED backlight, Colo display
Measuring Range	(0.75~600)mm（Steel）
Velocity Range	(1000~9999) m/s
Resolution	0.01mm
Measuring accuracy	±（0.5%H+0.04mm);H is thickness value
Measurement cycle	Single point measurement 6 times/per
Storage	40 values of saved data
Power Source	4pcs 1.5V AA size
USB Port	YES
Working Time	more than 50 hours (LED backlight off)
Dimensions	145mm74mm32 mm
Weight	245g
