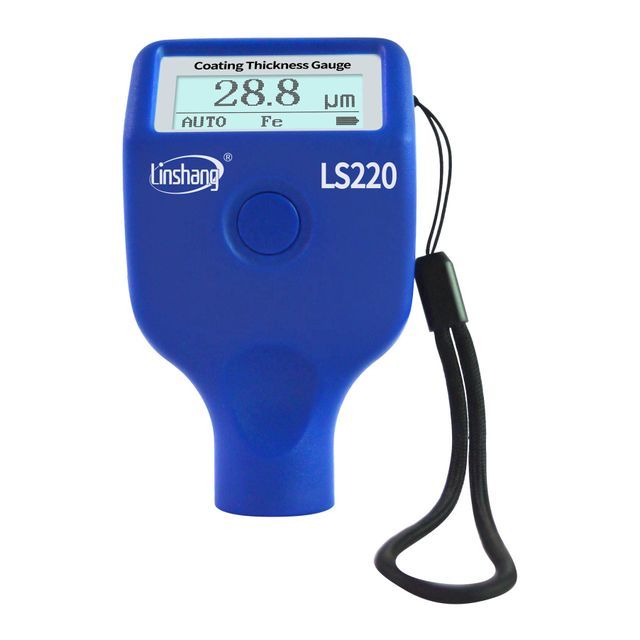

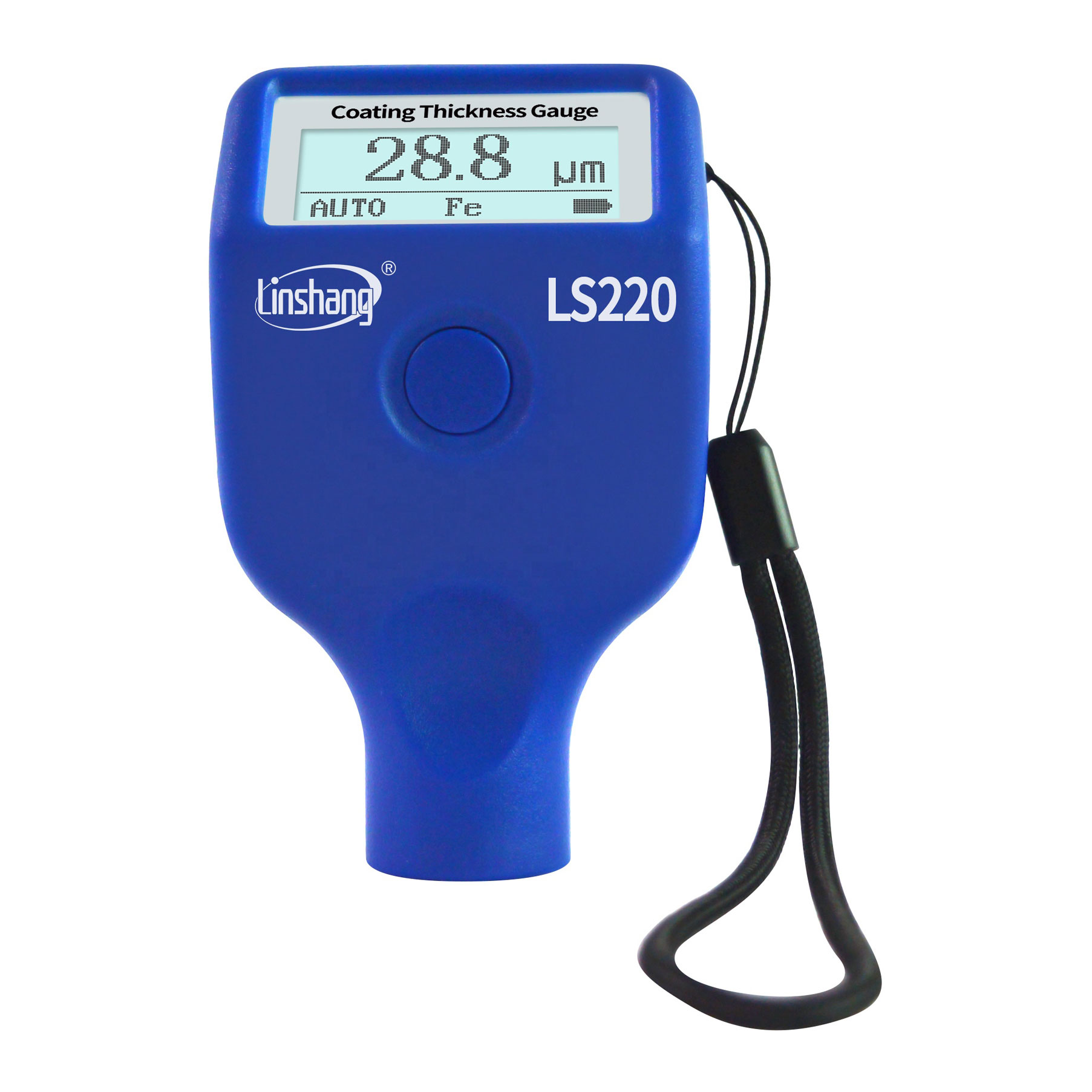

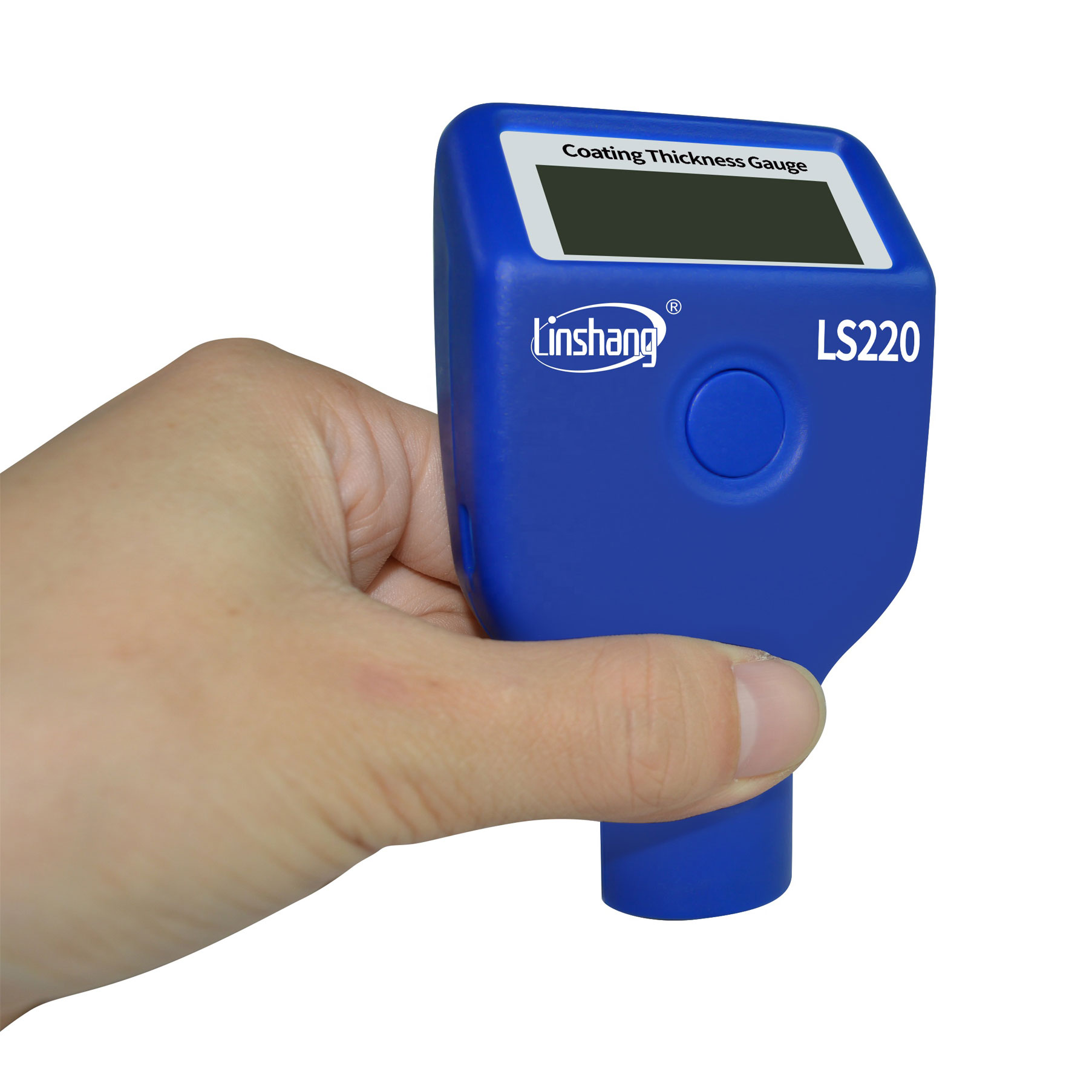

The new LS220 coating thickness gauge can test non-magnetic and non-conductive coatings, with built-in integrated ruby tip probe Fe/NFe

Supplier: Shenzhen Aermanda Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Andy Wang
Price: $100.00 / 1 - 9 sets
$95.00 / 10 - 49 sets
$87.00 / 50 - 99 sets
$85.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

model:	LS220	Packaging details:	Standard export packaging carton
Host size:	1016228mm	port:	Shenzhen
Weight (including battery):	79 grams	exhibit:	128x48 dot matrix LCD screen
Place of origin:	Guangdong, China	Customization support:	OEM, ODM, OBM
Measuring range:	0.0-3000μm	accuracy:	≤±(3%H+2μm), H is the standard value unit μm/mil
type:	digital	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal
power supply:	2 x 1.5V AAA alkaline batteries	Supply capacity:	2000 sets per month
product name:	Coating Thickness Gauge	Warranty:	1 year
brand:	Linshang

The new LS220 coating thickness gauge can test non-magnetic and non-conductive coatings, with built-in integrated ruby tip probe Fe/NFe

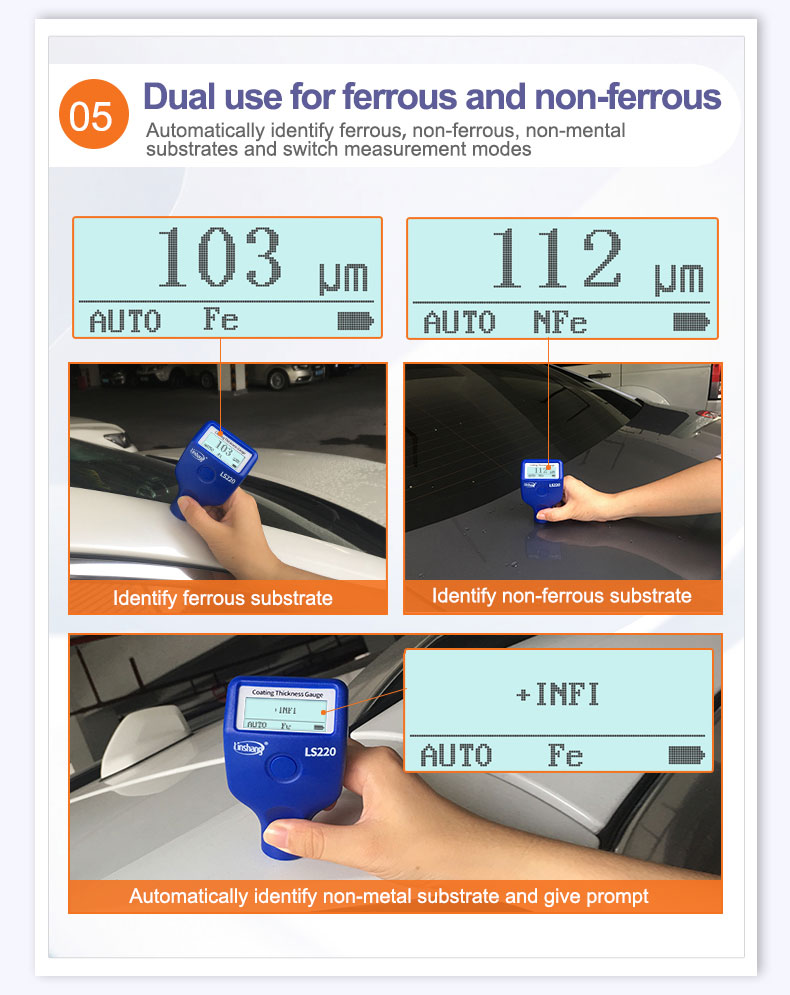

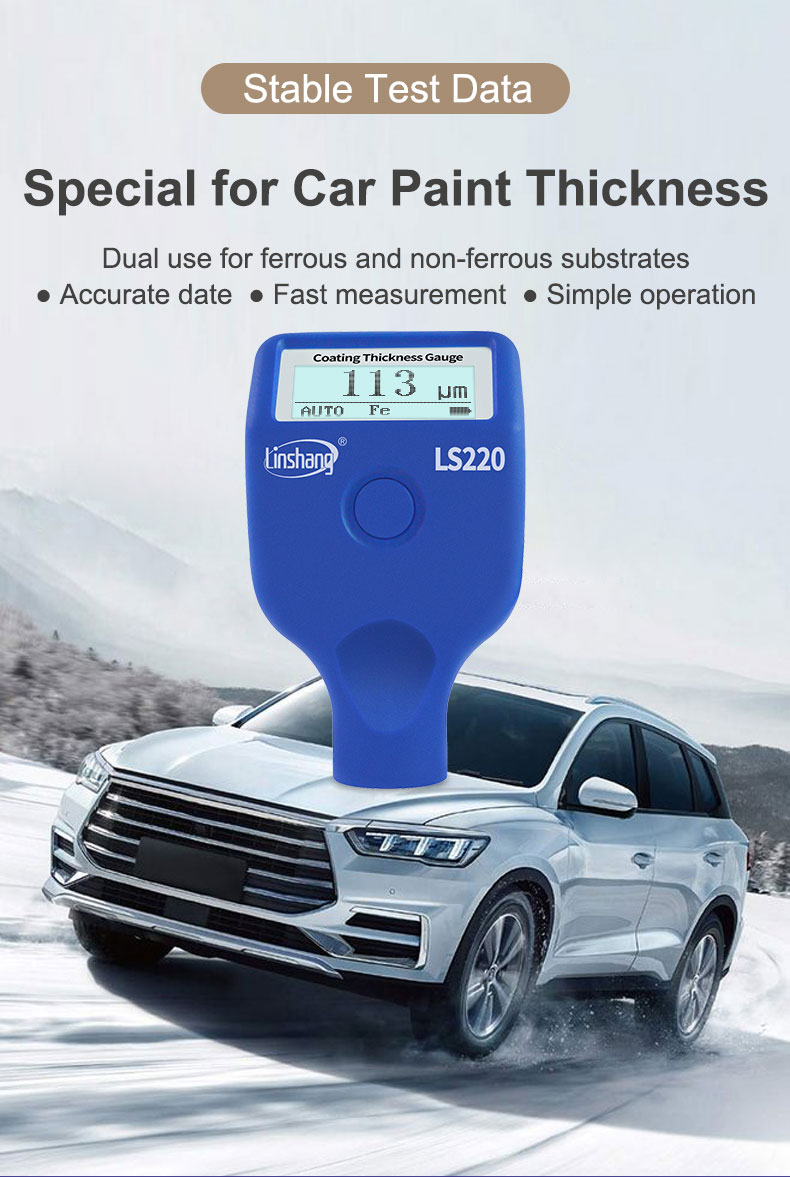

The automobile paint film meter, also known as the automobile paint film meter, is a special instrument for detecting the thickness of the surface coating of the automobile substrate. The automobile paint film meter can directly measure the sheet metal and spray paint of the car. It can also indirectly determine the degree of damage to the car. The LS220 car paint detector can identify metal putty and iron galvanized bodywork, as well as spot the car's iron, aluminum and non-ferrous substrates. This vehicle paint film thickness gauge has the characteristics of fast testing speed, stable test data, and high measurement accuracy.

parameter

scope	LS220 coating thickness gauge

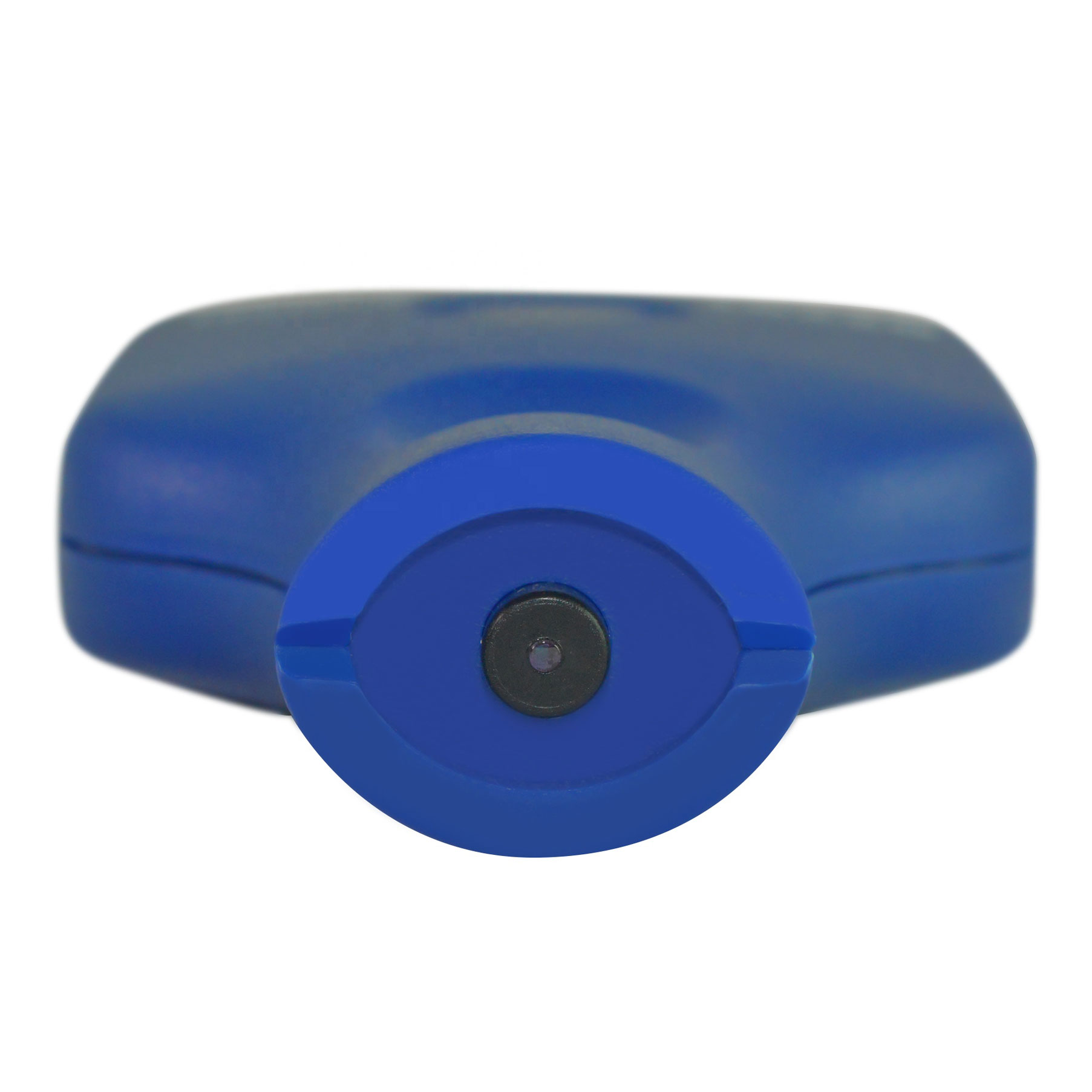

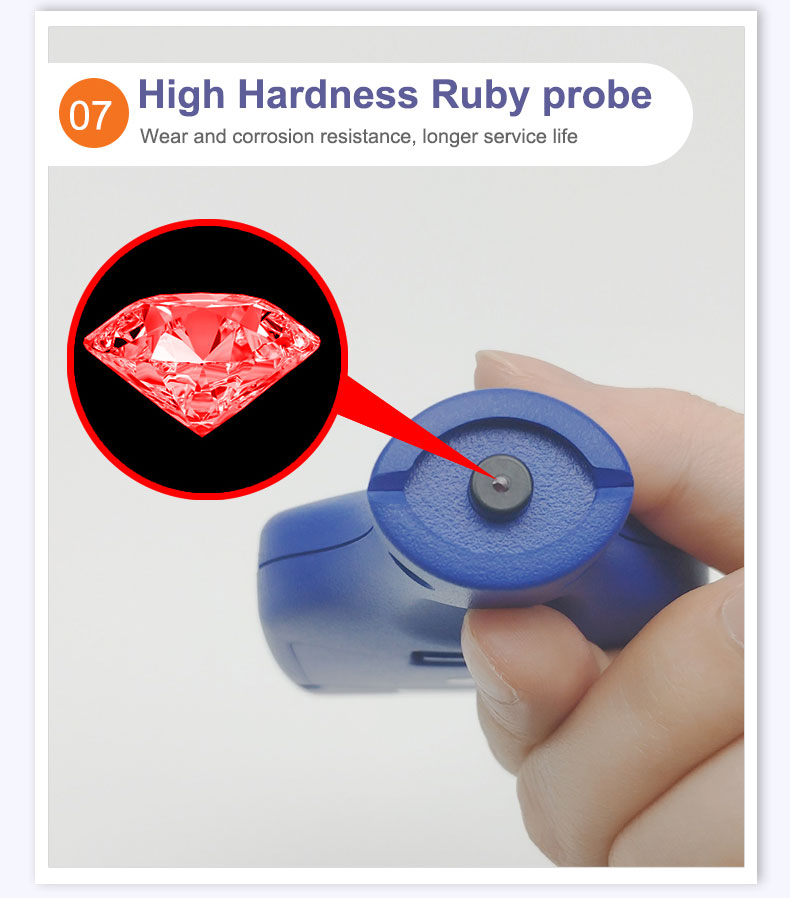

Probe tip	ruby fixed

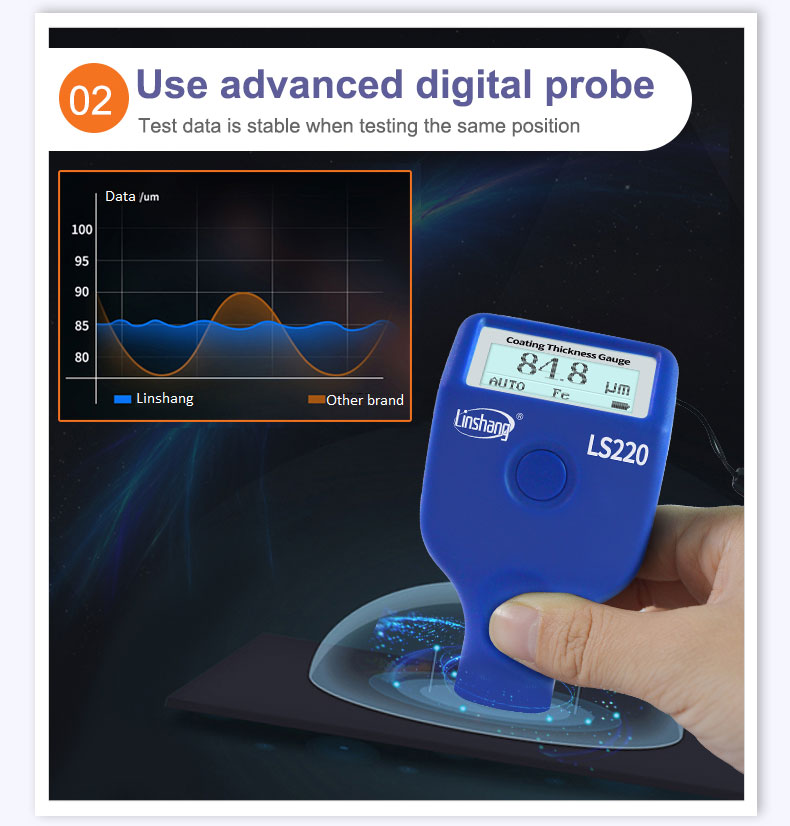

Measurement principle	Fe: Hall effect/NFe: Eddy current
Probe type	Built-in integrated probe
Measuring range	0.0-3000μm
solve	0.1μm: (0μm-99.9μm) 1μm: (100μm-999μm) 0.01mm:(1.00mm-3.00mm)
accuracy	≤±(3%H+2μm), H is the standard value
unit	Micron/mil

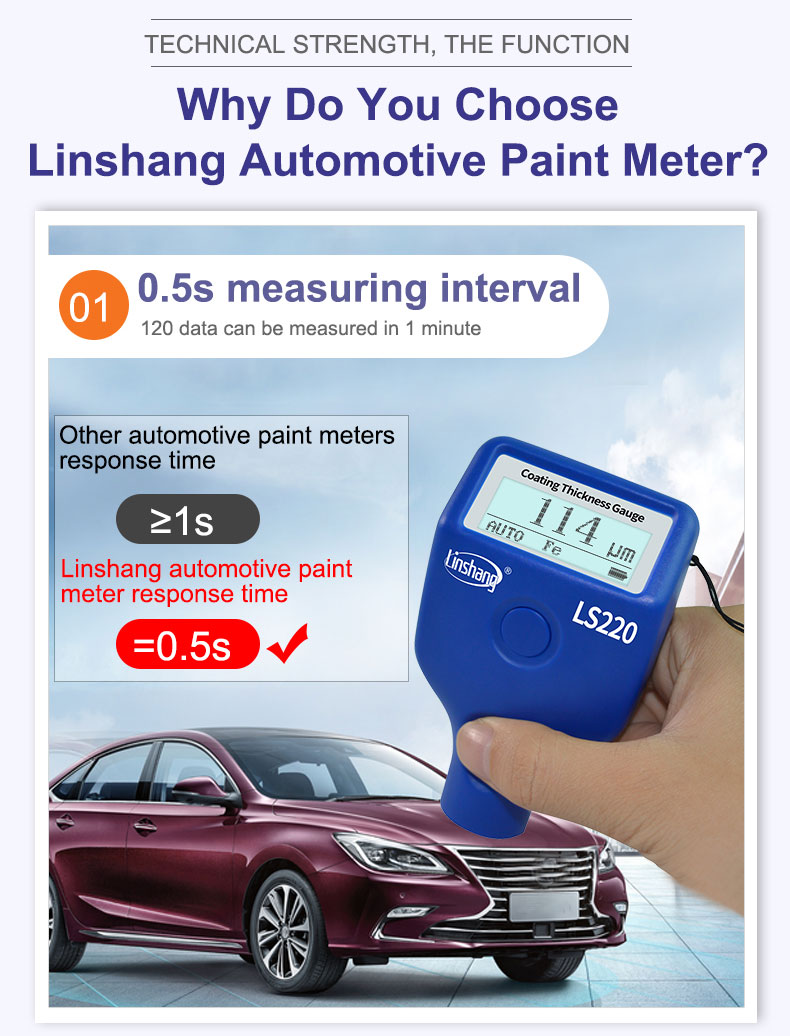

Measurement interval	0.5 seconds
Minimum measuring area	Ø = 25 mm
minimum curvature	Convex surface: 5mm / Concave surface: 25mm
Minimum substrate thickness	Fe:0.2mm / NFe:0.05mm
language	English, Russian, Turkish
exhibit	128×48 dot matrix LCD screen
power supply	2 x 1.5V AAA alkaline batteries
range of working temperature	-20℃-50℃
Storage temperature range	-20℃-60℃

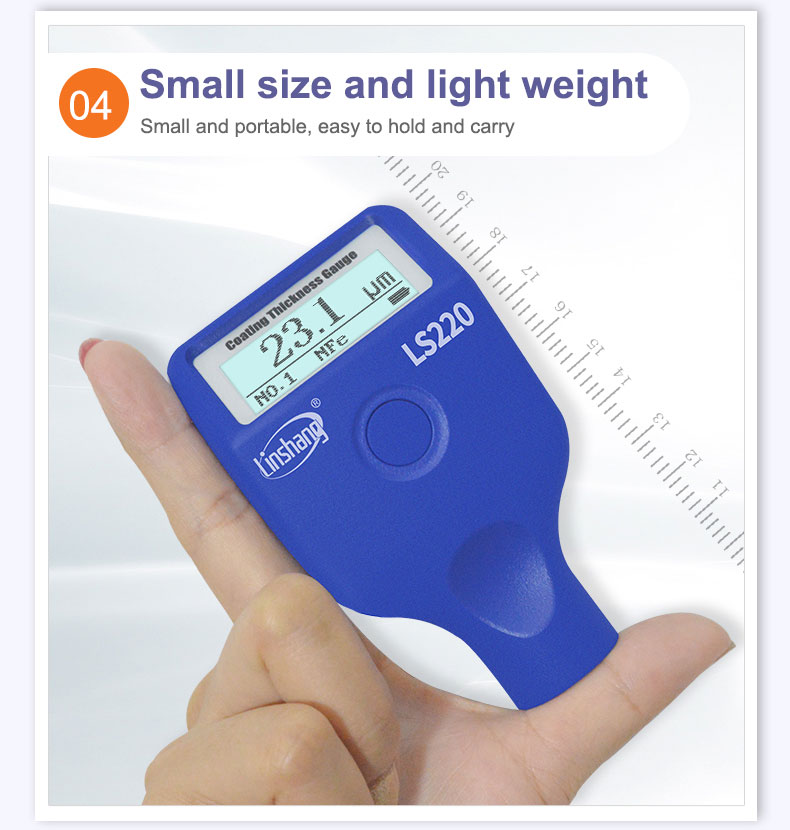

Host size	1016228mm
Weight (including battery)	79 grams
