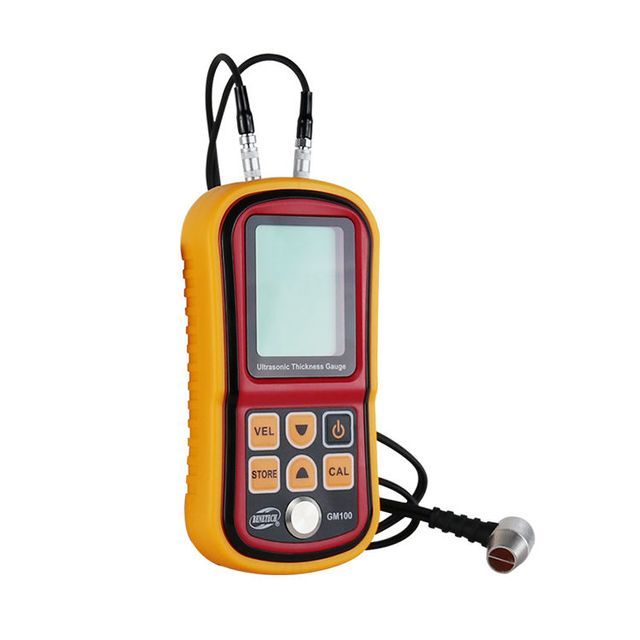

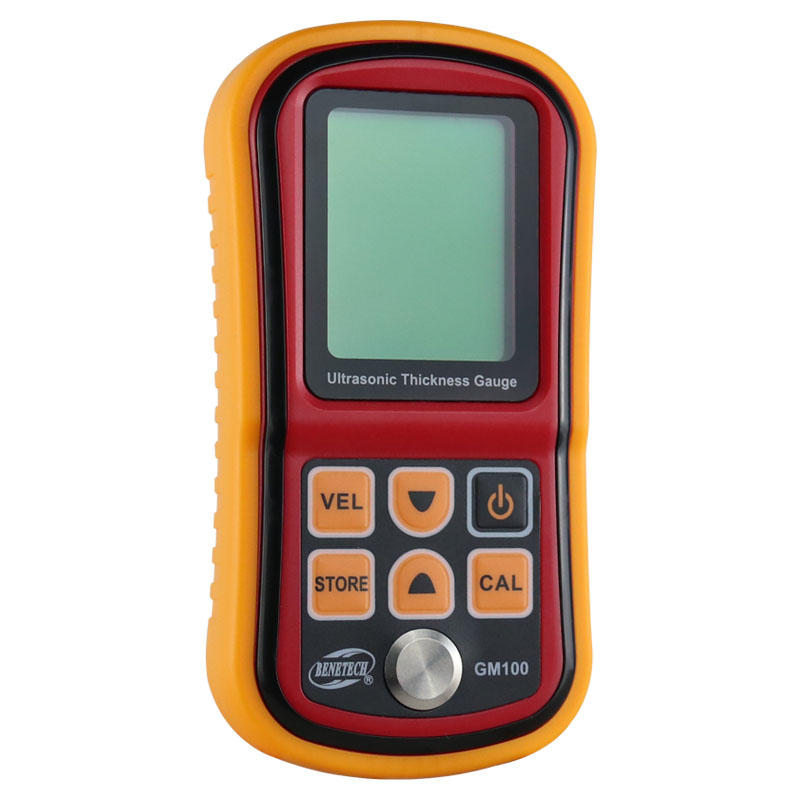

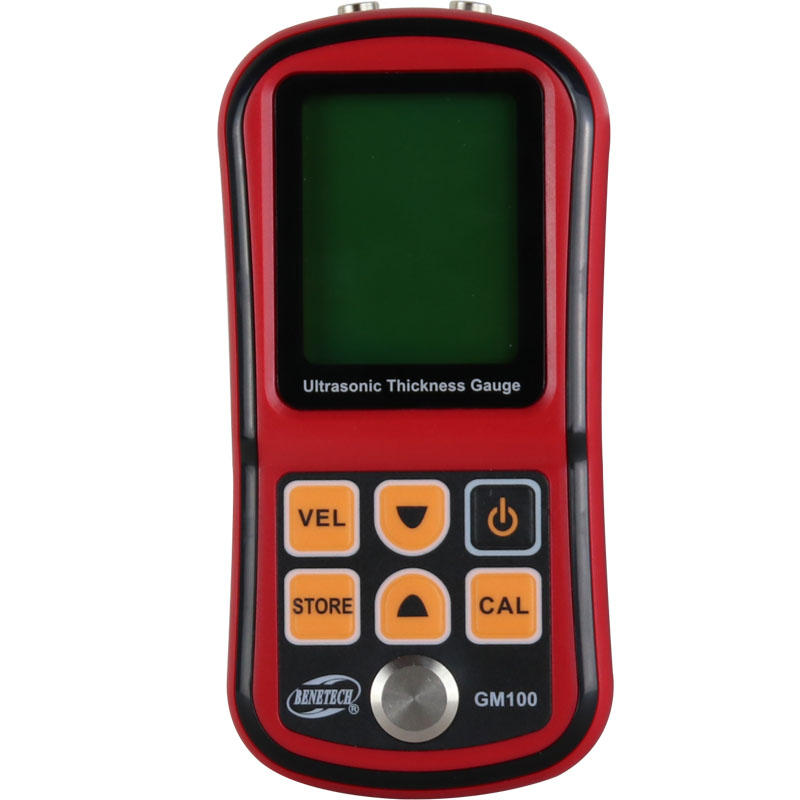

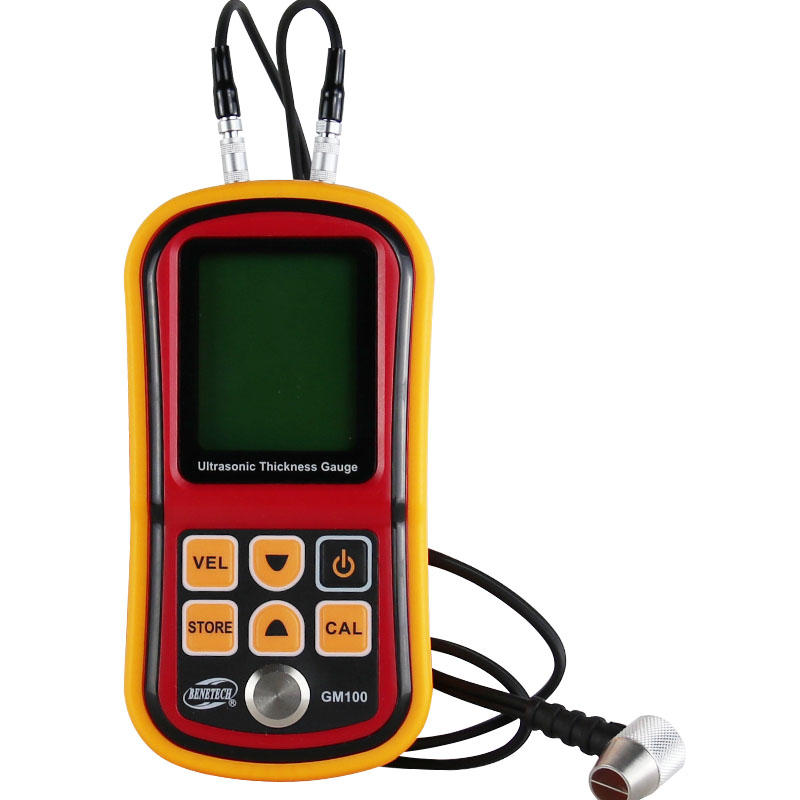

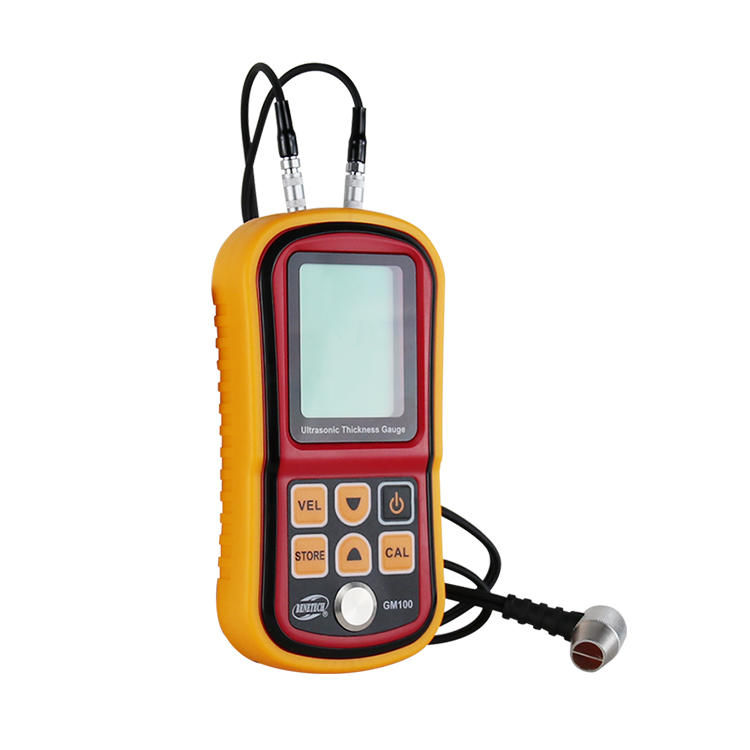

Gm100 Digital LCD Ultrasonic Thickness Gauge Thickness Gauge Test Metal Width Gauge

Supplier: Shenzhen Horizon Max Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Horizon Max
Price: $60.00 / 1 - 99 pieces
$59.00 / 100 - 999 pieces
$58.00 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Sound velocity range:	1000 to 9999 m/s	Supply capacity:	100000 pieces per month
Packaging Details:	1pc/polybag, 100pcs/big polybag, 300pcs/carton	weight:	202 grams
power supply:	3*1.5V AAA alkaline batteries	Minimum display unit:	0.1 mm
Measuring range:	1.2 to 225.0mm (steel)	payment terms:	T/T, Western Union, MoneyGram, PayPal
size:	7214629mm	port:	Shenzhen
working frequency:	5MHz	exhibit:	4-digit LCD display

Gm100 Digital LCD Ultrasonic Thickness Gauge Thickness Gauge Test Metal Width Gauge

Product Description

Display: 4-digit liquid crystal display
Minimum display unit: 0.1mm
Working frequency: 5MHz
Measuring range: 1.2 to 225.0mm (steel)
Lower limit of pipe measurement: Φ20*3mm (steel)
Accuracy: +/- (1%H+0.1)mm H represents the measured thickness.
Sound velocity range: 1000 to 9999 m/s
Measure the speed of sound for a given thickness:
Measuring range: 1000 to 9999 m/s.
When the given thickness exceeds 20mm, the accuracy is
+/-1%; When the given thickness is less than 20mm, the accuracy is +/-5%.
Working temperature: 0 to 40

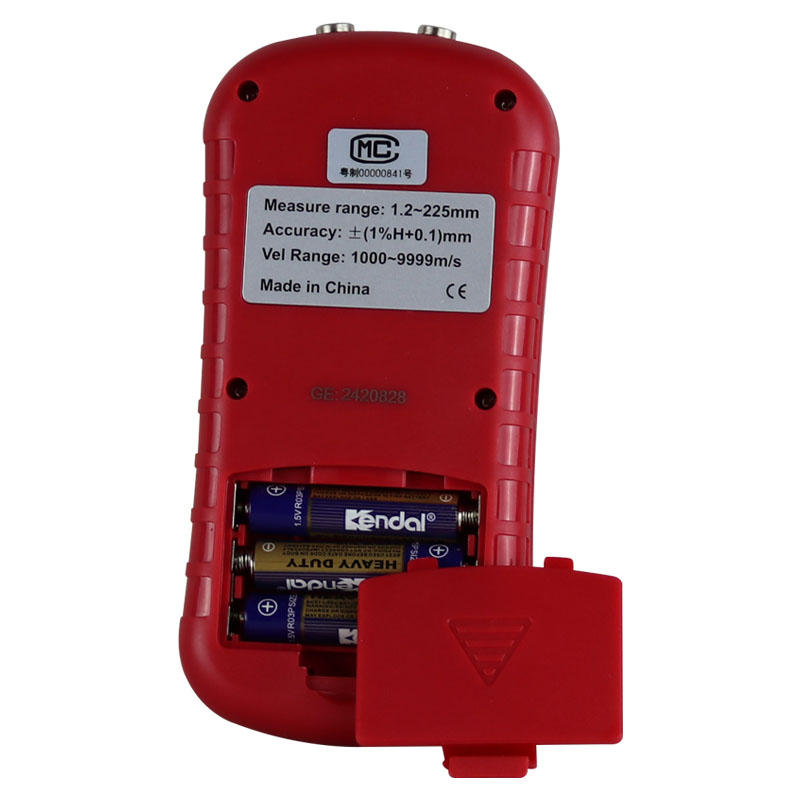

Power supply: 3*1.5V AAA alkaline batteries
Working current: normal working current 50mA with backlight on current 120mA
Standby current: 20uA
Size: 72*146*29mm
Weight: 202 grams
