ANGRY LR-FK202 High Precision Concrete Crack Width Measuring Instrument

Click here to contact

Product details

Product Description

Features:

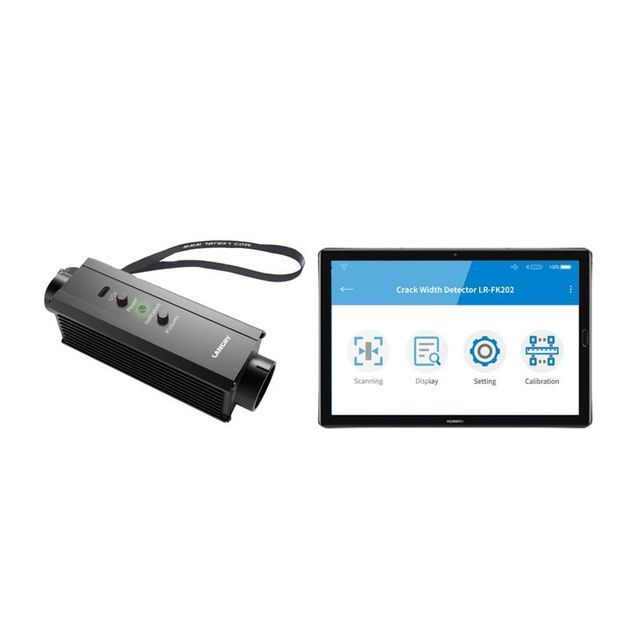

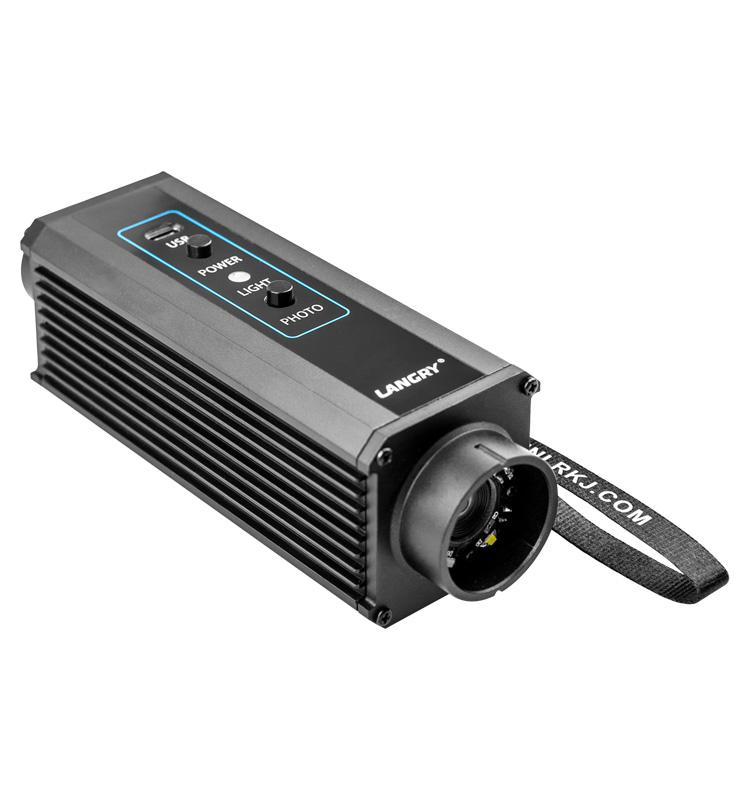

LR-FK202 crack width detector adopts wireless connection mode, widely used

For quantitative detection of crack width in bridges, tunnels, buildings, concrete

Sidewalks, metal surfaces, etc.

1. The instrument adopts wireless connection, which is convenient and flexible to use

Operation.

2. Easily and automatically capture vertical and oblique cracks,

Real-time display of crack width.

3. The cursor position can be manually adjusted and zoomed according to the actual situation

The size of the cracks, to make manual interpretation of crack widths easier

value.

4. Professional data analysis software realizes data transfer

Instruments and computers to analyze test data and generate test reports.

Specification

Name	Specification
Measuring range	0~10mm
measurement accuracy	±0.01mm
data storage	64GB, up to 512GB memory expansion
power supply	lithium rechargeable battery
Dimensions	Probe 50mm50mm160mm Flat plate 204mm122mm8.2mm
gross weight	Probe 450g Tablet 310g
