JD 520 surface roughness tester

Product details
Precision:0.001μm;Quality Standard:ISO,DIN,ANSI,JIS;
Supply Ability:1000 Set/Sets per Month;Data Connection:USB, Bluetooth;
Brand Name:JITAI;Energy saving:automatic sleep and shutdown;
Sensor:SR100, SR110, SR130, SR131 optional;Parameters:Ra, Rz, Rq, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rsm, Rmr;
Packaging Detail:Standard Export package;Dimensions:140mm * 52mm *48mm;
Color:White, Black, Grey chooseable;Place of Origin:Beijing China;
Running Hours:10hours;Model Number:JD520;
Indication Error:≤10%;Port:Shanghai;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;

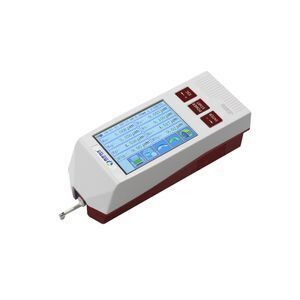

Portable Surface Roughness Tester JD520 is a high accuracy instrument for measuring surface roughness. It can be used on variety of machining parts and operates on various surfaces, not only flat but also outer cone, outer cylinder, curved, pinholes, grooves, recesses grooves and axle etc.



Application

Portable Surface Roughness Tester JD520 allows surface roughness measurement both on metal and non-metal workpieces. It is suitable for machining and manufacturing, quality control, inspection departments, especially for measurement on large and heavy workpiece, assembly line on site. The JD520 is a Non Destructive Testing instrument, damage won’t caused to testing piece.



Main Feature

l Mechatronics and ergonomics design, small size, light weight, easy to operation

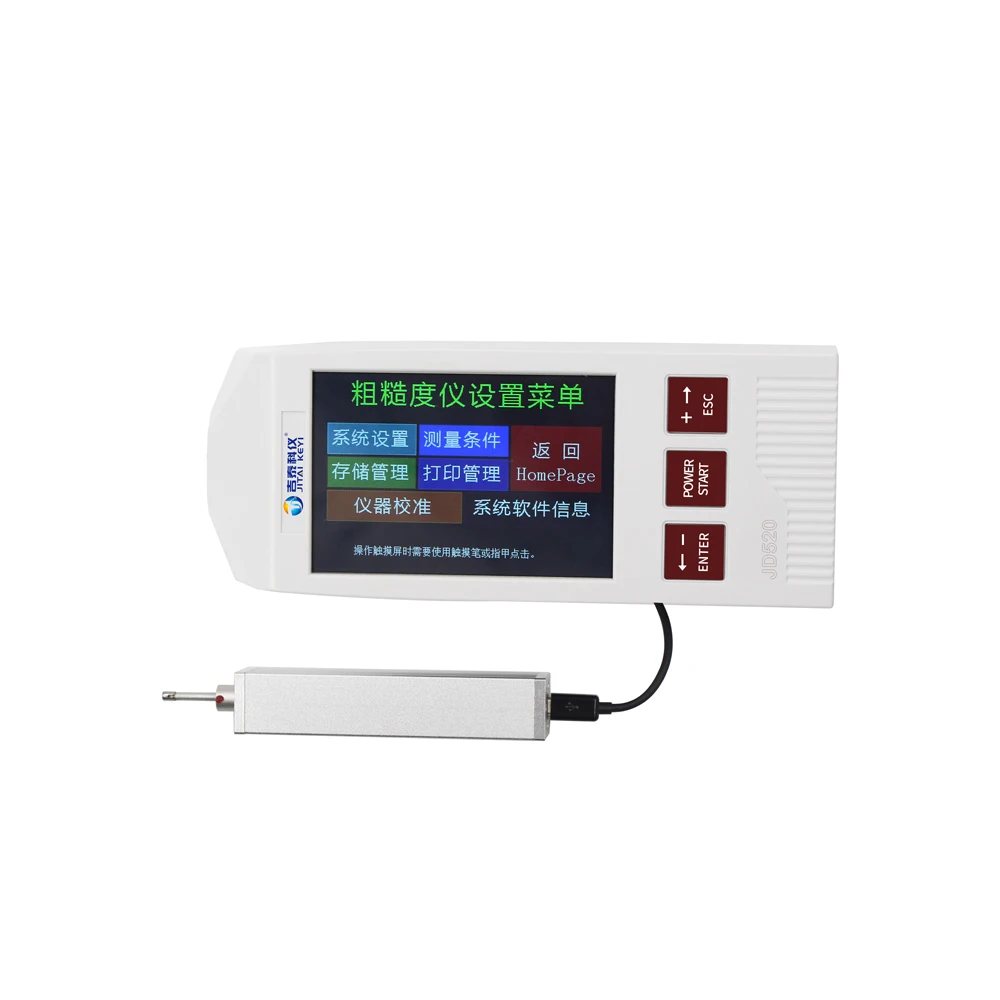

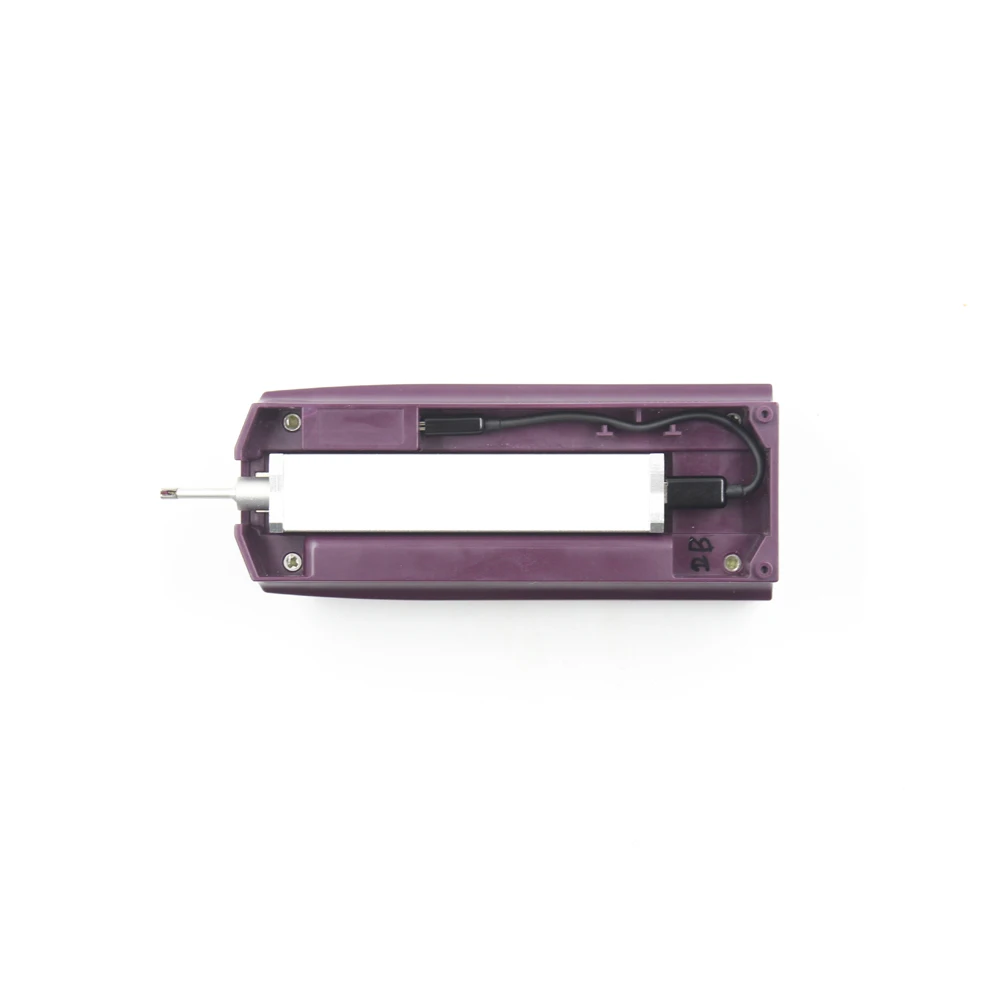

l The stylus drive unit can be stored within the main unit for standard measurement, or separated from the display unit by using the supplied cable which allows more flexible measurement in any orientation. The driver can be separated and reattached in one simple step.

l DSP chip control and data processing, high speed, low power consumption

l 22 Parameters: Ra ,Rz, Rq, Rt, Rp ,Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rmr, Ry(JIS), Rmax,RPc, Rk, Rpk, Rvk, Mr1, Mr2

l Measurement range up to 160μm (can be optional to 320μm)

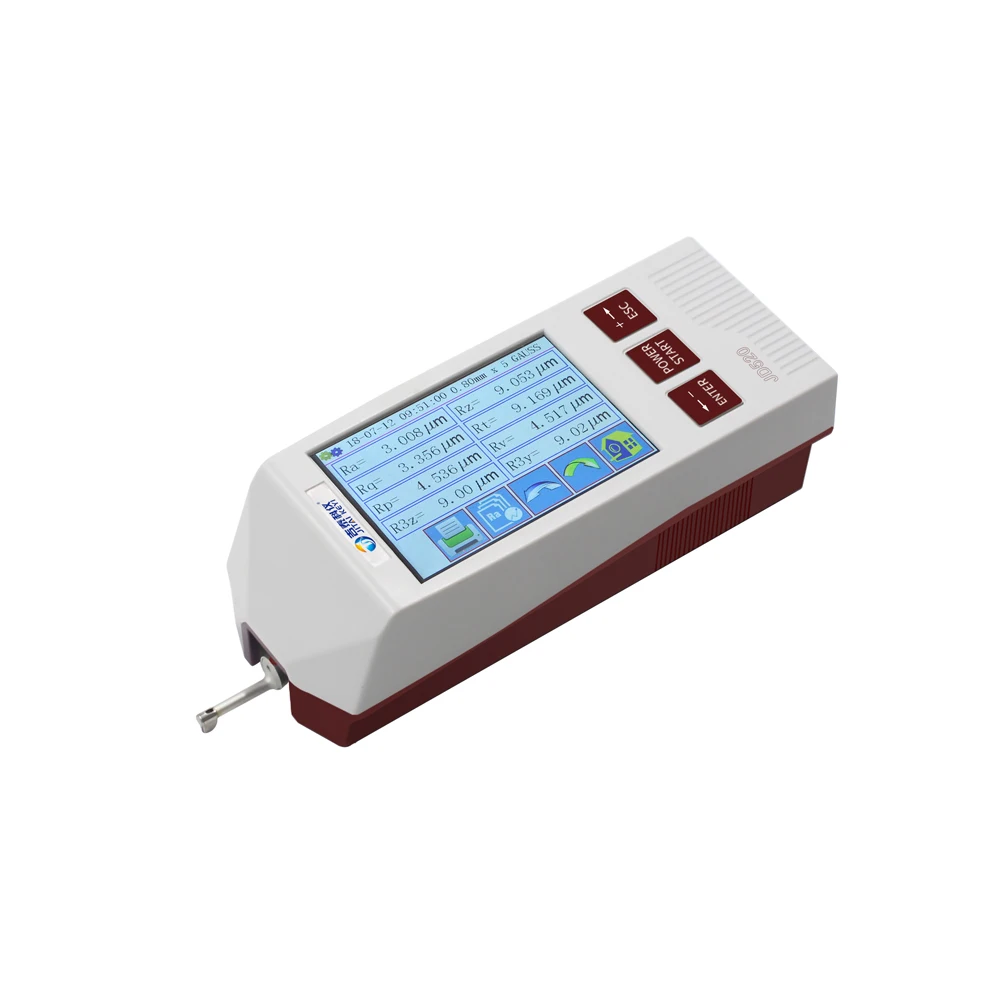

l 3.5 inches color graphic TFT touch screen, wide viewing angle, excellent readability and an intuitive rich display, it includes a backlight to improve visibility in dark environments

l Can be operated using buttons or touch screen

l 2.It provide Bluetooth Capability , support wireless connection with mobile and mini printer.

l Built-in lithium-ion rechargeable battery and control circuit, high capacity, no memory effect, it works over 50 hours while fully charged, and there is remaining charge indicator, charging hint

l Large capacity data storage, 100 item of raw data and curves can be stored

l Real-time clock setting and display for easy data recording and storage

l With auto sleep, auto power off, power-saving features

l Reliable circuit and software design to preventing the motor stuck

l Language: Chinese and English switch freely

l All parameters or any of the parameters which set by users can be printed

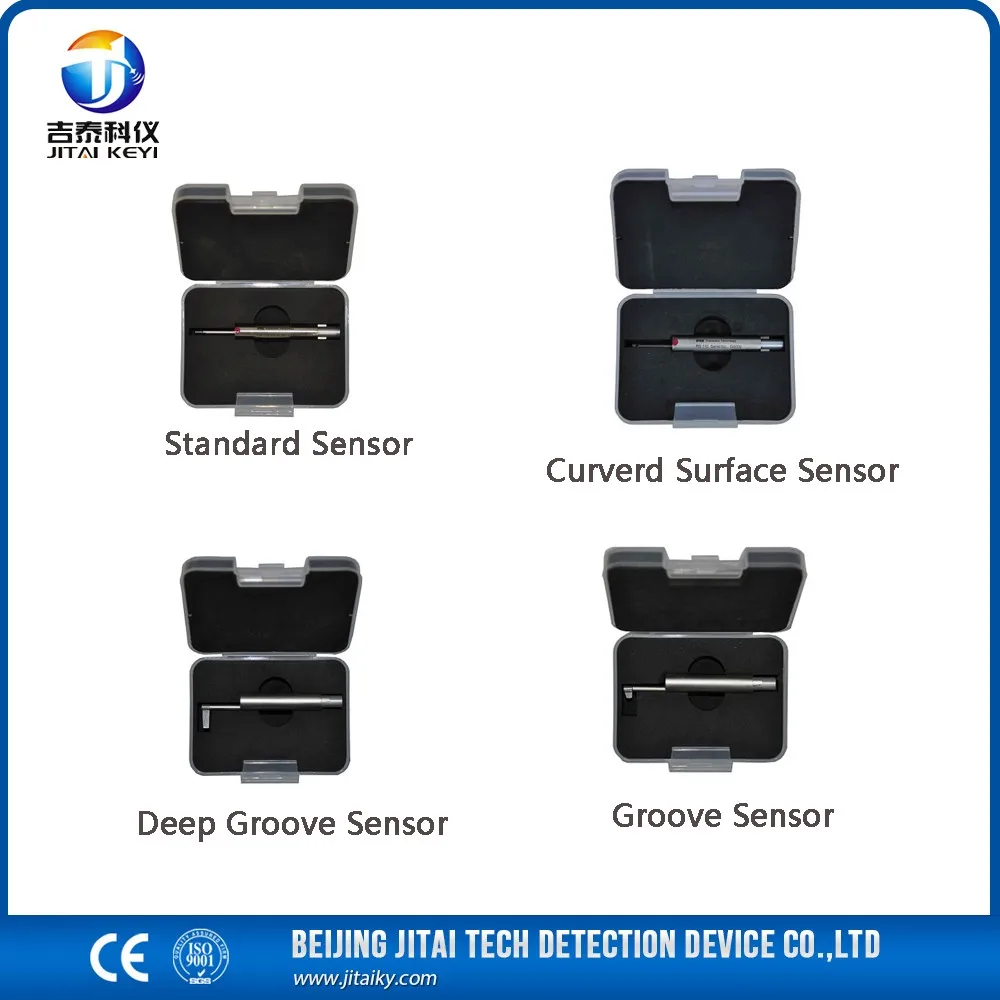

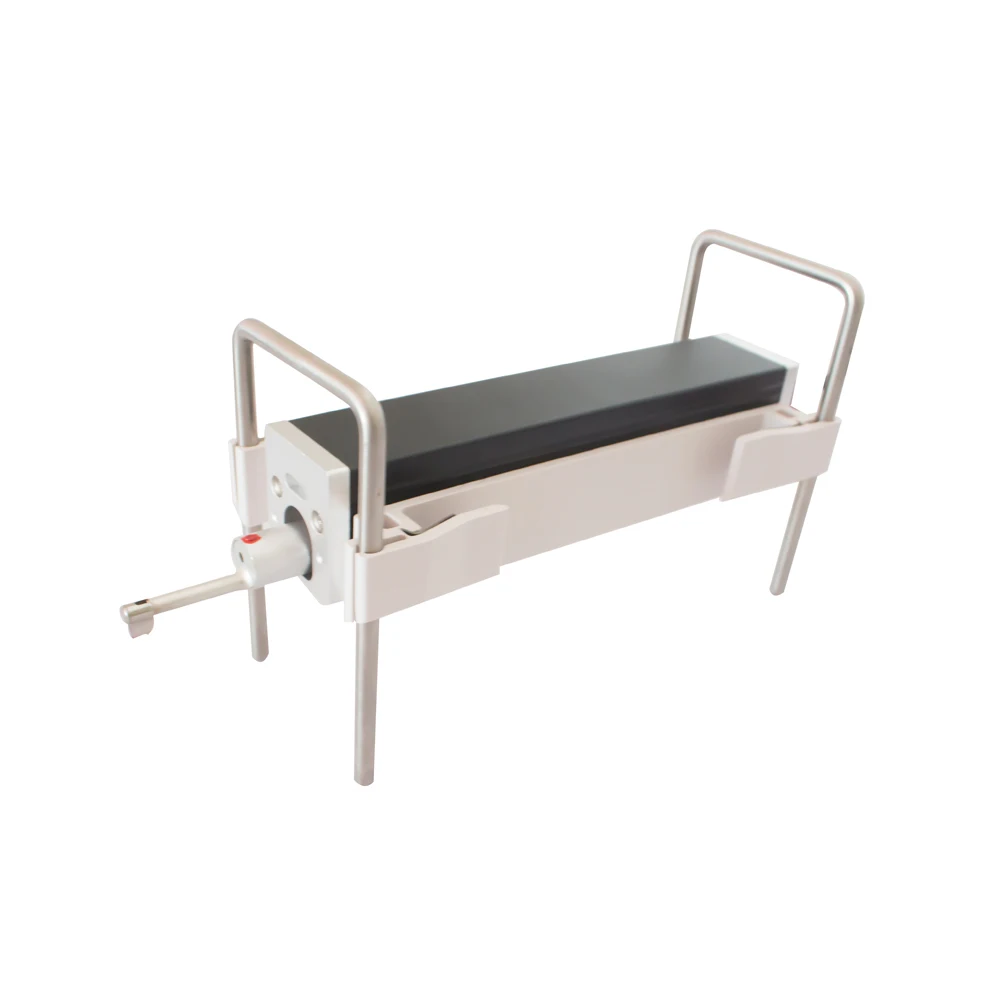

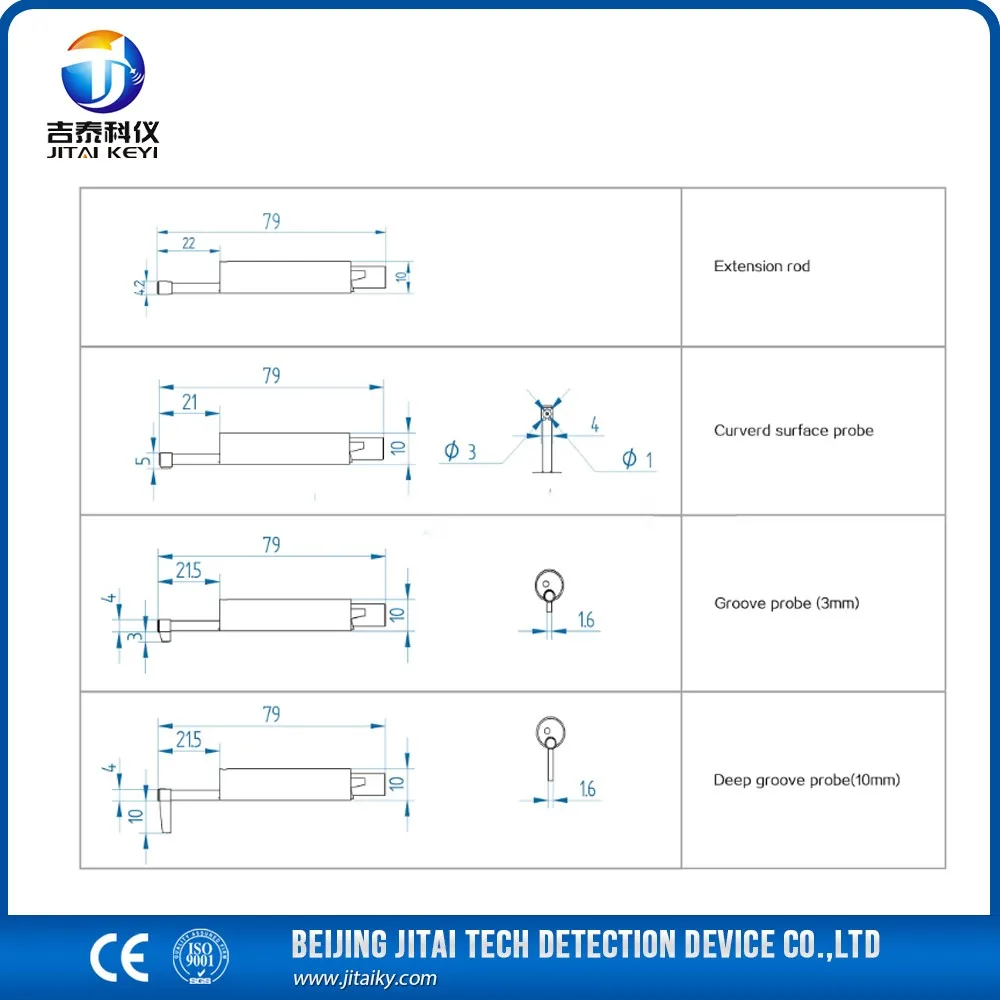

l Optional accessories: Bluetooth capability, curved sensor, pinholes sensors, measurement, stand, extension rod, printer

l Portable Surface Roughness Tester JD520 complies with international standards ISO, DIN, ANSI, JIS



Technical Specification

Measurement Range

The Z axis (vertical)

±80μm/±160 µm(enhanced model)

The X axis (Transverse)

17.5mm

Resolution

The Z axis (vertical)

0.01μm/±20μm

0.02μm/±40μm

0.04μm/±80μm

0.08μm/±160μm

Measurement item

Parameter

Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y,Rz(JIS),Rs,Rsk,Rsm,Rku,Rmr,Ry(JIS), Rmax, RPc, Rk, Rpk, Rvk, Mr1, Mr2)

Standard

ISO,ANSI,DIN,JIS

Graphic

Bearing area curve, Roughness profile, Primary profile

Filter

RC,PC-RC,Gauss,D-P

The sampling length(lr)

0.25, 0.8, 2.5mm

Assessment length(ln)

Ln= lr×n    n=1~5

Sensor

Measuring method

skidded

Stylus tip

Diamond, 90 cone angle, 5μmR

Force

<4mN

Skid part

hard alloy, skid radius of curvature: 40mm

Traversing speed

lr=0.25,   Vt=0.135mm/s

lr=0.8,    Vt=0. 5mm/s

lr=2. 5,    Vt=1mm/s

Return      Vt=1mm/s

Accuracy

Less than ±10%

Repeatability

Less than 6%

Power supply

Built-in Lithium ion battery, Charger :DC5V,3200mA

Outline dimension

Main unit: 52*55*158mm   drive: 23*27*115mm

Weight(main unit)

Around 400g

working Environment

Temperature: - 20℃ ~  40℃

Humidity: < 90% RH

Store and Transportation

Temperature: - 40℃  ~   60℃

Humidity: < 90% RH



Parameter

Range

Ra,Rq

0.005μm  ~  30μm

Rz,R3z,Ry,Rt,Rp,Rm

0.02μm  ~  320μm

Sk

0  ~  100%

S,Sm

1mm

tp

0 ~ 100%



Standard Configration

·JD520 main unit              1 piece

·Sensor Drive                   1 piece

·Standard Sensor               1 piece

·Calibration block and bracket     1 piece

·Height adapter                1 piece

·Power adapter                 1 set

·Operating manual
