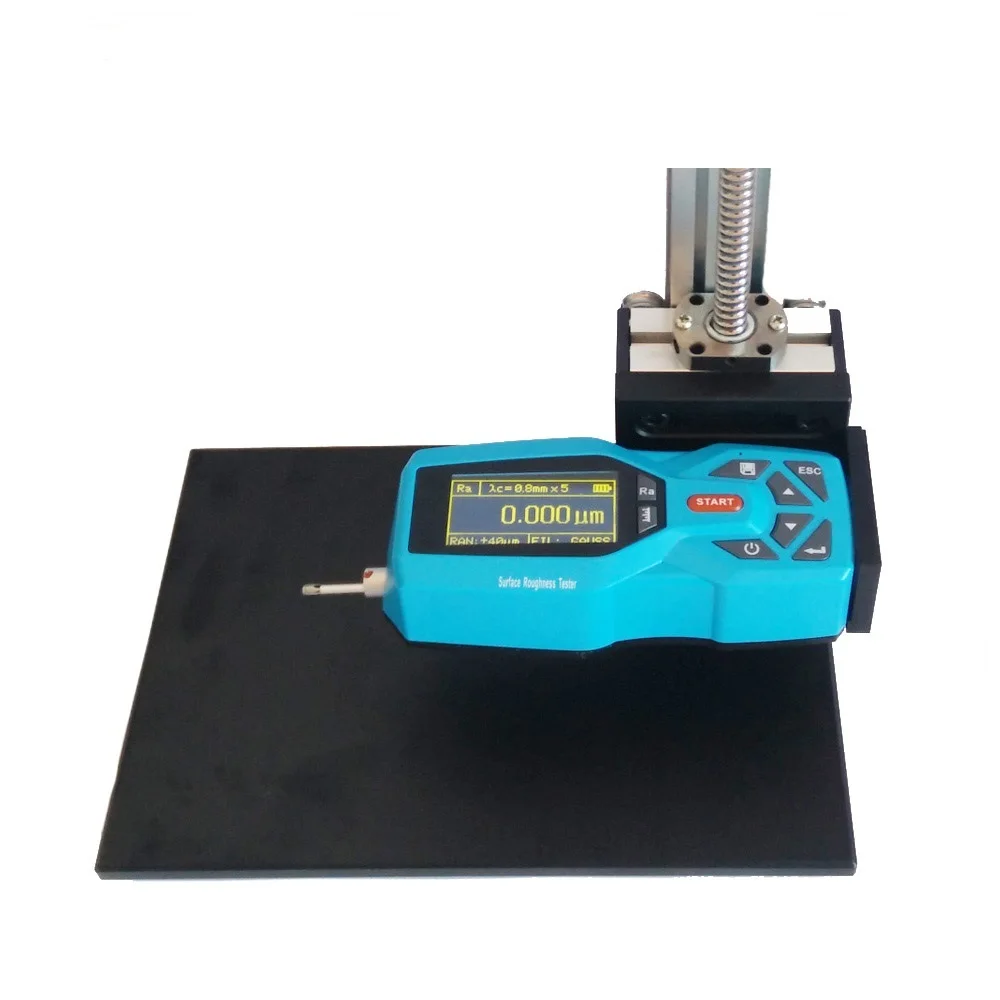

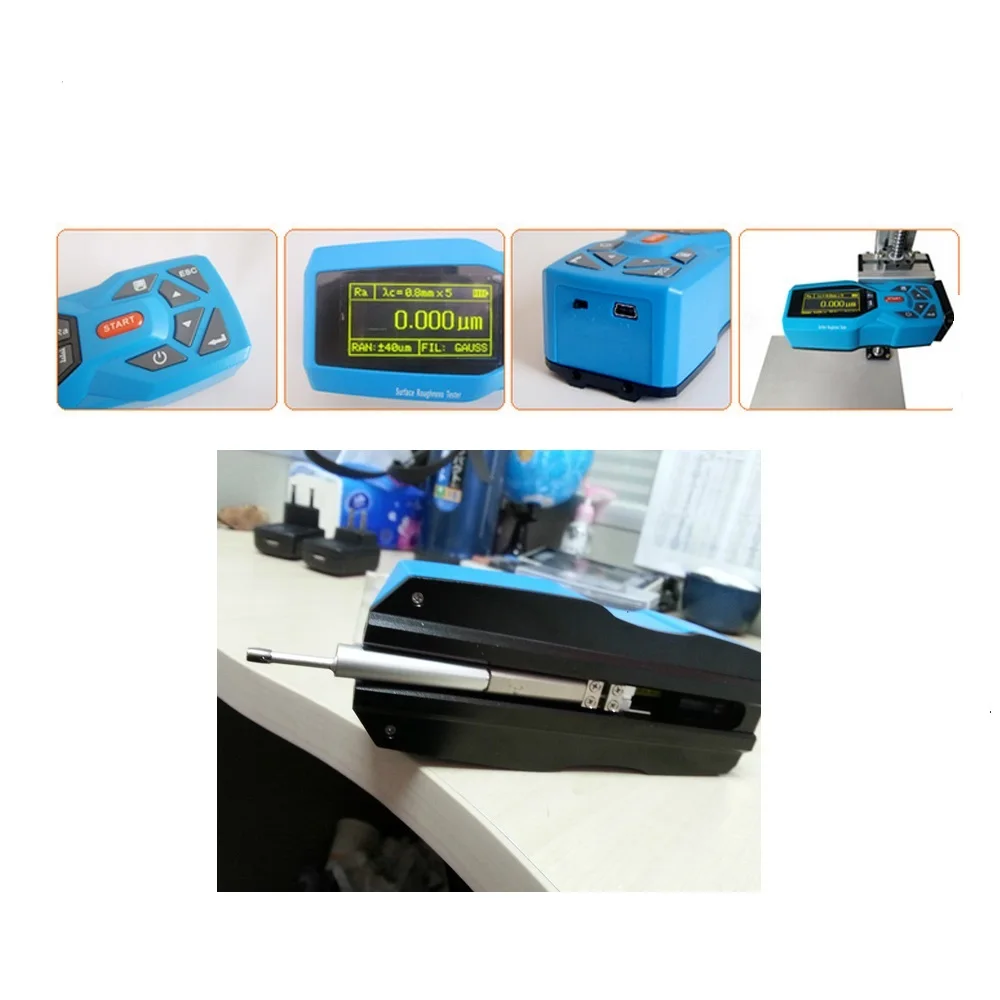

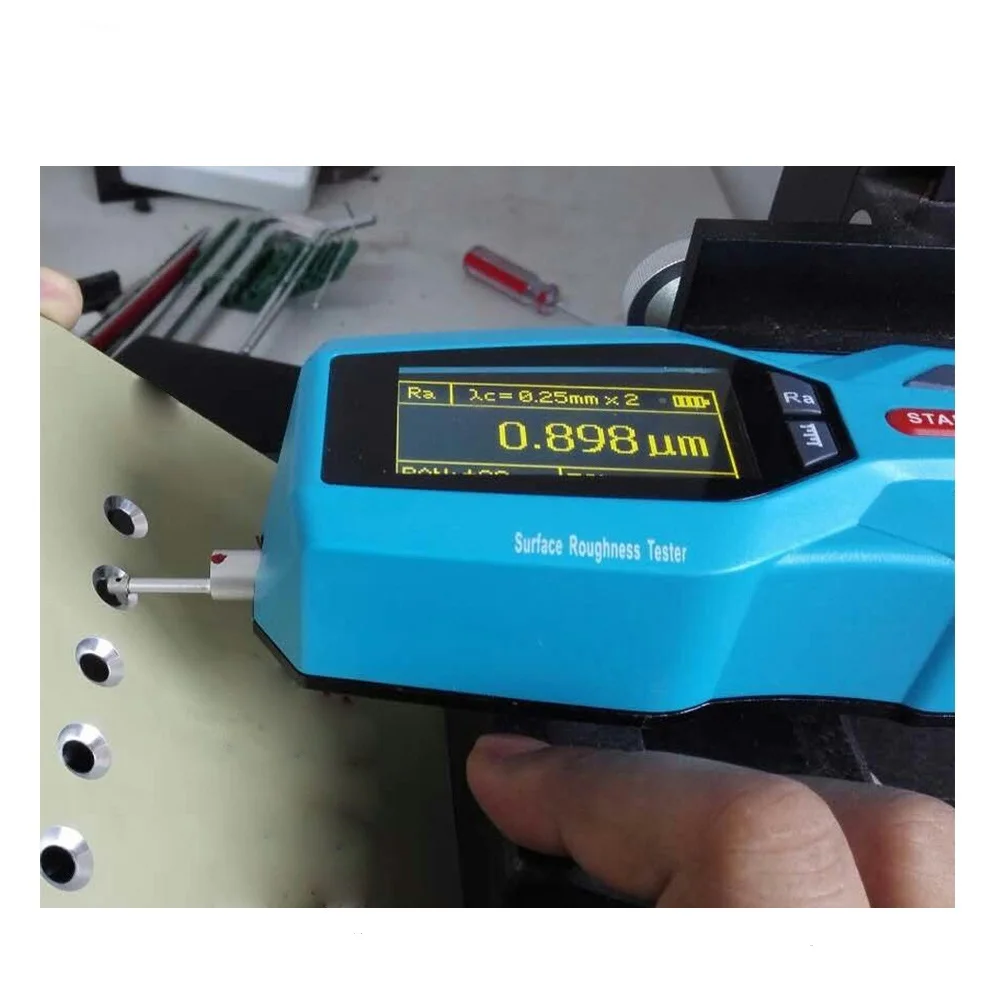

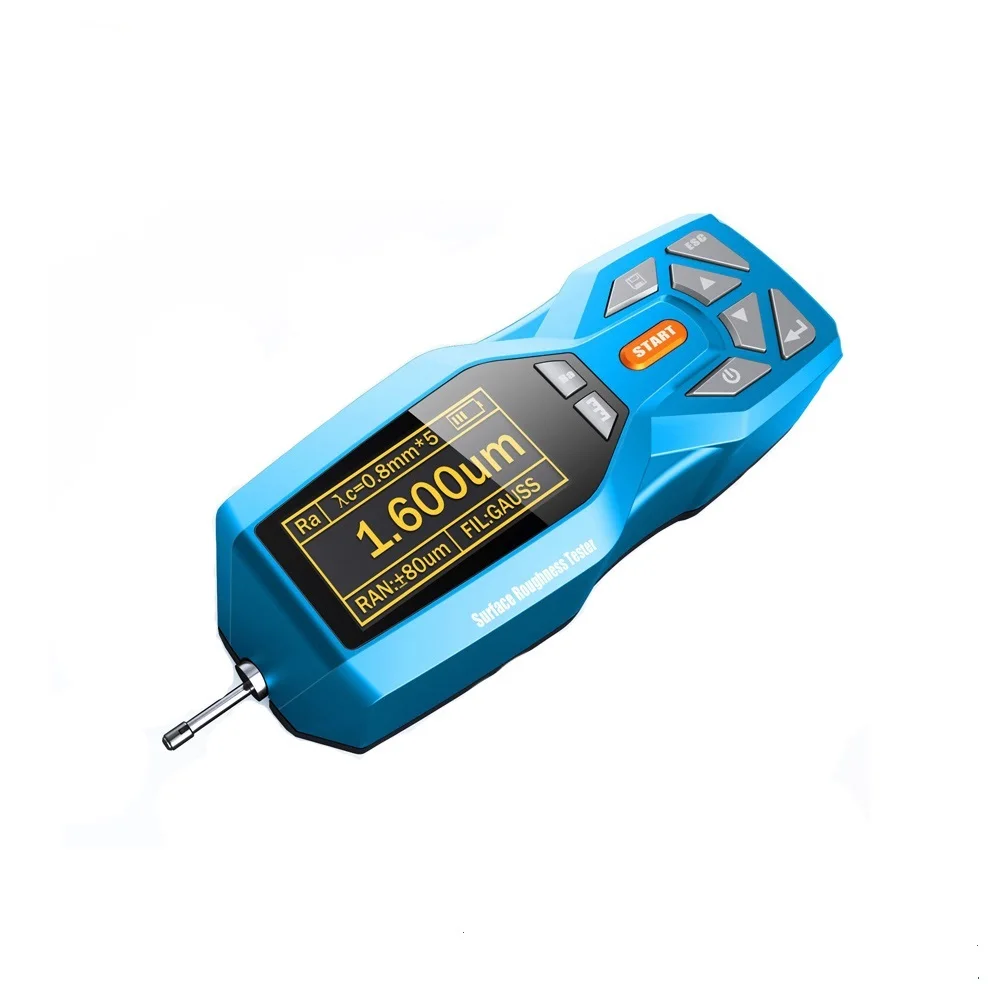

TR 200 digital surface roughness tester

Click here to contact

Product details

Energy saving:	automatic sleep and shutdown;	Sensor:	SR100, SR110, SR130, SR131 optional;
Color:	White, Black, Grey chooseable;	Brand Name:	JITAI;
Data Connection:	USB, Bluetooth;	Indication Error:	≤10%;
Place of Origin:	Beijing China;	Dimensions:	140mm * 52mm *48mm;
Running Hours:	10hours;	Quality Standard:	ISO,DIN,ANSI,JIS;
Precision:	0.001μm;	Packaging Detail:	Standard Export package;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Parameters:	Ra, Rz, Rq, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rsm, Rmr;
Model Number:	SR200;	Port:	Shanghai;
Supply Ability:	1000 Set/Sets per Month;

	SR200
Testing parameters	Ra, Rz, Rq, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rsm, Rmr
Measuring range (um)	Ra: 0.005-16.000 Rz: 0.02-160.00
Sample length (mm)	0.25, 0.80, 2.50
Evaluation length(mm)	(1-5)L
Maximum drive stroke	17.5mm/0.7inch
Indication accuracy	0.001
Indication error	≤10%
Variability	<6%
Data Storage	100 groups
Power	Rechargeable li-battery
Working temperature	-20℃~40℃
Relative humidity	<90%
Size	140mm55mm47mm
Weight of Host	0.4kg

Main feature:

1.Electromechanical integration design, small volume, light weight, easy to use;

2. Using DSP chip to control and data processing, high speed, low power consumption;

3. Large range, parameters RX, Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr;

4. 128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

5. Display information rich, intuitive, can display all the parameters and graphics;

6. Compatible with ISO, DIN, ANSI, JIS national standards;

7. Built-in lithium ion rechargeable battery and a charging control circuit, high capacity, no memory effect;

8. Residual quantity indicator icon, prompting the user to charge;

9. Display of the charging process instructions, the operator can understand the degree of charge

10. Working time more than 20 hours of continuous work

11. Large capacity data memory, can store 100 groups of original data and waveform.

12. Real-time clock settings and display, convenient data recording and storage

13. With automatic dormancy, automatic shutdown and power saving function

14. Reliable control motor to go dead circuit and software design

15. Measurement information display, menu prompt information, false information and switch machine information

16. Full metal shell design, sturdy, compact, portable, high reliability.

17. Can be in English freely switch

18. Can be connected to a computer and printer;

19. Optional sensor surface, hole sensor, measuring platform, sensor, an extension rod and other accessories.

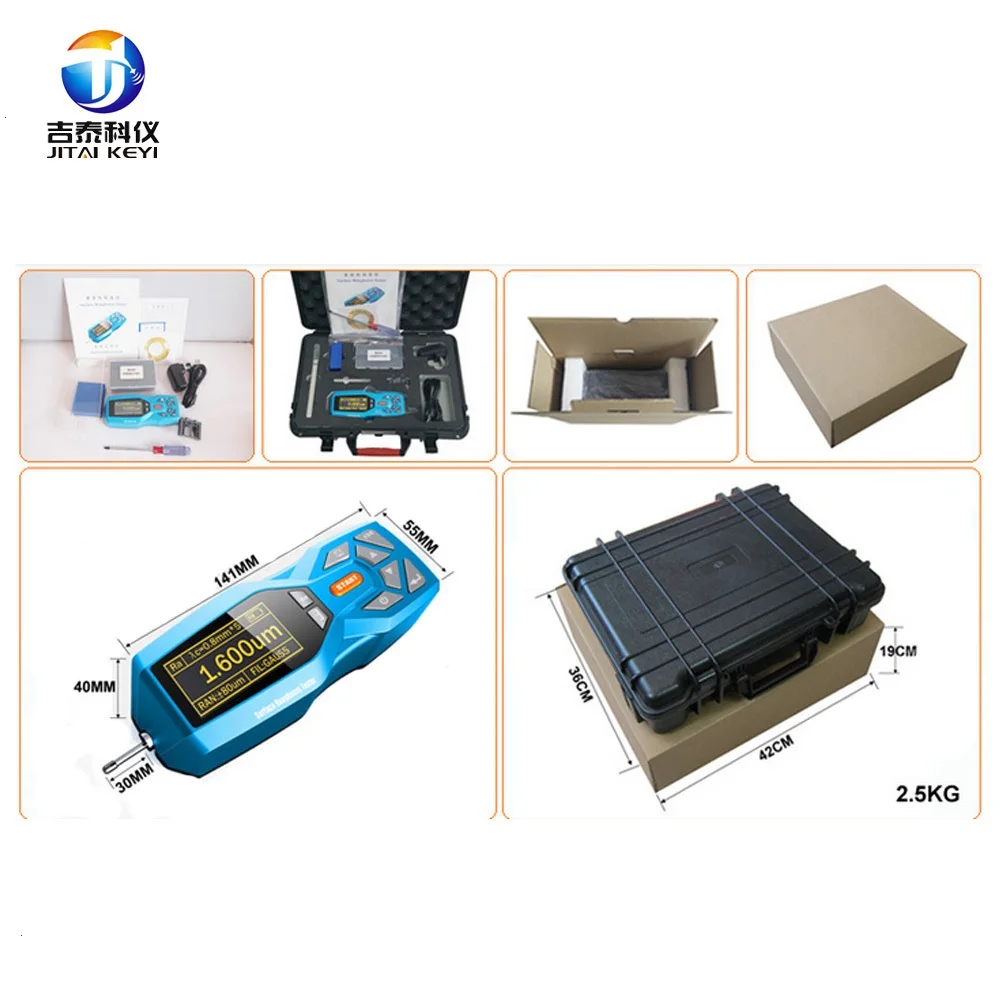

Standard Configuration:

	Name	QTY
1	Host	1
2	Standard Sensor	1
3	Calibration block and bracket	1
4	Bracket	1
5	Charger	1
6	Adjustable support	1
7	Operating manual	1
8	Warranty card	1
9	Certificate of approval	1
10	Instrument case	1
