JH300 Spot Hardness Tester Hardness Tester Digital Leeb Hardness Tester Portable

Click here to contact
Product details
type:Leeb hardness testerbrand:jitai
port:Shanghai, Ningbomemory:Up to 600 sets (relative to the number of impacts 32~1)
Continuous working time:About 200 hours (backlight off, no printing)Packaging Preview:
place of origin; place of origin:Zhejiang, ChinaInfluence direction:Up, down, horizontal, up-slope, down-slope
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramCustom Support:OEM, ODM
Operating Voltage:9V/500mAexhibit:128*64 digital matrix LCD screen
weight:0.6kg (host)Packaging Details:Standard export packaging, protective carrying case
Hardness Tester:HL, HB, HRB, HRC, HRA, HV, HS.standard:ASTM A956, DIN50156-1, GB/T17394-1998
Type D with cable impact device:$65Warranty:2 years
Interface port:USB2.0model:JH300
Product Description

Applications:


1. Mould cavity
2. Bearings and other parts
3. Failure analysis of pressure vessels, steam generators and other equipment
4. Heavy workpiece
5. Installed machines and permanently assembled parts
6. Test surface for small hollow space
7. Material identification of metal material warehouse
8. Rapid detection of large-scale and multi-measurement areas, suitable for large workpieces.


Our advantage
1. We have our own factorycompetitive price
2. Quality is our culture
3. Time is gold, we have a professional team to produce products in a short time.
4. Your money is safe with us

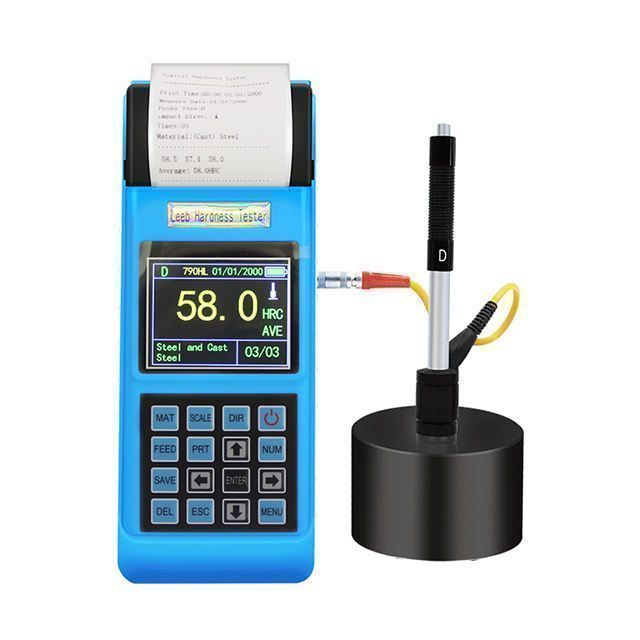

JH300 Leeb hardness tester
Measuring range

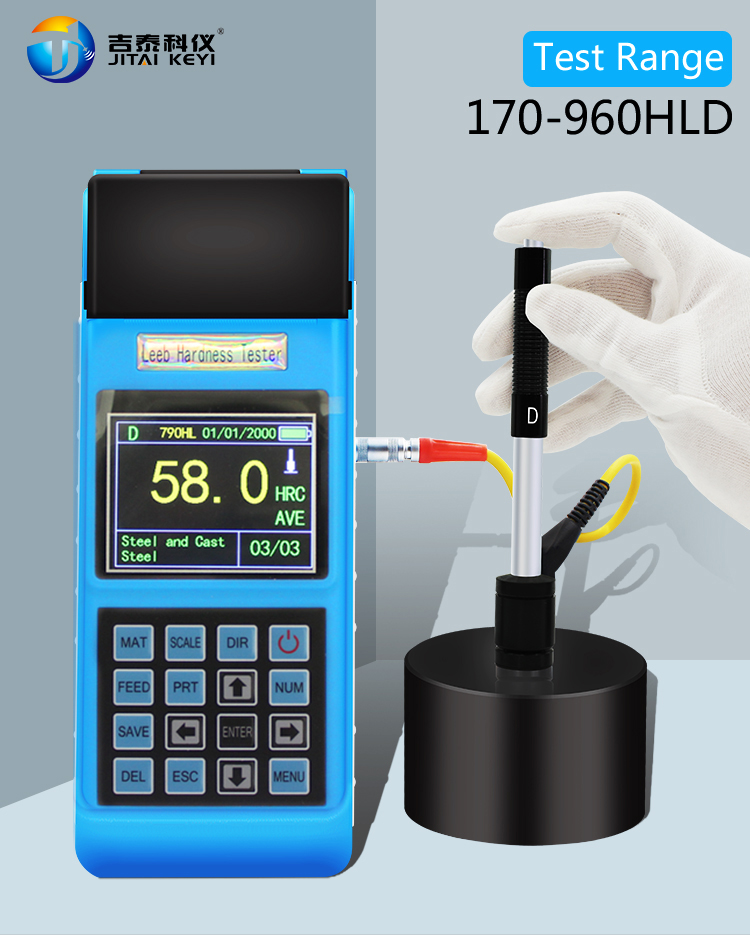

HLD (170-960), HRC (17.9-69.5), HB (19-683), HV (80-1042), HS (30.6-102.6), HRA (59.1-88), HRB (13.5-101.7)
influences
direction
Up, down, horizontal, up-slope, down-slope
Measurement
Material
Steel and cast steel, alloy tool steel, stainless steel, grey cast iron, ductile iron, cast aluminium alloys, copper-zinc alloys (brass), alloys of copper and tin, copper (bronze), forged steels
standard
ASTM A956, DIN50156-1, GB/T17394-1998
hardness
scales
HL, HB, HRB, HRC, HRA, HV, HS.
tensile strength
374 to 2652 N/m 2
exhibit
128*64 digital matrix LCD screen
memory
Up to 600 sets (relative to the number of impacts 32~1)
Operating Voltage
9V/500mA.

main feature

1. Large screen (128×64 dot matrix LCD), display all functions and parameters.
2. Test any angle, even upside down.

3. Support "forged steel (Steel)" material, when using the D/DC impact device to test "forged" samples, the HB value can be directly read without manual look-up.

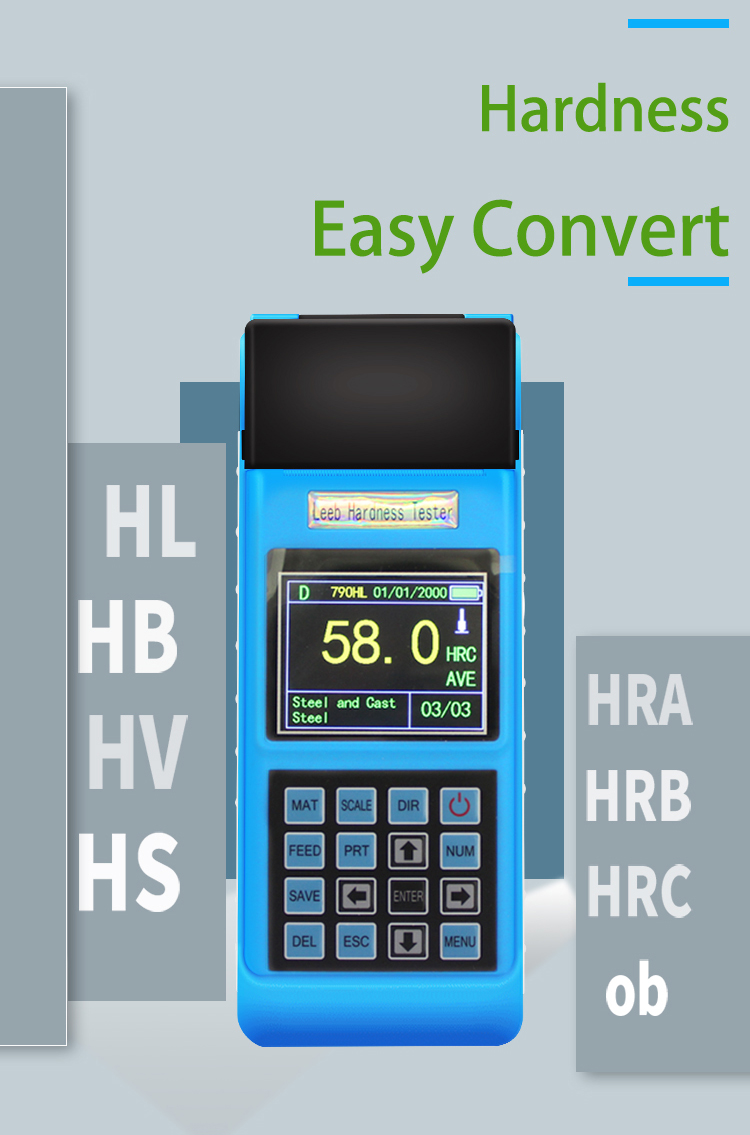

4. Wide measurement range. It can measure the hardness of all metallic materials. Directly display the hardness scale HRB, HRC, HRA, HV, HB, HS, HL and three strength values.
5. Seven impact devices are available for special applications. The type of impact device is automatically recognized.
6. The large-capacity memory can store 600 sets of information (relative to the average of 32~1 times), including single measurement value, average value, test data, impact direction, impact times, material and hardness scale, etc.
7. The upper and lower limits can be preset. When the result value exceeds the limit will automatically alarm.
8. The battery information shows the remaining capacity and charging status of the battery.
9. User calibration function.
10. USB interface and PC humanized multi-function data processing software.
11. The imported high-speed thermal printer supports instant printing function. It can save data permanently.
12.NI-MH rechargeable battery as power source. Internal integrated charging circuit
