1-4mm thickness Quick size change Building Material Machinery CZ Purlin Roll Forming Machine

Supplier: Nantong Super Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms shelly song
Price: $72000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Warranty of core components:	1.5 years;	Brand Name:	super;
Place of Origin:	Jiangsu China;	Warranty:	1.5 years;
Power:	30kw;	Marketing Type:	New Product 2020;
Weight:	15ton;	Voltage:	380v 50hz;
Material Thickness:	1.0-4.0mm roll forming machine;	Core Components:	PLC,Bearing,Motor,Gear,Pump;
Machinery Test Report:	Provided;	Work Pressure:	16 mpa;
Payment Terms:	L/C,Western Union,D/P,T/T,MoneyGram;	Condition:	New;
Forming Speed:	30m/min roll forming machine;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Type:	Steel Frame & Purlin Machine;	Showroom Location:	None;
Shaft Material:	40Cr roll forming machine;	Packaging Detail:	export packing;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;
Control System:	PLC control Panel roll forming machine;	Local Service Location:	None;
Roller Station:	18 Stations roll forming machine;	Production Capacity:	30 m/min;
Video outgoing-inspection:	Provided;	Supply Ability:	100 Set/Sets per Year;
Key Selling Points:	Automatic;	Port:	shanghai;
Cutter Blade Material:	Cr12 roll forming machine;	Roller Material:	GCr15 roll forming machine;
Dimension(LWH):	121.52.0m;	Certification:	CE;

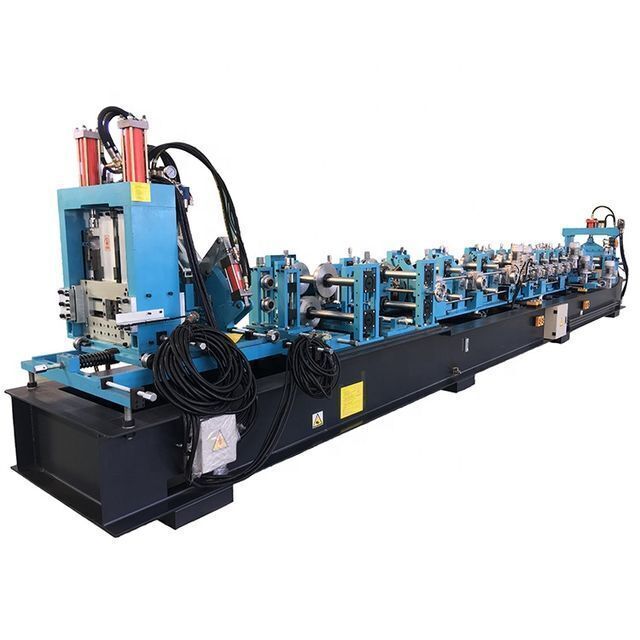

CZ400 interchange cz cold rolled purlins roll forming machine for building materials

Products Description

1.Main features of interchange cz cold rolled purlins machine

The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material

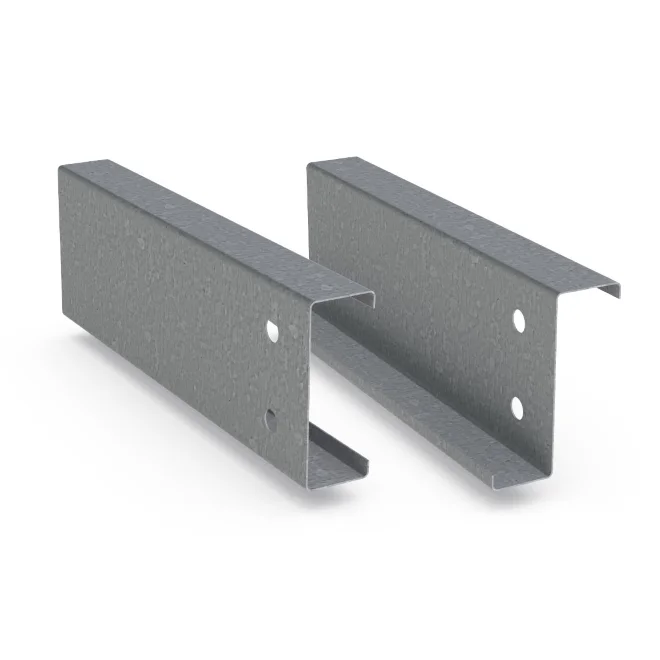

5.Optional Punch hole at any position of purlin web side and flange side

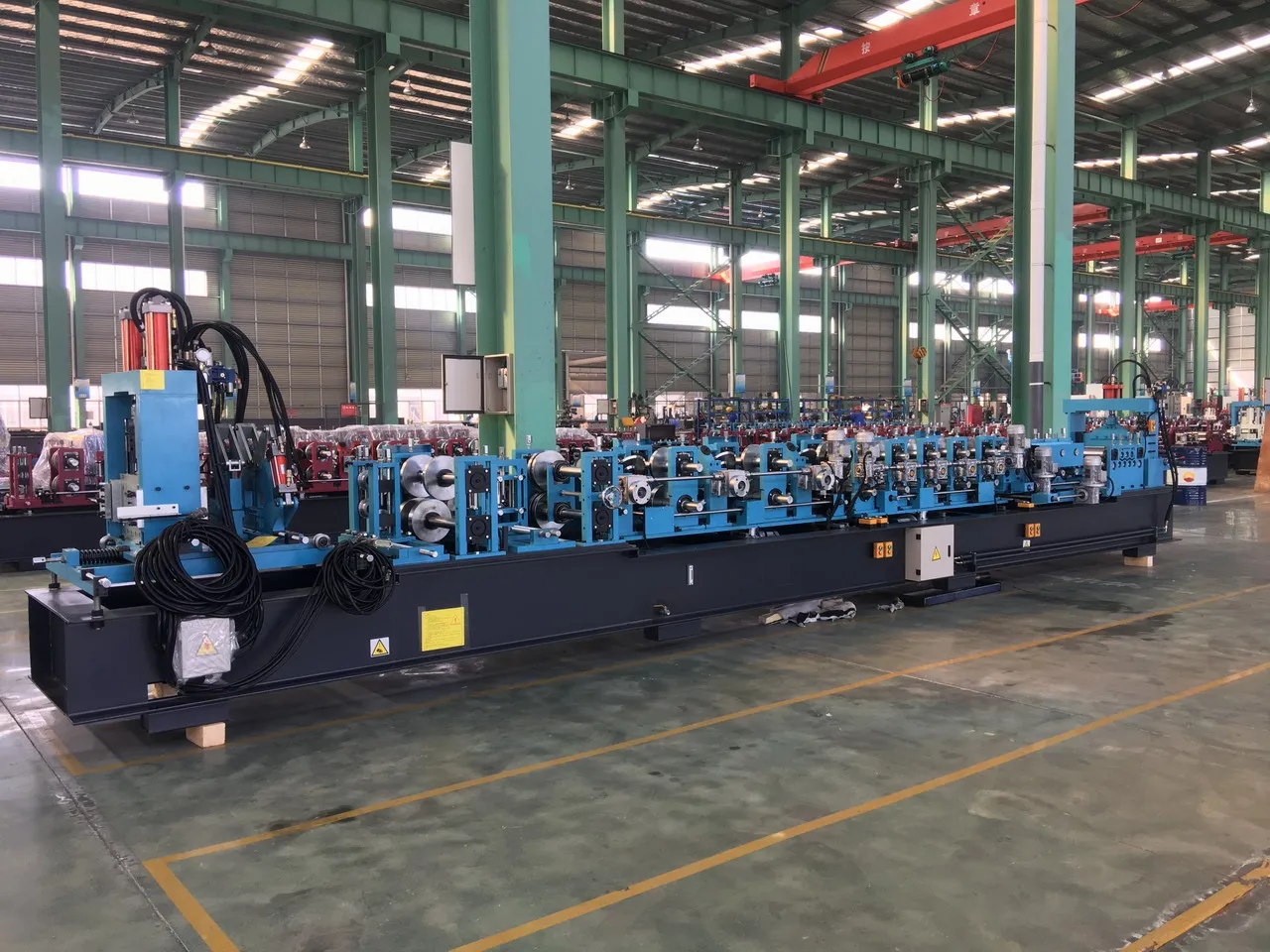

2.Detailed Images of interchange cz cold rolled purlins machine

Machine Parts
1) CZ purlin machine punching system
with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.

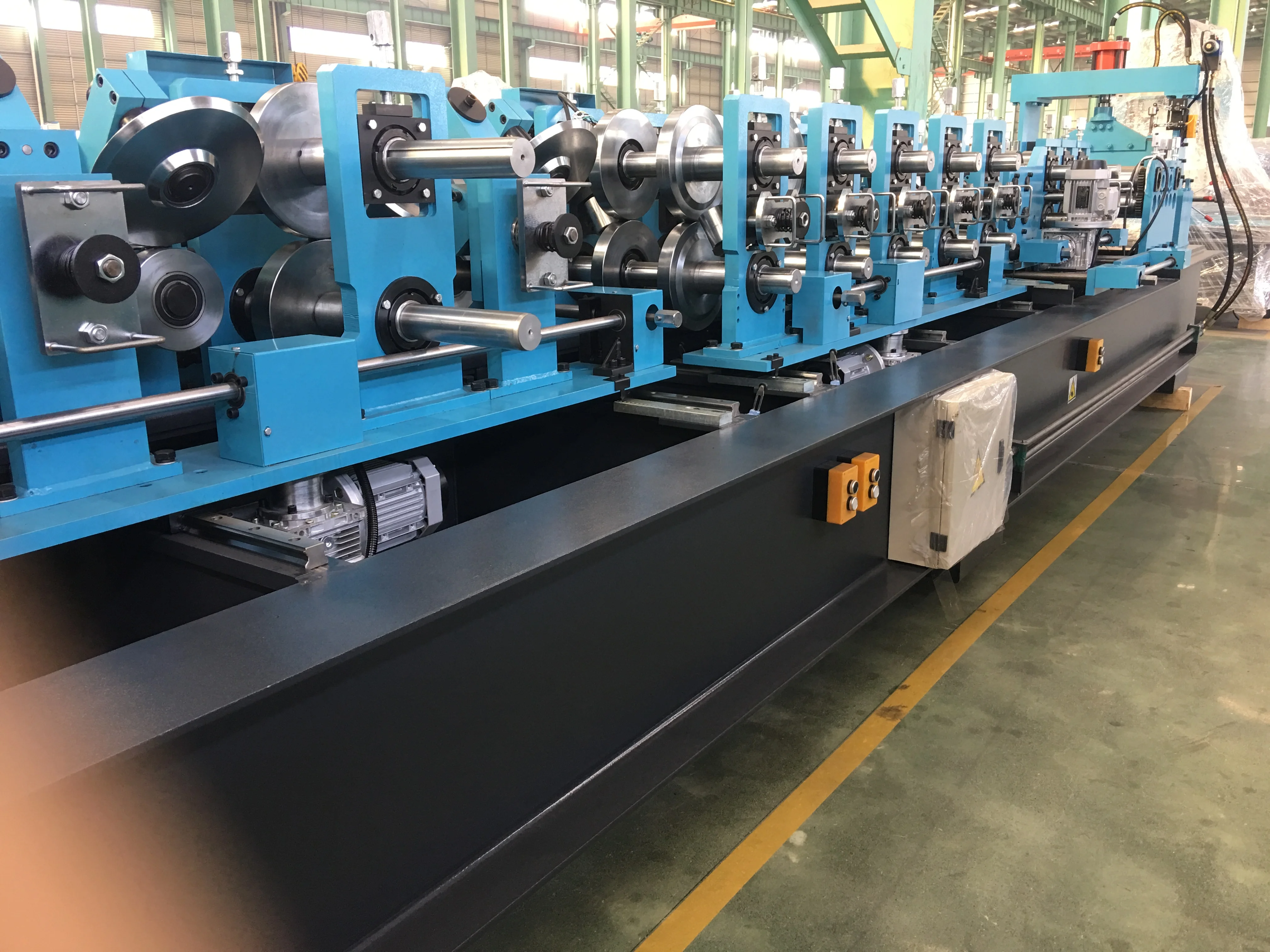

2) interchange cz cold rolled purlins machine rollers

Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding

3) interchange cz cold rolled purlins machine post cutter

No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa

4)interchange cz cold rolled purlins machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 630mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton

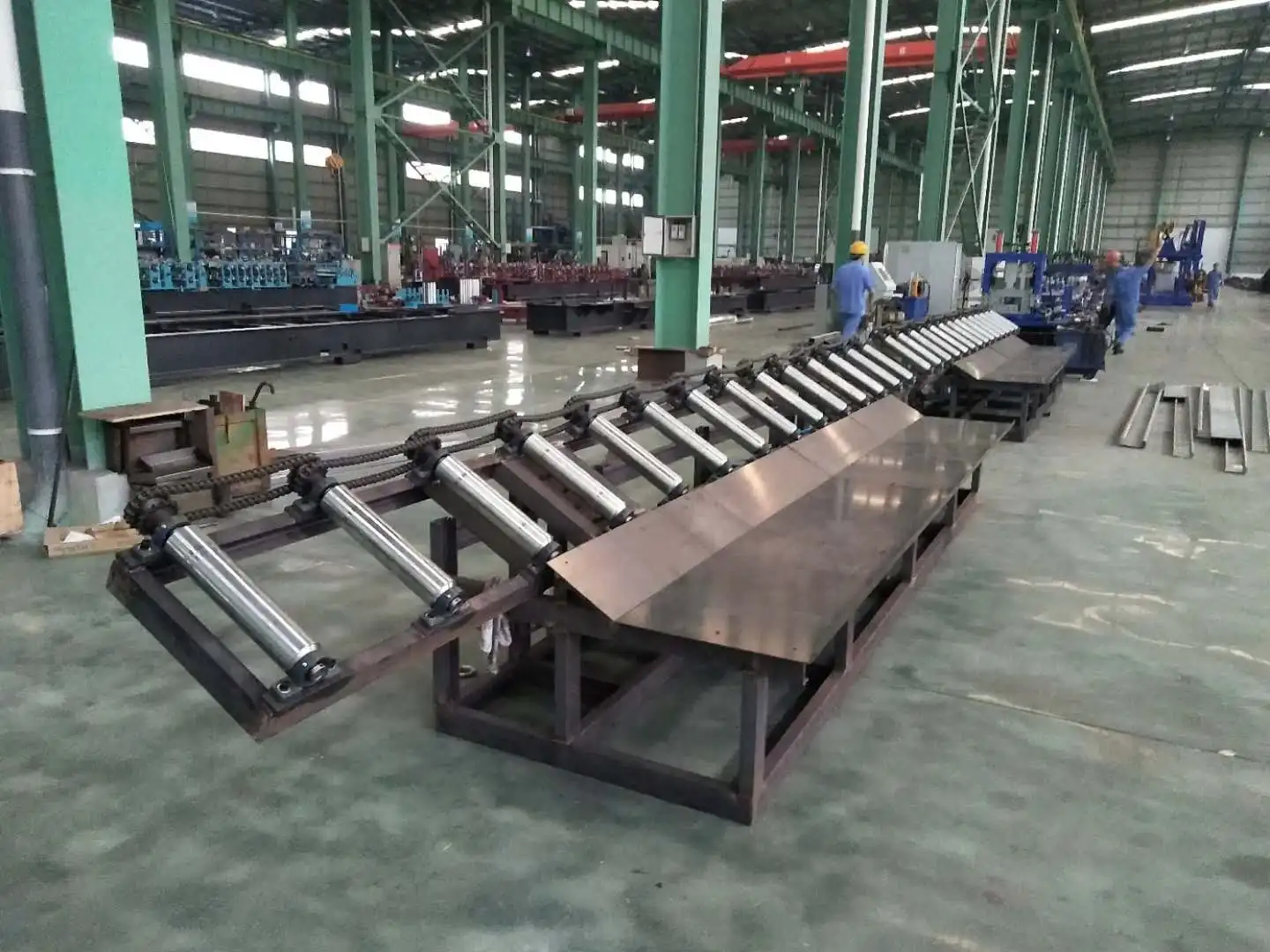

5)interchange cz cold rolled purlins machine exit rack
Un-powered,two unit (3m*2)

3.Other detailes of interchange cz cold rolled purlins machine

Suitable for material with thickness 1-4mm
Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined

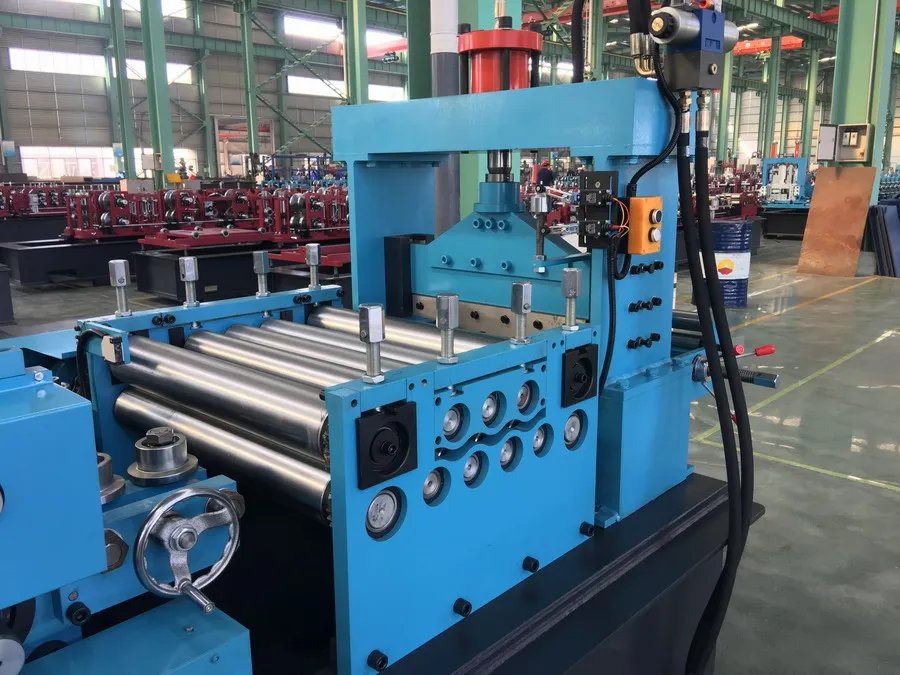

Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling
Main motor=30KW , Frequency speed control. Forming speed approx.18m/min

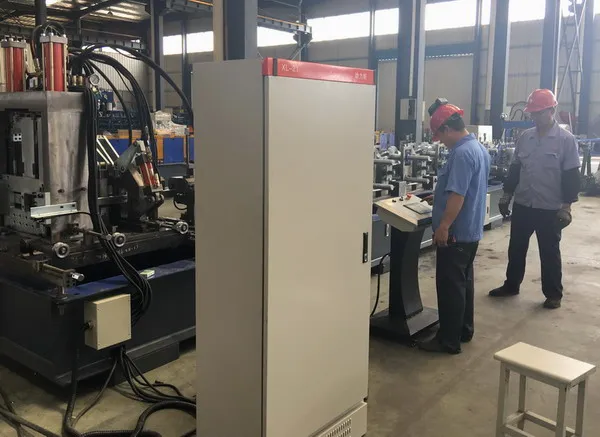

PLC Control System Omron (Touch screen: WUXI xinjie)
Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Item	Parameters
Coil Thickness(mm)	1.5~4
Max Speed(m/min)	30
Roll standard station (pcs)	18
Main Motor(KW)	30kw (Hydraulic Motor )
Main Shaft(mm)	80mm
Shaft materials	40Cr
Roller Materials	GCr15
Cutting Way	Hydraulic Cutting (7.5KW)
Cutting Blade Materials	Cr12MoV
Hole Punching	3 sets
Control System	PLC control (Xinjie)
Size Change	PLC control / Press Button
C Z Interchange	PLC control / Reverse roll
