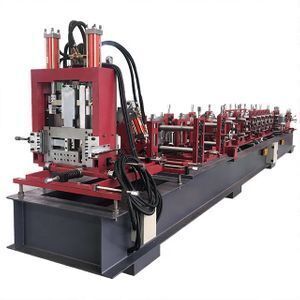

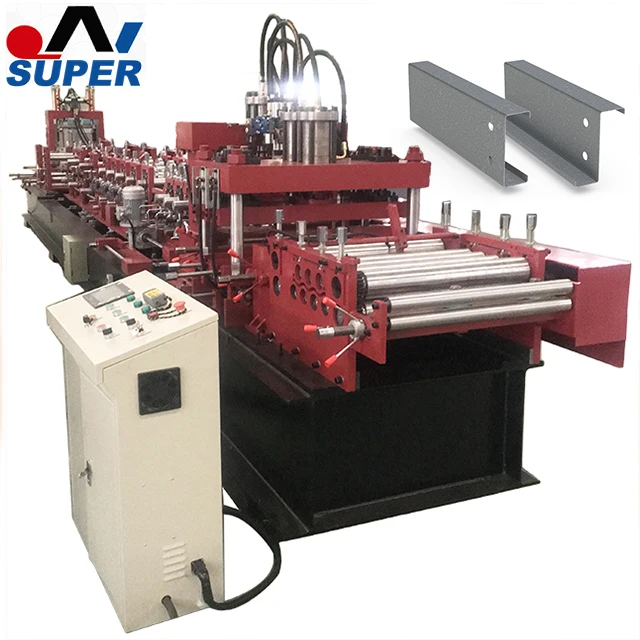

Fully Automatic C Z Purlin Roll Forming Machinery for Structure Building Materials

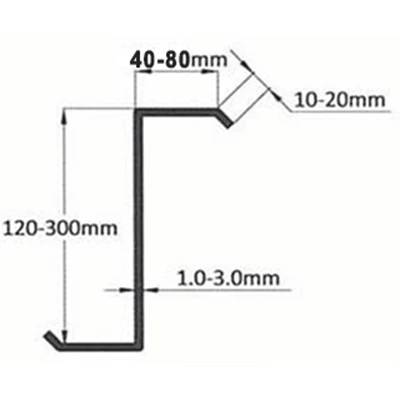

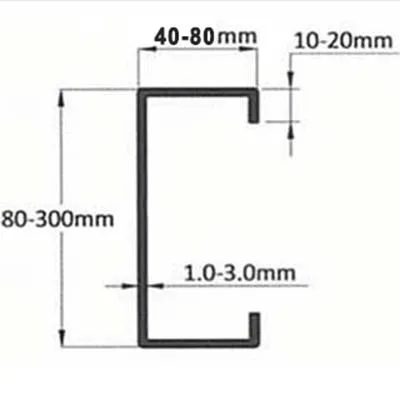

Purlin Roll Forming size Range

1.Main features of cz steel roof purlin forming machine

  The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:

    1.Produce different purlin size without changing rollers or spacers.

    2.No need changing cutter for different size.

    3.Easy operation, low maintenance cost

    4.Infinite sizing(any size within machine range),help to save material

    5.Optional Punch hole at any position of purlin web side and flange side

2.Detailed Images of cz steel roof purlin forming machine

    Machine Parts

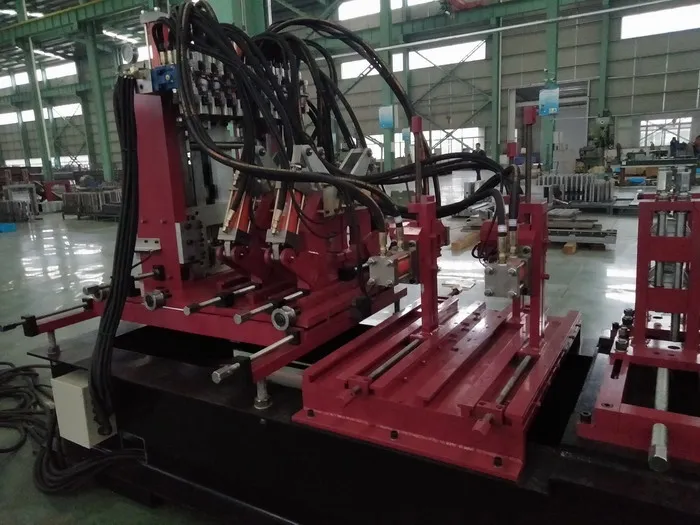

        1) CZ purlin machine punching system

      with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.

Standard 3 cylinder for punch	Optional addtional 2 cylinder for flange hole punch

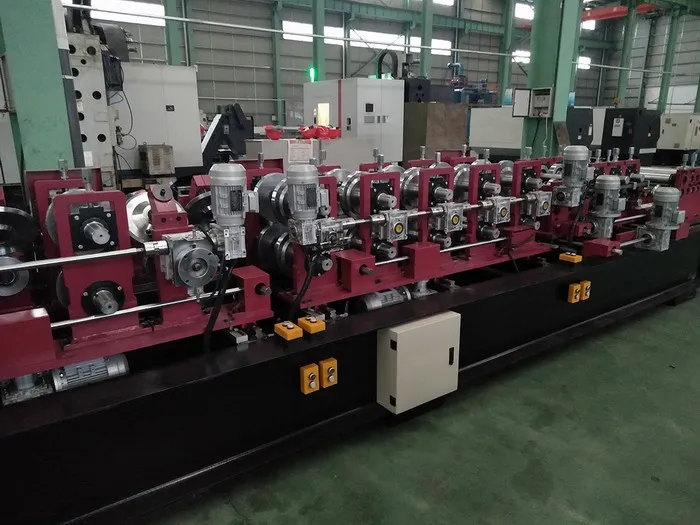

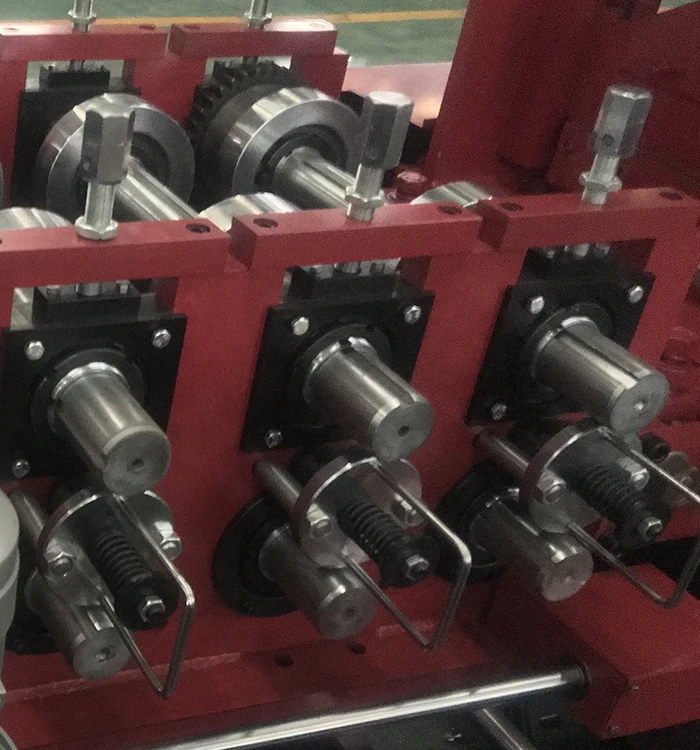

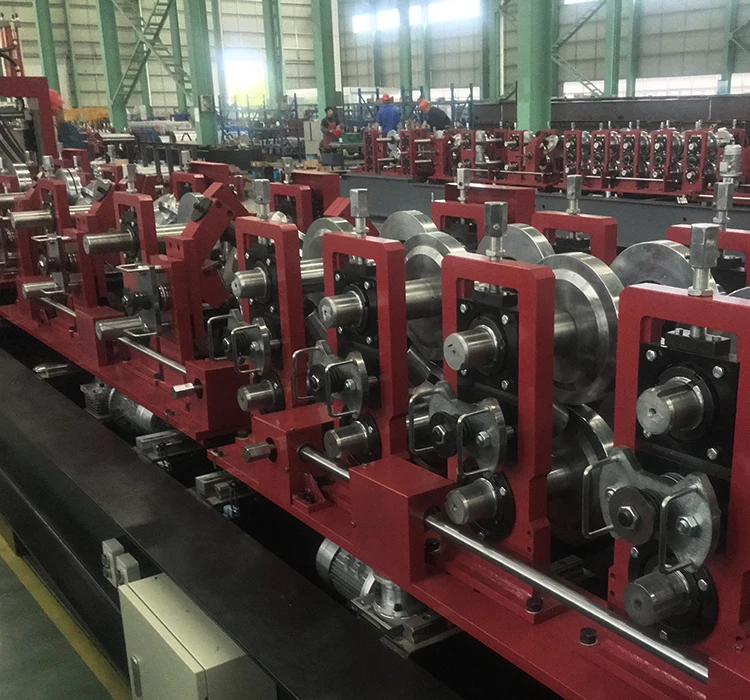

 2)cz steel roof purlin forming machine rollers

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding

Standard motorized size change, manual"C"to"Z" shape change	Optional Motorized size change, motorized "C"to"Z" shape change

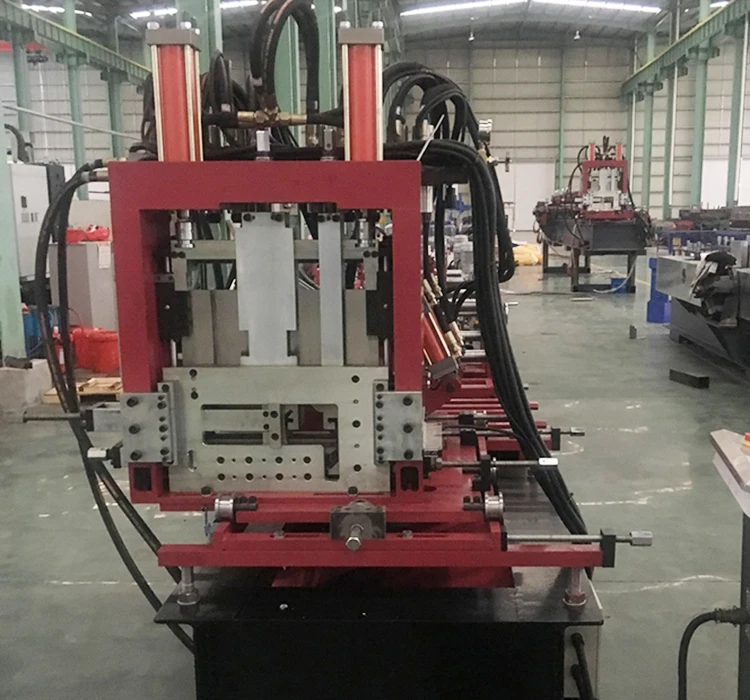

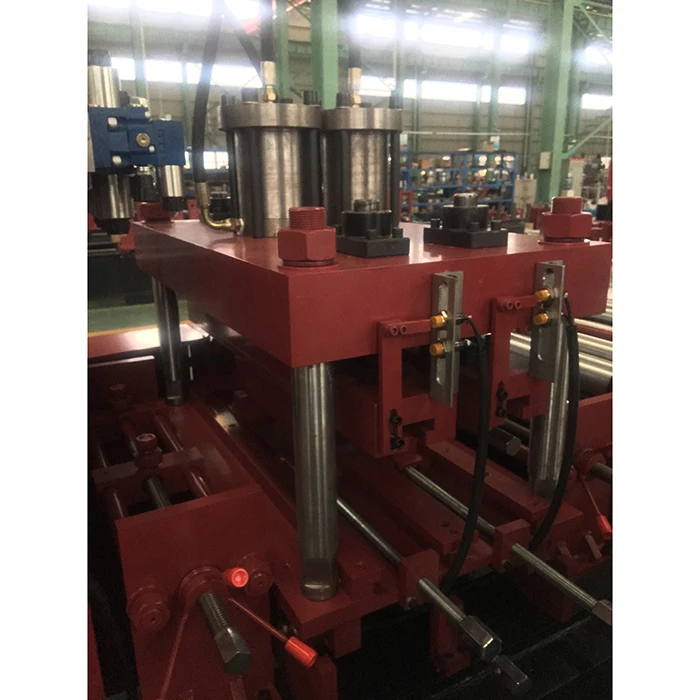

3)cz steel roof purlin forming machine post cutter

        No need to change cutter for different size,

        made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding
        Pre-punching & Pre-cutting, stop to punch, stop to cut
        hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa

4)cz steel roof purlin forming machine location pin

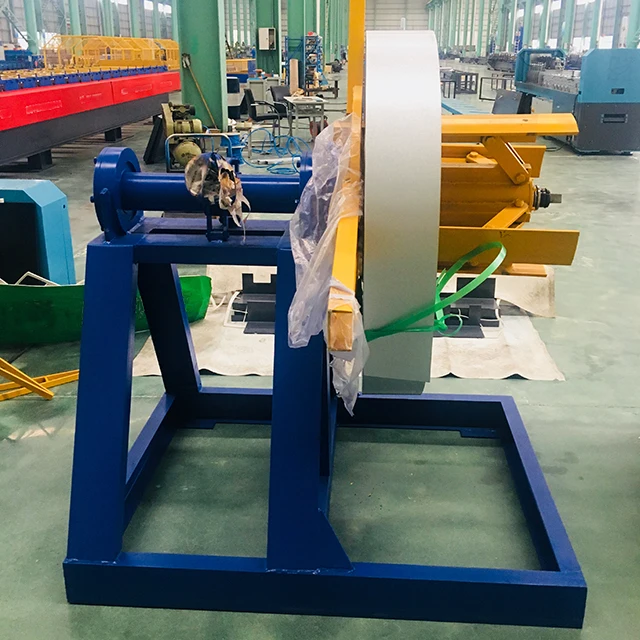

5)cz steel roof purlin forming machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 5Ton

standard manual decoiler 5T	5 tons hydraulic decoiler for option

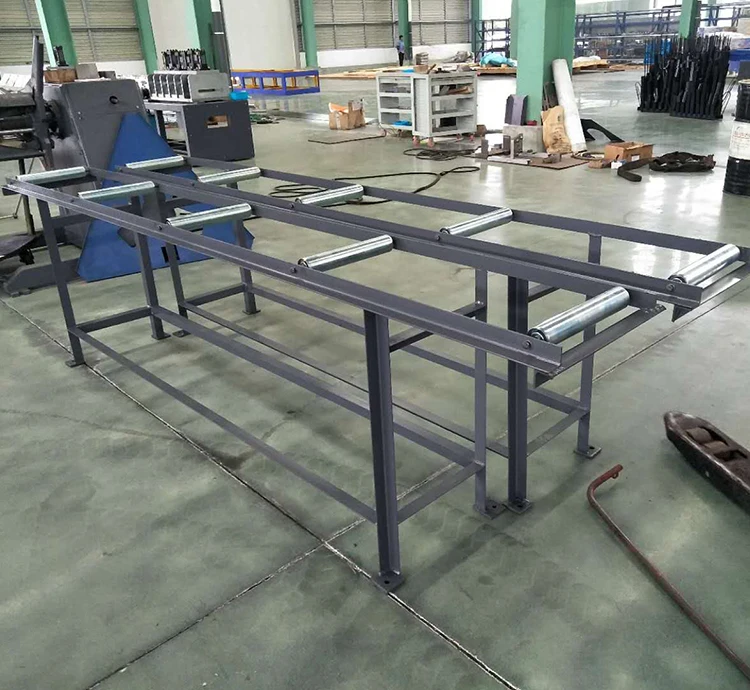

6)cz steel roof purlin forming machine exit rack

        Un-powered,two unit (3m*2)

3.Other detailes of cz steel roof purlin forming machine

Suitable for material with thickness 1-3mm

Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined

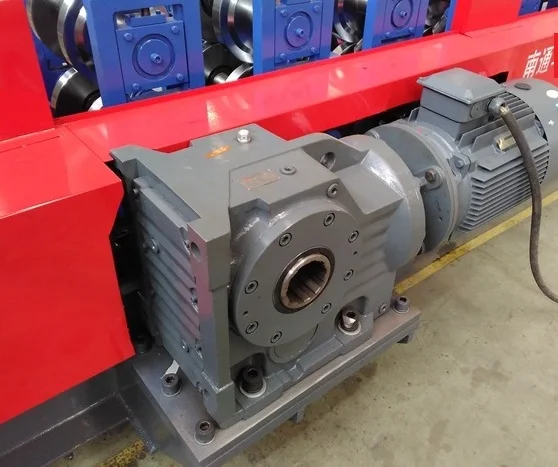

Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling

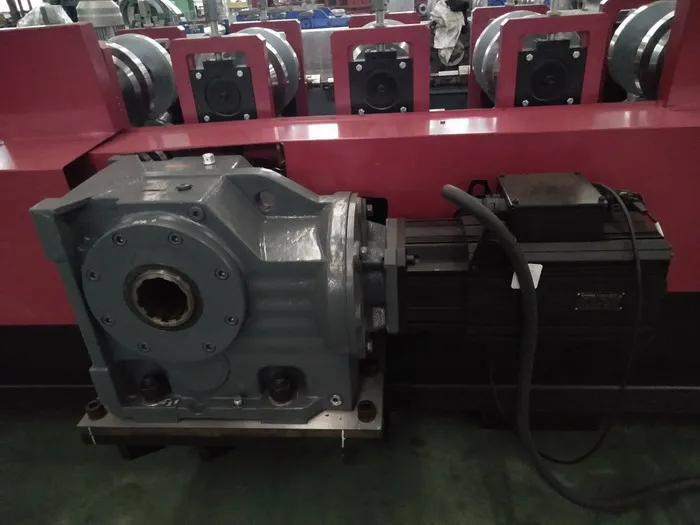

Main motor=22KW , Frequency speed control. Forming speed approx.18m/min

Standard hydraulic drive motor 22kw	optional servo motor drive 22kw

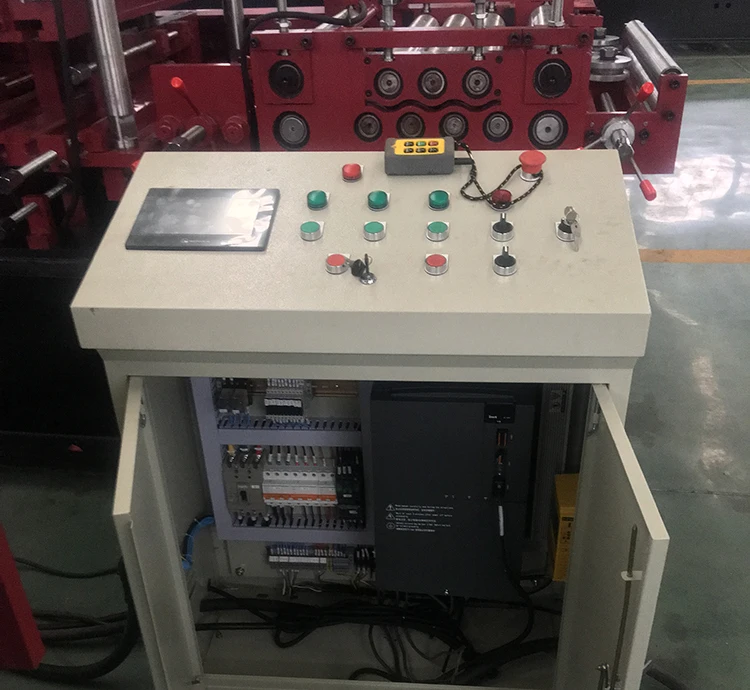

PLC Control System Omron (Touch screen: WUXI xinjie)

Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)

It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

User's manualin English

After-sale service of cz steel roof purlin forming machine(CZ80/120-300)

1. The warranty of purlin roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms of trade

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Shanghai

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Singapore,

    Malaysia ,Thailand,  Philippines, Vietnam, South Africa,Egypt,etc.
