4 Roller Rolling Bending Machine

Supplier: Nantong Super Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms shelly song
Price: $11000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max Thickness of Steel Plate:	8~60mm;	Main Power:	5.5~75kw;
Model Number:	W12 Series;	Packaging Detail:	Stretch films;
Condition:	New;	Power:	Hydraulic;
Extra Services:	End Forming;	Side Roll Diameter:	170~520mm;
Brand Name:	SUPER or OEM;	Certification:	ISO 9001:2000;
Material / Metal Processed:	Carbon Steel;	Model Number:	W12 Series;
Raw Material:	Sheet / Plate Rolling;	Machine Type:	Roller-Bending Machine;
After-sales Service Provided:	Engineers available to service machinery overseas;	Port:	Shanghai;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Max Width of Roll Board:	1500~3000mm;
Processing material:	Metal Sheet, Carbon Steel, Stainless Steel, Aluminium;	Rolling Speed:	4m/min;
Yielding Limit of Sheet Metal:	245Mpa;	Delivery Detail:	25days;
Place of Origin:	Jiangsu China;	Automation:	Manual;
Main Roll Diameter:	200~650mm;	Supply Ability:	10 Set/Sets per Month;
warantee:	one year;

Product Category

PRODUCT CATEGORIES

→ VIEW ALL

PRESS BRAKE

GUILLOTINE SHEARING

PLATE ROLLING

SECTION BENDING

Product Description

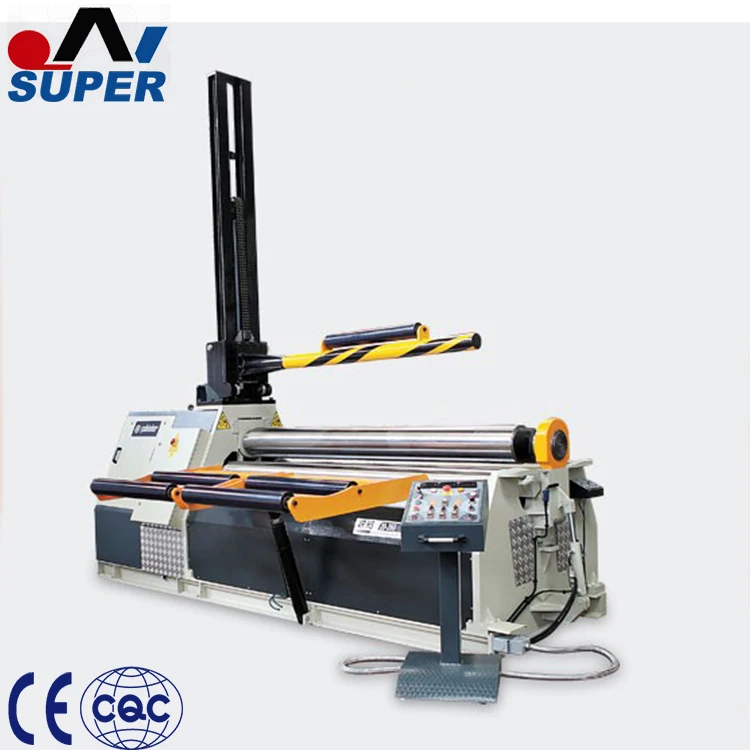

4 Roller Rolling Bending Machine

Features:

4-roller type for bending the plate into a cylinder or arc or cone shape product

introduce:

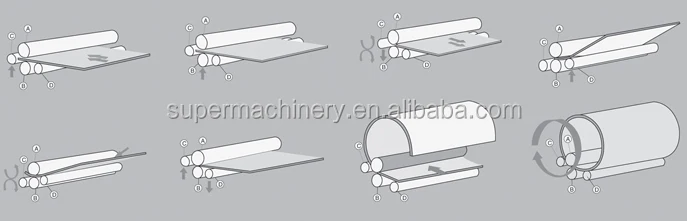

1. 4-roller type for bending the plate into a cylinder or arc or cone shape product
2. One time to finish the process as pre-bending and rolling.
3. Top roller as the drive roller driven by the hydraulic motor
4. Bottom roller works up and down to clamp the material by hydraulic
5. Side Roller can work separately
6. PLC NC control and overload protect

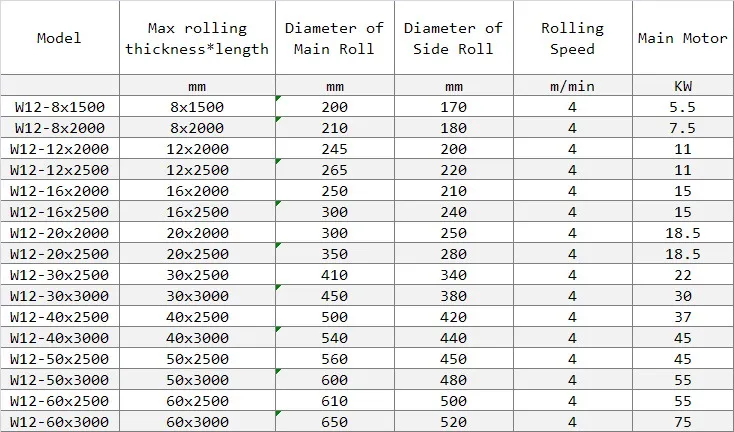

Machine Parameters

Packaging & Shipping

PACKAGE:

LCL Loading Packaging: Steel pallet and plywood case.

——FCL Loading Packaging: Steel pallet with plastic film.

——Shipping: by sea

Our Service:

- Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week

- Reply within 24 hours

- Provide relevant product information

- Answer questions if request

- Give technical suggestion

² Provide After-sales service 24hr × 7days per week

- Test the machine before shipment

- Provide technical guidance relate to use the machine

- Supply one-year warranty period for the machine

- Provide the spare parts at cost price after warranty period

- Collect the feedback for the machine working

- Provide long-term technical assistance.
