nema23 servo closed loop stepper motor driver close loop1.2N.m 2.2N.m

Supplier: Sumtor (wuxi) Electric Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jessica Xie
Price: $82.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Single gross weight:	3 KG;	Brand Name:	Sumtor;
Selling Units:	Single item;	Weight:	1.5kg;
Delivery Detail:	0 days after payment;	Type:	Hybrid;
Product name:	57HS76D8EIS;	Certification:	CE,ROHS;
Place of Origin:	Jiangsu China (Mainland);	Holding torque:	2.2N.m;
Current / Phase:	1.8 degree;	Single package size:	20X15X10 cm;
Phase:	2;	Motor length:	76mm;
Model Number:	57HS76D8EIS;	Package Type:	1 set nema23 servo closed loop stepper motor driver close loop1.2N.m 2.2N.m each box;

nema23 servo closed loop stepper motor driver close loop1.2N.m 2.2N.m

Product Detail

Product name	nema23 closed loop
Model	57HS56/76D8EIS-P
Phase Resistance	0.43Ω, 0.4Ω
Length	56mm, 80mm
Holding Torque	1.2N.M, 2.2NM
Inductance	1.8mH, 2mH
Rotor Inertia	280g.cm2, 520g.cm2280g.cm2, 520g.cm2
Weight	0.8kg, 1.2kg

Features:

1. adopt new 32-bit motor control professional DSP chip

2. voltage range: DC24~50V, 16 segments in total

3. the highest pulse frequency response can reach 400KHZ

4. low torque attenuation, up to 3000rpm

5. built-in in place and alarm output for easy monitoring and control

6. intelligently regulate current, reduce vibration, noise and heat, and increase efficiency by 35%

7. with single and dual pulse selection function, the factory default is: pulse + direction control

8. excellent high speed and rigidity, perfect integration of servo and stepping advantages

Quality assurance:
1.All stepper motor have CE and ROHS certification
2.All motors are tested by a toasting machine for 72 hours
3.All the motors will be shipped after testing

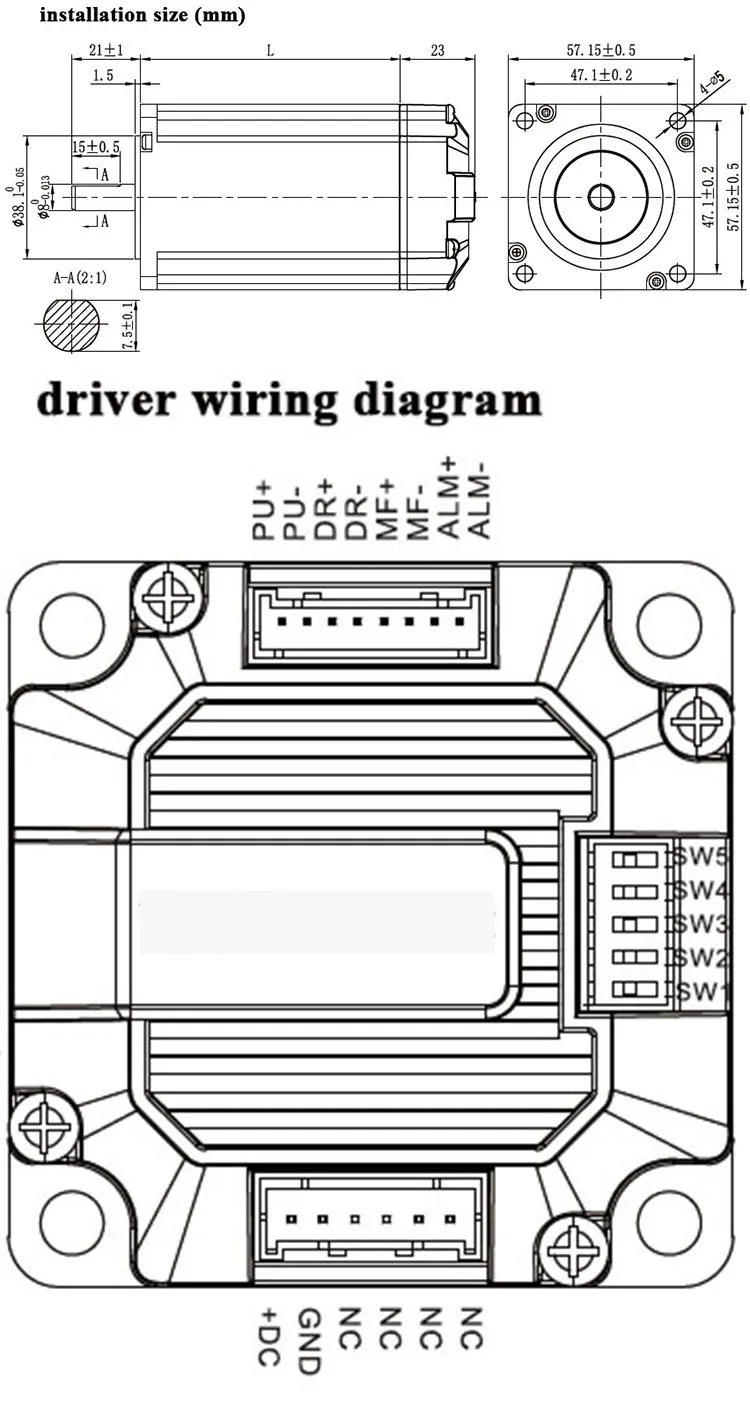

Winding Wiring Diagram

57HS56D8EIS-P ( 1.2N.m holding torque 4A current)

57HS76D8EIS-P (2.2N.m holding torque 5A current)

function explanation

mark symbol	function	comment
PU+	input signal photoelectric isolation positive terminal	connected to the signal power supply, +5V to +24V can be driven, higher than 5V need to be connected to the current limiting resistor at PU-terminus
PU-	when SW2=OFF, it is step pulse signal	the falling edge is valid and the motor takes a step whenever the pulse goes from high to low. Input resistance 220Ω, requirements: low level 0-0.5V, high level 4-5V, pulse width >2.5μs
PU-	when SW2=ON, it is positive stepping pulse signal
DR+	input signal photoelectric isolation positive terminal	connected to the signal power supply, +5V to +24V can be driven, higher than 5V need to be connected to the current limiting resistor at DR-terminus
DR-	when SW2+OFF, it is direction control signal	used to change the motor steering. Input resistance 220Ω, requirements: low level 0-0.5V, high level 4-5V
DR-	when SW2=ON, it is reverse stepping pulse signal	the falling edge is valid and the motor takes a step whenever the pulse goes from high to low. Input resistance 220Ω, requirements: low level 0-0.5V, high level 4-5V, pulse width >2.5μs
MF+	input signal photoelectric isolation positive terminal	connect +5V power supply, +5V-+24V can drive, higher than +5V need to connect current limiting resistor when the motor is active (low level), the motor coil current is turned off, the motor is in a free state and the alarm signal is cleared
MF-	motor release signal / alarm clear signal
ALM+	alarm signal output positive terminal	When overcurrent, overvoltage, undervoltage or out of tolerance alarms, the alarm signal is active (output optocoupler is on). ALM+ is connected to the pull-up resistor to the positive terminal of the output power supply, and the ALM- is connected to the negative terminal of the output power supply. The maximum drive current is 50mA.
ALM-	alarm signal output negative terminal
+VDC	positive power supply	DC24-50V
GND	negative power supply	DC24-50V

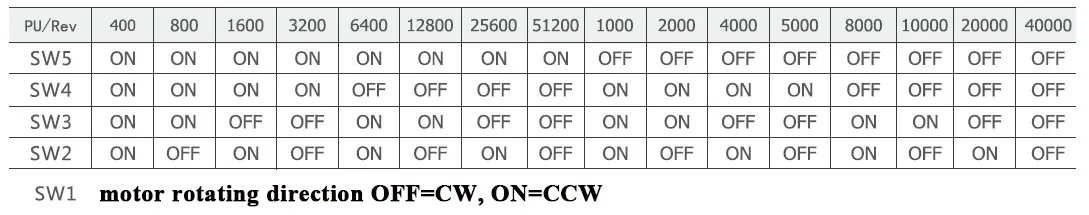

subdivision setting diagram

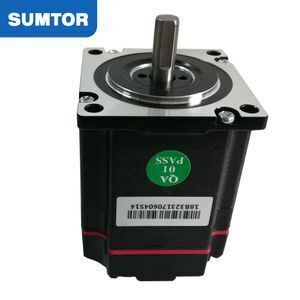

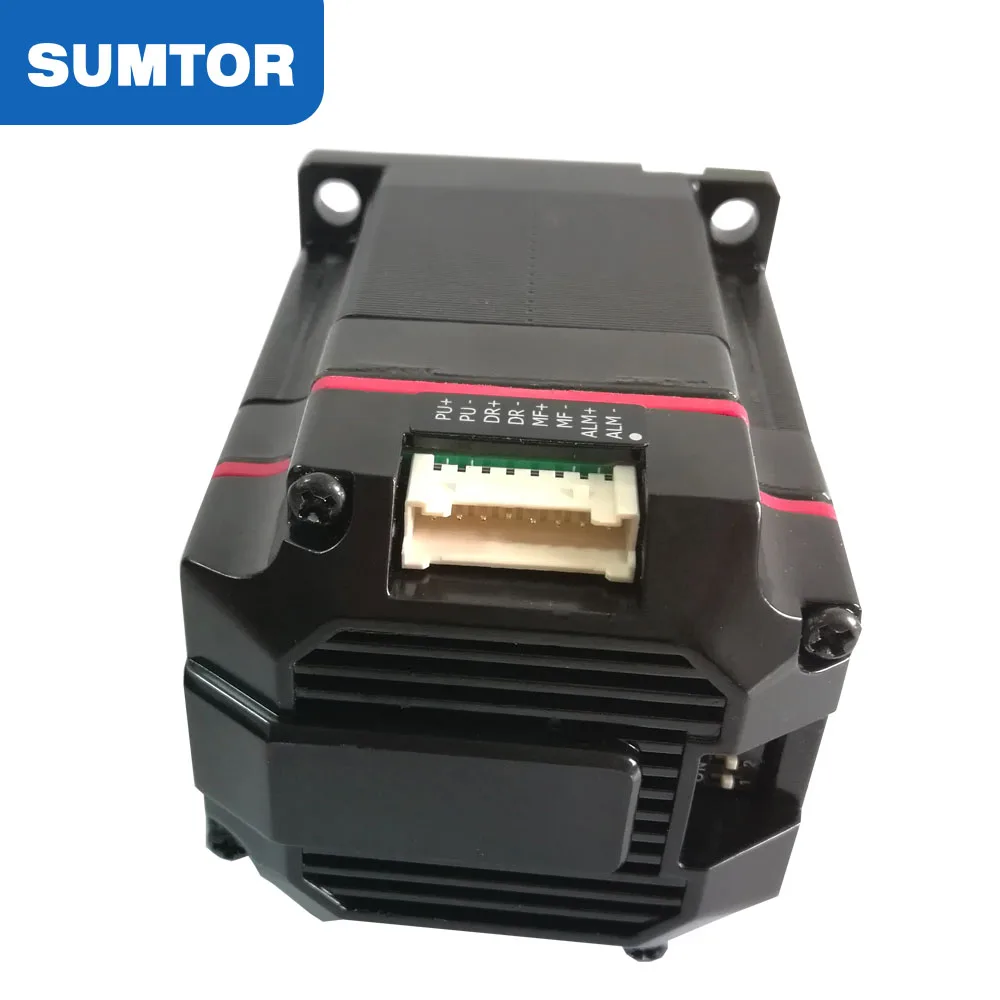

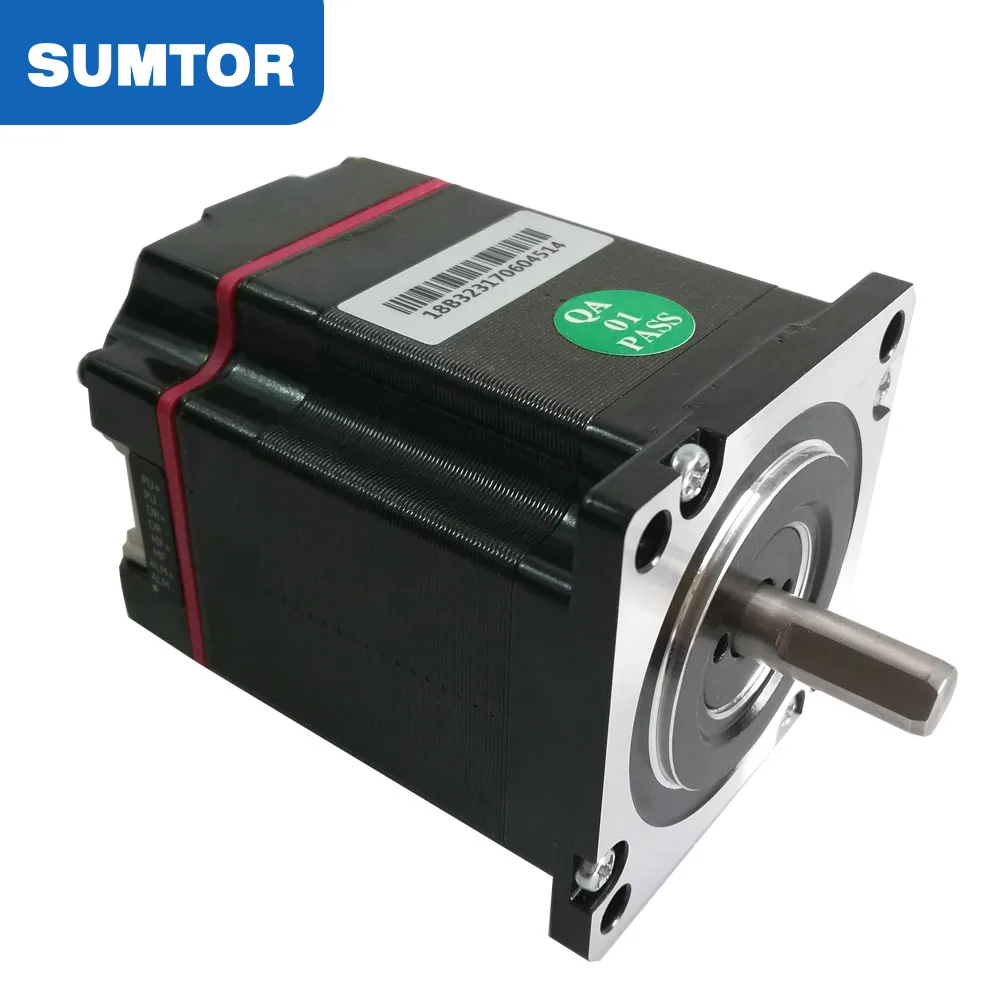

Pictures of product

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

FAQ

1. Could I have prices of your products?

Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours

2. How to choose the suitable stepper motor?

There are several important items: size, length of stepper motor, holding torque, voltage , current etc. After confirm some of them, please tell us, we can send you the suitable one.
