A axis 80 chuck and thimble 4th axis 100mm rotary table 4th axis for 1520 3040
-
Supplier: Sumtor (wuxi) Electric Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Jessica Xie -
Price: $194.50 / >=2 pieces -
Min. Order: 2 pieces
| Total height: | 100mm; | accessories: | a set of claw and a set of wrench; |
| Delivery Detail: | 0 days after payment; | Place of Origin: | Jiangsu China (Mainland); |
| Center height: | 65mm; | Package Type: | normal package; |
| Dimension(L*W*H): | 204*117*168mm; | Condition: | New; |
| Selling Units: | Single item; | Single gross weight: | 8 KG; |
| Size: | 204*117*168mm; | Warranty: | 1 Year; |
| Brand Name: | Sumtor; | After-sales Service Provided: | Online support; |
| Product Keywords: | cnc rotary table 4th axis,cnc rotary machine,engraving machine; | Transmission ratio: | 6:1; |
| After-sales Service Provided: | Overseas third-party support available; | Applicable Industries: | machinery industry; |
| Single package size: | 23.5X13X16.5 cm; | Stepper motor: | 2 phase 4 wire integrated nema 23; |
| Weight: | 2500kg; | Chuck modle: | K01-80; |
| Certification: | CE ROHS; | CNC or Not: | CNC; |
38mm motor length 60mm plug wire length 40N.cm holding torque nema 17 stepper motor with plug
M430 24-40V 3A 32 subdivision without resistance nema 23 stepper motor driver
5~100:1 ratio 0.55 N.m holding torque 41mm motor length nema 23 precision planetary gear reducer reduction gearbox motor
1000~3800W 1000~2500rpm 130st ac servo motor with driver
A axis 80 chuck and thimble 4 4th axis 100mm rotary table wood carving cnc dividing head router machine 1520 or 3040
Product details
| Product Keywords | cnc rotary table 4th axis,cnc rotary machine,engraving machine |
| Size | 204*117*168mm |
| Chuck modle | K01-80 |
| Center height | 65mm |
| Total height | 100mm |
80 chuck parameter
Overall dimension: 204*168*100mm
Chuck model: K1-80 (can choose K1-100) hand tight three-jaw self-centering chuck
Center height: 65mm
Total height: 100mm
Transmission ratio: 6:1(Synchronous speed reduction)
Stepper motor: 2 phase 4 wire nema 23 integrated
Accessories: a set of claw and a set of wrench
Weight: 2.5KG
Installing size
80 thimble parameter
Center height: 65mm
Total height: 93mm
Weight: 2.5KG
Top positioning self-locking, removable, free replacement of various types of Mo-2 top.
Telescopic rotary tip, maximum retractable length 35mm stable operation, small offset.

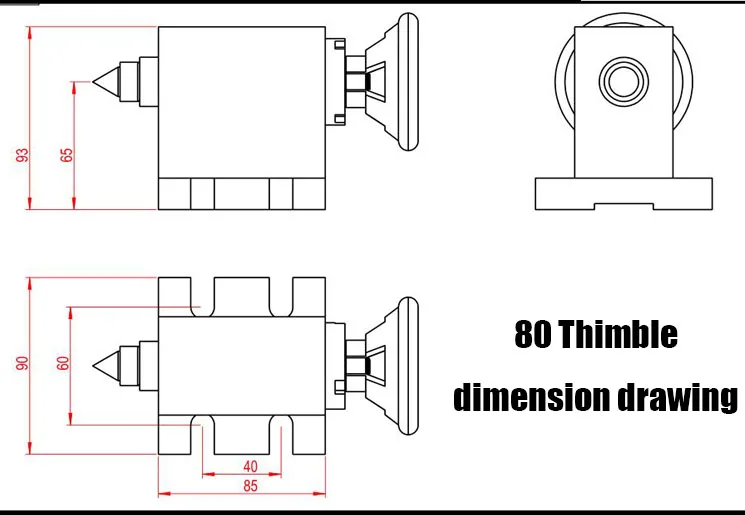

Installing size

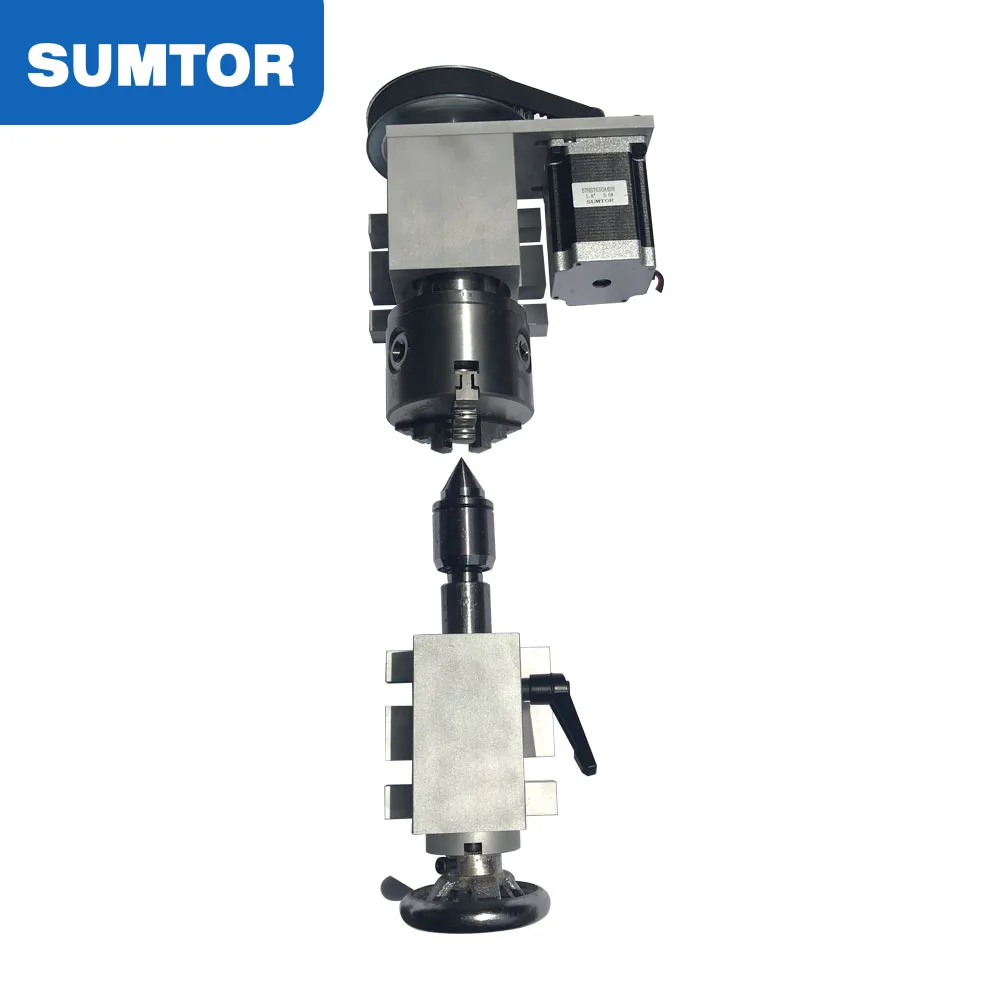

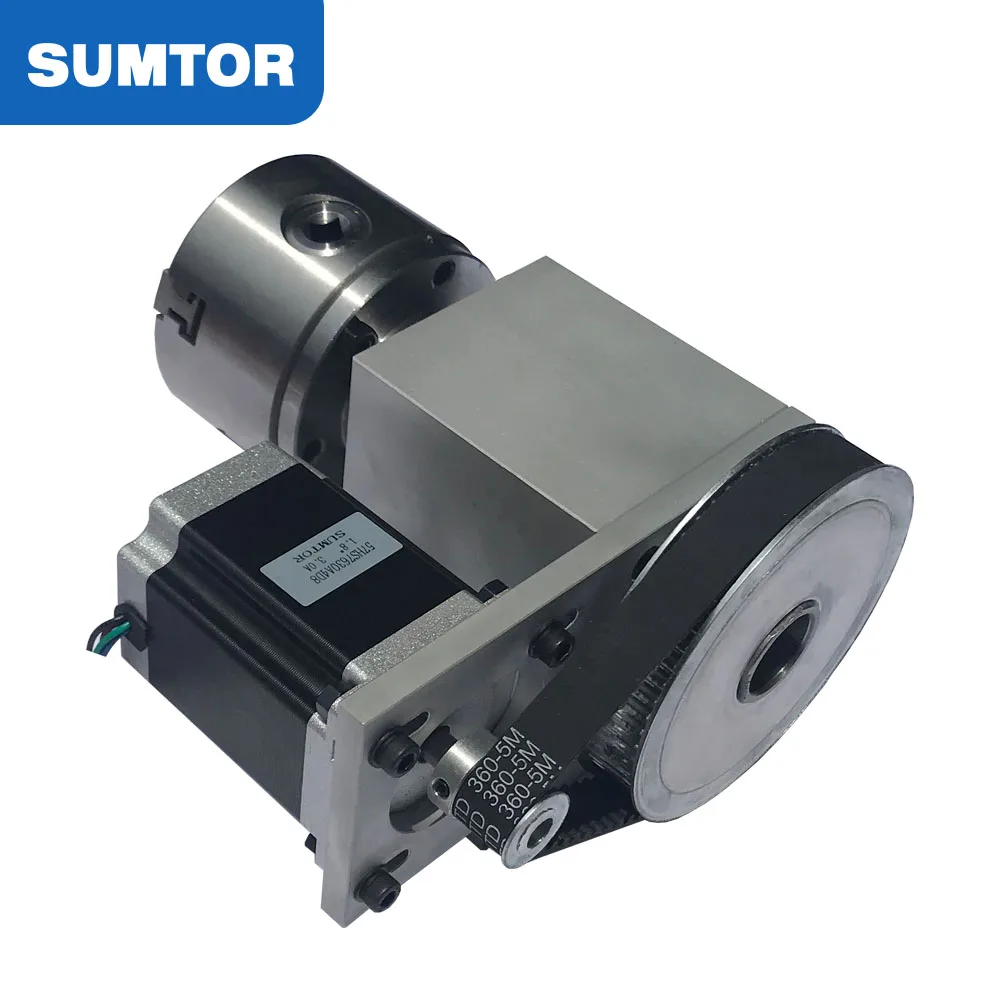

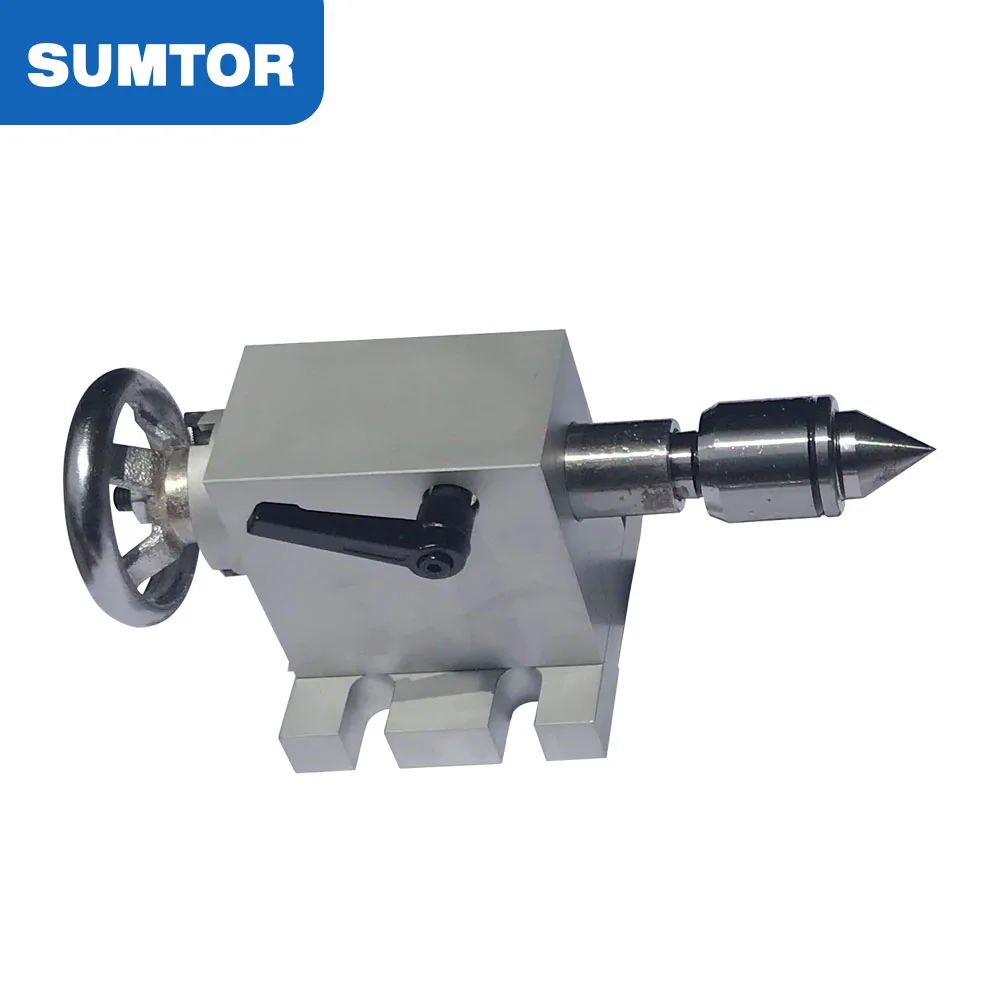

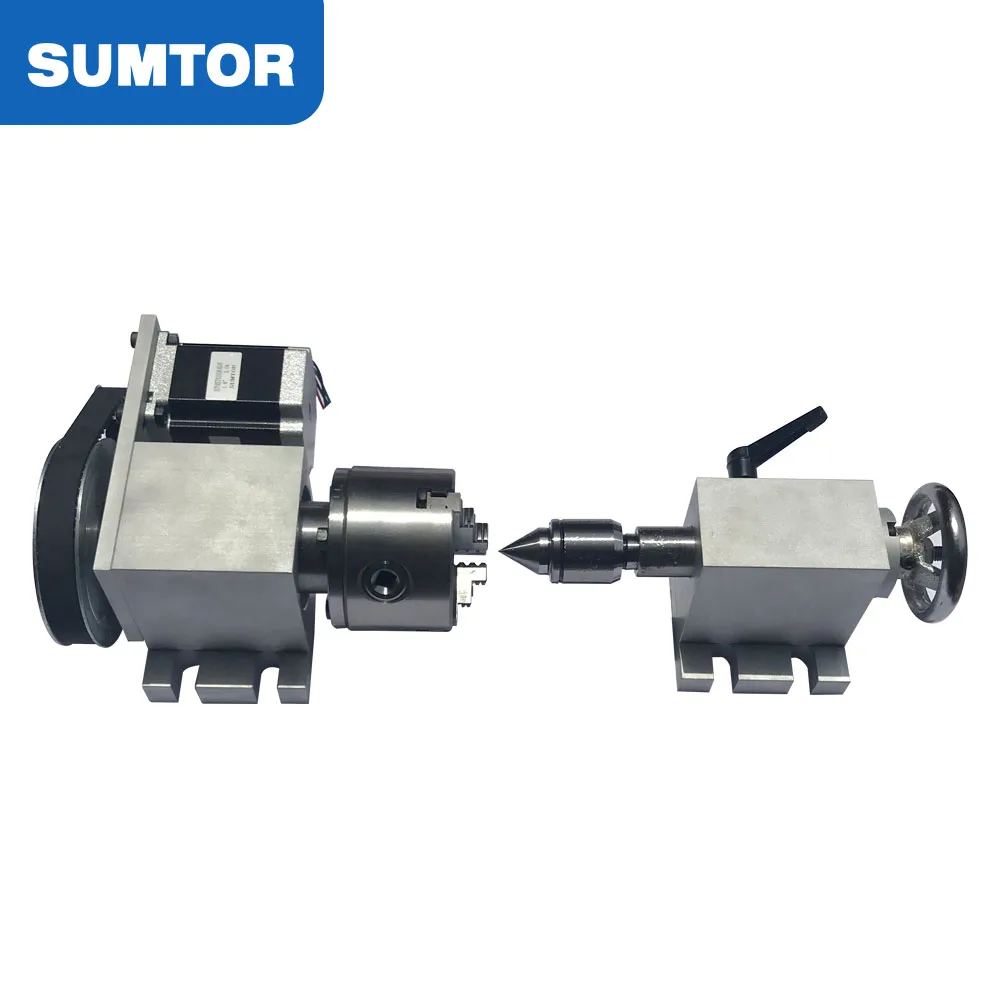

Product pictures
Do not t hesitate to contact us or send us the inquiry if you are interested in our product.
Warranty: 1 year
Products quality: 100% products inspection before delivery
We offer OEM service
Customized products are welcomed
Prompt customers service: all your inquires will be replied within 24 hours
-
