3 axis cnc3040 cnc frame kit engraving cnc router metal carv

Supplier: Sumtor (wuxi) Electric Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jessica Xie
Price: $916.70 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packing size:	800750730mm;	Repeated position precision:	±0.01mm;
Machine weight:	80±1kg;	Weight:	80±1kg;
Supply Ability:	2000000 Piece/Pieces per Year cnc wood carving service;	Process precision:	0.02~0.05mm;
Workbench maximum load bearing:	15KG;	Dimensions:	800750730mm;
Brand Name:	Sumtor;	Condition:	New;
Product Keywords:	cnc engraving machine 3040, 3 axis cnc kit;	Port:	Shanghai Port;
Power supply:	AC220V, 50~60HZ;	Application:	jade, metal;
Milling Cutter Diameter:	1~13mm;	After-sales Service Provided:	Online support;
Motor:	nema 23 stepper motor;	Warranty:	1 year;
Certification:	CE, ROHS;	Main Axle Rotational Speed:	24000rpm/min;
Control system:	MACH3 /Engraving and milling machine control system XC609D;	Rated Power:	1.5kw or 2.2kw;
Packaging Detail:	normal package;	Payment Terms:	T/T,Western Union;
Machine material:	hard aluminum alloy6061-T6;	Place of Origin:	Jiangsu China (Mainland);

Hybrid 57mm nema 23 integrated driver stepper motor

Quality First 3D printer mountings black color carbon steel nema 17 stepper motor bracket

M415B digital stepper motor driver for nema 17 stepper motor

MCU410 programmable stepper motor controller dmx

Product Description

3 axis cnc3040 cnc frame kit engraving metal carve with aluminium profile system for making machine table

Product details

Mechanical configuration	Configuration details
Machine material	hard aluminum alloy6061-T6
X, Y axis guide slider	20 linear guide
Z-axis guide slider	?20 round rail
X, Y, Z axis screw	1605 ball screw
Technical Parameters	Configuration details
X-axis (extreme/safe) mechanical travel	305mm/300mm
Y-axis (extreme/safe) mechanical travel	405mm/400mm
Z-axis (extreme/safe) mechanical travel	115mm/110mm
Process precision	0.02~0.05mm
Repeated position precision	±0.01mm
Workbench maximum load bearing	15KG
Maximum passing width	430mm
Maximum passing height	135mm
Electronic control configuration	Configuration details
Power supply	single phase 220VAC(-15~+10%),50~60HZ
Control system	MACH3 /Engraving and milling machine control system XC609D
X, Y, Z axis motor	nema 23 stepper motor
Spindle inverter	Special inverter for engraving and milling machine
Spindle motor	Changsheng high-speed electric spindle 1.5KW
Spindle speed	Max 24,000 rpm
Spindle chuck	ER11(?1~7MM),ER16(?1~10MM), ER20(?1~13MM)
Maximum empty line speed	3M/min
Electric control cabinet size	400mm×450mm×200mm
Machine weight	80±1kg
Packing weight	110±2kg
Machine size: length * width * height (including 57 type 76 long motor)	736mm×631mm×635mm
Packing size: length * width * height (including 57 type 76 long motor)	800mm×750mm×730mm

Features:

1. cnc engraving machine 3040

2. flat carved embossed round carved jade metal wood

Quality assurance:
1.All stepper motor have CE and ROHS certification
2.All motors are tested by a toasting machine for 72 hours
3.All the motors will be shipped after testing

Classification reference	Price(USD)	Including accessories
3040 engraving machine rack	916.7	XYZ axis guide slider and screw
3040 engraving machine standard three-axis	1472.3	engraving machine with 57 stepper motor
3040 engraving machine standard four-axis	1688.9	have 80 three jaw than standard three axis
3040 engraving machine four axes (spindle upgrade 2.2KW)	1818.6	compare with standard four axis: the spindle is upgraded from 1.5kw to 2.2kw
3040 engraving machine four axes (control motor upgrade to closed loop step)	1796.3	compare with standard four axis: nema 23 stepper motor is upgrated to nema 23 closed loop
3040 engraving machine four axes (control motor upgrade to servo motor)	2261.2	compare with standard four axis: nema 23 stepper motor is upgrated to servo motor 400W
Optional (3-4 axis offline system)	1703.7	without using computer, the price is three-axis offline version price
Optional (CNC dedicated 3-4 axis offline system)	2213	without using computer, the price is three-axis Keyuan price
Optional - electronic handwheel	46.3	electronic handwheel (accessory) regular version, optional upgrade
*We can manufacture products according to customer?s requirments

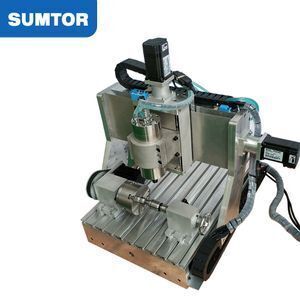

Pictures of product

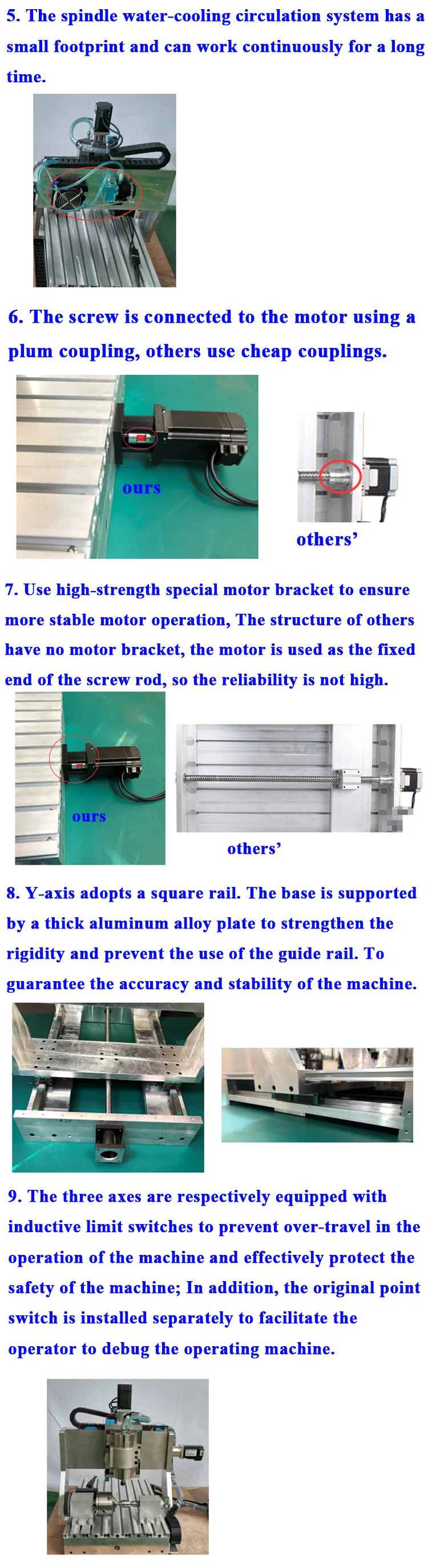

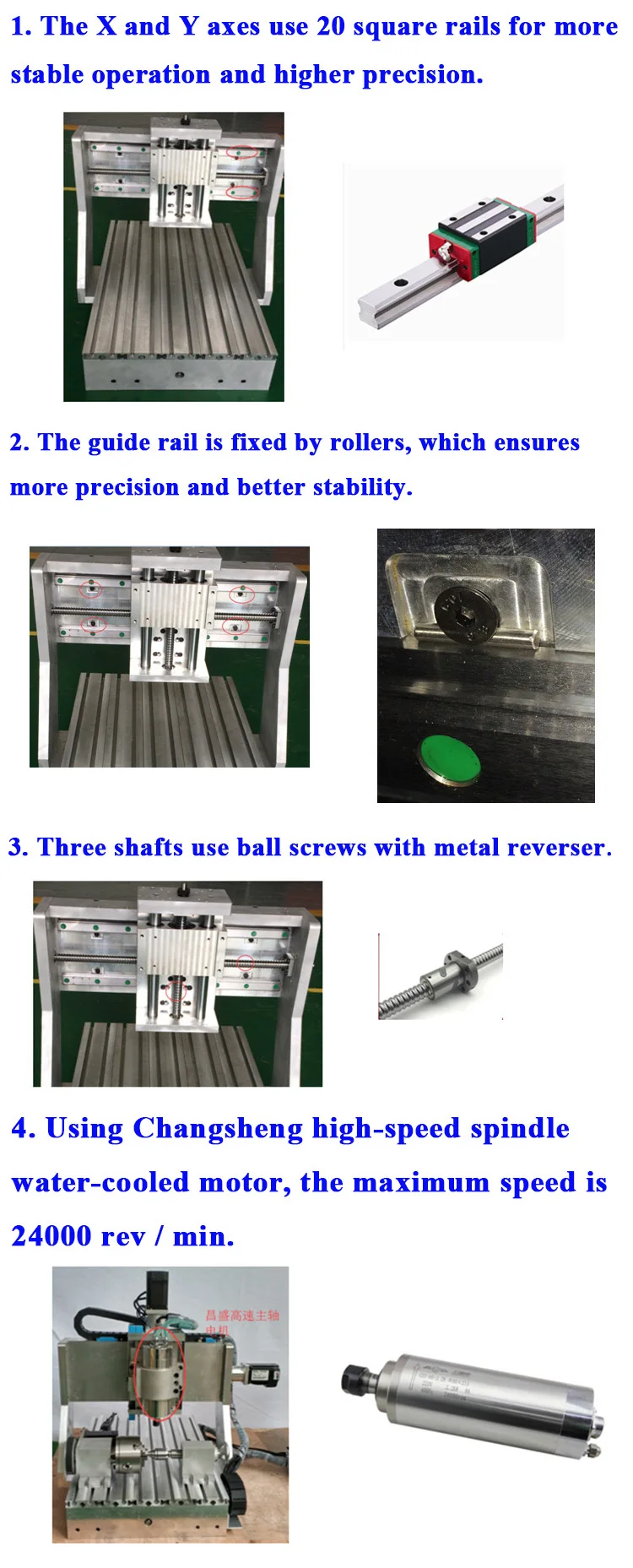

Product features

Pictures of carving machine made

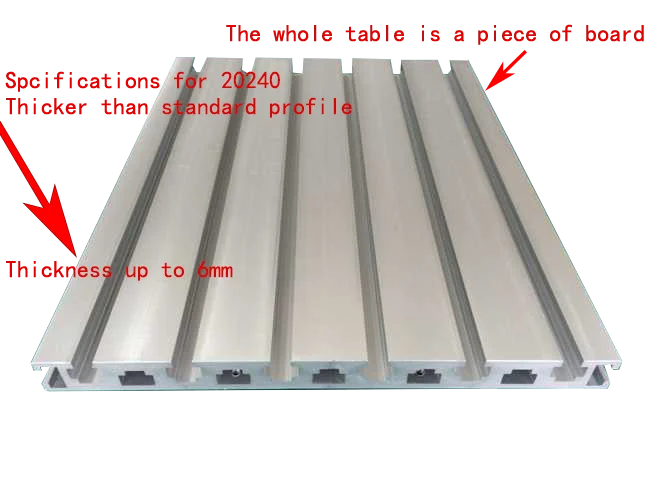

Profile on carving machine (click the picture can transfer to the link)

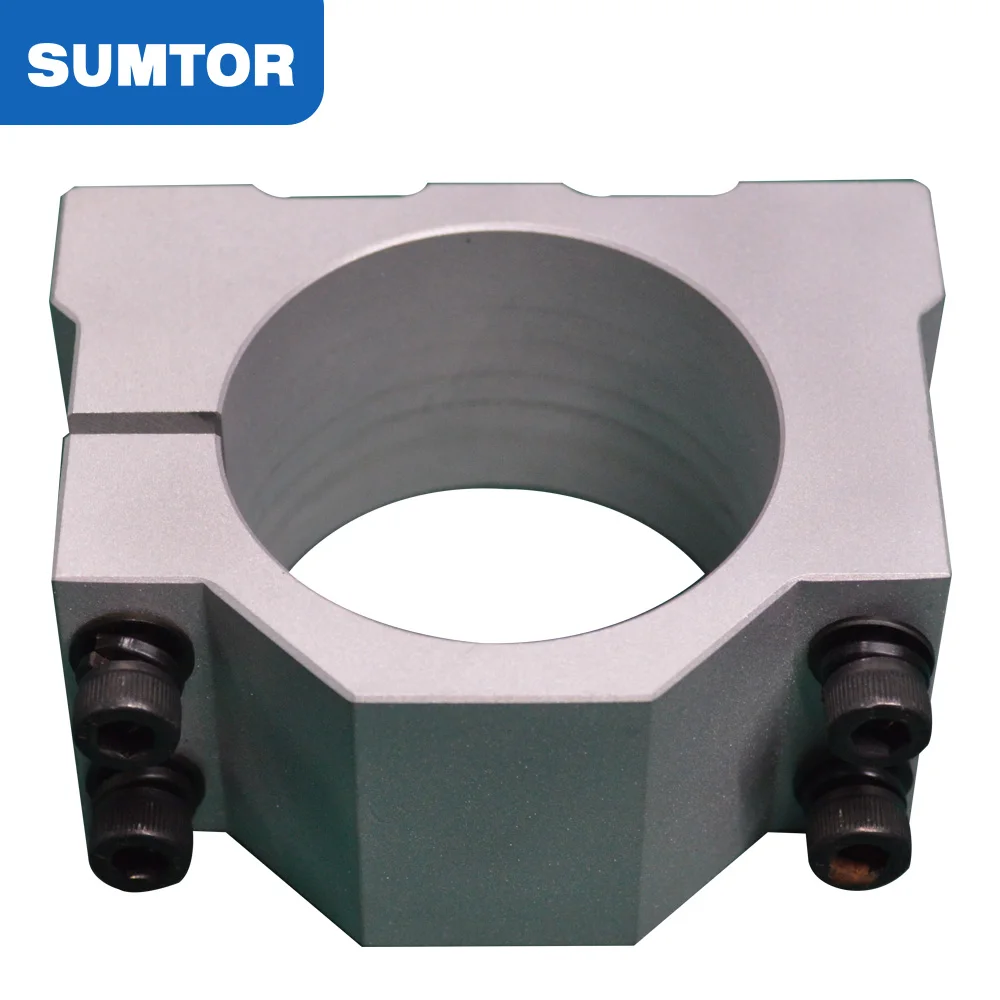

Bracket on carving machine (click the picture can transfer to the link)

FAQs

1. Could I have prices of your products?

Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.

4. Do you inspect the finished products?

Yes, each step of production and finished products will be came out inspection by QC department before shipping.

7. Why choose us?

We have a professional design,R&D team.

2. How to choose the suitable stepper motor?

There are several important items: size, length of stepper motor, holding torque, voltage , current etc. After confirm some of them, please tell us, we can send you the suitable one.

5. What are you?

We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

3. How to pay for the goods?

Pay online.It has credit guarantee. T/T would be with transfer and few bank fees. LC could also be accept. For large quantity, sea shipping can be provided.

6. What can you do?

We can make your idea or OEM design to ideal products. Give optimum solution to reduce your cost. High precision assemble and optimized package. Make prompt delivery to guarantee quality.
