Fully automatic portable electric mini dot peen marking machine

Product details
Mechanical test report:ifbrand:XG
Applicable industries:Mechanical repair shops, manufacturing plants, printing plants, energy and miningAfter warranty service:Video technical support, online support
Local service location:not anyOrigin:Jiangsu, China
payment terms:Western Union, D/P, T/Trated power:100W
Core components:engine, bearingCertification:CE certification
Type of machine:pin markingHealth status:new
Core component warranty:1 yearShowroom location:not any
application:tag alphanumeric identifierPackaging Details:Standard export plywood box
port:ShanghaiMarketing Type:New Products 2020
Main selling points:easy to operatePackage preview:
After-sales service provided:online supportWarranty:2 years
Video shipment inspection:if
Product Description
Electric Needle Marking - Doesn't require air Carbide needles dot high frequency on the surface instead of marking, it can mark alphanumeric (date, VIN code, serial number), logo or 2D barcode information on metal and plastic materials - Used for parts identification requirements, such as aerospace, automotive, machinery, casting, etc.
model:

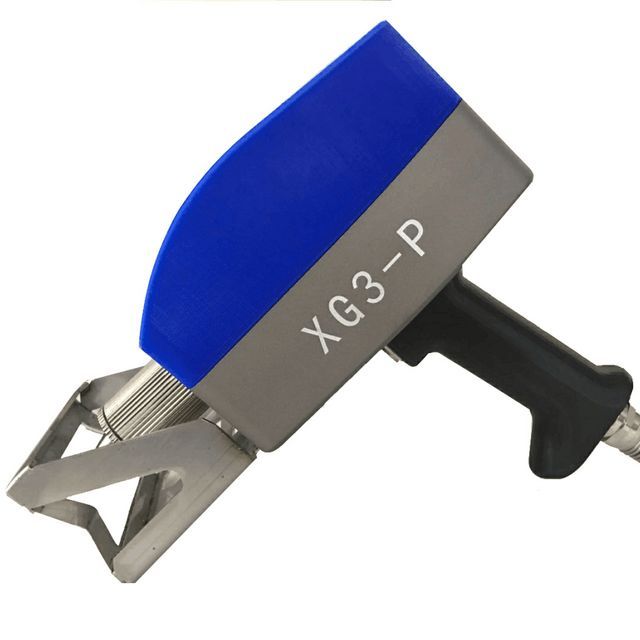

XG3-P1 Motorized Pin Marker
Marking speed
3-5 bits/s
Marking area
55*25mm
Marking depth
0.01-0.3mm
strength
≤100W
mark application
XG3-P1 can mark characters, numbers and data matrix barcodes on the flat surface of stainless steel products.
Marking application
XG3-P1 needle row marking machine can mark characters, numbers and logos on steel, aluminum, iron and copper metal products
detailed image

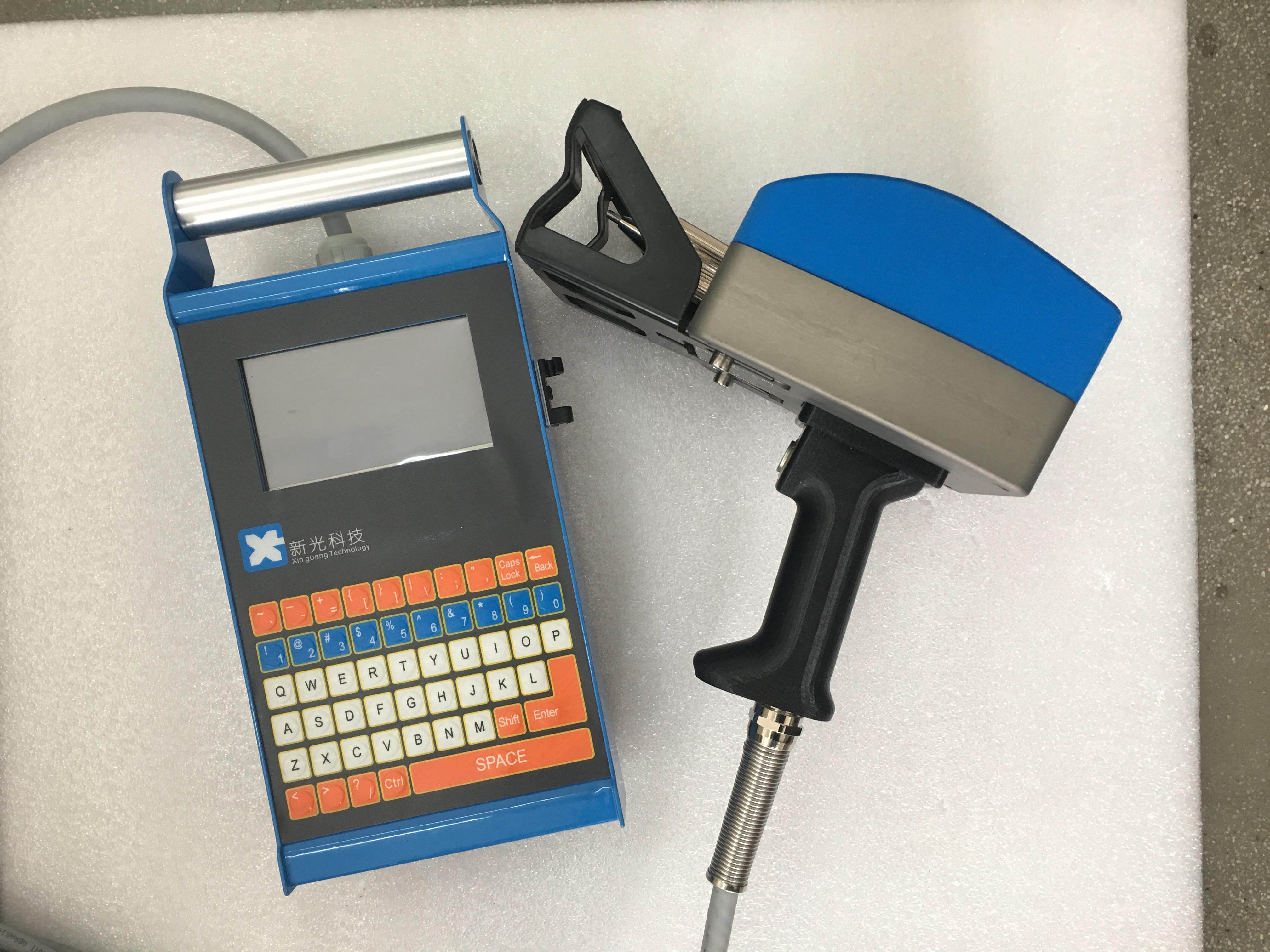

controller
*Independent XG marking system
*touch screen
* Membrane keyboard

Marking head
*2.5kg marking head
*25*55mm marking area
*Marking depth 0.1-0.3mm
* With 10m long cable, can go everywhere
