Metal BX-90*160 Metal Nameplates Dot Peen Marking steel engraving machine

Supplier: Heze Libo Precision Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Alice Deng
Price: $615.00 / 1 - 29 sets
$554.00 / 30 - 199 sets
$465.00 / >=200 sets
Min. Order: 1 set

Click here to contact

Product details

Marking Depth:	0.01mm-2.0 Mm (depend on material );	Certification:	CE;
Machine Type:	Pneumatic machine,Pneumatic Marking Machine;	marking zone:	90*160mm;
Condition:	New;	Feeding Height:	1000mm;
Key Selling Points:	Easy to Operate;	Product name:	Nameplate Marking Machine;
Payment Terms:	Western Union,T/T,MoneyGram;	Core Components:	Gearbox,Motor;
Place of Origin:	Shandong, China;	Marking Speed:	5-100 Character/min;

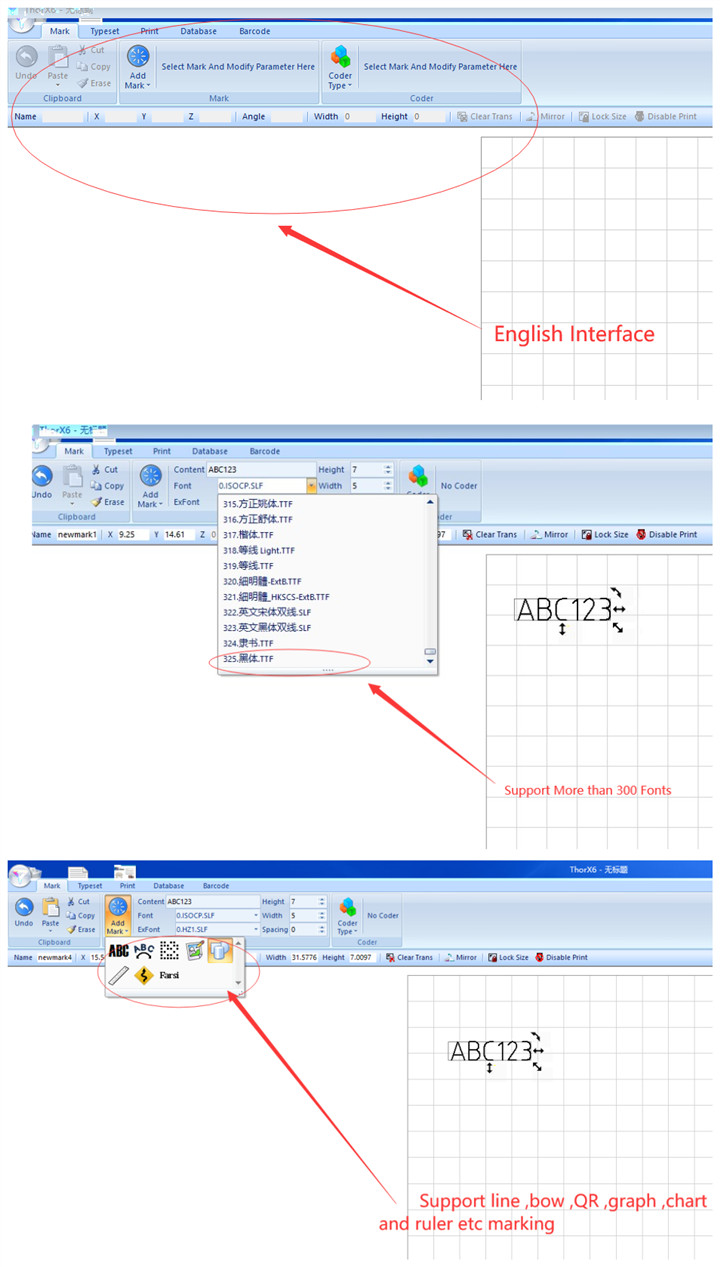

Application:	VIN number marking,90*160mm;	Software:	Thorx6;
Engraving Speed:	55mm/ s;	Machinery Test Report:	Provided;
After-sales Service Provided:	Video technical support,Online support;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Car Frame;
After Warranty Service:	Video technical support,Online support,Spare parts;	Port:	Qingdao ,Shanghai,Tianjin;
Supply Ability:	200 Sets per Week;	Packaging Detail:	plywood case;
Local Service Location:	None;	Package Preview:	;
Video outgoing-inspection:	Provided;	Marketing Type:	Hot Product 2019;
Marking Materials:	Steel,Aluminum and Plastic;	Milling Cutter Diameter:	4mm,5mm or customized;
Rated Power:	<200W;	Dimensions:	LWH:400202265mm;
Needle hardness:	HRC70;	Warranty:	1 Year;
Repeat marking accuracy:	0.01mm;	Warranty of core components:	3 years;
Showroom Location:	None;	Main Axle Rotational Speed:	6000mm/s;
Brand Name:	LIBO;

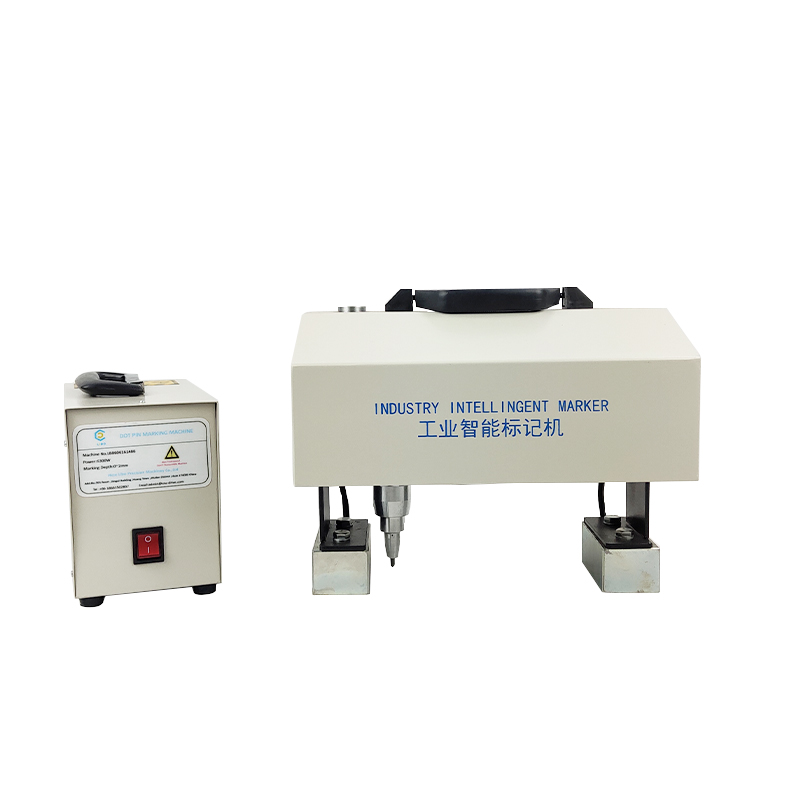

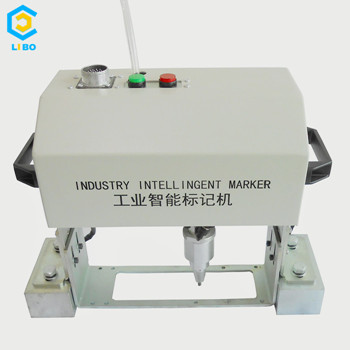

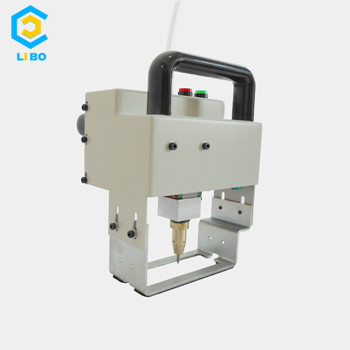

Metal BX-90*160 Metal Nameplates Dot Peen Marking steel engraving machine

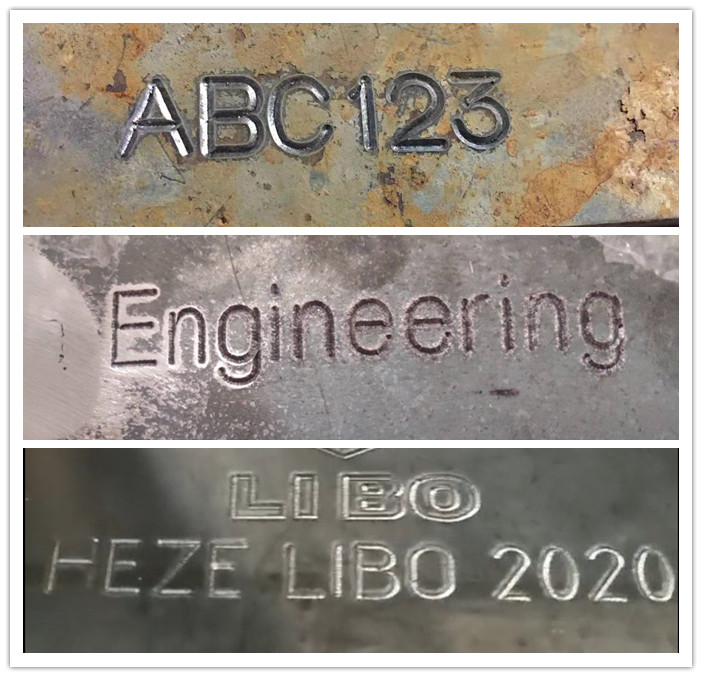

Mainly used steel plate marking depth 500um dried painting steel structure

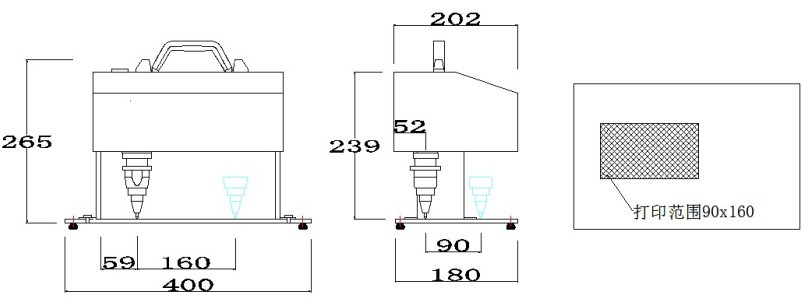

Marking head drawings

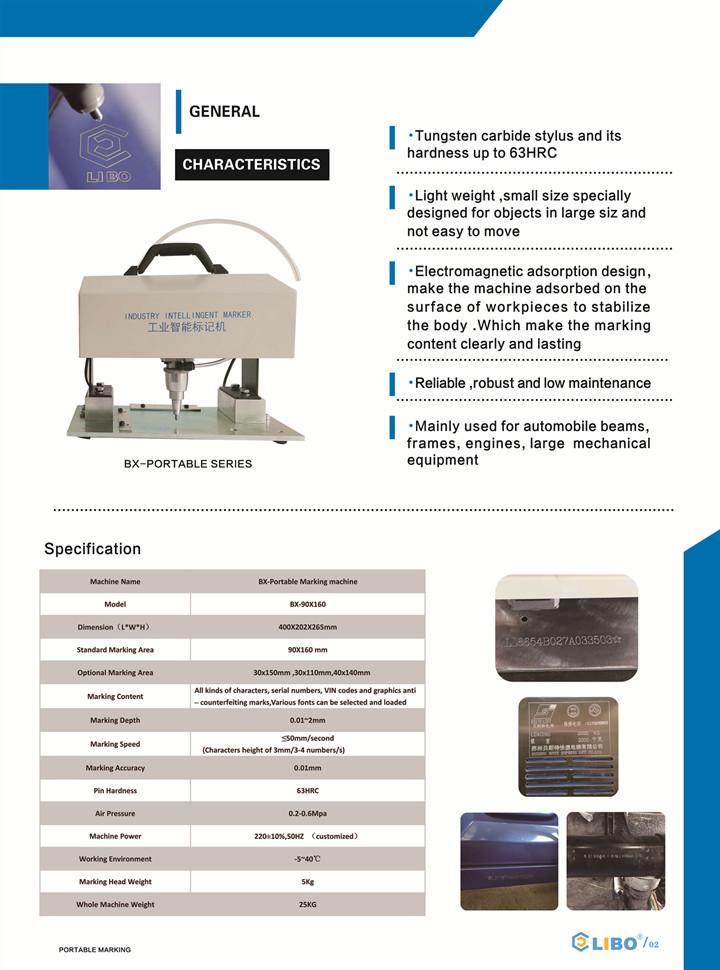

Machine Name	BX-Portable Marking machine
Model	BX-90X160
Standard Marking Area	90X160 mm
Optional Marking Area	30x150mm ,30x110mm,40x140mm
Marking Depth	0.01~2mm
Marking Speed	≤50mm/second (Characters height of 3mm/3-4 numbers/s)
Marking Accuracy	0.01mm
Pin Hardness	64HRC
Air Pressure	0.2-0.6Mpa
Machine Power	220±10%,50HZ (customized)
Working Environment	-5~40℃
Marking Head Weight	5Kg
Whole Machine Weight	25KG

Related Product

FAQ

1. How can I get the best machine for me? You can tell us your working material, detail work by picture or video so that we can judge whether our machine

can meet your need or not. Then we can give you the best model depends on our experience.

2.This is the first time I use this kind of machine, is it easy to operate? We will send you manual and guide video in English, it can teach you how to operate the machine.

If you still can not learn how to use it, we can talk by phone, email or other contact ways.

3.When I get this machine, but I don’t know how to use it. What should i do? We will send you the English manual and CD video for machine using and maintaining with machine. If you still have some doubts, we can talk by telephone or skype.

4.How about the packaging ? First, wrap the machine with film. Then put it in a non-fumigation box and fill it with foam. Finally fasten the wooden box with a steel belt.

More information ,you can scan my WECHAT code as follows and talk freely
