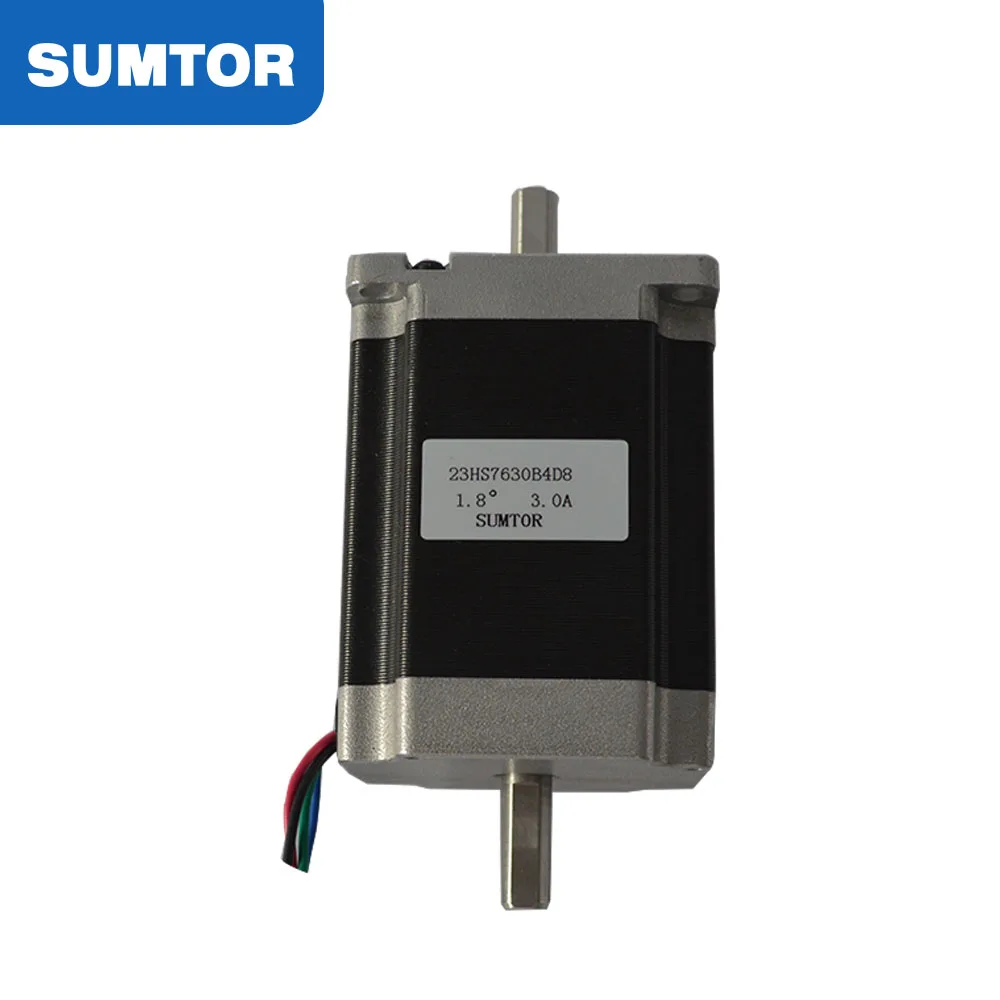

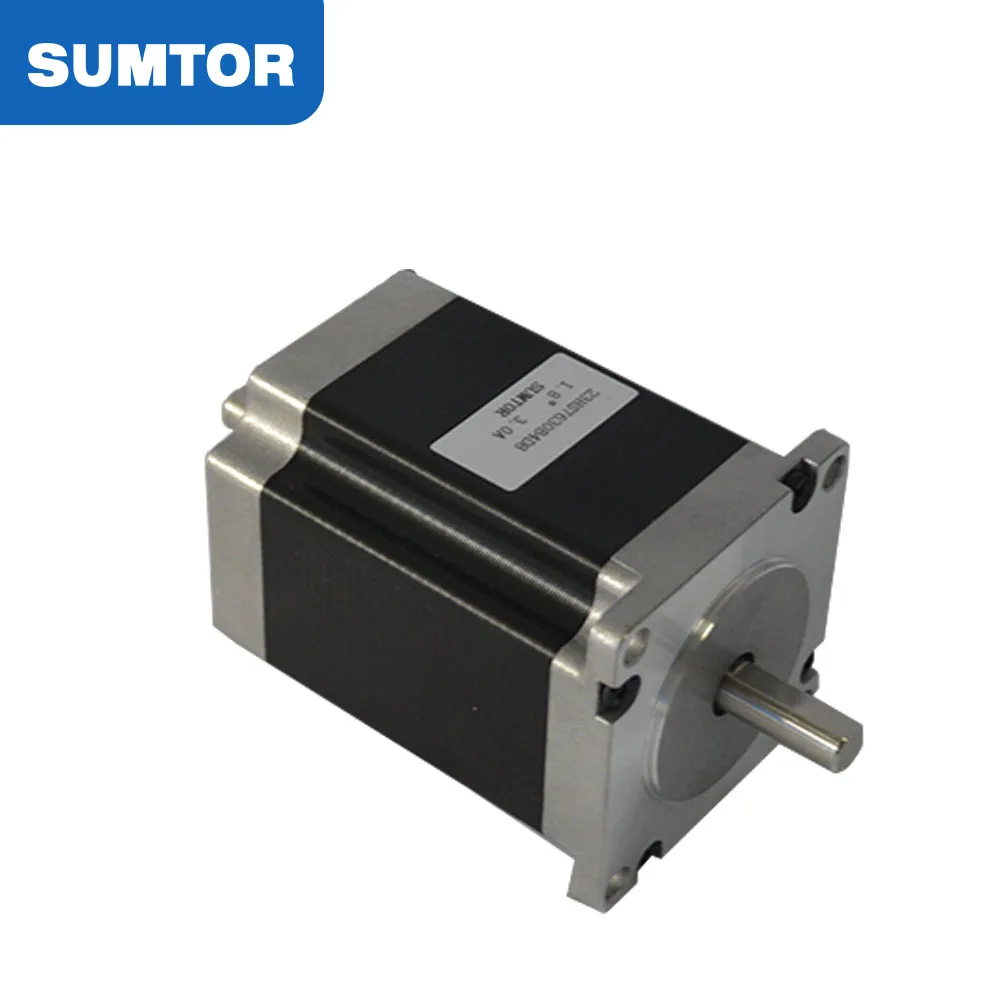

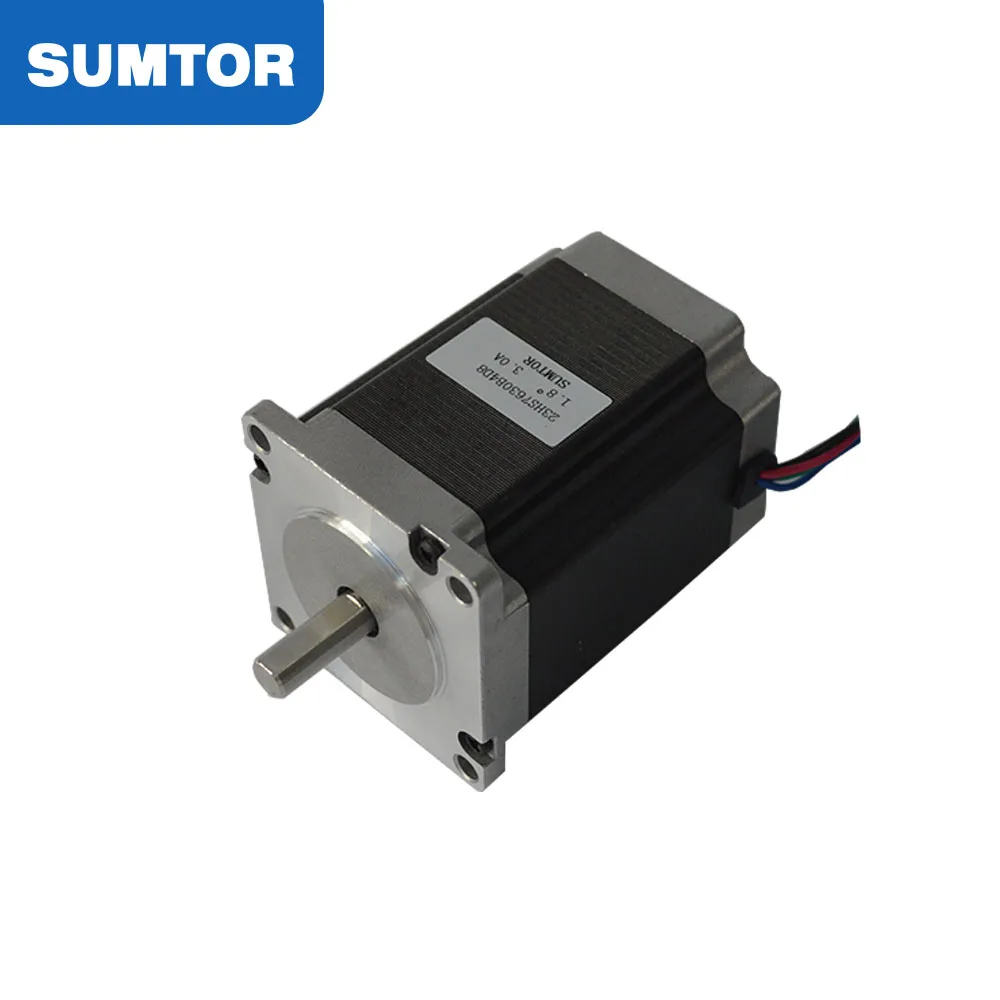

76mm 3A 8mm type D dual shaft 4 axis cnc kit nema 23 475oz stepper motor

Supplier: Sumtor (wuxi) Electric Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jessica Xie
Price: $15.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Product Keywords:	stepper motor pan tilt,stepper motor nm,stepper motor nema 23;	Package Type:	normal packing;
Resistance:	1;	Model Number:	57HS7630B4D8;
Type:	Hybrid;	Single package size:	14X9X9 cm;
Phase:	2;	Single gross weight:	2 KG;
shaft diameter:	8mm;	Body length:	76mm;
Current / Phase:	3A;	Selling Units:	Single item;
axis length:	21mm;	Brand Name:	sumtor;
mode of connection:	black A+ green A- Red B+ Blue B-;	Delivery Detail:	0 days after payment;
Certification:	CE,ROHS;	Place of Origin:	Jiangsu China (Mainland);

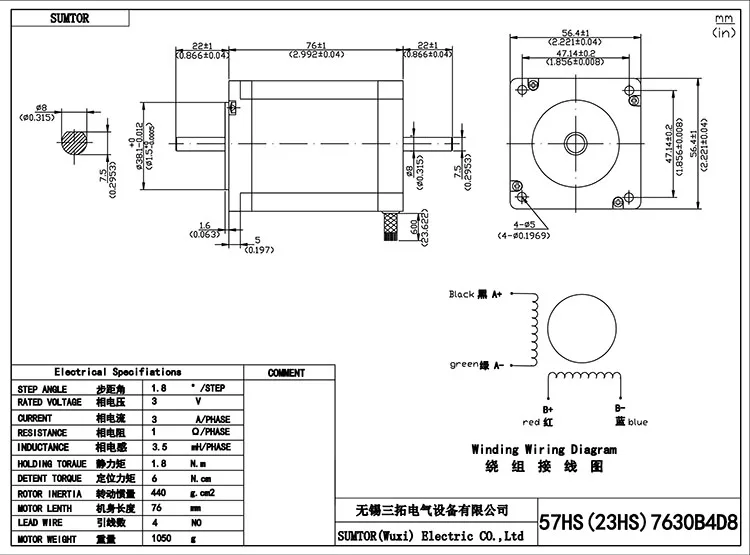

Inductance:	3.5mH;	Installment pitch of holes:	47.14mm;
face to face dimension:	56.4mm;

76mm 3A 8mm type D dual shaft 4 axis cnc kit nema 23 475oz stepper motor

Product details

Inductance	3.5mH
Resistance	1
Installment pitch of holes	47.14mm
face to face dimension	56.4mm
axis length	21mm
shaft diameter	8mm
Body length	76mm
mode of connection	black A+ green A- Red B+ Blue B-
Product Keywords	stepper motor pan tilt,stepper motor nm,stepper motor nema 23

Features:
1.NEMA 57 stepper motor 76mm
2.Current 3A
3.Speed 600-800RPM

Main applications: CNC machine tools, milling machines, printers, engraving machines, feeding machines, printing presses, packaging machines, textile machinery, etc.In other words, as long as the position is controlled, most of the use is stepping motor.

57HS7630B4D8:

Quality assurance:
1.All stepper motor have CE and ROHS certification
2.All motors are tested by a toasting machine for 72 hours
3.All the motors will be shipped after testing

Company Profile

Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
