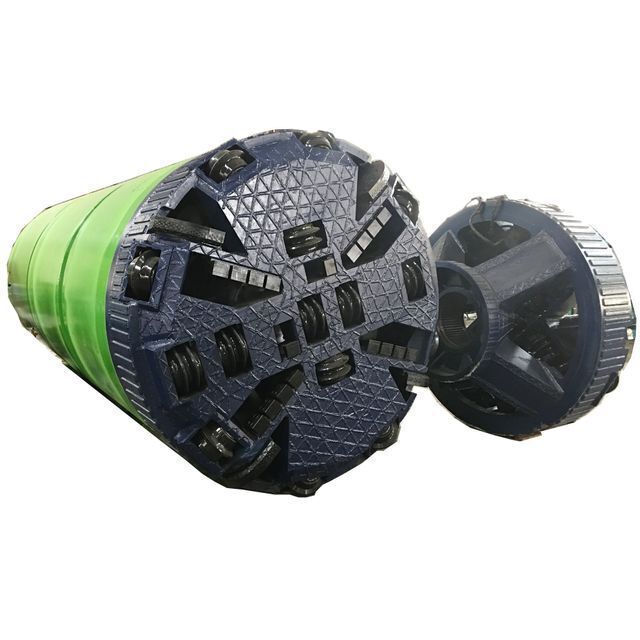

Rock tunnel boring machine DG2200, Pipe jacking machine, TBM.

Supplier: Realtop Heavy Industry Co., Ltd.
Region: Hunan, China
Contact: Ms Eva Liu
Price: $120000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Hunan China;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pump;
Certification:	ISO;	Port:	Shanghai port China;
Job experiences:	More than 20 units applied in Singapore;	Usage:	Sewage, tunnel, coal mine etc;
After-sales Service Provided:	Engineers available to service machinery overseas,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;	Weight:	10tons to 19ton;
Color:	According to customer;	Video outgoing-inspection:	Provided;
Payment Terms:	L/C,T/T;	Marketing Type:	Hot Product 2019;
Supply Ability:	30 Set/Sets per Year;	Machinery Test Report:	Provided;
Torque:	553KNM;	Type:	Slurry balance pipe jacking machine;
Applicable Industries:	Construction works ,Energy & Mining;	Package Preview:	;
Warranty of core components:	1 Year;	Dimension(LWH):	2610*4000mm;
Trenchless:	Trenchless Pipe Jacking;	Curve jacking:	Yes, experienced;
Brand Name:	REALTOP;	Showroom Location:	None;
Warranty:	1 Year;	Pipe:	Concrete,segamental,steel,HDPE,pipe jacking;
Local Service Location:	None;	Packaging Detail:	Packing according to the needs of customers.;
Soil:	clay, soil, silt, coal mine all ok;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Condition:	New;

Product Description

Product Application

1. Introduction:
Remote-controlled Slurry Balance Pipe-Jacking Tunneling Machine is a new advanced non-digging-equipment with high technology.
It combines multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller (including PLC), Laser system, measuring device, etc.
Besides the high efficiency, it also has no effect on the traffics on surface. Furthermore, it is good for the environment, and can lower the cost of the construction.
2. Application scope:
For trenchless underground pipe laying projects, eg. sewage, water supply, discharging projects, cables, tunnel.....

3. Specifications:
-3.1 Fit in soft soil, clay, sandy soil, gravel soil, hard soil, etc. wide range of soil body.
-3.2 Breakage ability strong, breakage particle size and number more.
-3.3 With independence water and slurry injection system and washing clean device for cutter in particular;fit for big N value hard soil.
-3.4 Jacking speed is very fast, theory max, speed is 120mm per min.
-3.5 Operation precision high, adjust the direction from up and down, left and right, Max. corrective angle is 2.5 degree.
-3.6 jacking distance can be long.
-3.7 Adopt ground operation system, safe, intuition and convenient!
-3.8 Structure firm, use and maintain easy, convenient for dismantling in work tunnel receiving tunnel.

Model:DGR2200B-QNP		Parameter
Main machine dimension	Inner diameter (mm)	2200
	Outer diameter (mm)	2630
	Total length (mm)	7500
Cutting Part	Electromotor Power (kW)	37×4
	Cutterhead Torque (kN·m)	471
	Cutterhead Rotating Speed (r/min)	3
Oil cylinder of rectifying	Qty	8
	Thrust Force (kN)	1000
	Stroke (mm)	100
	Rectifying Angle (°)	±2
Hydraulic System	Electromotor Power (kW)	3.7
	Work Pressure (MPa)	31.5
Slurry system	Water Supply Pump Power (kW)	45
	Mud Pump Power (kW)	55
	Diameter of Side Mud pipes (mm)	150
Main Jacking system	Jacking Speed (mm/min)	0--80
	Work Pressure (MPa)	31.5
	Rated Jacking Force (kNm)	2000×8
	Timing Way	Adopt Frequency Control
	Total Power (KW)	15KW+22KW

Main Features

Our Products Advantages:
Pipe-Jack Machine.
Fit for trenchless underground pipe laying.
Easily control above ground, continuous work underground.
Fast speed safe!
Diameter from 250-5000mm.

Certifications

Detailed Images

Main operation station.

Pipe jacking monitoring system.

Main jacking pump.

Main cylinder.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* We will send professional technicist to project site to operate the machine and train operators for the first section of the project, usually 100m/150/200m etc. (free of charge)

* Longer distance service is available in charge.

Information needed for quotation accordingly:

1. Project total length, distance for one section, how many sections will be built?
2. Pipe type: concrete or steel etc, single length of the pipe? outer and inner diameter ?
3. Projects information: for water supply, sewage project?

4. Underground water level.
5. Soil type? sol report is needed.

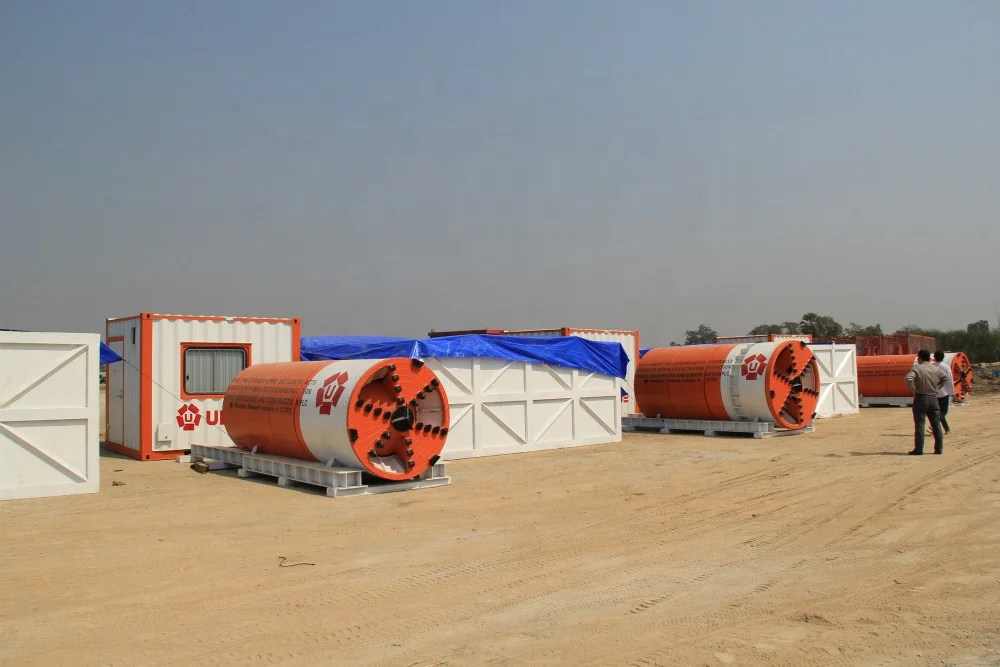

Packing & Delivery

Packaging
Size	2610* 4000 mm + parts
Weight	9T ~ 19T
Packaging Details	Normally delivery by FR, or small size pipe jacking machine will be delivery by normal containers.
