Mine tunnel subway tunnel boring machine boring machine

Click here to contact
Product details
Warranty:1 yearload capacity:4.3 cubic meters/minute
Showroom location:Egypt, United States, France, Germany, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, United Arab Emirates, Colombia, Algeria, Sri Lanka, Bangladesh, South Africa, Kazakhstan ,Ukraine,Nigeria,Uzbekistan,AustraliaCore component warranty:1 year
Local service locations:Egypt, Turkey, United States, Italy, France, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Argentina, South Korea, Chile, Colombia, Algeria, Sri Lanka, RomaniaVideo outbound inspection:if
Directional cutting range:4.74*4.84 metersPackaging details:naked
Dimensions (length*width*height):8932*2805*1470mmCutting head speed:44 rpm
Health status:newApplicable industries:Clothing Stores, Building Materials Stores, Machine Repair Shops, Food & Beverage Factories, Farms, Restaurants, Household, Retail, Print Shops, Energy & Mining, Food & Beverage Stores, Advertising Agencies
Maximum size of non-removable parts:3.4*1 .28*1 .28 metersAfter-sales service provided:Video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, free spare parts, online support
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpPlace of origin:China
Machine weight:44 tonsPackage preview:
Post-warranty service:Video technical support, online support, spare parts, on-site maintenance and repair servicesproduct name:tunnel boring machine
brand:top brandsCutting motor power:135kW
weight:44 tonsMarketing type:2020 new products
Pumping station motor power:75kWport:Shanghai
Coal hardness:≤60MPaaspect:8.9*2.8*1.5 meters
payment terms:Letter of credit, wire transferMechanical test report:if
Supply capacity:5 units per month

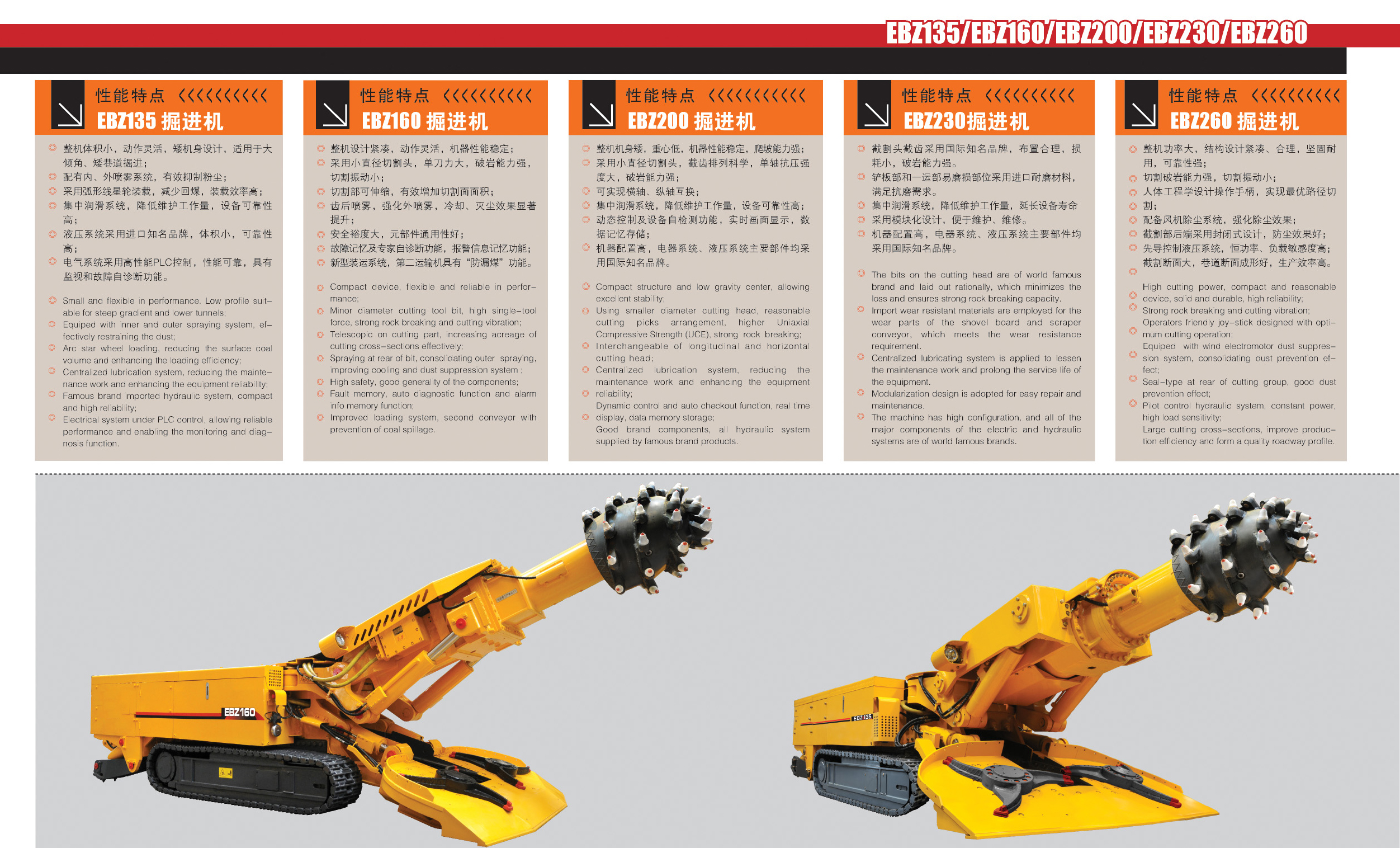

Product introduction

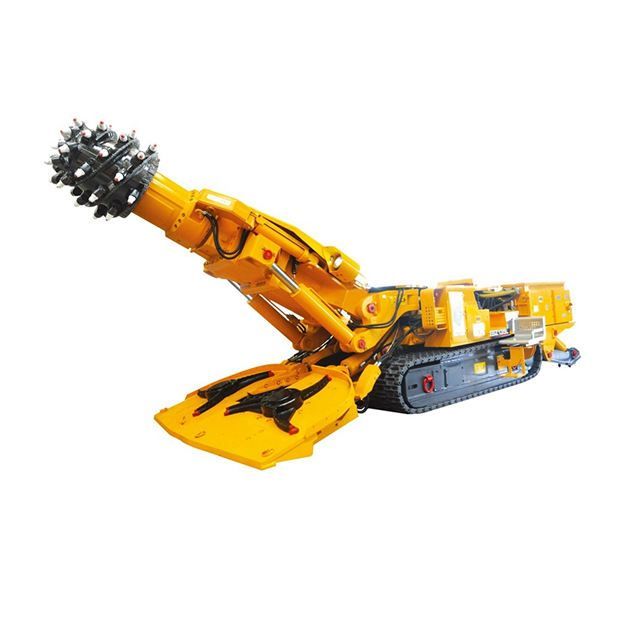

Tunnel boring machine EBZ135

1. This series of tunnel boring machines adopts world-class technology, with high cutting power and long service life;
2. Set the power of the anchoring drilling rig to improve work efficiency;
3. The hydraulic system adopts a load-sensitive control system to reduce system heat and costs;
4. The PLC system has dynamic display, fault diagnosis, warning and memory functions.

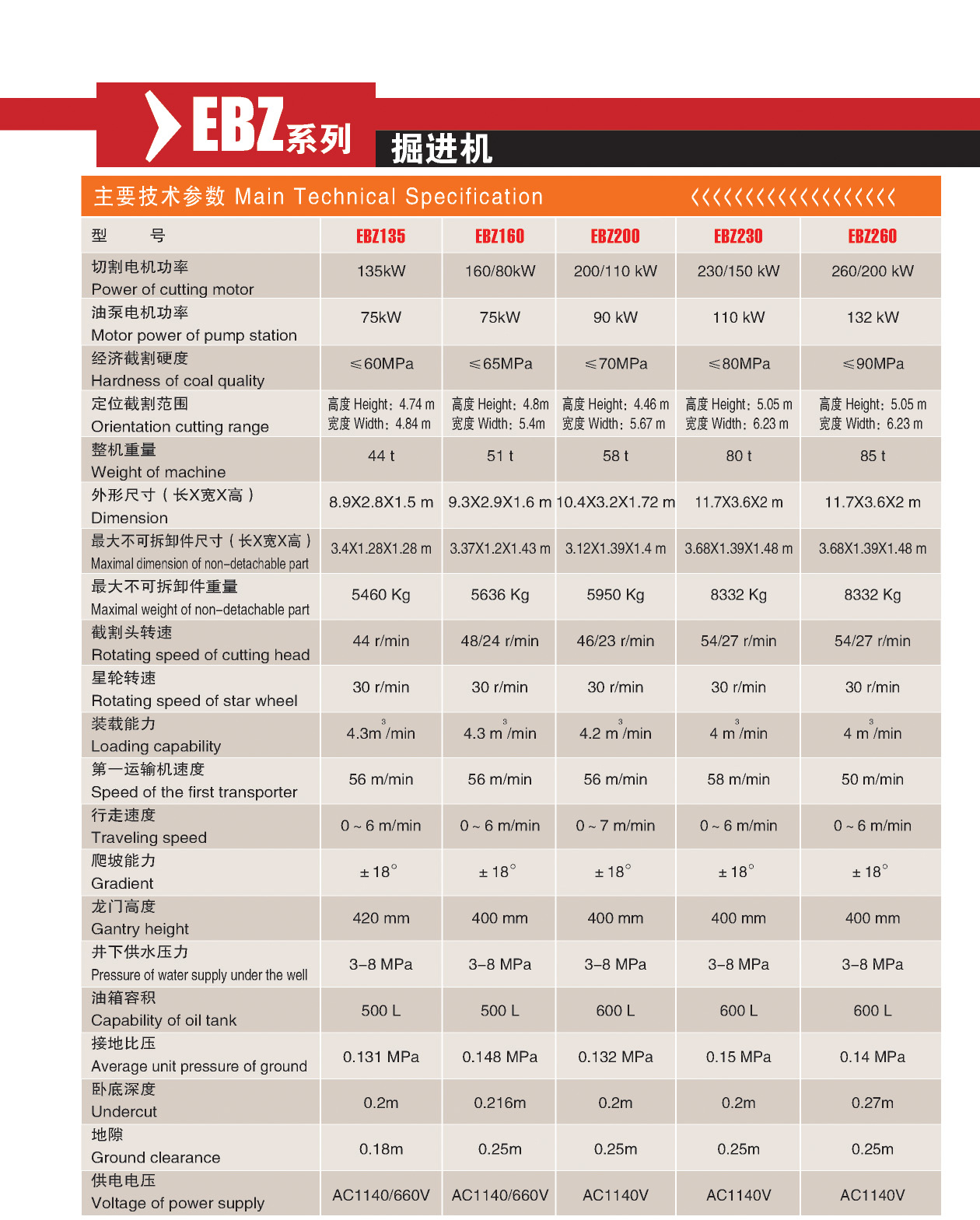

Product parameters
Model
EBZ135
Cutting motor power
135kW
Pumping station motor power
75kW
Coal hardness
≤60MPa
Directional cutting range
Height: 4.74 m
Width: 4.84m
Machine weight
44 tons
aspect
8.9×2.8×1.5 meters
Maximum size of non-detachable parts
3.4X1 .28X1 .28 meters
Maximum weight of non-removable parts
5460kg
Cutting head speed
44 rpm
Star wheel speed
30 rpm
Loading capacity
4.3 cubic meters/minute
The speed of the first transport plane
56 meters/minute
Driving speed
0~6m/minute
slope
±18°
Gantry height
420mm
Underground water supply pressure
3-8 MPa
Fuel tank capacity
500 liters
average ground pressure
0.131 MPa
undercut
0.2m
Ground clearance
0.18m
voltage
AC 1140/660V

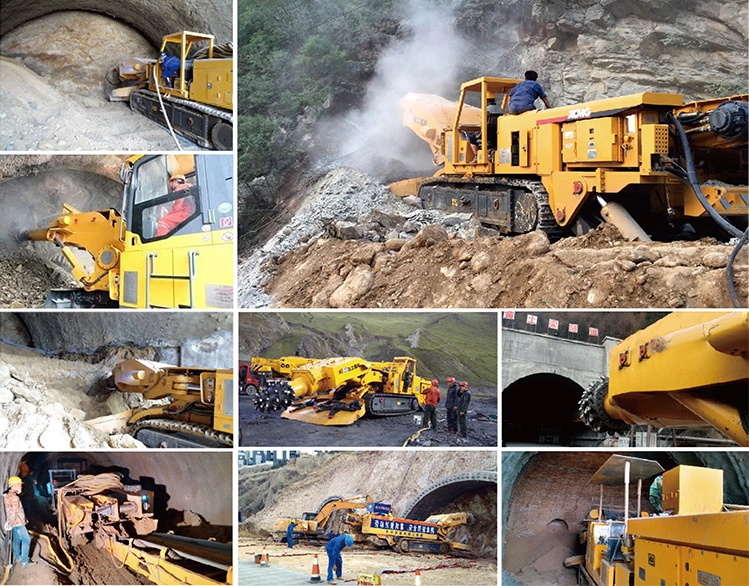

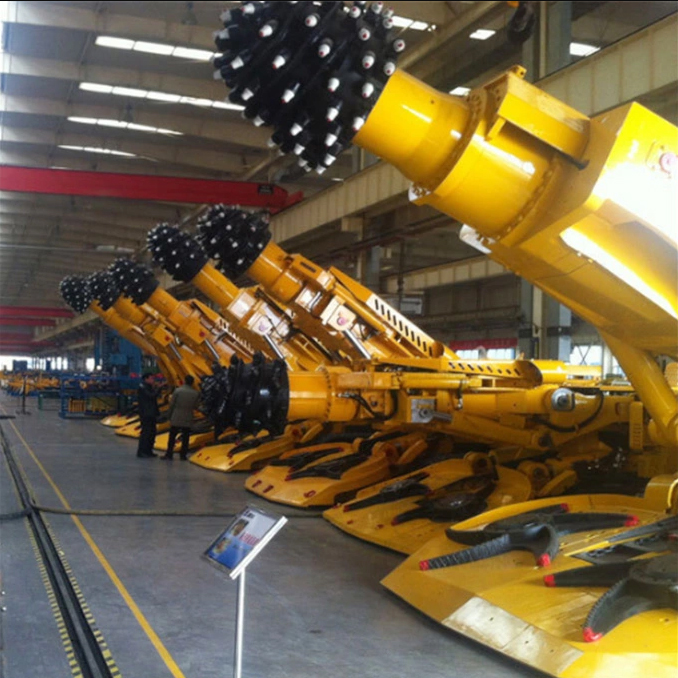

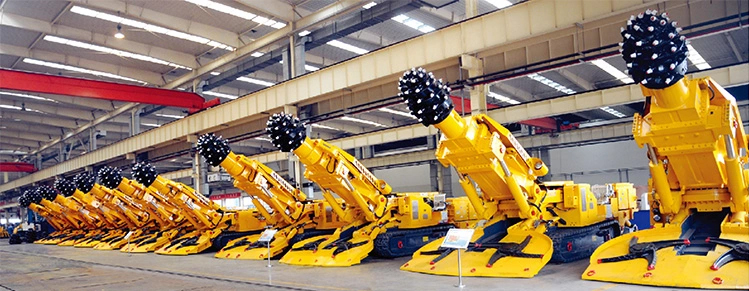

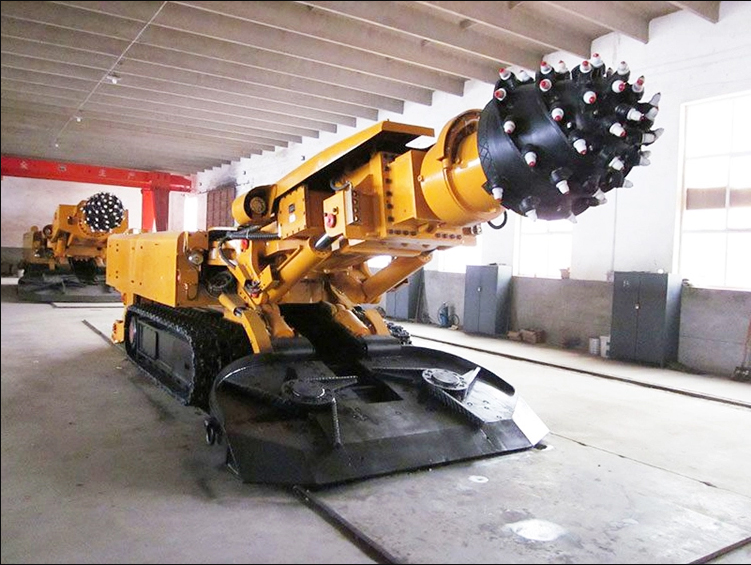

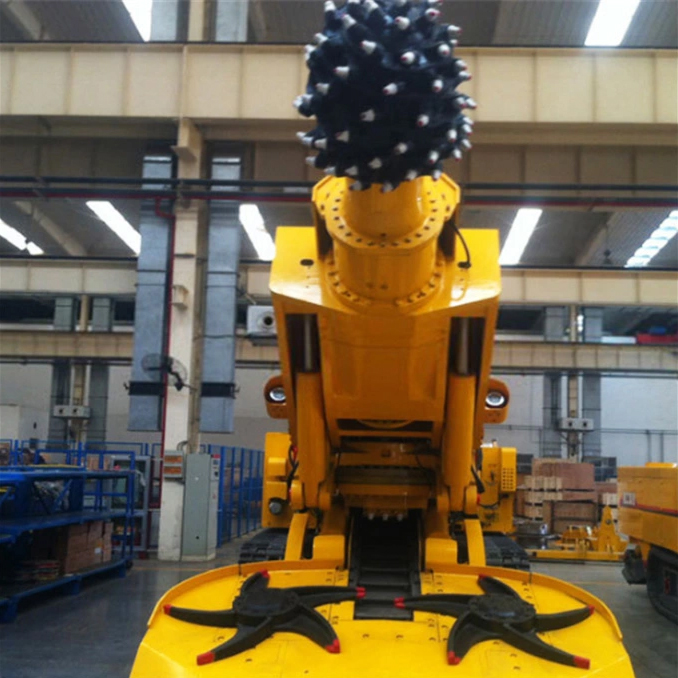

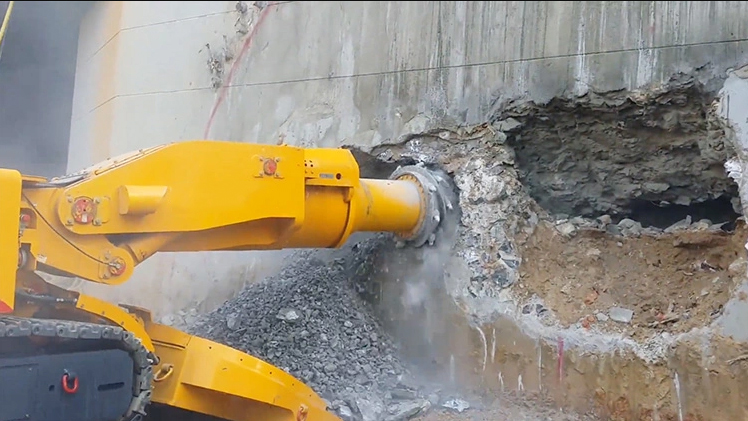

detailed picture
Product packaging and about us
