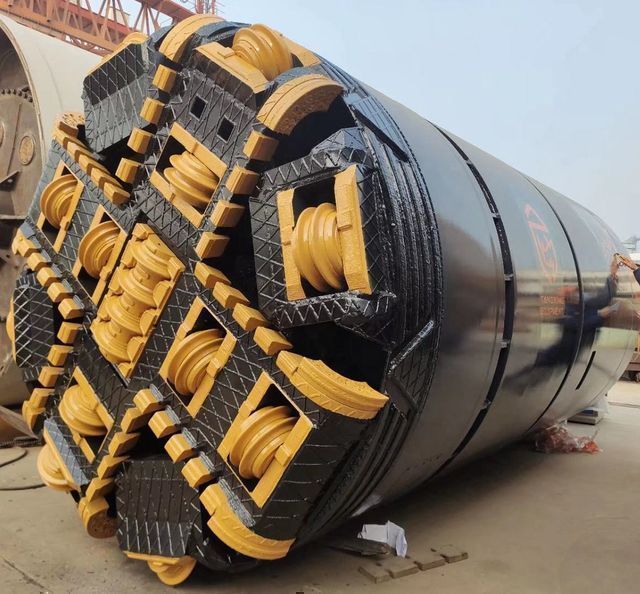

2750mm trenchless underground/tbm tunnel boring machine for sale
- 600000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Mechanical test report: | if | brand: | Tang Xing |
| Supply capacity: | 10 sets per month | soil: | gravel, rock |
| Video shipment inspection: | if | Dimensions (L*W*H): | 3400*5850mm |
| place of origin; place of origin: | Anhui, China | Trenchless: | trenchless pipe jacking |
| weight: | 60 kg | State of health: | new |
| port: | Shanghai | Applicable industries: | construction project |
| After-sales service provided: | Overseas service center available | Core components: | PLC, motor |
| diameter: | 2750mm | application: | Underground Tunnel Pipe Laying |
| payment terms: | L/C, T/T | Core component warranty: | 1 year |
| Showroom location: | Russia, Thailand, Malaysia, Australia | Warranty: | 12 months, 1 year |
| pipeline: | RCP, GRP, steel pipe | Types of: | Hydraulic pipe jacking machine |
| Packaging Details: | Standard export packaging | Marketing Type: | normal product |
| pack: | wooden |
Product Description
Applications
1) Specially designed for gravel and rock (up to 150MPa)
2) Easy access to the face for maintenance and repair work.
3) Through the rotation of the cutter head, the stones or obstacles entering the cone of the crusher are crushed to a conveyable particle size.
Long distance jacking.
4) The data is collected and controlled by computer.
2750MM rock pipe jacking machine technical parameters | ||||||
the inside diameter of | ￠2750mm | |||||
Outer Diameter*Length | ￠3400×5850mm | |||||
knives | Motor Power | 37*6kw | ||||
rated. torque | 589 kNm | |||||
revolution | 3.6 rpm | |||||
steering system | Thrust*quantity | 155T*8 | ||||
angle | 0-2.5° | |||||
Motor Power | 5.5KW | |||||
Jacking cylinder | Thrust*quantity | 200 tons*8 | ||||
stroke | 2500/3000/3500mm | |||||
pressure | 31.5 MPa | |||||
mud pipe | diameter | 6 inches | ||||
Total machine power | 230KW | |||||
