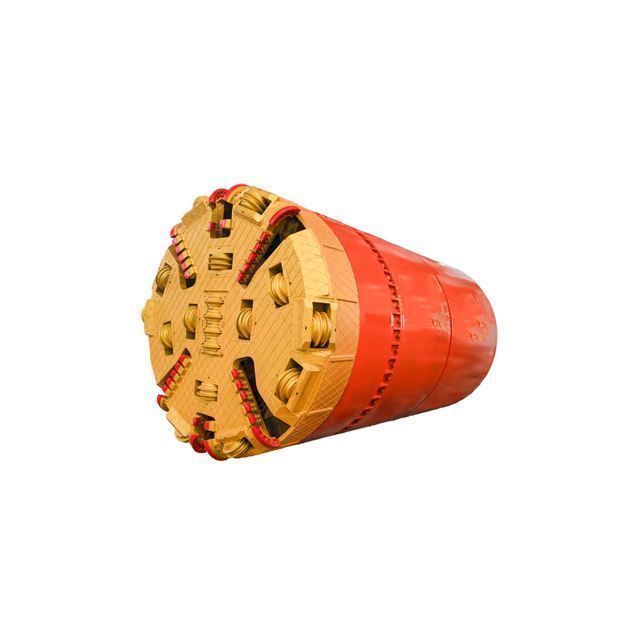

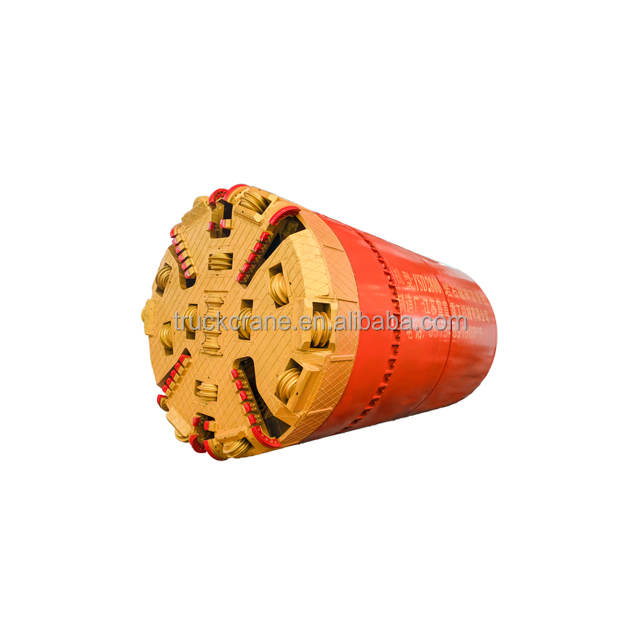

Yd3000 miniature tunnel boring machine/pipe jacking machine/tunnel

Click here to contact
Product details
After-sales service provided:Video technical support, free spare parts, online supportPower reducer:45kW/i=205
Core components:engineApplicable industries:Hotels, building supplies stores, machinery repair shops, manufacturing plants, food and beverage plants, farms, restaurants, printing plants, construction, energy and mining
Revolution speed:2.1rpmDimensions (L*W*H):3600*5400*2420mm
After warranty service:Video technical support, online support, spare partsShowroom location:Egypt, Turkey, USA, Italy, Germany, Brazil, Saudi Arabia, Russia, Kenya, Argentina, South Korea, Chile, Algeria
Motor Power:6*45kWVideo shipment inspection:if
Total head power:281 kWMechanical test report:if
Front shell length:2420mmSupply capacity:5 units per month
Maximum torque:1232KN.mCylinder thrust:200 tons
Local service location:Egypt, Germany, Vietnam, Brazil, Peru, Mexico, Russia, Spain, Australia, South Korea, Bangladeshpayment terms:L/C, D/P, T/T
Host motor power:11KWweight:200 tons*8
Health status:newOuter Diameter*Length:3600*5400mm
Core component warranty:1 yearOrigin:China
port:ShanghaiPackaging Details:bare bag
Number of cylinders:8Marketing Type:New Products 2020
Warranty:1.5 years

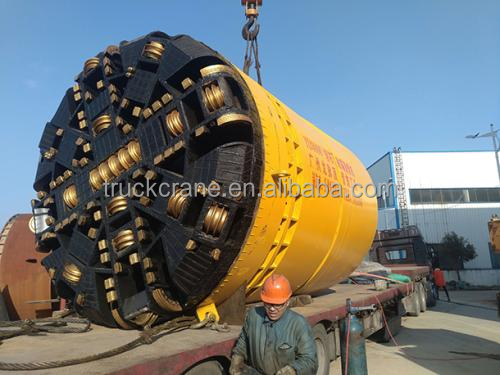

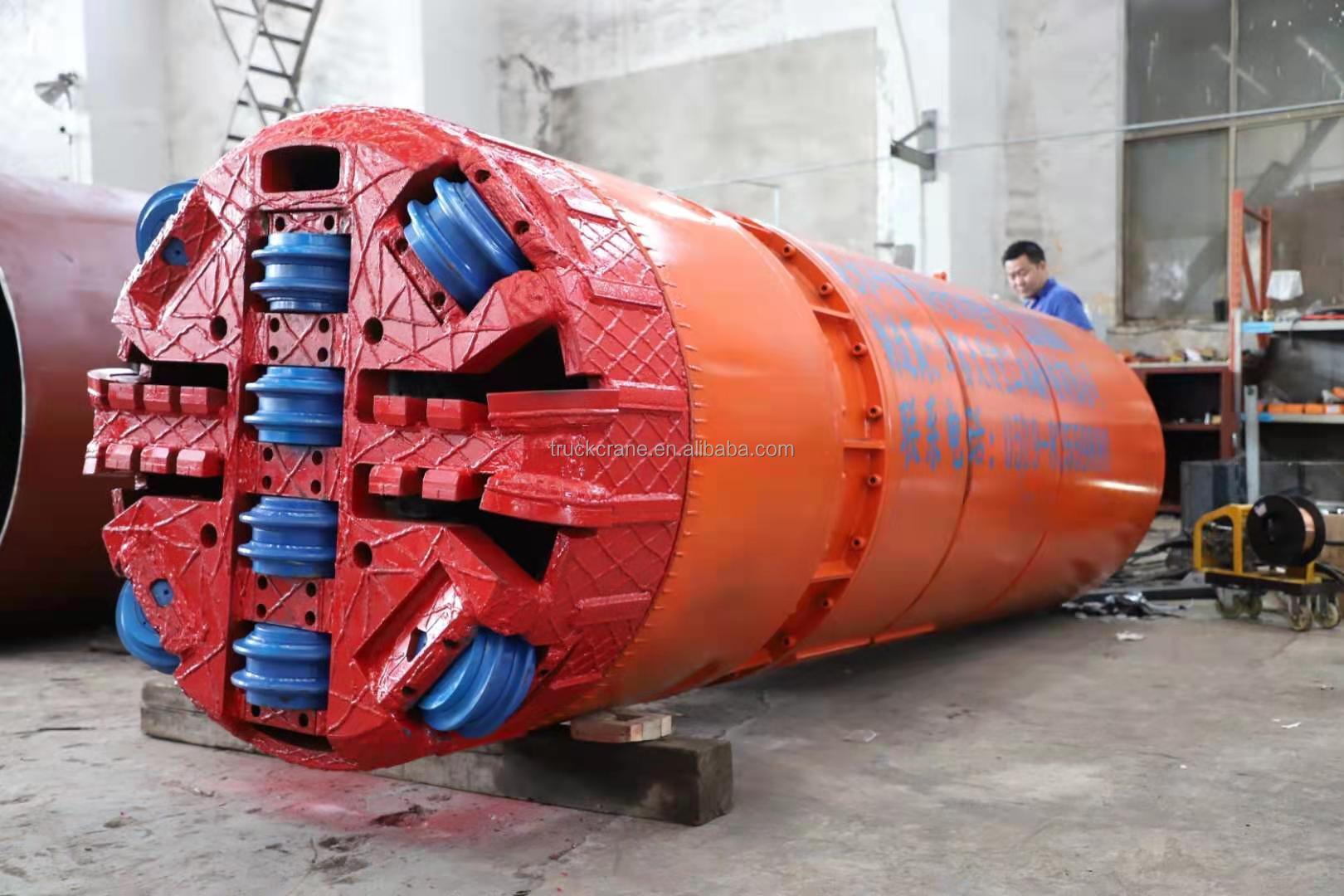

Ysd3000 Rock Spiral Pipe Jacking Machine for Rcp Sewer Pipe
describe

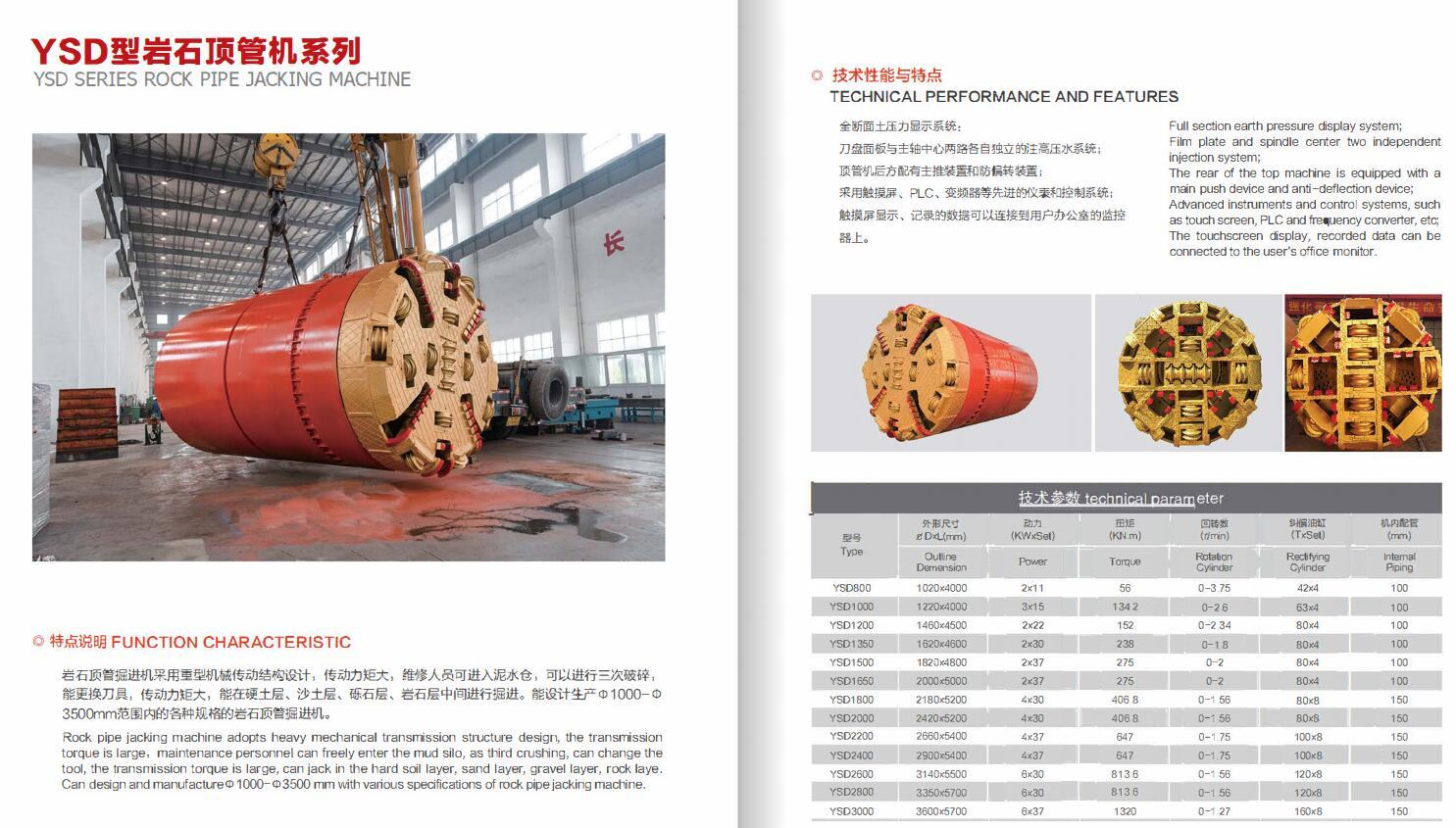

The rock pipe jacking machine is designed with a heavy-duty mechanical transmission structure, with large transmission torque, and maintenance personnel can freely enter the mud bin. As a three-time crushing tool, the tool can be replaced, and the transmission torque is large. It can jack into hard soil layers, sandy soil layers, gravel layers, rocks, etc. layer. It can design and manufacture rock pipe jacking machines of various specifications from 1000mm to 3500mm in diameter.
Full-section earth pressure display system;
Two independent injection systems for the film disc and the center of the main shaft;
The rear of the top machine is equipped with main pusher and anti-deviation device; advanced instrument and control system, such as touch screen, PLC, frequency converter, etc.;
The touch screen display, recorded data can be connected to the user's office monitor.
Product parameters
Model YSD3000
Jacking pipe design specifications:
ID OD
3000*3600mm
Pipe jacking machine outer diameter*length
3600x5400mm
Front shell length of pipe jacking machine
2420mm
knife head
Motor Power
6*45kW
power reducer
45kW/i=205
revolution speed
2.1rpm
Maximum torque
1232KN.m
rectification system
number of cylinders
8
Cylinder thrust
200 tons
Correction angle
2.5°
Motor Power
11 kW

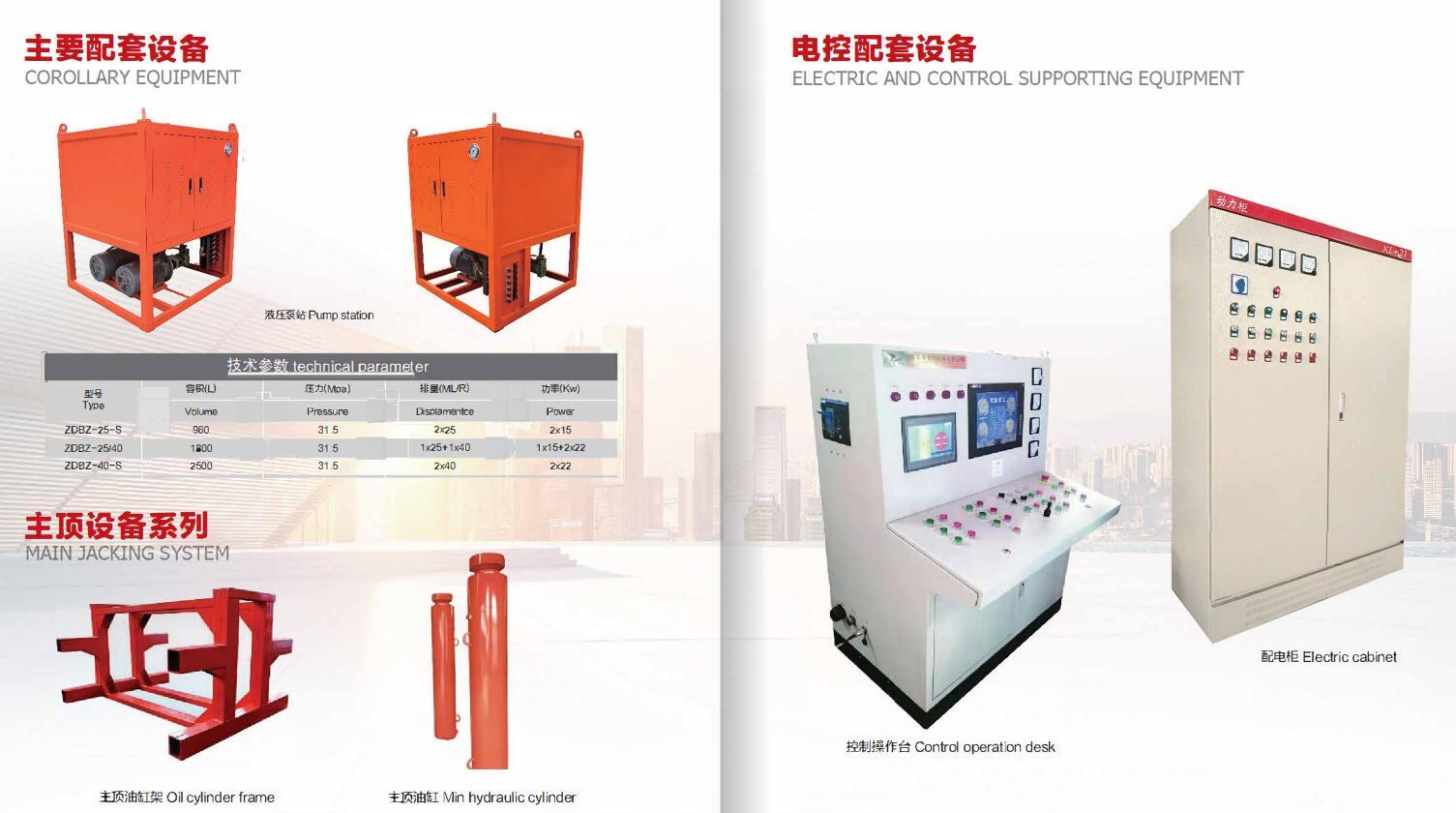

Feeding and discharging system
150mm
Total head power
281 kW
control method
Ground console centralized control
