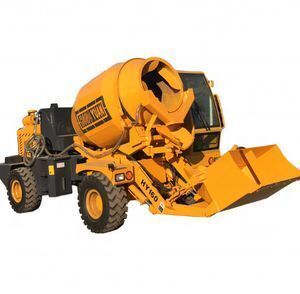

Brand New Construction Machine HY160 Concrete Mixer for sale

Supplier: Evangel Industrial (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Jesscia Hu
Price: $18000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mixing Power:	11kw;	Water Supply Mode:	Water Pump;
Payment Terms:	L/C,T/T;	Speed of Mixing Drum:	17r/min;
Condition:	New;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Working Cycle Period:	10-15min;	Supply Ability:	100 Set/Sets per Month;
UNIQUE SELLING POINT:	High operating efficiency;	After-sales Service Provided:	Video technical support,Field maintenance and repair service,Free spare parts,Online support;
Mixing Power:	11kw;	Reclaiming capacity:	1600L;
Local Service Location:	None;	Showroom Location:	None;
Place of Origin:	Shandong China;	Motor Power:	25kw;
Packaging Detail:	nude package;	Outline Dimension:	618022702626mm;
Working Cycle Period:	10-15min;	overall dimension:	618022702626mm;
After Warranty Service:	Video technical support,Online support;	Motor Power:	25kw;
Brand Name:	Hongyuan;	Discharge Way:	Automatic;
Net weight:	5500kg;	Warranty:	1 year;
Speed of Mixing Drum:	17r/min;	Charging Capacity:	1600L;
Port:	shanghai;

Brand New Construction Machine HY160 Concrete Mixer for sale

Product Description

Products Features

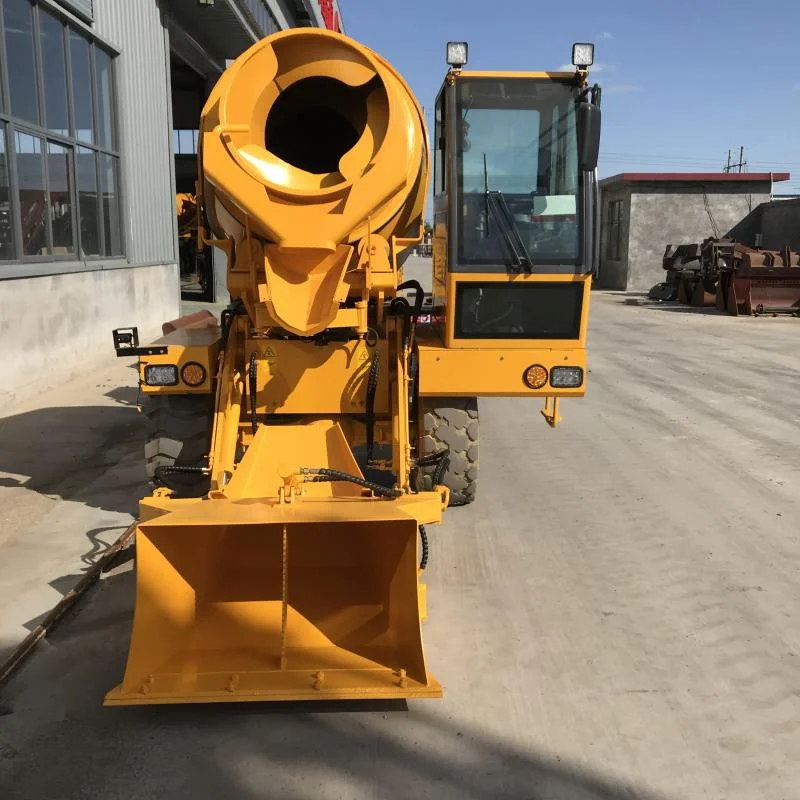

HYMIX 1.6cbm self loading concrete mixer truck is designed to work as a ready-mix concrete delivery vehicle and is suited to work in all types of areas, from busy city centres to remote villages. With a 1.6m3 wet concrete output it can handle all types of concrete deliveries, from large pour volume jobs to small deliveries for the DIY markets. A self loading concrete mixer truck can even work on-the-job as an on-site batching unit.

Specifications

Name	Item		Spec
Overall machine	Net weight		5500kg
	Overall size		618024502626mm(3434mm)
	Transmission		Full Hydraulic
			4WD
	Brake		Air brake
	Chassis		Off-road
	Tread		1600mm
	Wheelbase		2500mm
	Loader bucket		Capacity	0.4cbm
			Control	Hydraulic
	Tilt Angle		30%
	Speed		High speed	0-25KW/H
			Low speed	0-9KW/H
		Tyre Model	20.5/70-16 tyre
Engine		Type	Yunnei	4102
		Rated Power/RPM	60KW
		Cylinder	4
		Starter	Electric
		Cooling type	Water Cooling
Maxing Drum		Drum full capacity	2.2cbm
		Drum work capacity	1.6cbm
		Bank angle	16°
Chute		Swing Angle	≥60°
		Angle control	Hydraulic
		Size	100CM
Loader		Weight model	Computer control
			Concrete standard	C15.C20.C25.C30
		Accuracy	Cement	≤±2%/time
			Relative error	≤±3%/time
			Water	≤±1%/time
			Additive	≤±1%/time
			Admixture	≤±2%/time
Loader control		Hydraulic control 4 way stick
