Factory Outlet Cement Mixer Concrete Mixer Truck Concrete Mixer

Supplier: Zhengzhou Yuandong Machinery Manufacturing Co., Ltd.
Region: Henan, China
Contact: Ms Wendy Wang
Price: $4890.00 / 1 - 1 sets
$4800.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Building Materials Store, Retail, Construction Engineering, Energy & Mining, Food & Beverage Store, Concrete Mixer Truck Concrete Mixer	Mixing tank wall thickness:	5-10mm
color:	custom made	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
Control Method:	CNC controller	Mixing drum speed:	29-35 rpm
productivity:	2900-3200L/H	application:	mixed concrete mortar
Core Components Warranty:	1 year	Recycling capacity:	0.30 -1.0 cubic meters
Health status:	new	Water supply method:	automatic water pump
engine:	electric	Dimensions:	250018002200
product name:	cement mixer concrete mixer truck concrete mixer	Feeding method:	automatic feeding
place of origin; place of origin:	Henan, China	Mechanical test report:	Not available
Working period:	Ideal state mixing drum/1min	Hopper Wall Thickness:	5-10mm
Discharge method:	reverse discharge	Packaging Preview:
Showroom location:	not any	Marketing Type:	New Products 2020
Core components:	Pressure Vessels, Motors, Bearings, Gears, Pumps, Gearboxes, Engines	Supply capacity:	600 concrete batching plants/small concrete mixers per month
Unique Selling Points:	Simple and efficient	Charging capacity:	0.30-1.0 cubic meters
Model:	JZM400	Warranty:	1 year
Discharge height:	custom made	Packaging Details:	1.FCL: Iron wire fixed packed in a container 2.LCL: Plywood box 3. The wire is used to fasten the machine 4. All surfaces will be covered with plastic film 5. According to your requirements cement mixer concrete mixer truck concrete mixer
port:	Qingdao, Shanghai, Shenzhen, Tianjin, Dalian Port China Cement Mixer Concrete Mixer Truck Concrete Mixer	Local service location:	not any
Video external inspection:	Not available	Motor Power:	8-15kW
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cement Mixer Concrete Mixer Truck Concrete Mixer	After-sales service provided:	Video technical support, on-site installation and commissioning training, on-site maintenance and repair services, free spare parts, online support
Stirring power:	5.5kW	brand:	Far East

product description

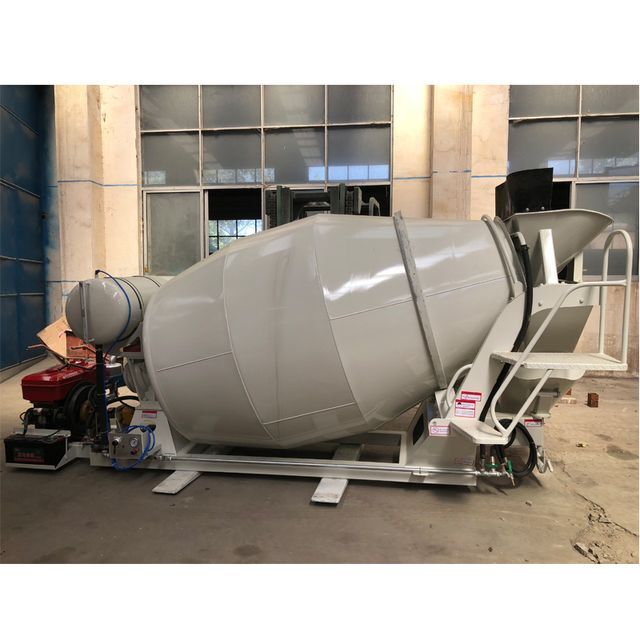

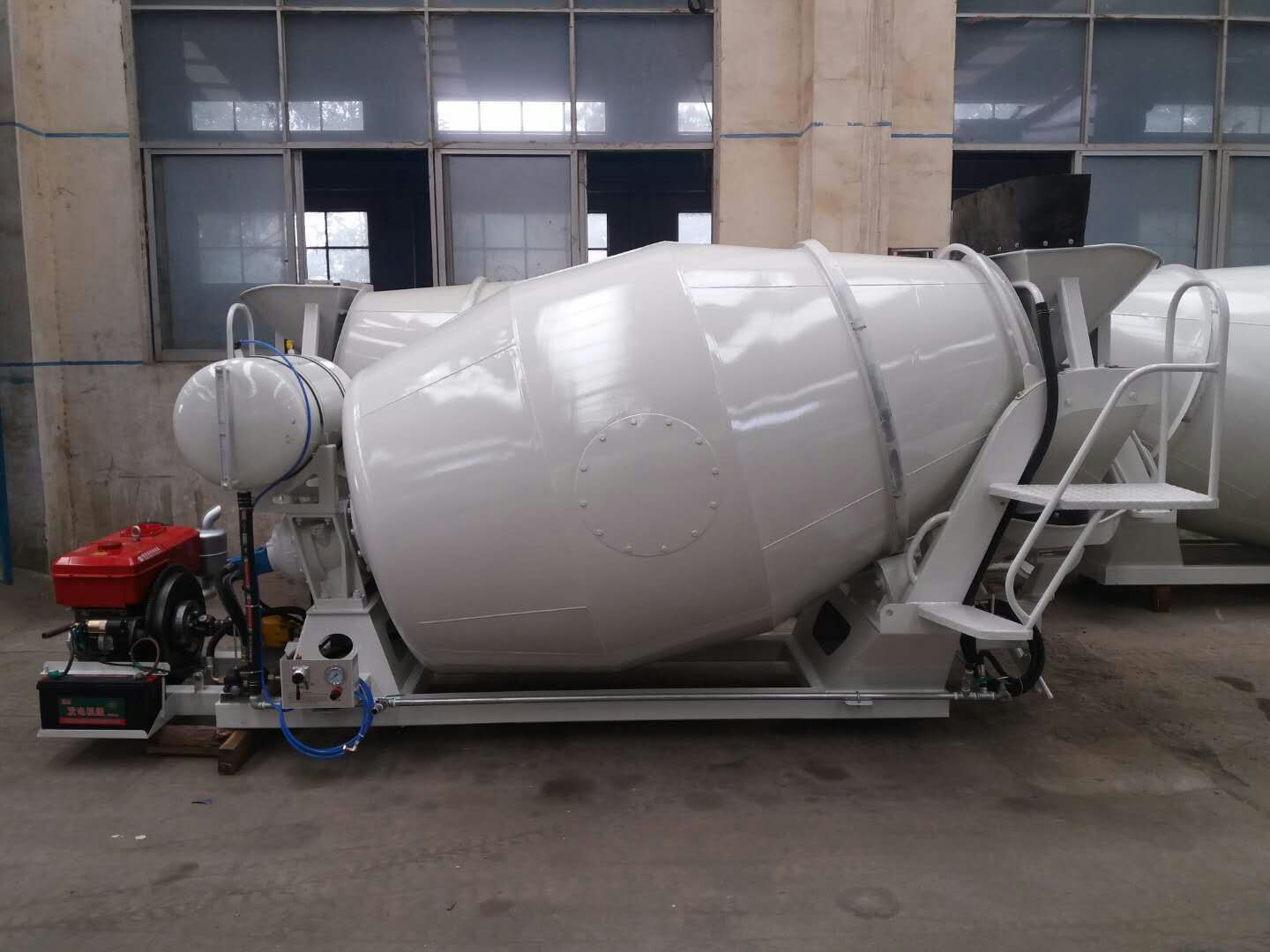

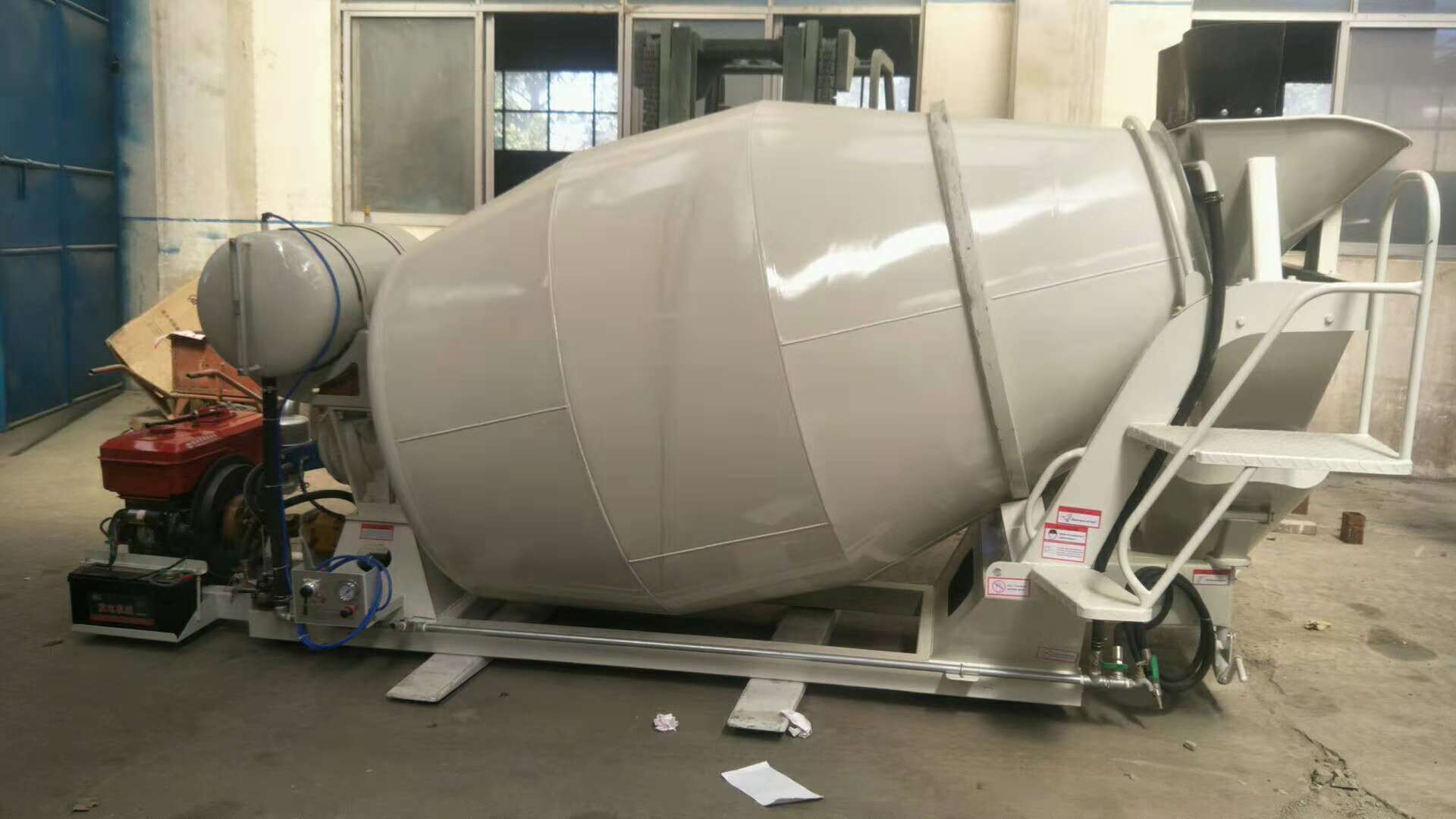

Concrete mixertruck(cementmixertruck) is a special truck used to transport construction concrete; it is often called a snail truck due to its shape. This truck is equipped with a cylindrical mixing drum to transport the mixed concrete. During transport, the mixing drum keeps rotating to ensure that the transported concrete does not set. After the concrete has been transported, the inside of the mixing drum is usually rinsed with water to prevent the hardened concrete from taking up space.

Product Specifications

model	3 yards	4 yards	5 yards	6 yards
Actual capacity	2.25m³	3.30m³	4.24m³	5.20m³

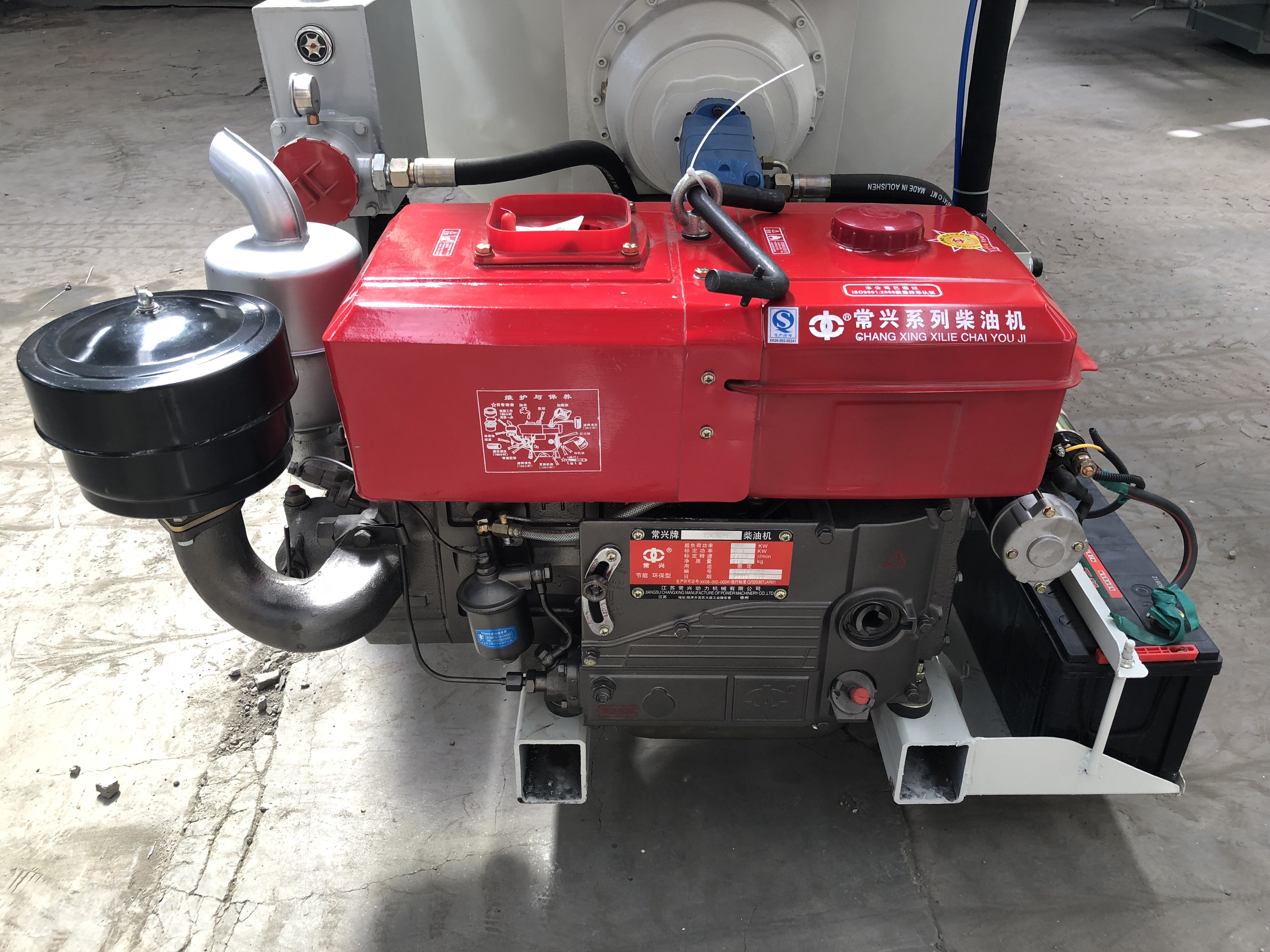

Power Type	Truck Engine or Standalone Diesel Engine
degree of automation	Fully automatic	Fully automatic	Fully automatic	Fully automatic
speed	20-25r/min	18-23 rpm	18-23 rpm	17-22r/min
Installation size (width*length)	780*2750mm	760*3300mm	760*3600mm	800*3950mm

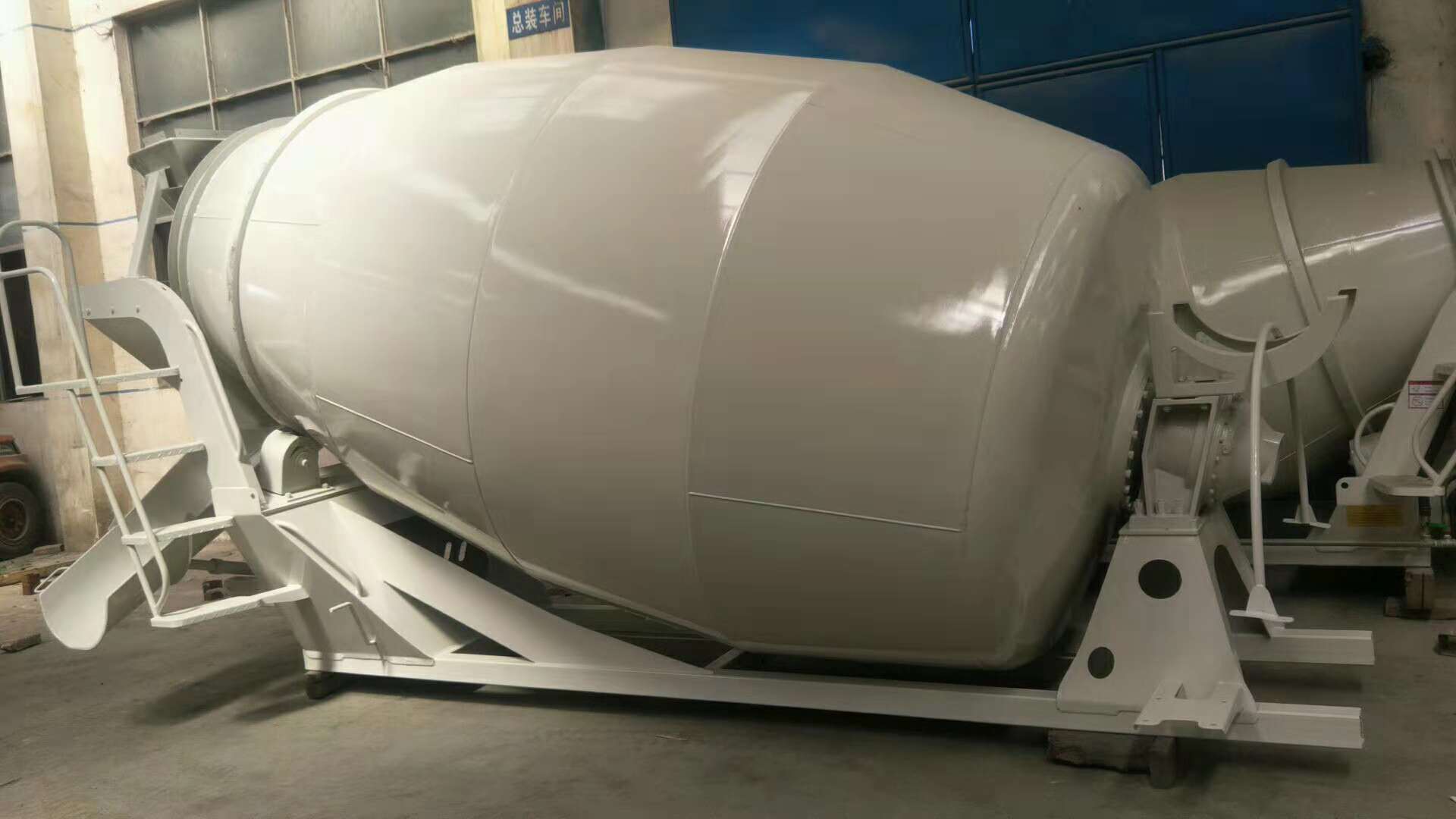

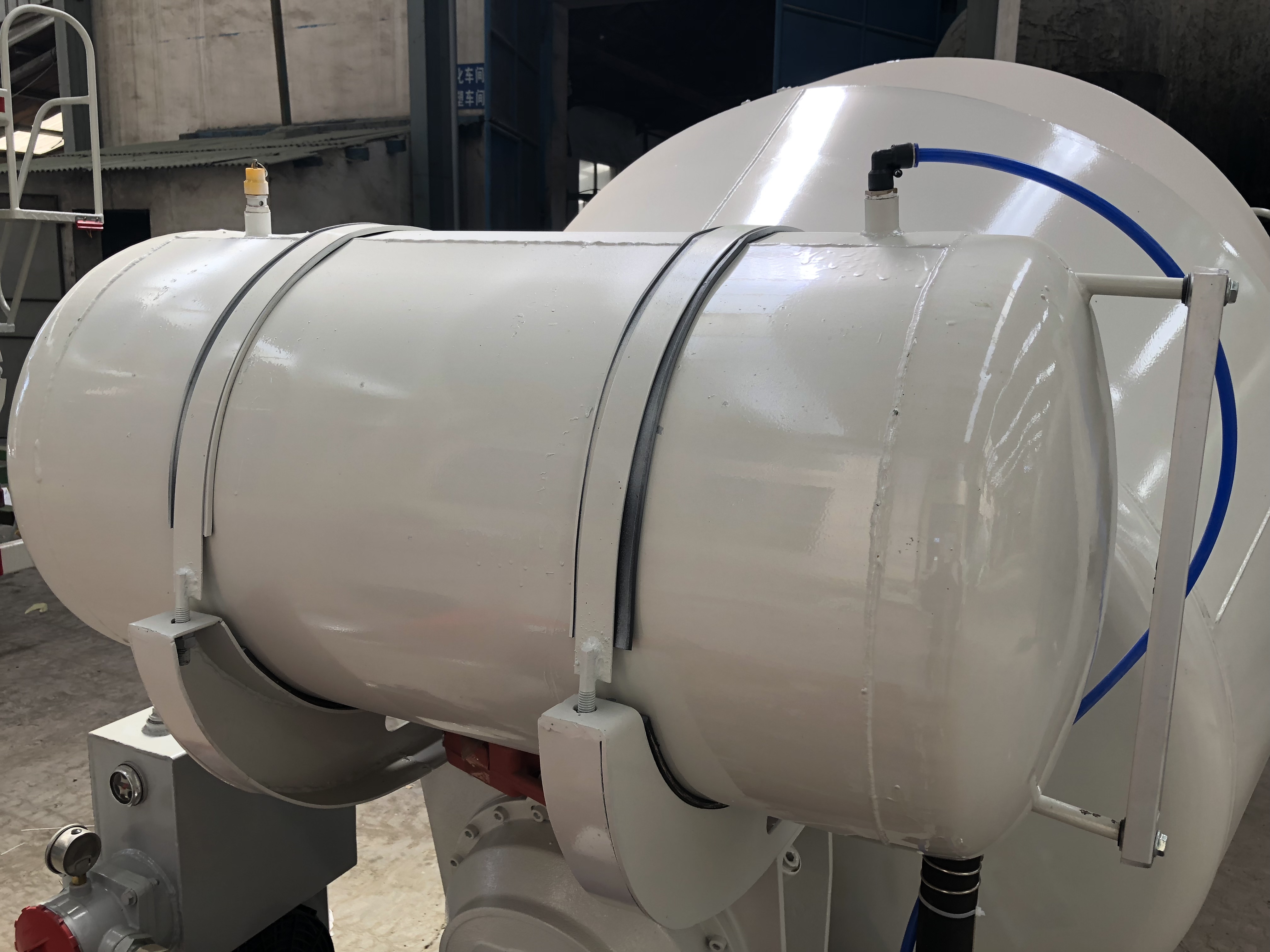

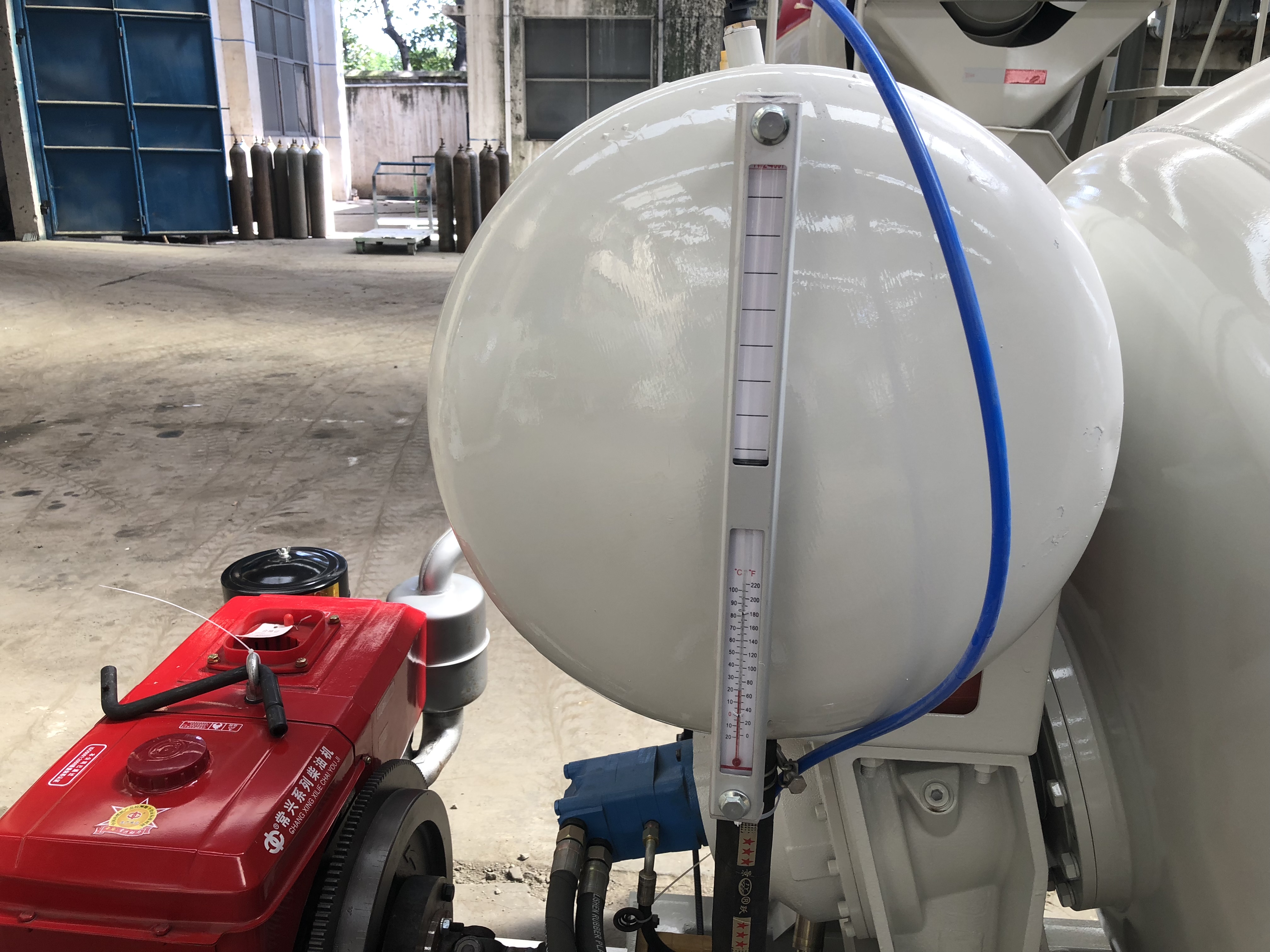

The mixer truck is composed of: Class II chassis, transmission system, hydraulic system, frame, mixing tank, feeding and discharging device, water supply system, control system, ladder and other parts. The front end of the mixing tank is connected with the reducer and installed at the front end of the frame, and the rear end is supported by two supporting wheels installed at the rear end of the frame through the raceway.

Product Details

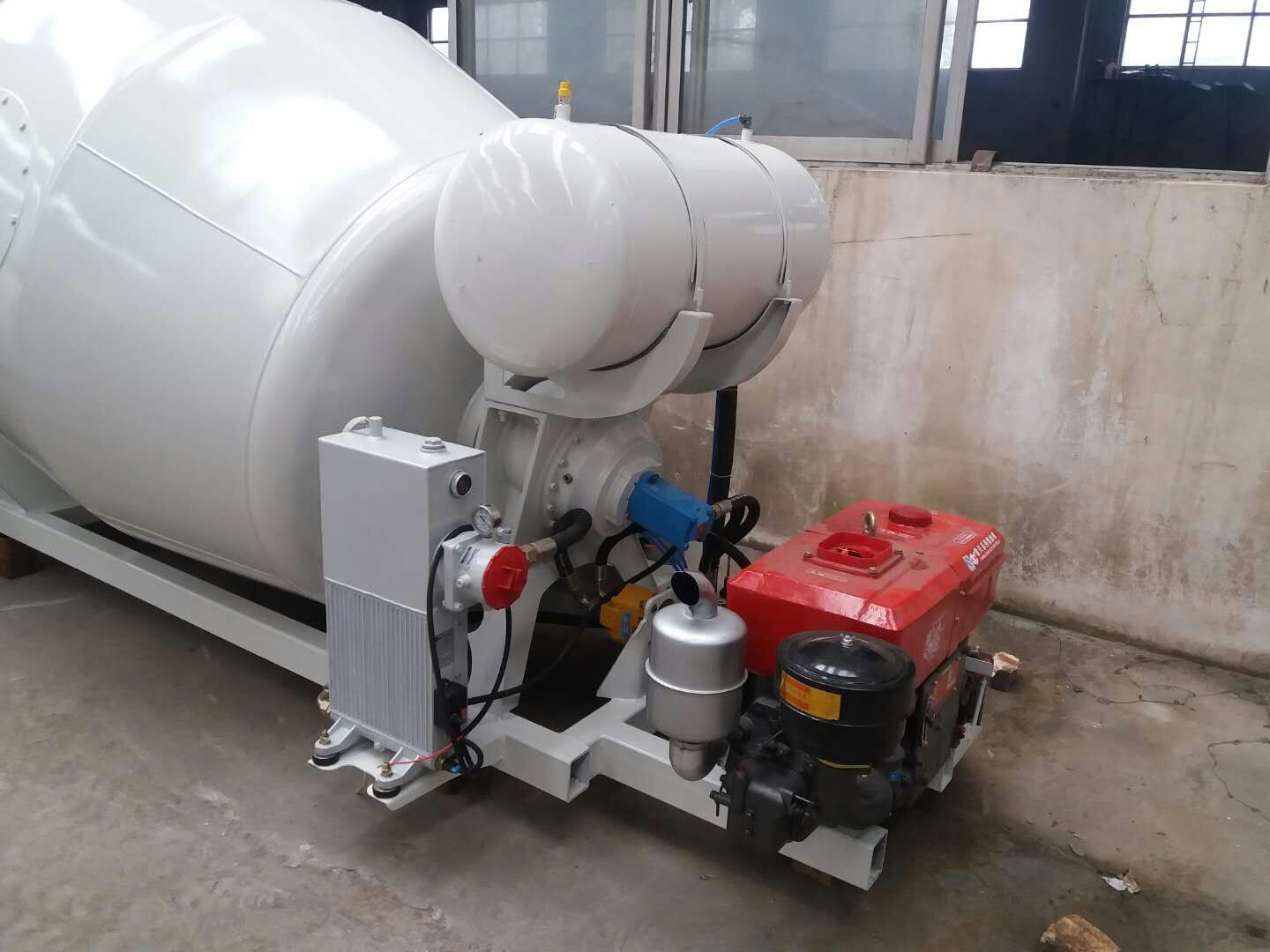

The power is output by the full power PTO of the class II chassis and transmitted to the hydraulic pump through the transmission shaft. The hydraulic energy generated by the hydraulic pump is transmitted to the hydraulic motor through the oil pipe. The hydraulic motor converts the hydraulic energy into kinetic energy and transmits it to the mixing tank through the reducer to reduce the speed and increase the torque. By adjusting the (dual function variable) hydraulic pump servo handle angle, the forward and reverse rotation and rotation speed of the mixing tank can be realized.Realize concrete loading, mixing, mixing, unloading and other operations.
