XCMG Official XDN500 Municipal Engineering Earth Pressure Balance Pipe Fixing Machine
- 100000.00 1 - 4 units
- 10000.00 >=5 units
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| port: | any china port | Packaging Details: | Comply with export packaging requirements |
| Video shipment inspection: | if | payment terms: | L/C, T/T |
| Motor Power: | 37 kW | weight: | 3500.000 kg |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | Mechanical test report: | if |
| Applicable industries: | construction project | Showroom location: | Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia |
| Origin: | China | Package preview: | |
| Health status: | new | brand: | XCMG Group |
| Supply capacity: | 10000 units per year | Dimensions (L*W*H): | 690*3200mm |
| revolution: | 14 rpm | Marketing Type: | normal product |
| Core component warranty: | 1 year | Warranty: | 1 year |
| Moment: | 22kN.m |
Product Description

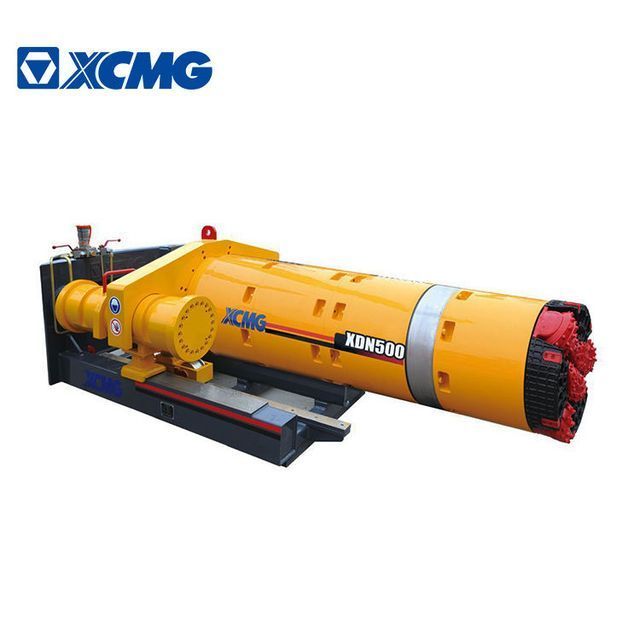

XCMG official XDN500 municipal engineering earth pressure balance pipe jacking machine
1. High reliability: the hydraulic overload protection system is reliable and safe, and has good water resistance.
2. Strong geological adaptability: the speed is steplessly adjustable, and different cutting wheels are designed for different stratum conditions, with strong adaptability.
3. High rock breaking efficiency: The special design of the large eccentric cone crusher can improve the working efficiency of the secondary crushing and also make the stones easier to discharge.
4. Good construction operability: jacking speed and mud flow can be adjusted continuously, making it easier to achieve a balance between jacking speed and mud flow.
4. Good construction operability: jacking speed and mud flow can be adjusted continuously, making it easier to achieve a balance between jacking speed and mud flow.
Product parameters
describe | unit | parameter value | ||
Diameter | ID | mm | Φ500 | |
outer diameter | Φ670 | |||
Outer diameter x length | mm | Φ690×3200 | ||
rotating system | Motor Power | kilowatt | 37 | |
torque | KNm | twenty two | ||
revolution | rpm | 14 | ||
Roll Correction System | force per cylinder | thousand cattle | 150 | |
number of cylinders | EA | 3 | ||
steering angle | ° | 3 | ||
Sizing line diameter | mm | Φ75 | ||
weight | Kilogram | 3500 | ||
Lifting system motor power | kilowatt | 15 | ||
Jacking cylinder | thrust | thousand cattle | 1000 | |
number | EA | 2 | ||
stroke | mm | 760×2 | ||
Launch axis size | mm | Φ2800 | ||
Receiving shaft size | mm | Φ1900 | ||
Charge pump motor power | kilowatt | 5.5 | ||
Discharge pump motor power | kilowatt | 11 | ||
Fuel injection pump motor power | kilowatt | 4 | ||

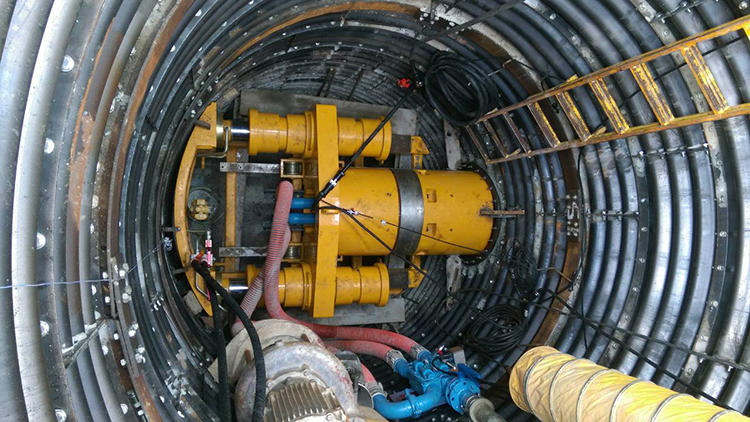

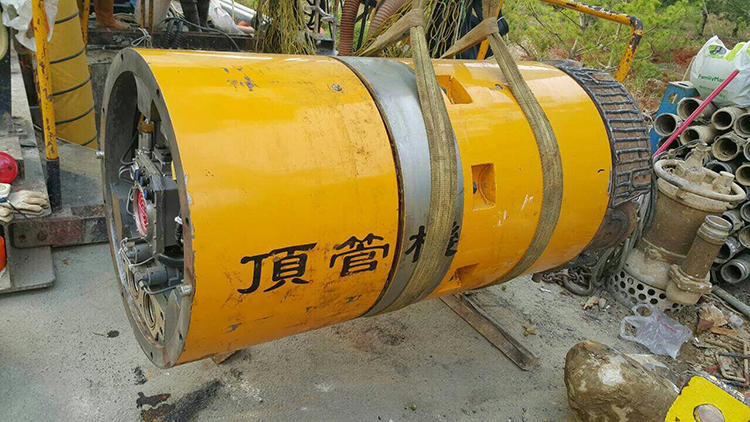

product display
