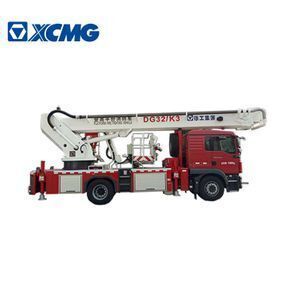

XCMG official manufacturer fire-fighting truck DG32K3 Aerial Platform Fire Truck

Supplier: XCMG E-Commerce Inc.
Region: Jiangsu, China
Contact: Mr Bing Wei
Price: $343800.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Drive Wheel:	4x2;	Transmission Type:	Manual;
Horsepower:	251 - 350hp;	Port:	Shanghai Port, Liangyungang Port, Qingdao Port.;
Packaging Detail:	1.The Seller shall have the contract goods packed strongly . 2.The Seller shall take measure to protect the contract goods from moisture, rust, shock and rough handing, etc. as well as long-distance transportation and to ensure the safe arrival of the goods at the contract site without any damage. 3. Shipping marks shall be provided by buyer.;	Size:	950024803820(mm);
Place of Origin:	Jiangsu China;	Emission Standard:	EURO 5;
Condition:	New;	Payment Terms:	L/C,T/T;
Supply Ability:	10000 Unit/Units per Month;	Brand Name:	XCMG;
Type:	Aerial;	Fuel Type:	Diesel;
Max. Work Height:	32;

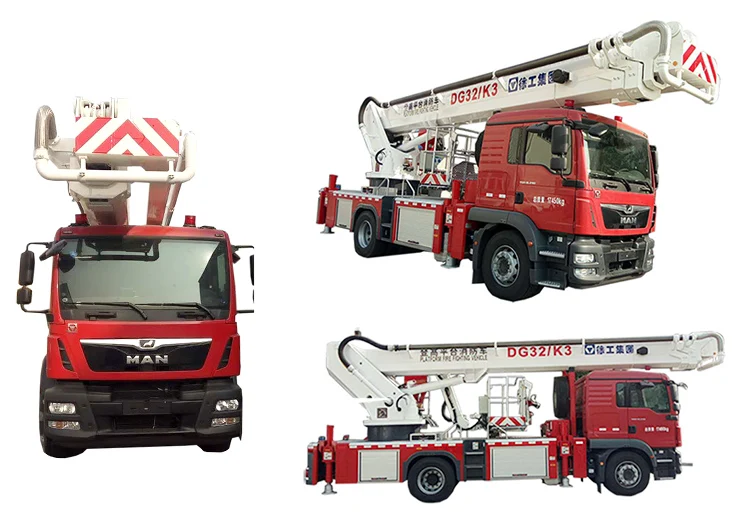

DG32K3 ladder truck is a kind of compact fire fighting main vehicle which is driven by full hydraulic pressure, full rotation, combination arm (two groups of telescopic arms + one curved arm), and is mainly based on high altitude rescue and has the function of extinguishing fire. The vehicle is widely used in high-altitude fire rescue operations in cities, factories, mines, ports, and other places. It is the first choice for extinguishing high-rise building fires, rescue personnel in distress and rescue of property.

Advantages and highlights

1. The chassis of the vehicle adopts the original Germany Man TGM 18.290 4×2 chassis, with nine forward gears, one reverse gear, and the maximum speed is not less than 96km/h; the engine model is D0836LFLAL, the rated power is 213kW; the emission meets the requirement of the national V emission standard; it has the ABS anti-lock function; it adopts the electronic control module control and hydraulic assisted shift, the operation is stable and reliable.

2. The ladder truck is equipped with an American Akron 3578/5177 electronically controlled fire monitor in front of the working platform to achieve high altitude and ground fire extinguishing operations. The water inlet and control valve are fully equipped and easy to operate.

3. It uses CAN bus PLC control. The upper vehicle operation can be carried out on the turntable as well as on the work platform. The humanized multimedia display system on the control console can display the dynamic working parameters of the whole machine at any time and perform safety control. The electronic amplitude limiter equipped makes the whole operation simple, safe and reliable.

4. This ladder truck uses advanced electro-hydraulic proportional control technology. The main electrical and hydraulic components are imported, all of the imported hydraulic sealing components and high-precision pipes adopt hydraulic hard pipes. The system has high reliability, stable operation and good micro-motion.

5. It has a unilateral operation function to meet the needs of small space operations.

Items					Parameters
Size parameters	Boundary dimension(L×W×H) (mm)				9500×2480×3820


	Wheel base			mm	4425
	Wheel track			mm	2066/1802
	Front overhang/rear overhang			mm	1400/2545
Driving parameters	Maximum speed			km/h	≥90
	Minimum turning diameter			m	≤17
	Braking distance (full load, initial braking speed 30km/h) m				≤10
	Approach / departure angle			°	≥18/≥12
	Maximum gradeability			%	≥25
Quality parameters	Curb weight		Total mass	kg	17300
			First shaft	kg	6100
			Second shaft	kg	11200
	Maximum allowable total mass		Total mass	kg	17450
			First shaft	kg	6250
			Second shaft	kg	11200
Chassis parameters	Model				TGM18.290
	Drive type				4×2
	Manufacturer				German MAN Commercial Vehicles Corporation
	Engine		Model		D0836LFLAL
			Fuel types and labels		Diesel/0#(In winter:-10#)
			Emission Standards		National V
			Displacement L		6871
			Maximum net power	kW	213
			Rated power/speed	kW/(r/min)	215/2300
			Maximum torque/speed	N·m/(r/min)	1150/1200~1750
			Manufacturer		German MAN Commercial Vehicles Corporation
	Number of leaf springs (front/back)				1/3
	Tire specifications				295/80R22.5
	Spare tire specification				295/80R22.5
	Number of tires (number of spare tires)				6
	Passengers			people	2
Operation performance	Rated working height (m)				≥32
	Rated working range (m)				≥20
	Working platform dimensions (length × width × height) (m)				2000×900×1125
	Working platform rated load (kg)				500
	Leg span (vertical × horizontal) (m)				5250×5800
	Arm rest development time (s)				≤90
	Spread time of outrigger (s)				≤35
	Maximum slewing speed (r/min)				0.2~1.0
	Fire fighting gun	Water shooting	Model		3578+5177
			Rated flow (L/s)		60
			Rated pressure (Mpa)		≤1.0
			Rated firing range (m)		≥70
		Swinging range of the head	Pitch angle (°)		≤-45~≥+45
			Elevation angle (°)		≥170
	Arm rest	Arm length	No. 1 arm	Basic arm (mm)	9100
				Total stretched arm (mm)	20900
			No. 2 arm (mm)		6800
			Crank arm (mm)		1800
		Range of amplitude	No. 1 arm(related to water level) °		0~+80
			The angle of the second arm relative to the first arm °		0~180
			Crank arm(related to No. 2 arm)°		70~270
