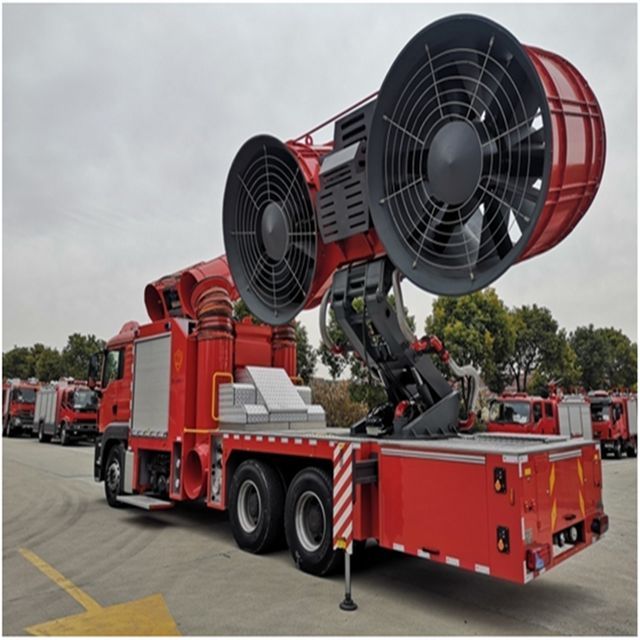

Shanghai Jindun new generation large smoke exhaust fire truck for sale

Supplier: Shanghai Jindun Special Vehicle Equipment Co., Ltd.
Region: Shanghai, China
Contact: Mr Howard Da
Price: $400000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Fuel tank capacity:	< 3000 liters	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
horsepower:	> 450 hp	size:	6095X2000X3260mm
Origin:	China Shanghai	Gasoline type:	diesel engine
type:	smoke, double sided	port:	Shanghai port
Chassis brand:	man	Wheelbase:	3310mm
Drive wheel:	6x4	Packaging Details:	The packaging of the fire rescue vehicle will be our export standard. We will choose the best transportation type according to the truck volume, truck structure, Sail Schedule and customer's requirements!
color:	Red	Transmission type:	manual
Driver type:	6x4	Maximum power:	353 kW
Maximum speed:	115km/h	maximum. Working height:	5 meters
Supply capacity:	300 units per year	Health status:	new
Emission Standards:	5 euros	Warranty:	1 year
gross weight:	4000 kg	seat:	1
brand:	Golden Shield

Shanghai Jindun new generation large smoke exhaust fire truck for sale

Product Description

two.Chassis (original import)

1.main specifications

Model: TGS 33.480 6X4 BB

CCC Model: TGS 33.480

Drive type: 6x4

Cab: MAN TGS L Cab

Wheelbase (mm): 5,100+1400

Rear Suspension (mm): 2,750

Maximum engine power: 353 kW/480 HP (G5)

2.Carrying capacity

Chassis weight: 9,593 kg (4996+4597, this data is for reference only)

Maximum permissible load: 23,407 kg (wheelbase 5,100 mm)

Allowable load on the front axle: 7,500 kg (7,000 KG for record)

Rear axle allowable load: 2x13, 000 kg (26000KG)

Allowable gross vehicle weight: 33,000 kg

3.Performance

Top speed: 108 km/h (89 km/h with electronic speed limiter)

Minimum turning diameter: 21.7M

Minimum ground clearance: 254 mm (front); 305 mm (rear)

4.taxi

TGS L cab (narrow body, standard roof), 2240mm wide, 2280mm deep, fire red, high-comfort air spring main driver's seat, single front passenger seat, rear berth. Qiz billion storage space, automatic temperature control environment air-conditioning system (R134A refrigerant, no Freon), car multimedia (color screen + USB interface), central door lock, electric windows on both sides, electric thermal rearview mirrors on both sides, two Side electric thermal wide-angle mirror, right electric thermal rearview mirror, right front mirror, etc.

Packaging and Shipping

Packaged in nude, waxed via ro-ro or bulk vessel.

our service

1. We always provide a professional fire truck service team.

2. Any questions about the fire truck will be answered within 24 hours.

3. Good quality, reasonable price and fast delivery.

4. Our chassis are directly from other factories. No middlemen, no high prices. At the same time, we research and develop together with MORITA CORPORATION. Therefore, we can provide you with good quality fire trucks at competitive prices.

5. We guarantee that all of our trucks will go through strict quality control and test report to make sure it is in good condition before shipment. We strive to achieve 100% customer satisfaction with every sale we close.

6. We provide a 12-month warranty for the fire trucks.

7. We provide spare parts to customers in time.

8. Our mission is to provide good quality to save lives.

9. Such as military fire trucks Chinese aircraft carrierMade by us.
